Pentair Tube Sheet Coil Assembly Replacement Kit | MasterTemp & Max-E-Therm 400 | 77707-0234

4.8 ★★★★★ (87) ▾
$1,342.99
/
Genuine Pentair OEM Part Guaranteed Authentic
Pentair Authorized Dealer Full Manufacturer Warranty Support
Free Shipping On this item
No Hassle Returns 30 Days Paid Returns
SKU:
77707-0234

  • Poolaroo Promise

    • Fast Shipping — Ships in 1–2 Business Days
    • 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
    • Powered By People Who Care - No Faceless Conglomerate

About This Item

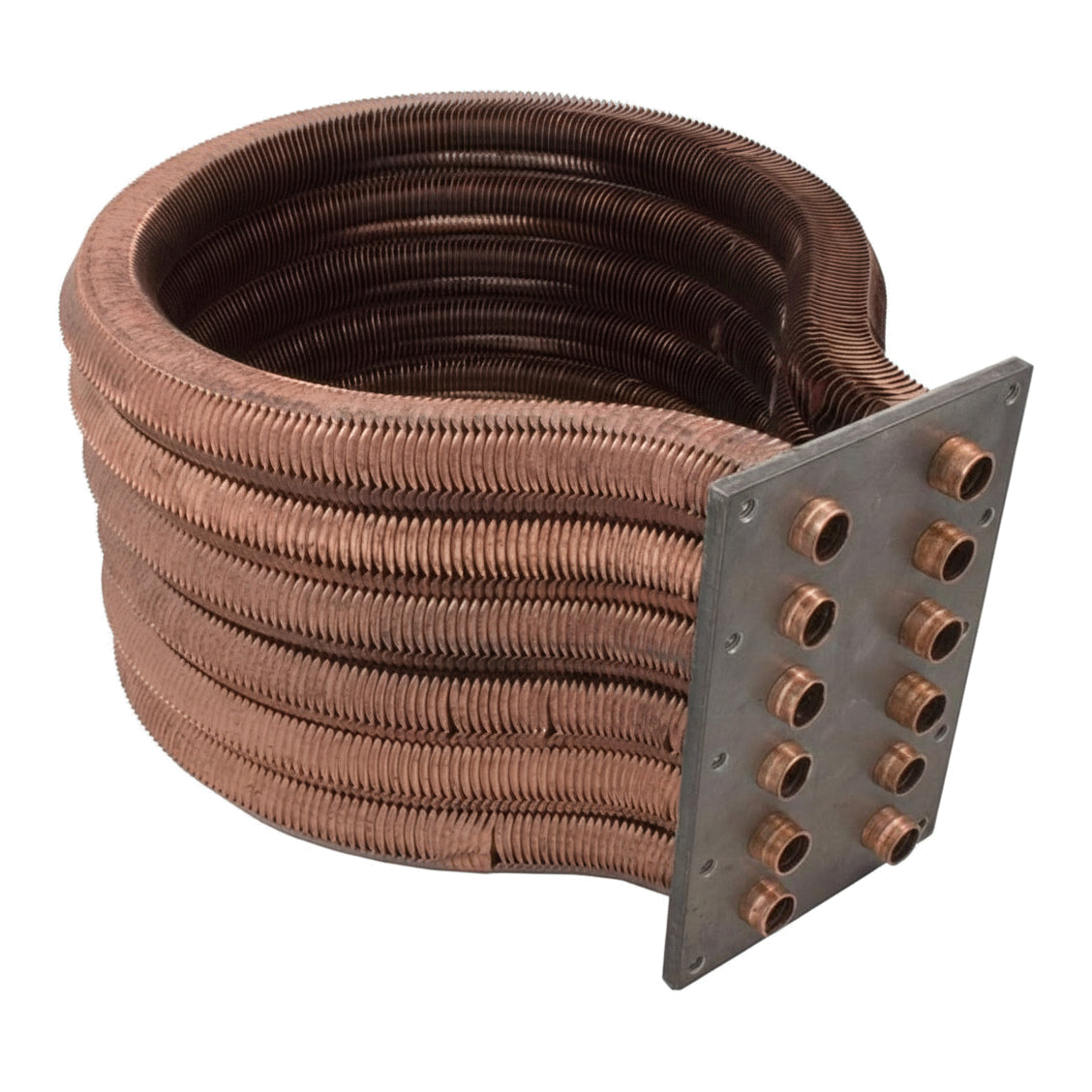

The Pentair Tube Sheet Coil Assembly Replacement Kit (77707-0234) is the replacement heat exchanger assembly for the Pentair MasterTemp 400 and Pentair Sta-Rite Max-E-Therm 400 pool and spa heaters.

IMPORTANT: HEATER COMPONENT — PROFESSIONAL SERVICE REQUIRED
Gas and electrical heater components must be serviced by a licensed pool professional or qualified HVAC technician. Do not attempt to service gas or high-voltage components without proper certification.

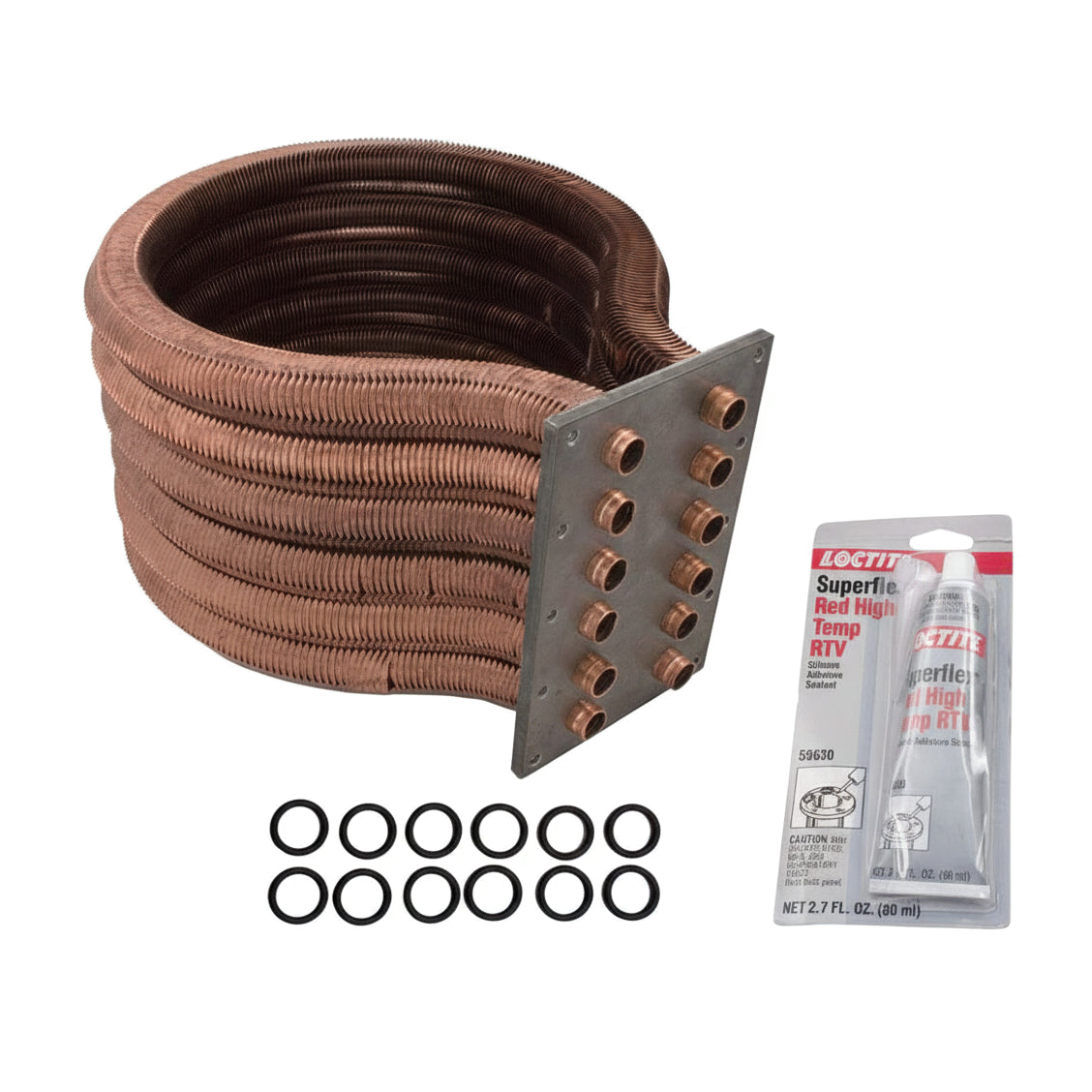

This kit services the heat exchanger core of the MasterTemp 400NA, 400LP, and Max-E-Therm 400 heaters. It includes the 400,000 BTU tube sheet coil assembly and the coil tubesheet sealing O-ring kit, providing all primary components needed for a complete heat exchanger service.

Specifications

Pentair Part Number 77707-0234
BTU Rating 400,000 BTU

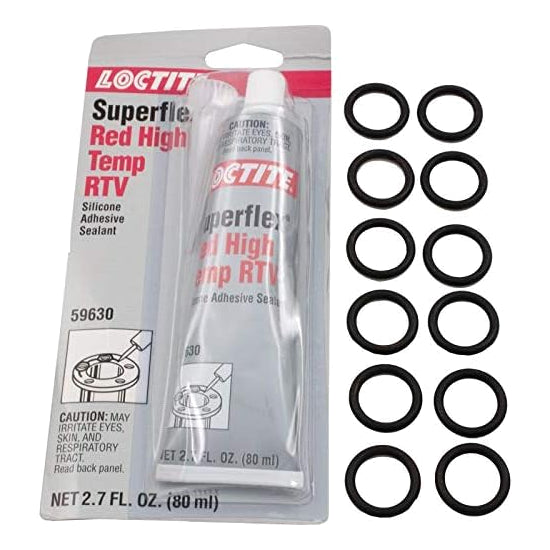

Kit Contents Tube sheet coil assembly; coil tubesheet sealing O-ring kit
Compatible Fuel Types Natural Gas (NA); Liquid Propane (LP)
Compatible Equipment Pentair MasterTemp 400NA, 400LP; Pentair Sta-Rite Max-E-Therm 400

Poolaroo Pro Tip

The tube sheet coil assembly is a primary heat transfer component — scale buildup and corrosion from improper water chemistry are the leading causes of premature failure. Before installing this replacement kit, verify that your pool water's pH (7.4–7.6), total alkalinity (80–120 ppm), and calcium hardness (200–400 ppm) are within range. Heater manufacturers recommend balancing water chemistry before returning the heater to service after any heat exchanger repair. This service must be completed by a licensed pool professional or qualified HVAC technician.

CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
