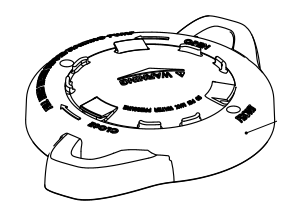

Pentair Lid/Locking Ring Assembly for Max-E-ProXF & IntelliProXF Pumps | 401006Z
- Low stock - 4 items left
- Backordered: contact us for ETA
- SKU:
- 401006Z
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item
The Pentair Lid/Locking Ring Assembly (401006Z) is the OEM replacement lid and locking ring assembly for the Max-E-ProXF and IntelliProXF variable speed pump series.
IMPORTANT: VERIFY PUMP MANUFACTURE DATE
On IntelliProXF VS pumps, this assembly fits units manufactured after August 2015. Check your pump's build date or compare against your original part before ordering to confirm fitment.
This assembly forms the sealed closure over the pump strainer housing. The locking ring secures the lid against the housing O-ring to maintain the airtight seal required for the pump to prime and hold consistent suction — a worn, cracked, or stripped locking ring is a common source of air leaks and prime loss on these pump series.
Specifications
| Pentair Part Number | 401006Z |
| Also Known As / Base Part Number | 401006 |
| Part Name | Max-E-ProXF VS Lid/Locking Ring Assembly |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | MAX-E-PRO XF Series | MAX-E-PRO XF | — |
| Pentair | Max-E-ProXF | Max-E-ProXF VS | — |
| Pentair | IntelliPro Family | 023055 (IntelliProXF VS) | Lid and locking ring assembly; for IntelliProXF VS pumps manufactured after August 2015 |
| Pentair | IntelliPro Family | 023056 (IntelliProXF VSF) | Lid and locking ring assembly |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before reinstalling, inspect the lid O-ring for flat spots, nicks, or hardening — a worn seal will cause the same air-lock symptoms as a failed locking ring even after this part is replaced. Hand-tighten the locking ring evenly in a star pattern rather than cranking down on one side; overtightening can crack the ring or distort the housing threads.
