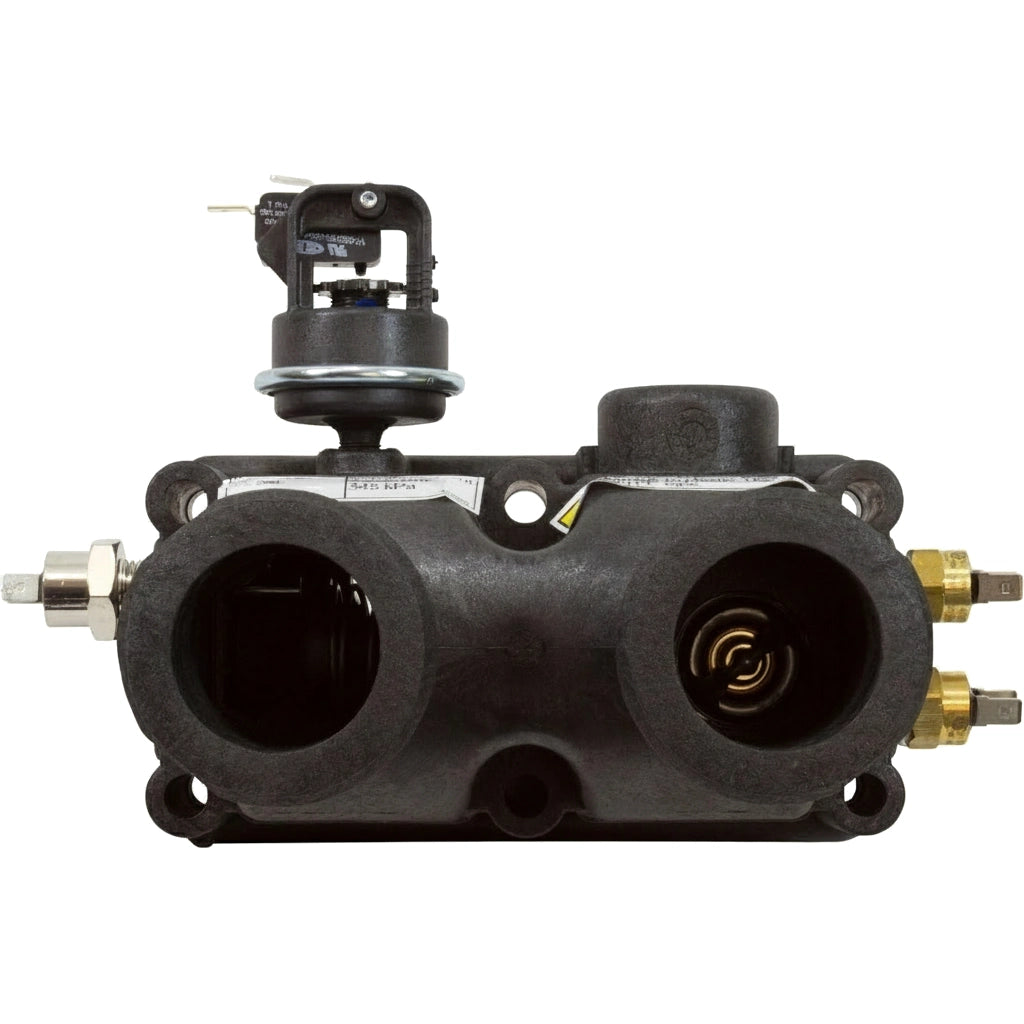

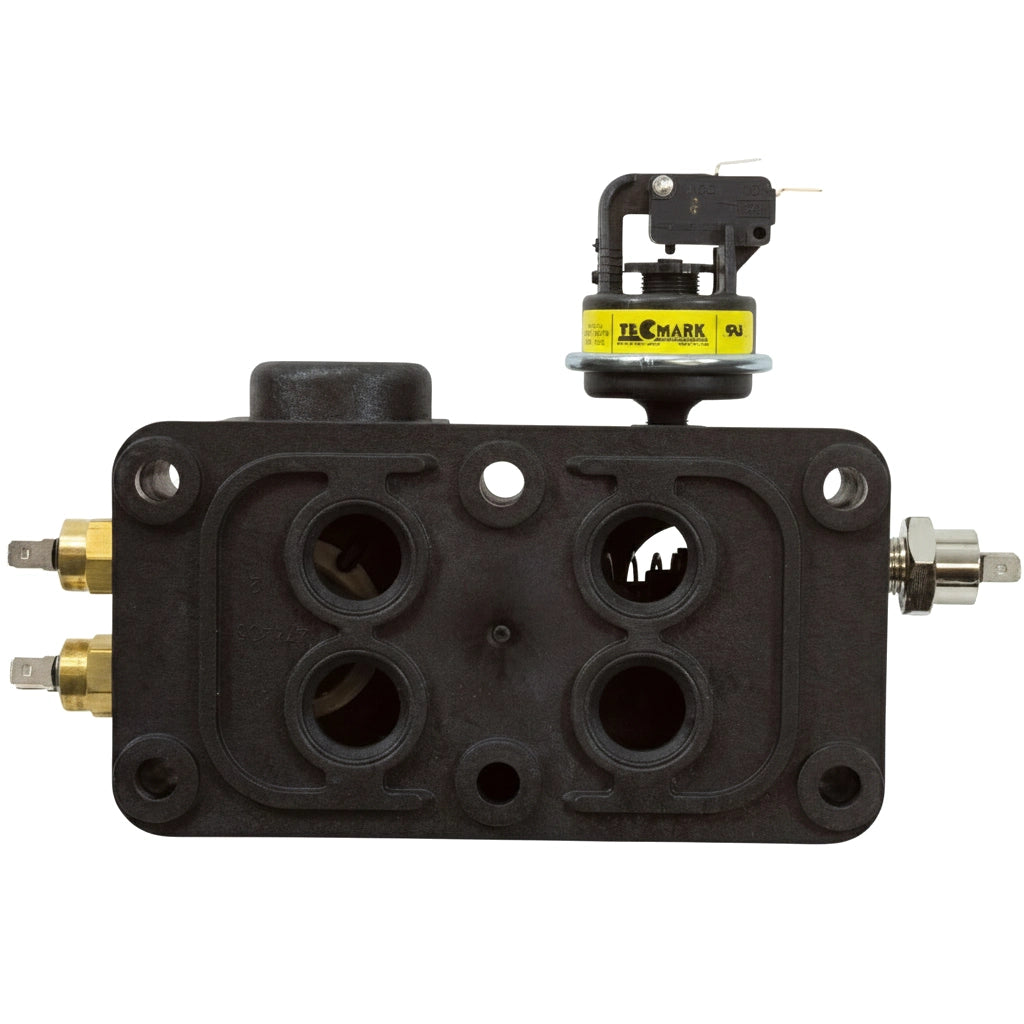

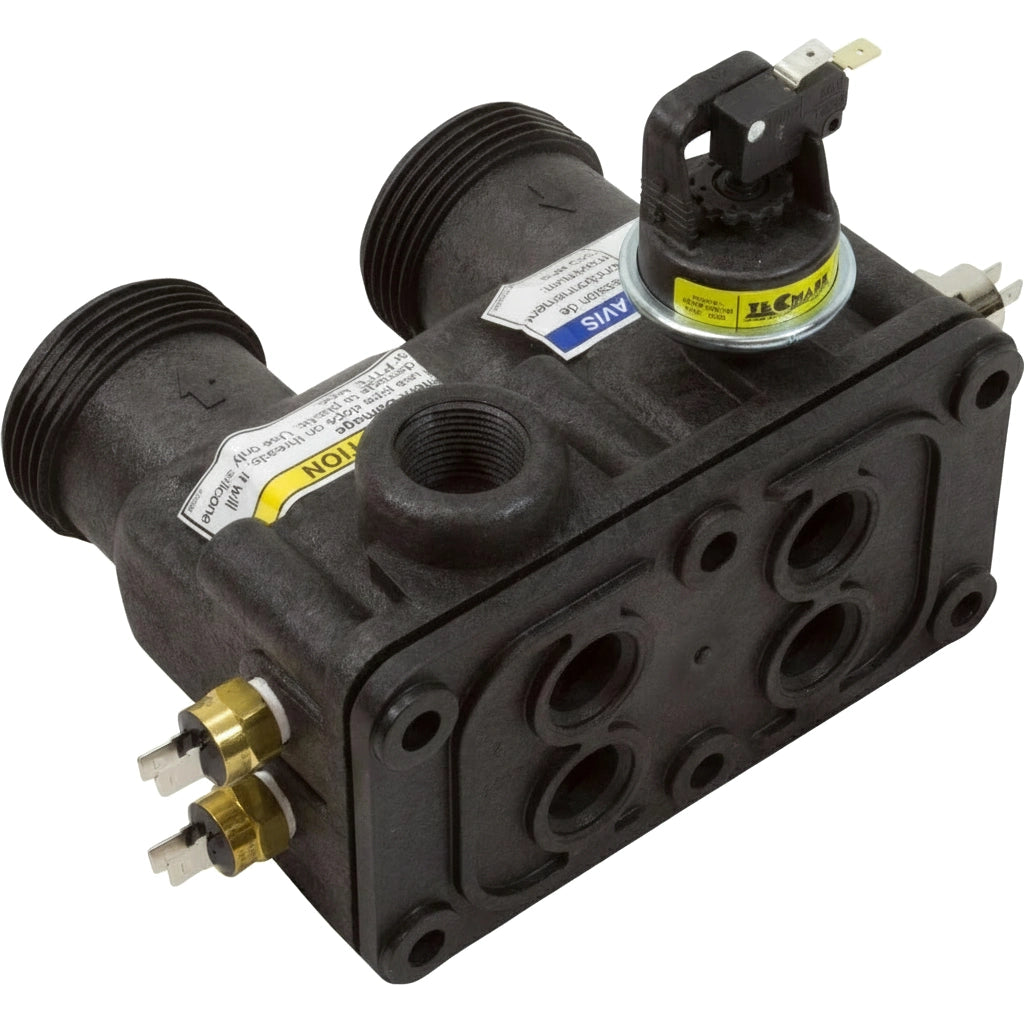

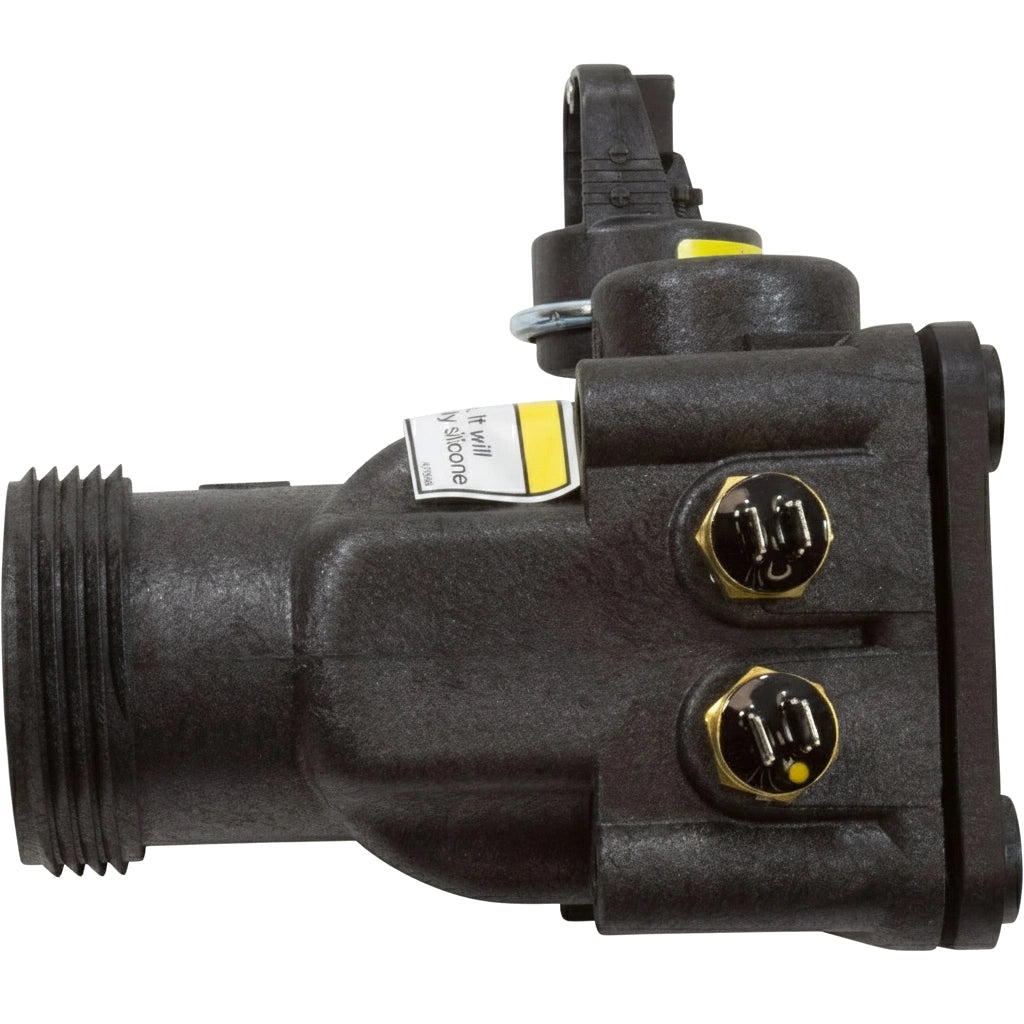

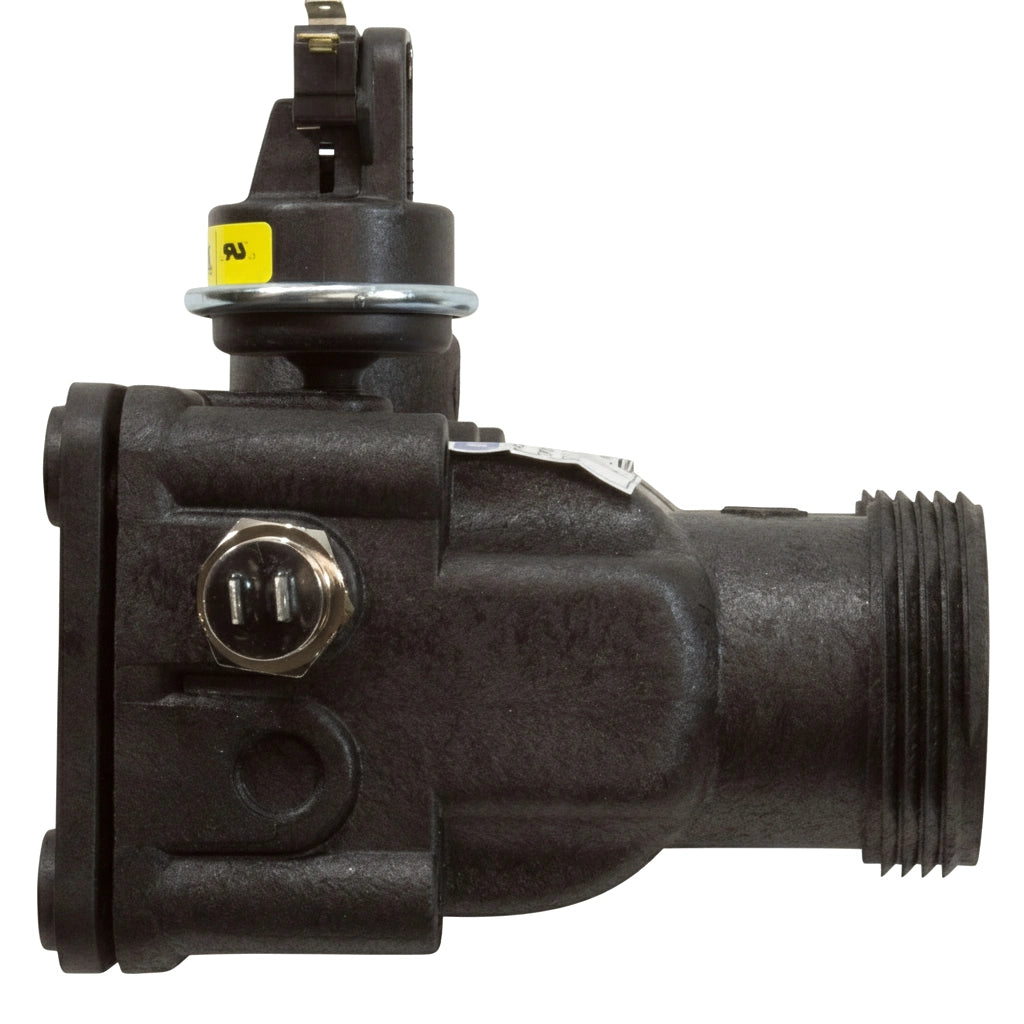

OEM Manifold Kit for the Pentair MasterTemp 125 Heater
The Pentair Manifold Kit (474972) is the OEM replacement manifold service kit for the MasterTemp 125 pool and spa heater. This kit supplies the complete set of sealing and insulation components required for a full manifold service on the MasterTemp 125.
⚠️ IMPORTANT: KIT LISTING — MULTIPLE COMPONENTS INCLUDED
This listing is a kit, not a single part. It includes the components listed in the Specifications table below. Note that items #8 and #13 from the MasterTemp 125 exploded diagram are not included in this kit — order those separately if required.
⚠️ IMPORTANT: LICENSED PROFESSIONAL INSTALLATION REQUIRED
Gas and electrical heater components must be serviced by a licensed pool professional or qualified HVAC technician. Do not attempt to service gas or high-voltage components without proper certification.
The manifold assembly on the MasterTemp 125 routes water through the heat exchanger and integrates the bypass valve to regulate flow and protect the heat exchanger from thermal stress. Over time, O-rings and gaskets in this assembly degrade from heat cycling, causing water leaks or combustion gas bypassing. This kit restores the manifold to OEM sealing specification, addressing the coil/tubesheet interface, blower and igniter gaskets, and the bypass valve in a single service.
Specifications
| Pentair Part Number |
474972 |
| Kit Contents |
O-Rings, Insulation, Igniter Gasket, Blower Gasket (Items #3, #4, #5, #6, #7, #9, #10, #11 per MasterTemp 125 exploded diagram) |
| Items Not Included |
Items #8 and #13 (order separately if required) |
| Quantity Included |
Kit |
Fits Into
| Brand |
Equipment Line |
Model / Part Number |
Notes |
| Pentair |
MasterTemp 125 Heater — MasterTemp Series |
MT125 |
Manifold Kit for MasterTemp 125 |
| Pentair |
MasterTemp 125 Heater — MasterTemp Series |
MASTERTEMP 125 |
— |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before ordering, cross-reference part number 474972 against the exploded diagram in your MasterTemp 125 installation manual to confirm which items your service requires. If items #8 or #13 are also showing wear, source those separately before beginning the repair — having all components on hand before draining the heater avoids a second service call. Because this kit includes O-rings that seat against the heat exchanger tubesheet, inspect the tubesheet face for corrosion or pitting before reassembly; a damaged seating surface will cause the new O-rings to leak regardless of installation quality.
