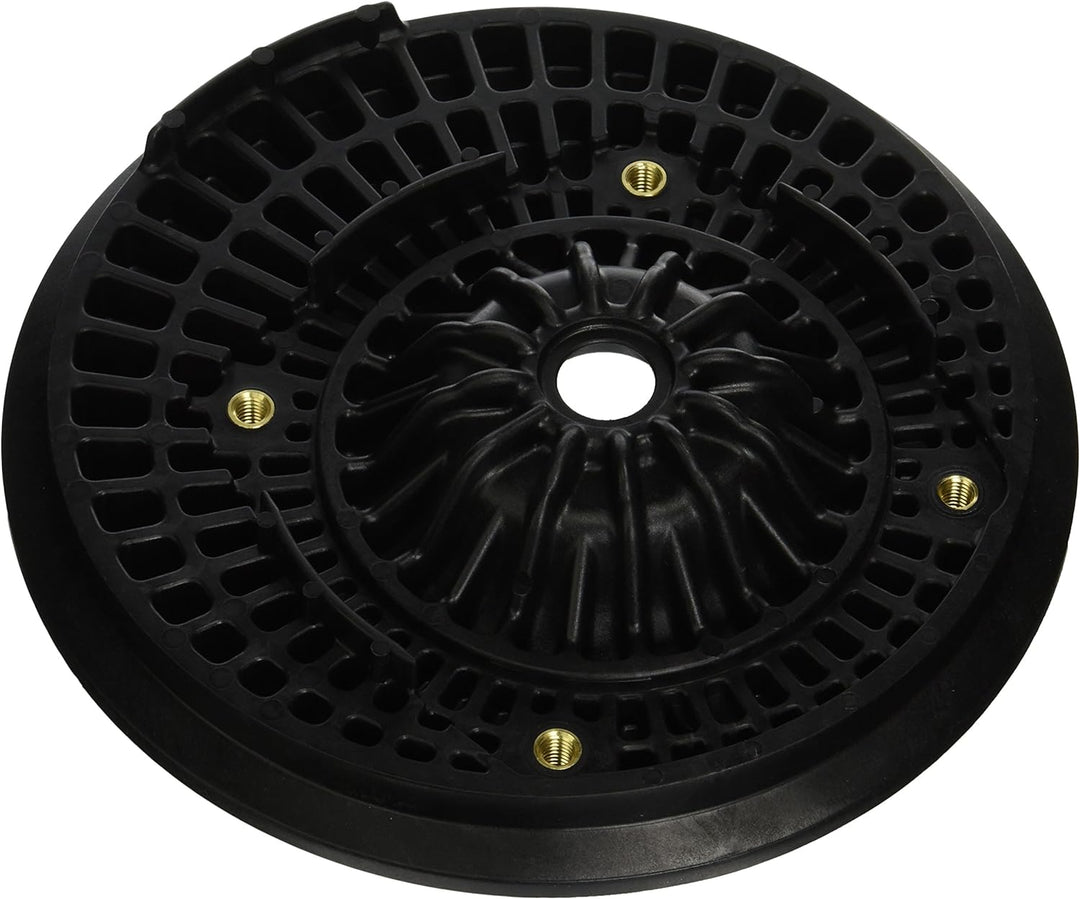

Pentair Seal Plate Kit | Max-E-Pro Series Pump | C203-194P
- In stock, ready to ship
- SKU:
- C203-194P
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item
The Pentair Seal Plate Kit (C203-194P) is the OEM replacement seal plate kit for the Max-E-Pro Series inground pump line, including the MAX-E-PRO Series DOE models.
⚠️ IMPORTANT: KIT LISTING — MULTIPLE COMPONENTS INCLUDED
This listing is a kit, not a single seal plate. It includes the seal plate and associated components (Part Nos. 6 and 7 from the Max-E-Pro pump assembly diagram, see below). Confirm you need the complete kit before ordering individual components separately.
The seal plate forms the critical interface between the pump's wet end and the motor assembly, housing the shaft seal and providing the mounting surface that keeps water isolated from the motor. When the seal plate or its associated seal components wear or crack, water can migrate toward the motor bearing assembly, leading to premature motor failure. Replacing the seal plate kit at the first sign of leakage behind the pump volute protects the motor and restores pump integrity.
Specifications
| Pentair Part Number | C203-194P |
| Part Name | Seal Plate Kit |
| Quantity Included | Kit (includes Part Nos. 6 and 7, see below) |
| Compatible Equipment Series | MAX-E-PRO Series / MAX-E-PRO Series DOE |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | MAX-E-PRO Series DOE Pump | 348185 | Includes Item Nos. 3–4 |
| Pentair | Max-E-Pro Series Pump | 345076 | MAX-E-PRO Series; includes items 6 and 7 |
| Pentair | Max-E-Pro Series Pump | 345079 | MAX-E-PRO Series; includes items 6 and 7 |
| Pentair | Max-E-Pro Series Pump | P6R62E3-187 | MAX-E-PRO Series; includes items 6 and 7 |
| Pentair | Max-E-Pro Series Pump | P6R62F3-188 | MAX-E-PRO Series; includes items 6 and 7 |
| Pentair | Max-E-Pro Series Pump | P6EA6D36-204 | MAX-E-PRO Series; includes items 6 and 7 |
| Pentair | Max-E-Pro Series Pump | P6EA6E36-205 | MAX-E-PRO Series; includes items 6 and 7 |
| Pentair | Max-E-Pro Series Pump | P6EA6F36-206 | MAX-E-PRO Series; includes items 6 and 7 |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
When you have the pump open to replace the seal plate, it is good practice to replace the shaft seal at the same time — a worn shaft seal is the most common cause of seal plate failure and is inexpensive relative to the labor involved in reassembly. Cross-reference the item numbers in your Max-E-Pro pump's exploded diagram above to confirm Part Nos. 6 and 7 match your assembly before ordering.
