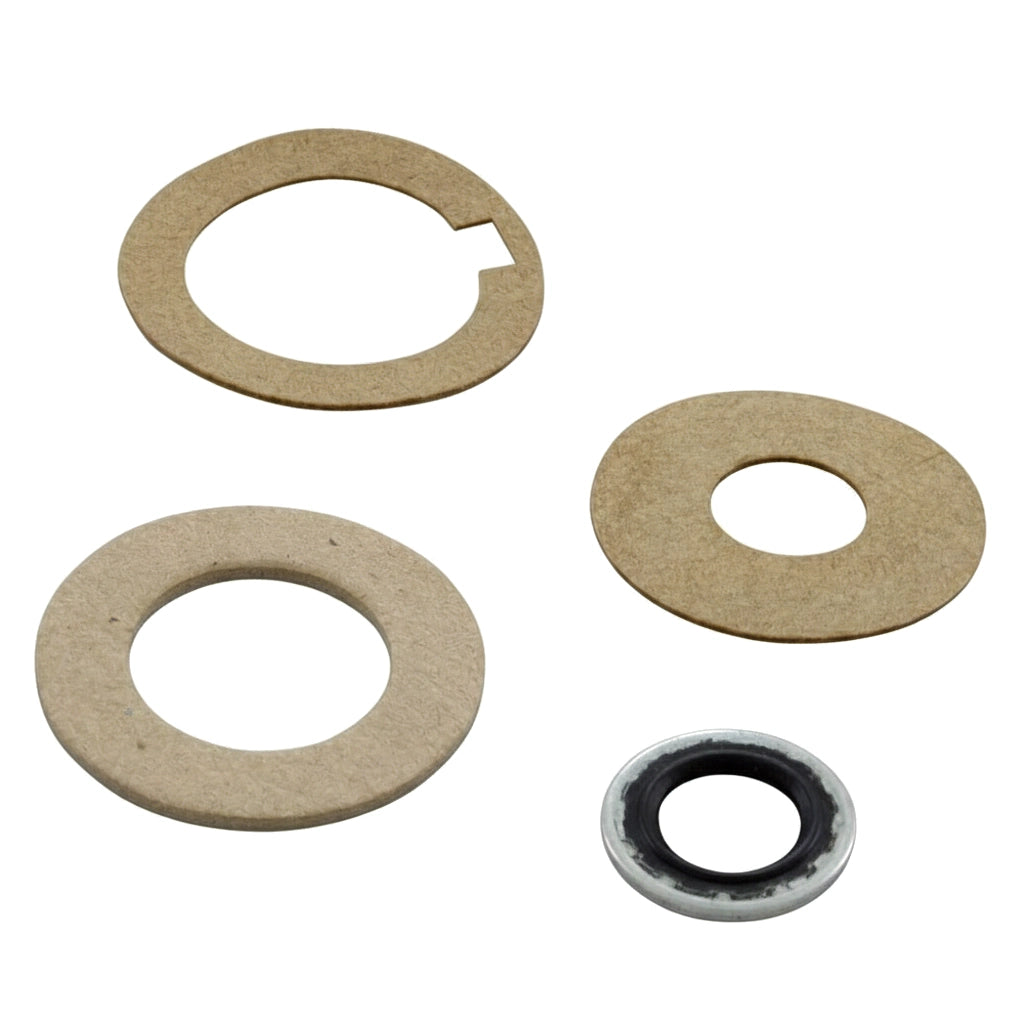

Pentair Shaft Seal | C/CC Series & D Series Centrifugal Pumps | U109-433SS
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- U109-433SS
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

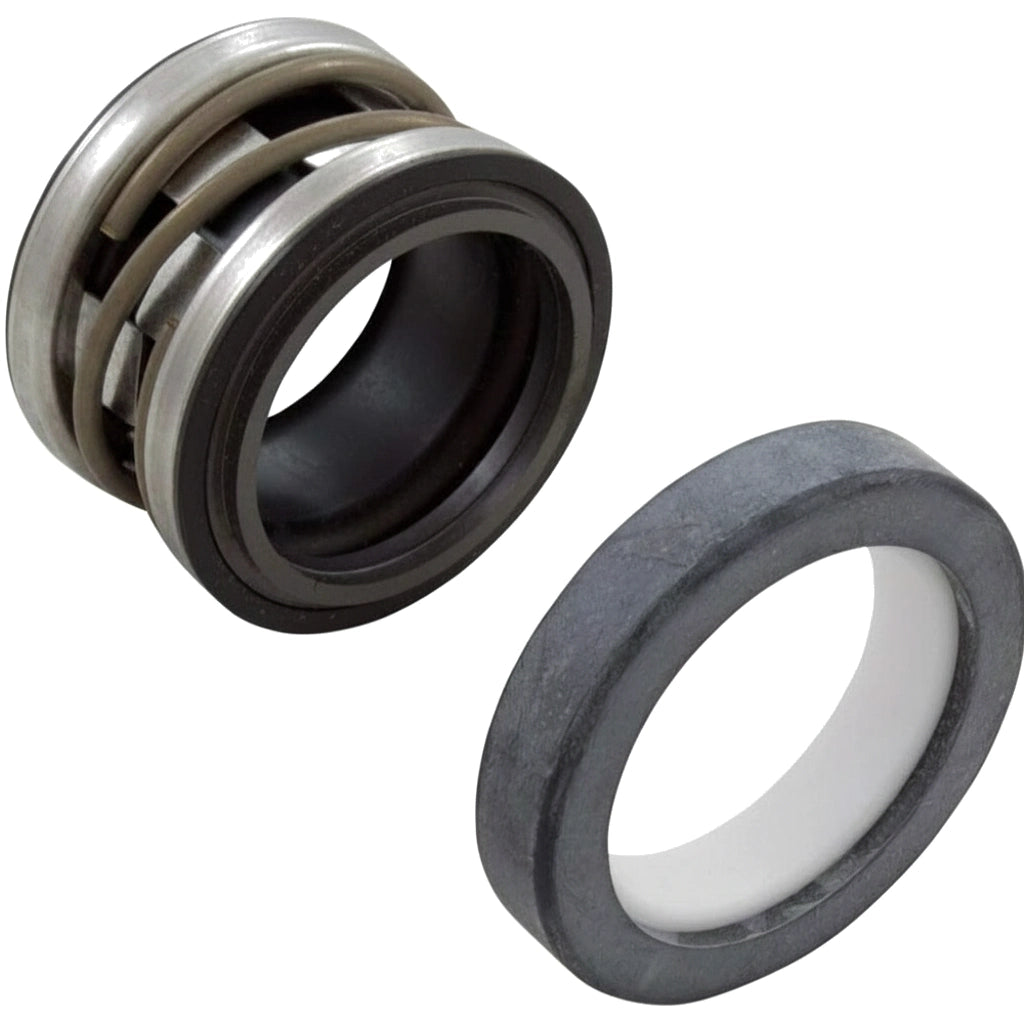

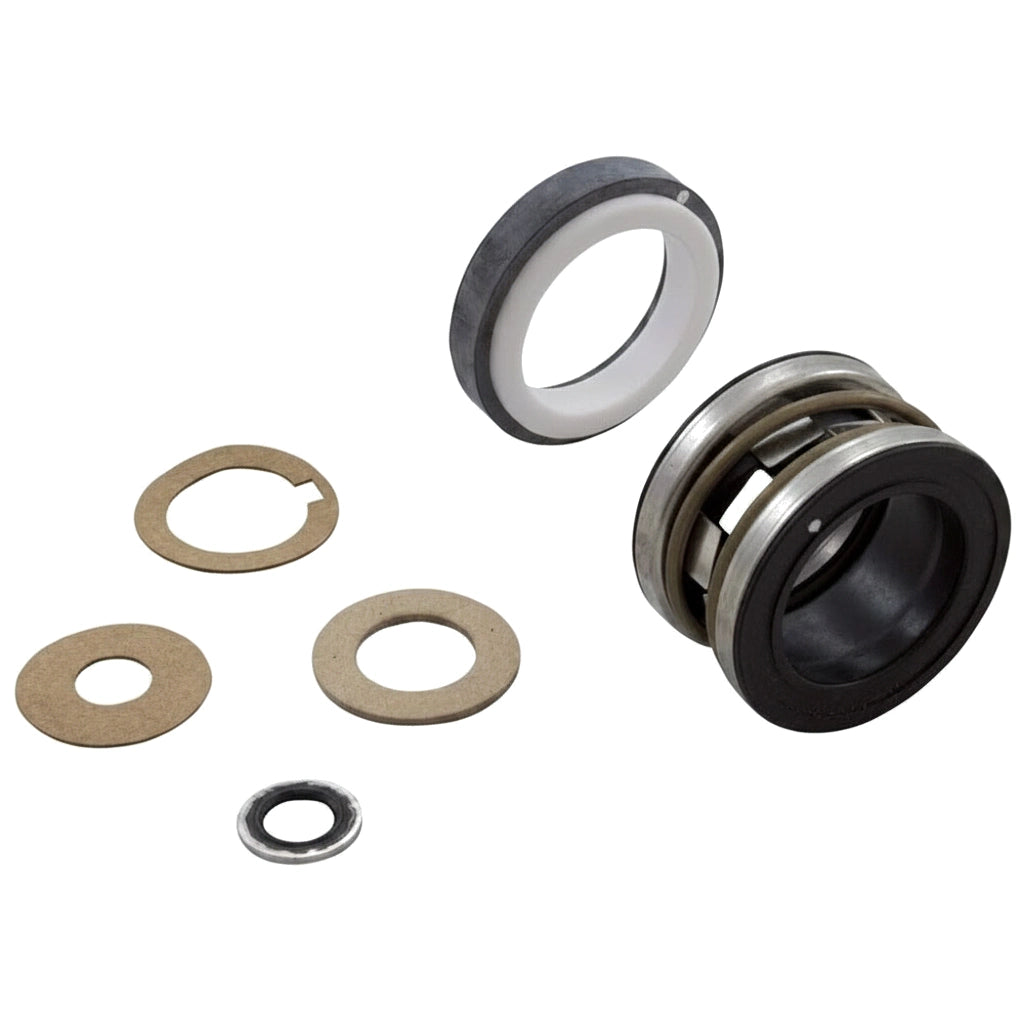

The Pentair Shaft Seal (U109-433SS) is the OEM replacement shaft seal for Pentair C/CC Series and D Series centrifugal pumps. This is the current replacement for the original U109-220 seal, effective August 2000.
⚠️ IMPORTANT: SUPERSEDED PART NUMBER
This seal (U109-433SS) replaces the original U109-220, effective August 2000. If your equipment documentation or existing part is marked U109-220, U109-433SS is the correct current replacement.
The shaft seal forms the critical barrier between the pump's wet end and the motor, preventing water from migrating along the pump shaft into the motor bearings. A failing shaft seal typically presents as a drip or weep from the seal plate area — catching it early prevents costly motor damage. This is a single-piece replacement sold individually.
Specifications
| Pentair Part Number | U109-433SS |
| Replaces / Supersedes | U109-220 (effective August 2000) |
| Part Type | Shaft Seal |
| Material | Buna |
| Quantity Included | 1 (Each) |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | C/CC Series Centrifugal Pump | CCMH-136 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCM2H-136 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCM2H-136S | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCMH3-136S | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCM2H3-136 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCM2H3-136S | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCHH-137S | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCHH3-137S | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCH2H-137S | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCH2H3-137 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCH2H3-137S | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CMH-136 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CMH3-136 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CM2H-136 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CM2H3-136 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CHH-137 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CHH3-137 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CH2H3-137 | Replaces U109-220, effective 8/00 |
| Pentair | C/CC Series Centrifugal Pump | CCHJ-138 / CCHJ138S / CCHJ3-138S / CCH2J3-138S | Applies to all 5 HP C/CC Series models |
| Pentair | D Series Self-Priming Centrifugal Pump | DMH / DMJ | Replaces U109-220, effective 8/00 |
| ...and additional compatible models. Verify your model number with your equipment manual before ordering. | |||
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
When replacing the shaft seal, inspect the seal plate and pump shaft for scoring or corrosion — a damaged shaft surface will wear through a new seal prematurely. If your pump previously ran on the older U109-220, confirm the current part number stamped on the existing seal before ordering; U109-433SS is the direct current replacement. While the pump is disassembled for seal service, it is also a good time to inspect and replace the pump lid O-ring to avoid a second service call.
