Pentair Seal Plate Kit w/Mechanical Seal | IntelliPro & WhisperFlo | 350203
- Low stock - 5 items left
- Backordered: contact us for ETA
- SKU:
- 350203
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

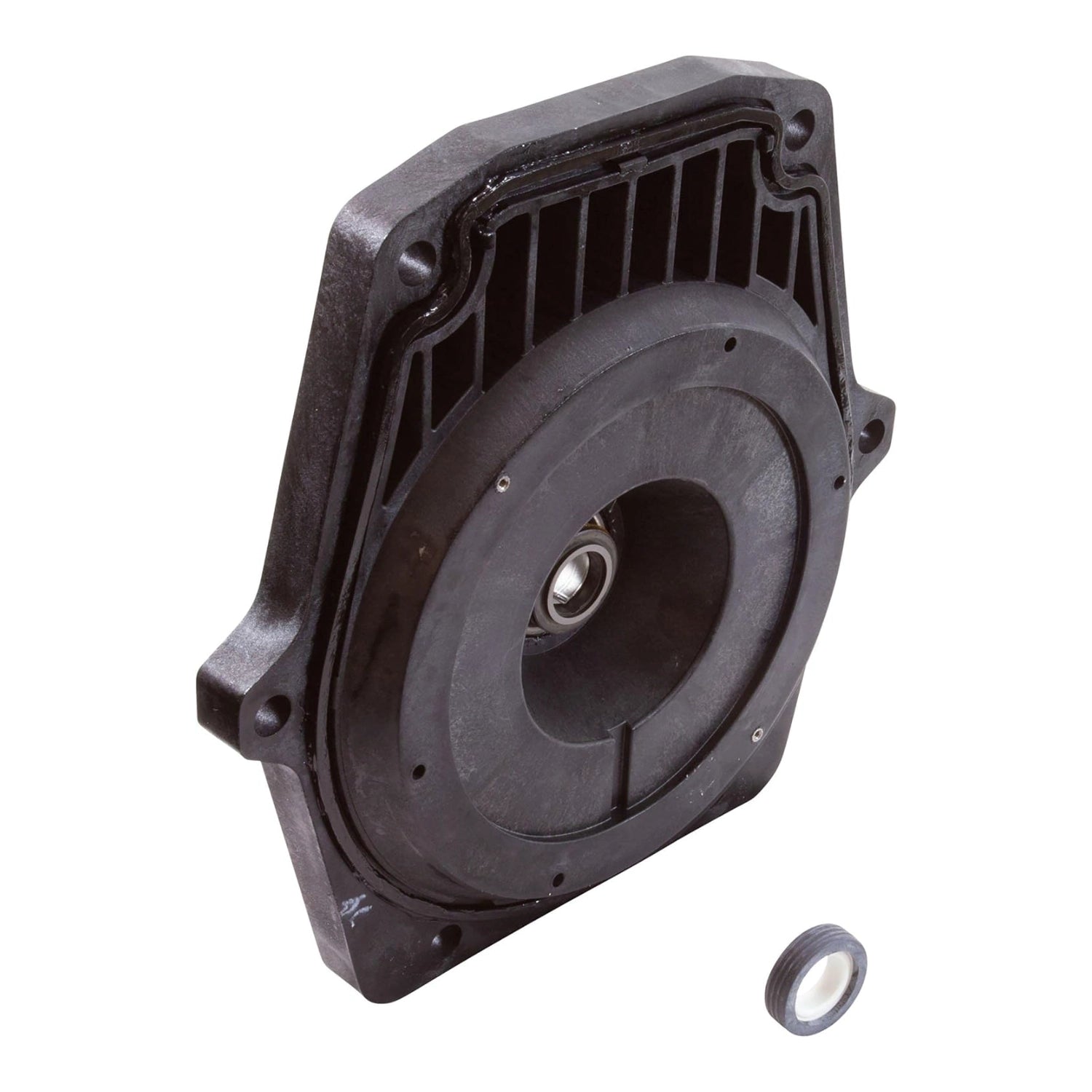

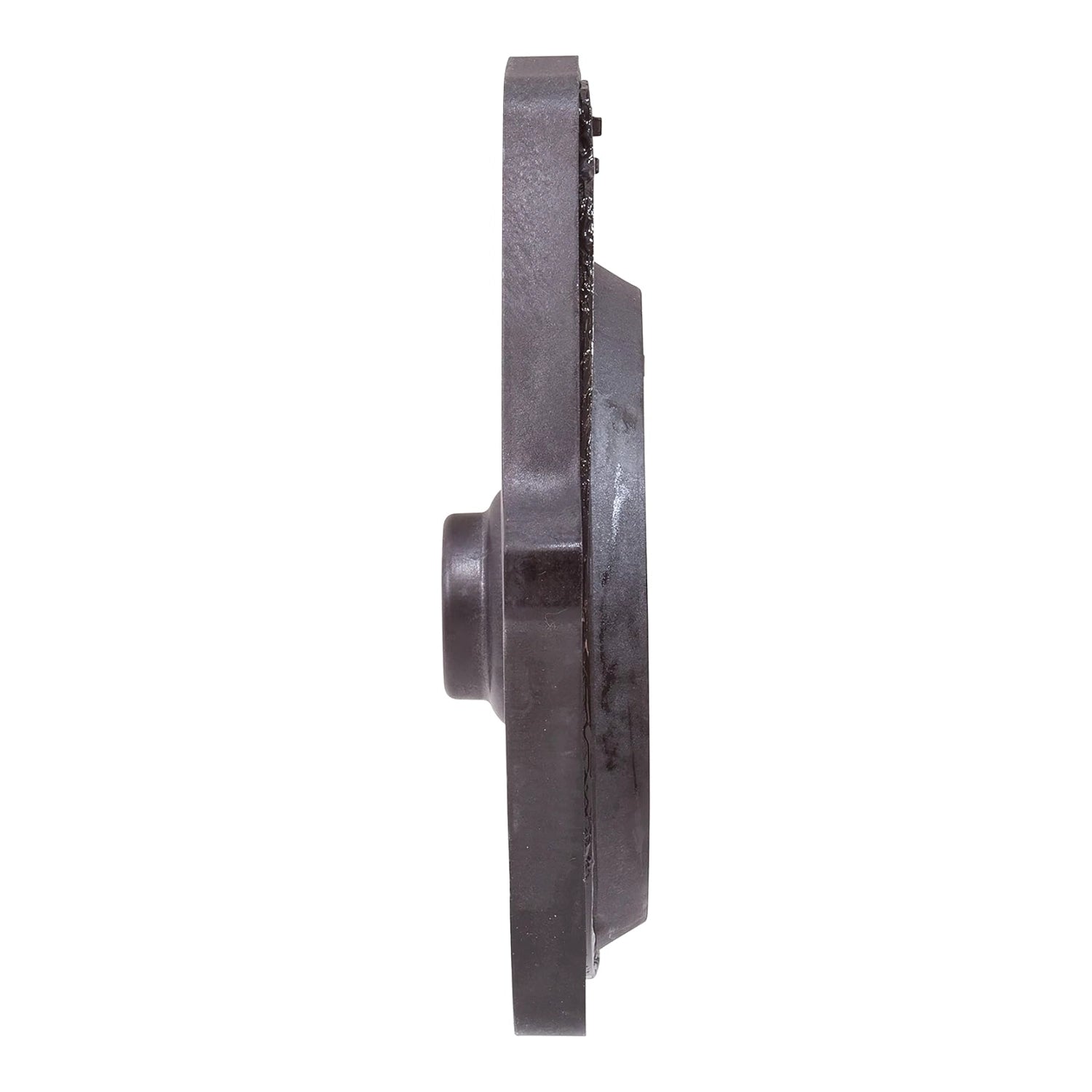

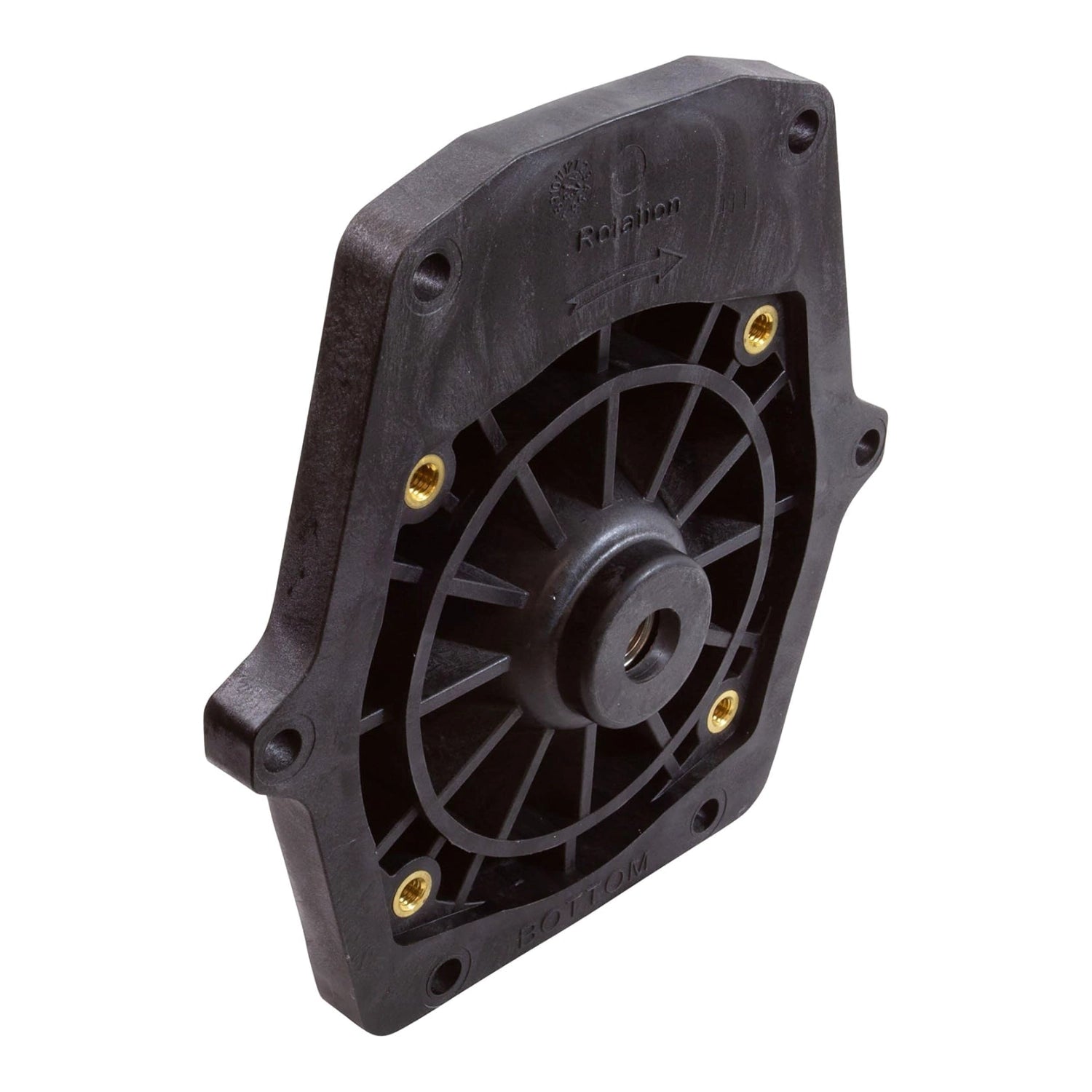

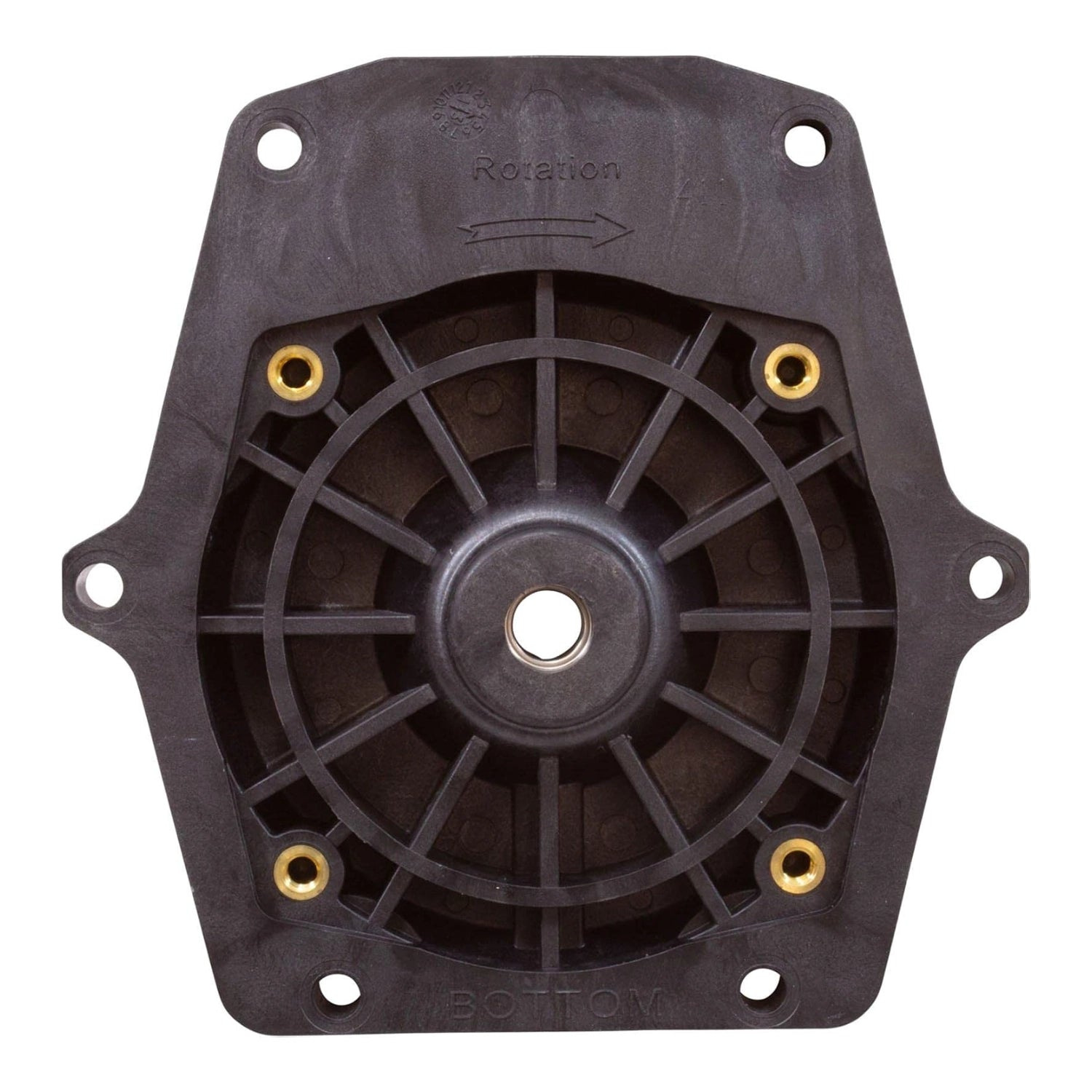

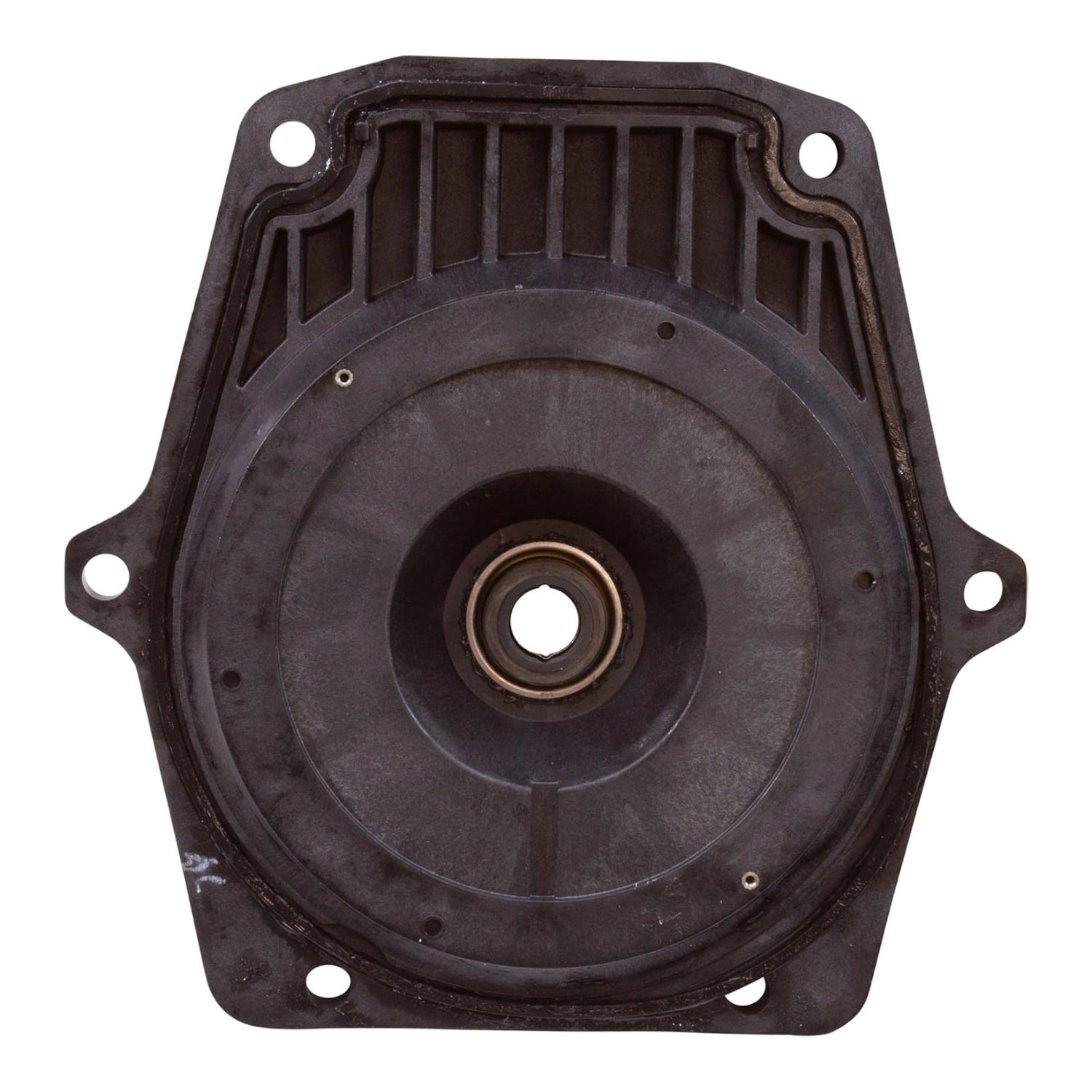

The Pentair Seal Plate Kit w/Mechanical Seal (350203) is the OEM replacement seal plate assembly for the IntelliPro VS+SVRS and WhisperFlo series pumps.
IMPORTANT: THIS IS A MULTI-COMPONENT KIT
This listing is a kit, not a single part. It includes items - the seal plate, gasket, and mechanical seal ship together as one assembly.
The seal plate mounts between the pump's wet end and motor, positioning the mechanical shaft seal and gasket that keep water out of the motor housing while allowing the impeller shaft to rotate. A worn or damaged seal plate assembly is a common source of shaft leaks and should be replaced as a complete kit to restore a proper seal.
Specifications
| Pentair Part Number | 350203 |
| Part Name | Seal Plate Kit w/Mechanical Seal |
| Part Category | Seal Plates |
| Quantity Included | Kit |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | IntelliPro | IntelliPro VS+SVRS | Not shown in diagram |
| Pentair | WhisperFlo | WFE-12 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFK-12 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFE-2 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFE-4 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFET-4 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFET-6 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFET-8 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFET-12 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFE-6 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WFE-8 | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
| Pentair | WhisperFlo | WhisperFlo VST | Black seal plate kit with black gasket and installed mechanical seal; not shown in diagram |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
