Pentair Impeller Medium Head 10HP | C Series High Performance Commercial Pump | 070226
- Low stock - 6 items left
- SKU:
- 070226
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

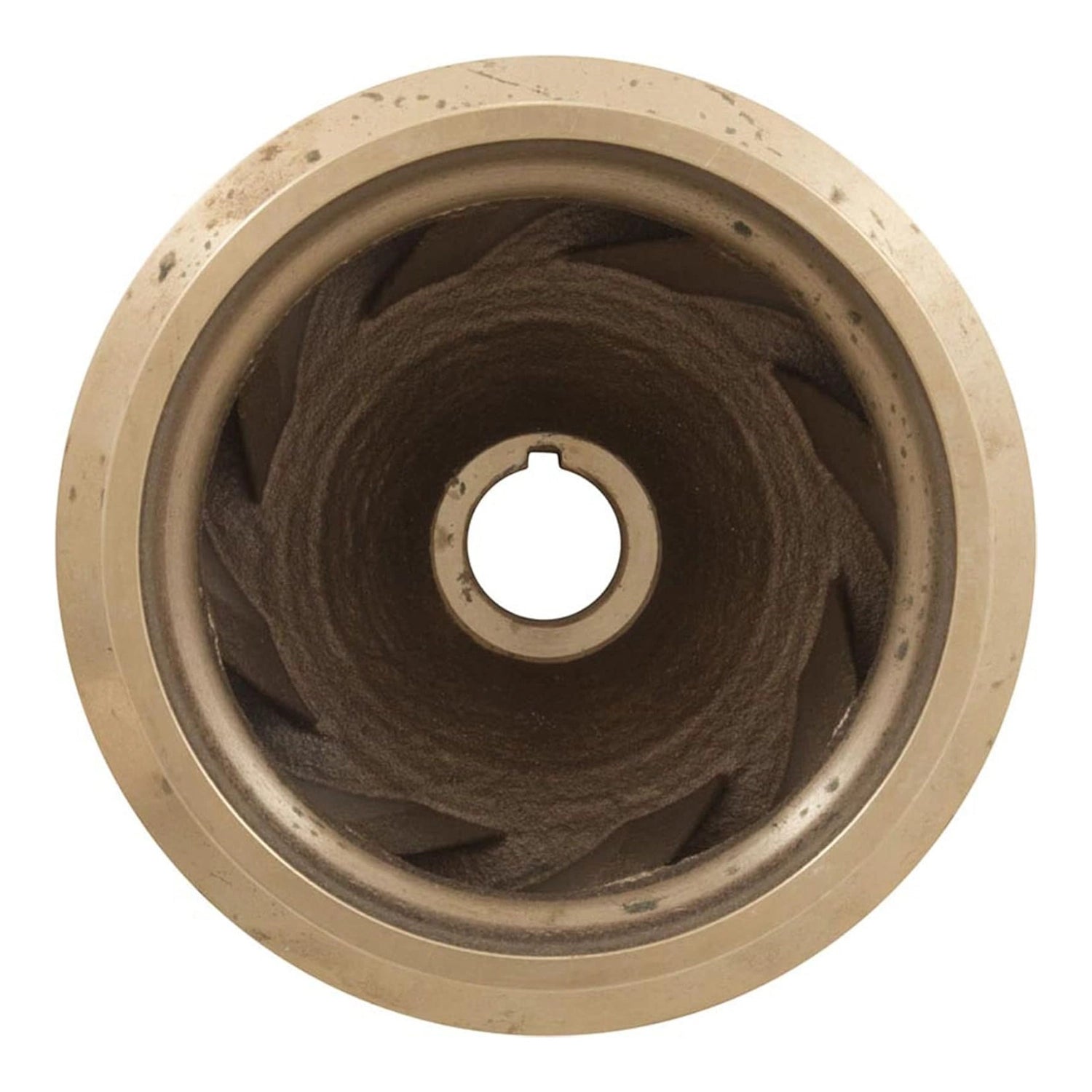

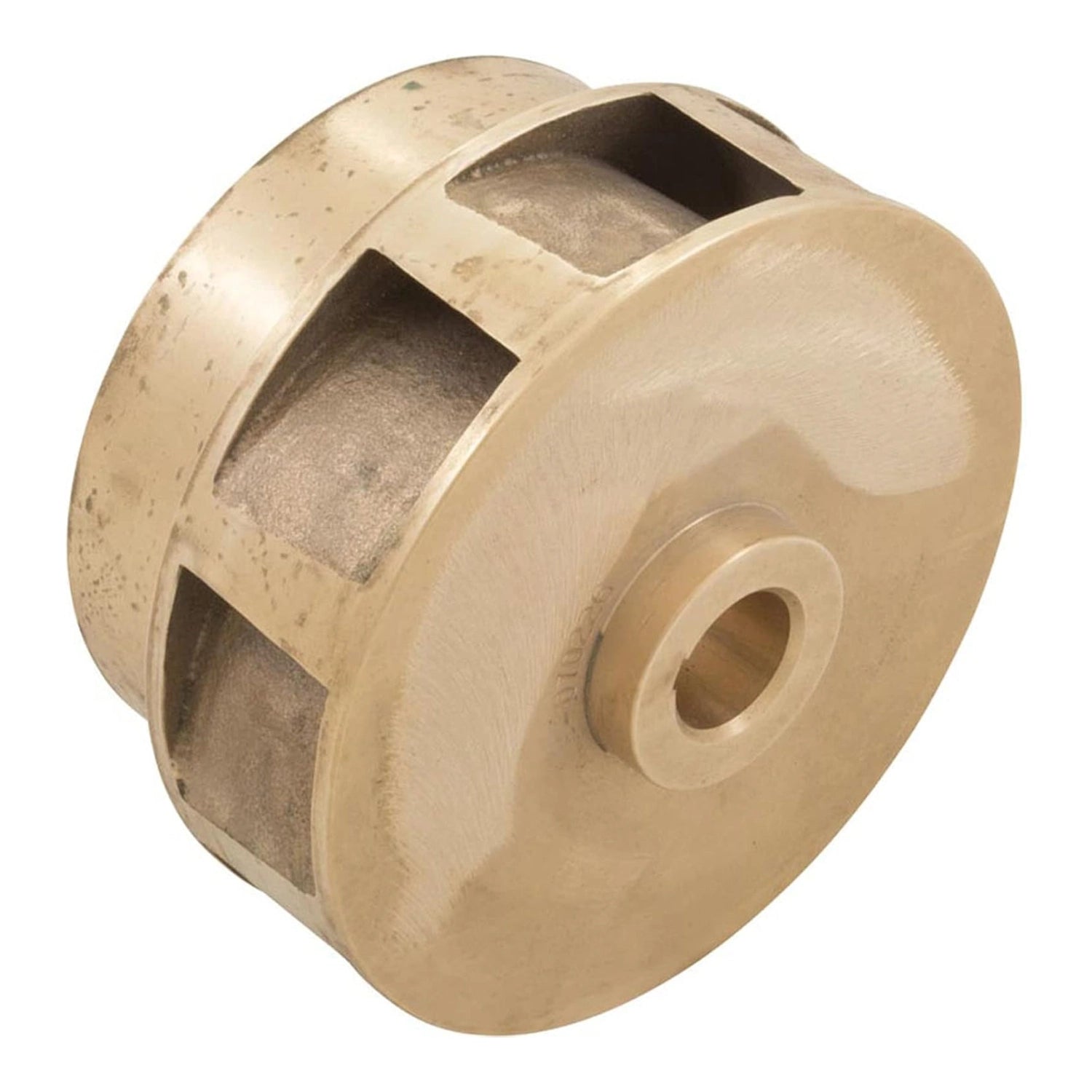

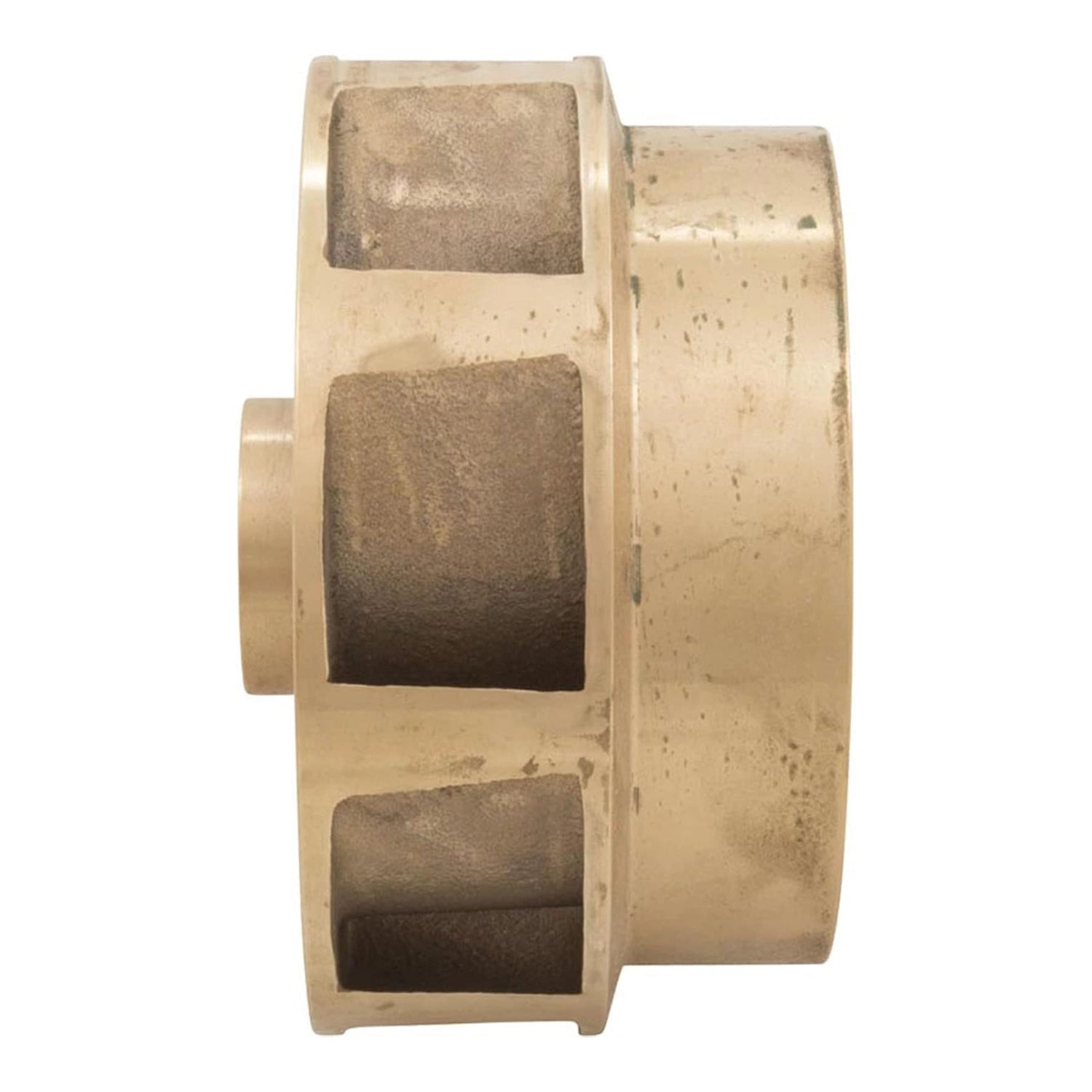

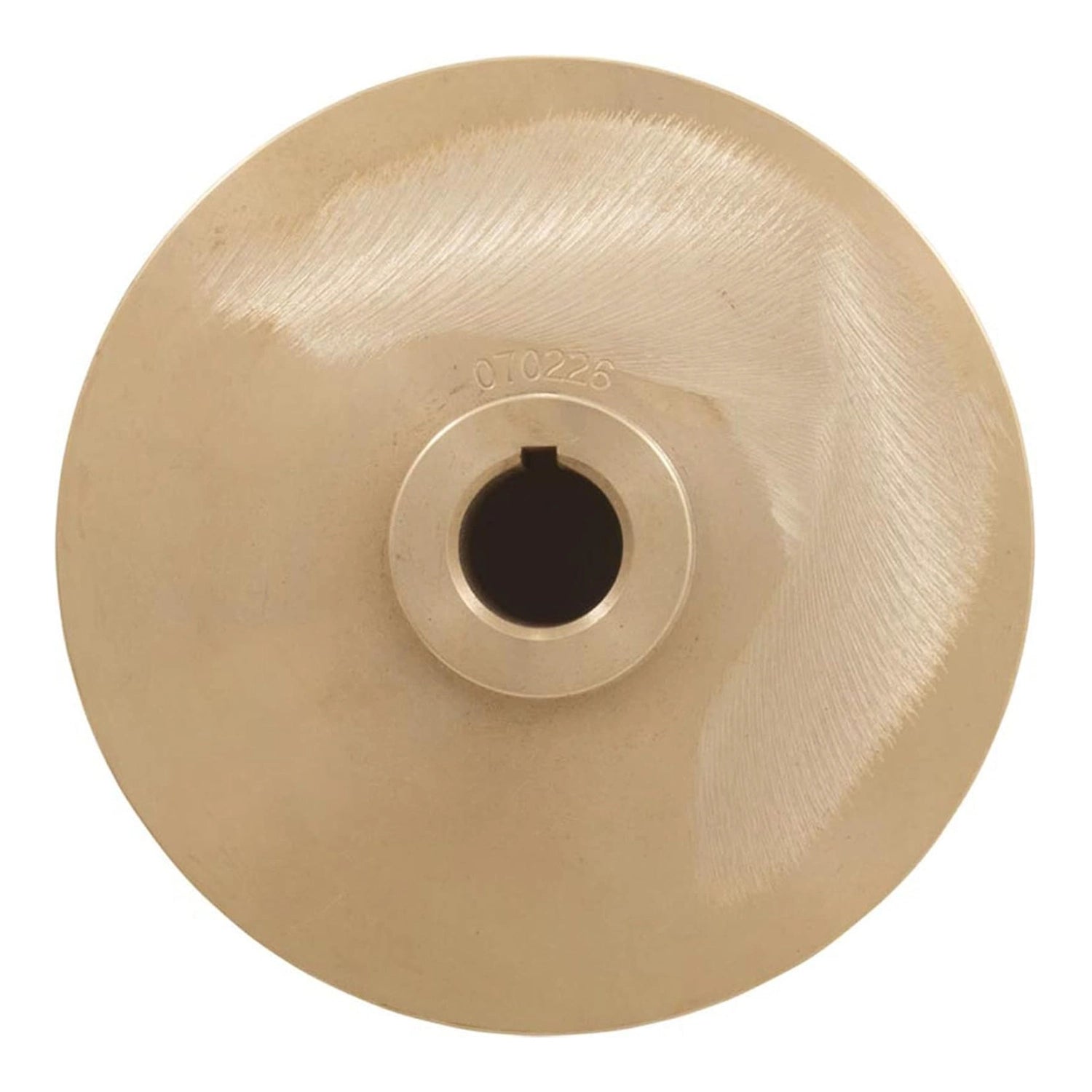

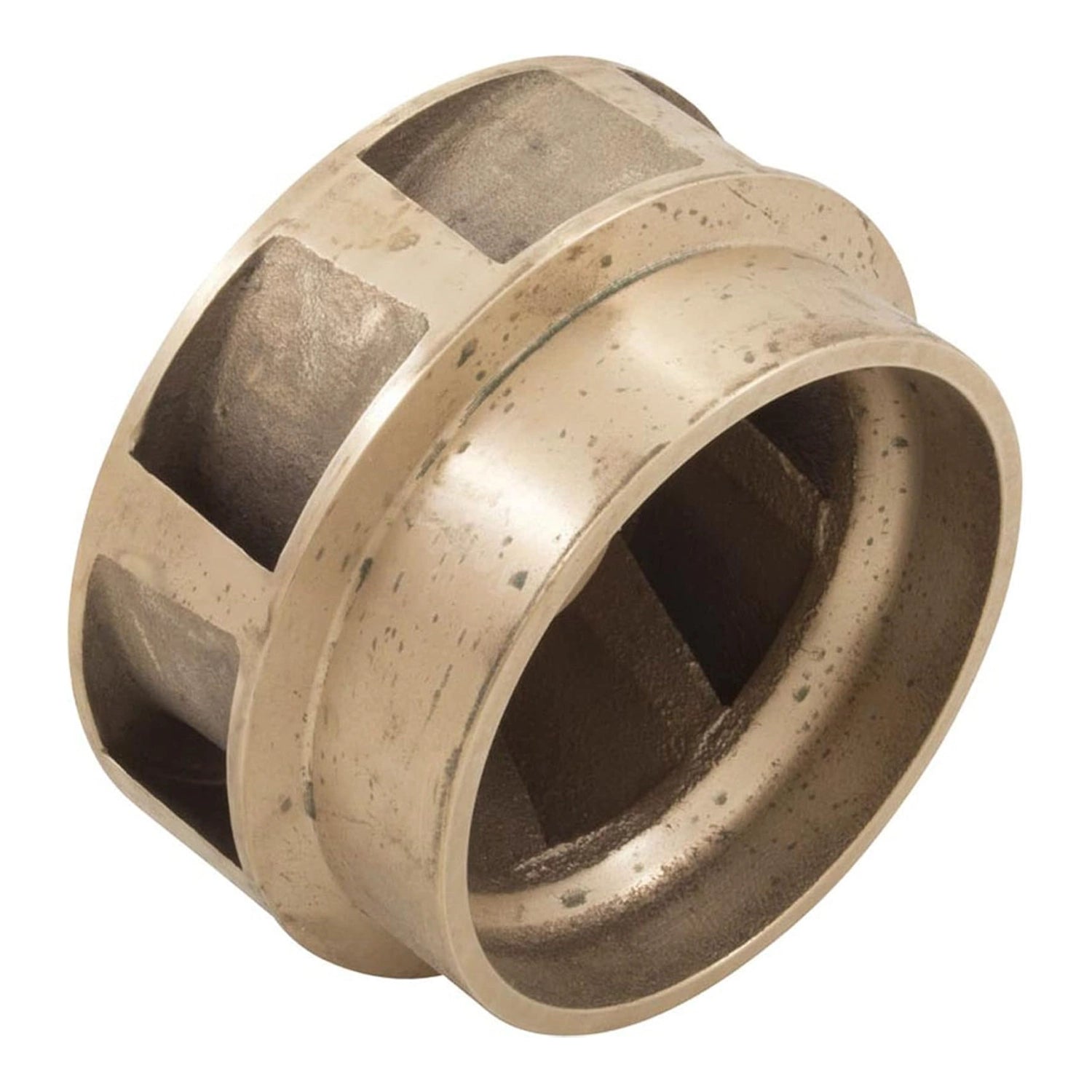

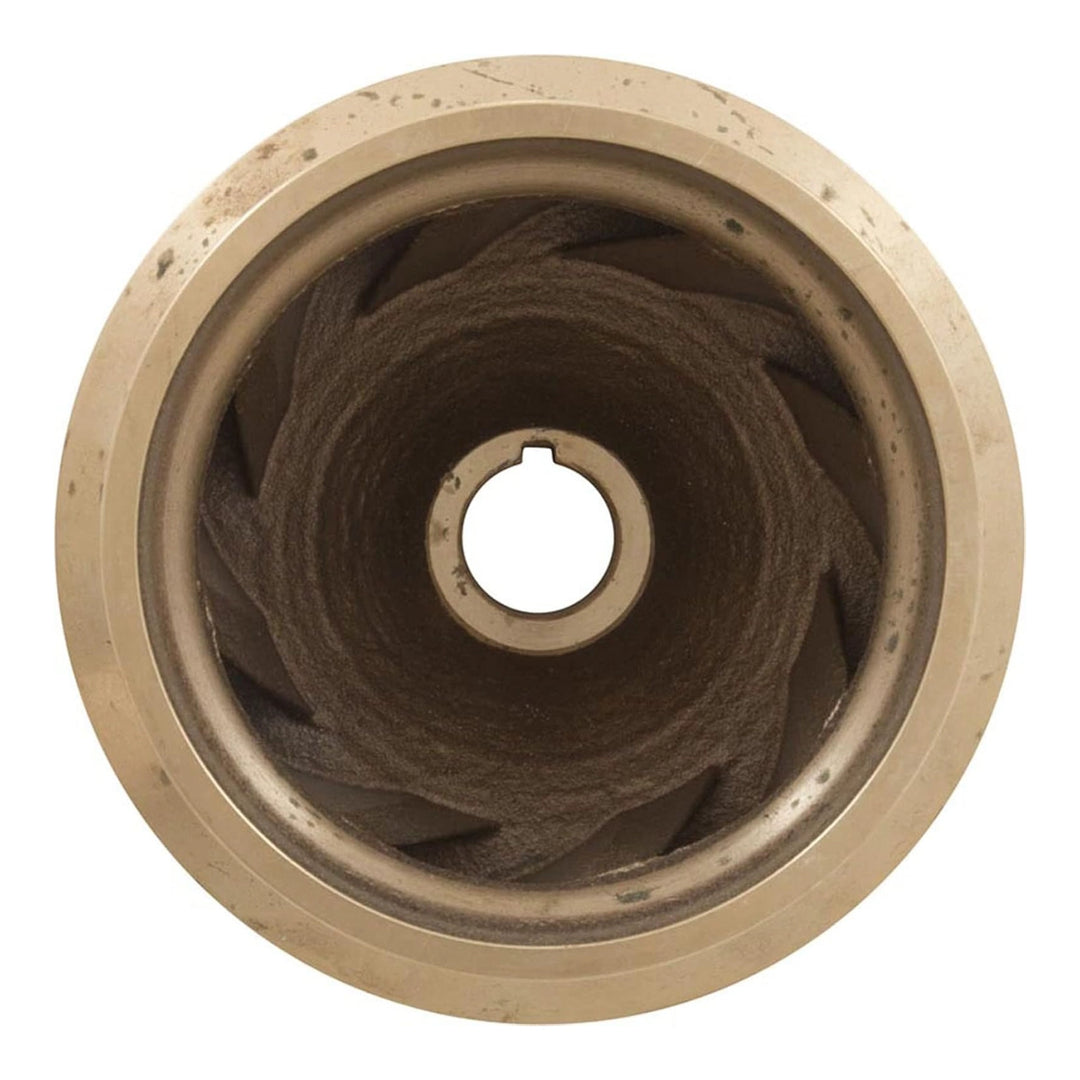

The Pentair Impeller (070226) is the OEM replacement medium head impeller for the C Series High Performance Commercial Pump, rated at 10HP for both single-phase and three-phase operation.
The impeller is the rotating hydraulic component at the heart of the pump, converting motor torque into flow. In a 10HP commercial application, the correct impeller profile — medium head in this case — determines the pump's operating point on its performance curve. Installing the wrong head rating (low or high) will shift flow and pressure characteristics outside the design range of the system, reducing efficiency and potentially overloading the motor. Match the part number stamped on your existing impeller before ordering.
Specifications
| Pentair Part Number | 070226 |
| Part Name | Impeller, Medium Head |
| Power Rating | 10HP |
| Phase Compatibility | 1-Phase and 3-Phase |
| Head Type | Medium Head |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | C Series High Performance Commercial Pump | CM-100 | Impeller, 10HP, 1PH, 3PH, med hd. |
| Pentair | C Series High Performance Commercial Pump | CMK-100 | Impeller, 10HP, 1PH, 3PH, med hd. |
| Pentair | C Series High Performance Commercial Pump | CMKL-100 | Impeller, 10HP, 1PH, 3PH, med hd. |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
The C Series pump is available in low, medium, and high head configurations — each uses a different impeller. Before ordering, confirm the head type by checking the model designation on your pump nameplate or the part number molded into your existing impeller. Installing a medium head impeller in a low or high head pump will alter the pump's hydraulic performance. When the pump is open for impeller replacement, inspect the diffuser and shaft seal as a matter of course — replacing worn components together minimises labour on the next service interval.
