Genuine Pentair OEM Part Guaranteed Authentic
Pentair Authorized Dealer Full Manufacturer Warranty Support
No Hassle Returns 30 Days Paid Returns
SKU:
070228
  • Poolaroo Promise

    • Fast Shipping — Ships in 1–2 Business Days
    • 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
    • Powered By People Who Care - No Faceless Conglomerate

About This Item

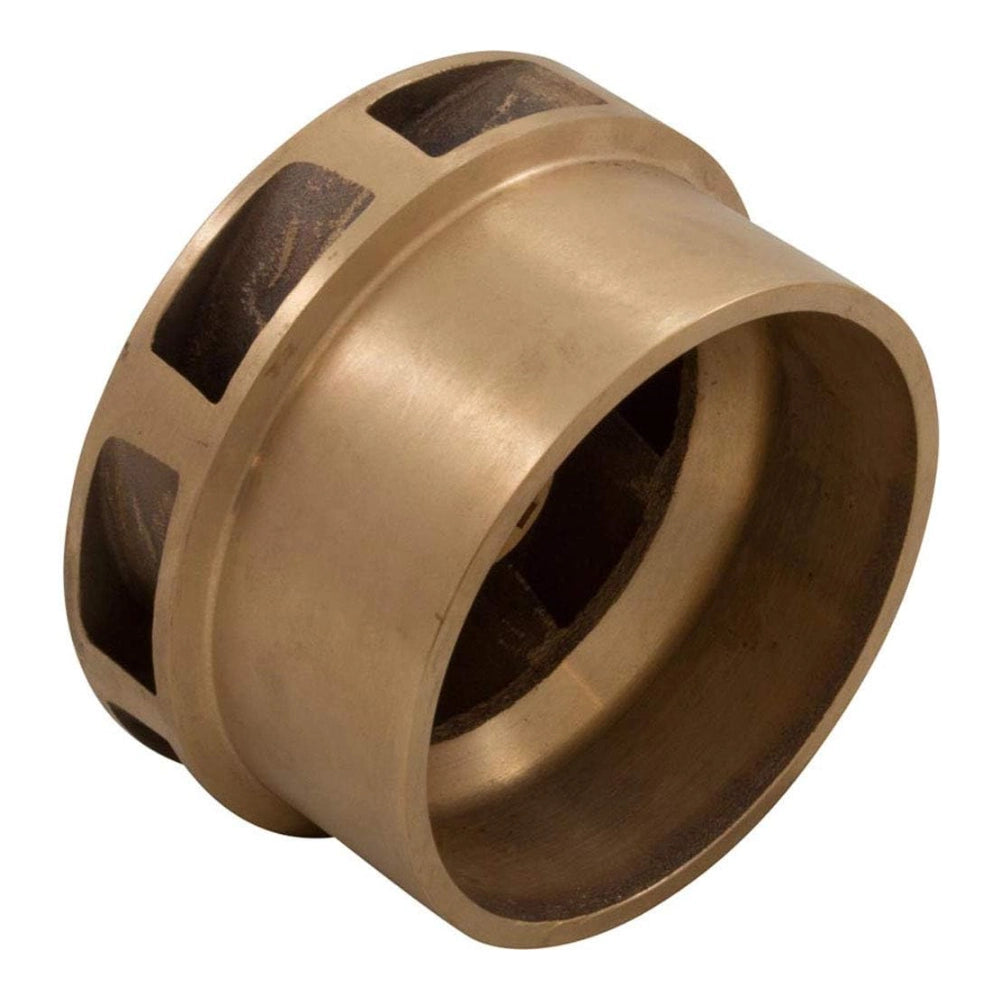

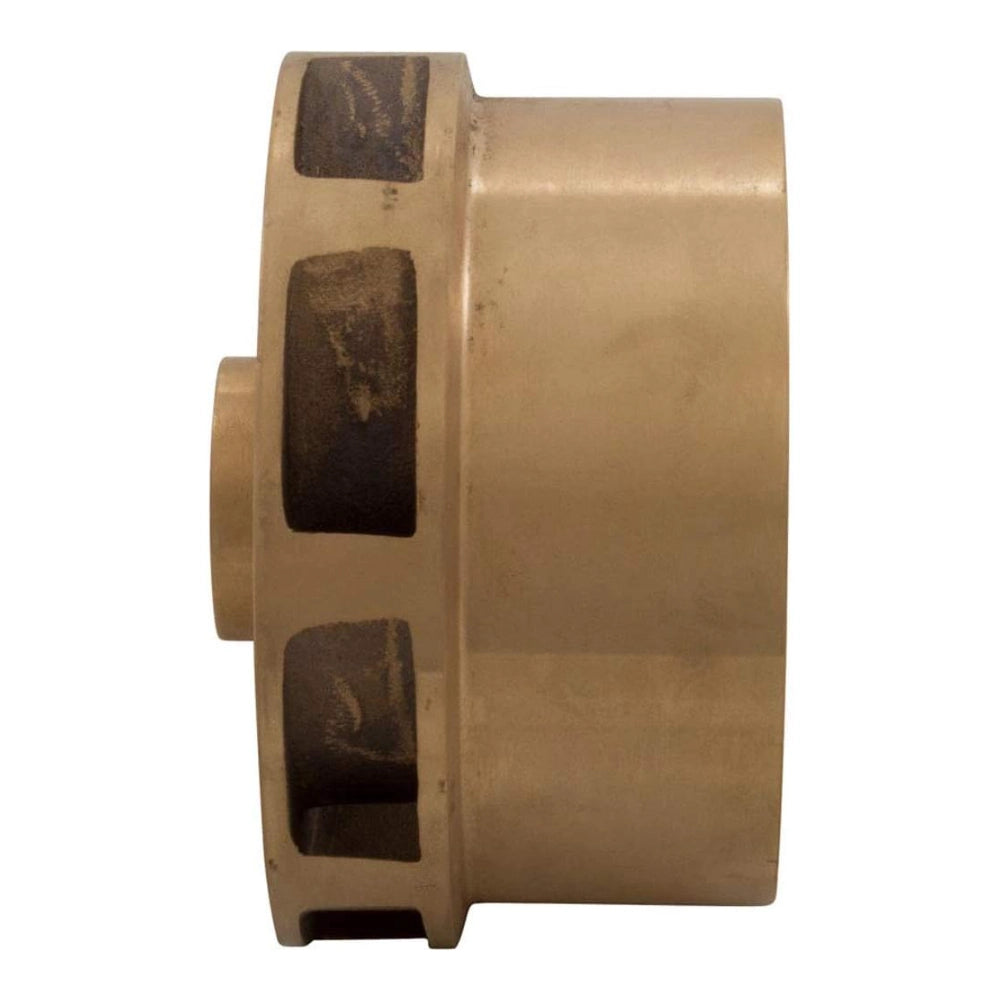

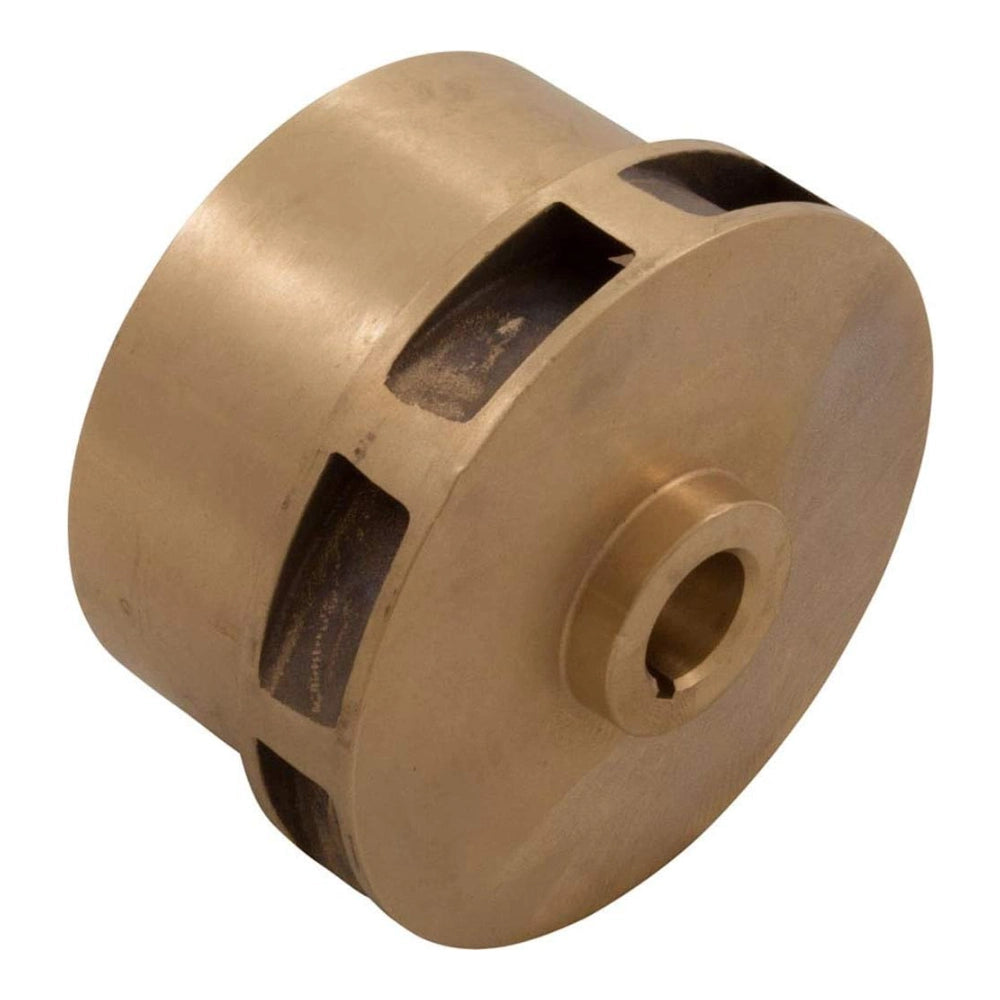

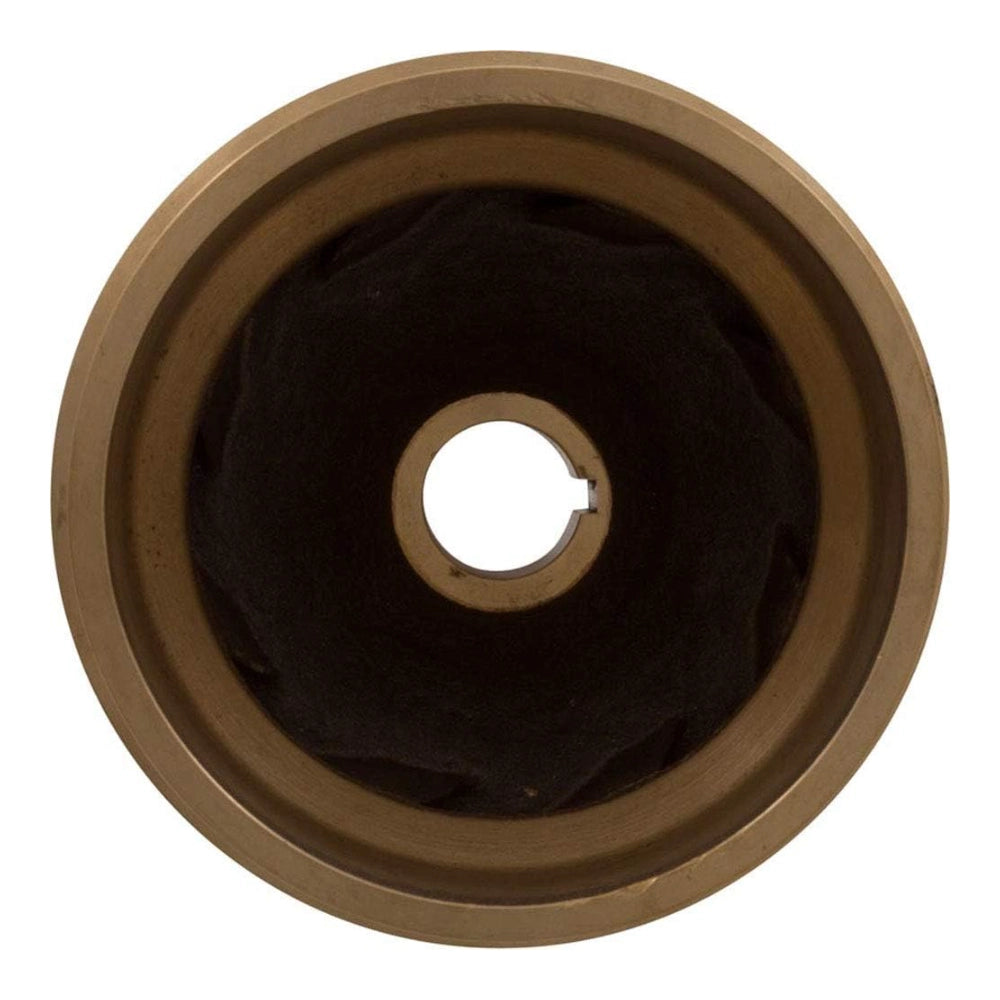

The Pentair Impeller (070228) is the OEM replacement medium head impeller for the C Series High Performance Commercial Pump, rated at 5HP for both single-phase and three-phase operation.

The impeller is the rotating core of the pump's hydraulic assembly — it converts motor shaft energy into flow by accelerating water through the volute. A worn or damaged impeller causes a measurable drop in flow rate and system pressure. Replacing it with the correct OEM part restores the pump to its rated hydraulic performance. The medium head designation is specific to this impeller's hydraulic profile; confirm this matches your existing part before ordering, as the C Series is available in multiple head configurations.

Specifications

Pentair Part Number 070228
Part Name Impeller, Medium Head
Horsepower Rating 5HP
Phase Compatibility Single-phase (1PH) and Three-phase (3PH)
Head Configuration Medium Head
Quantity Included 1 (Each)

Fits Into

Brand Equipment Line Model / Part Number Notes
Pentair C Series High Performance Commercial Pump CM-50 Impeller, 5HP, 1PH, 3PH, med. hd.
Pentair C Series High Performance Commercial Pump CMK-50 Impeller, 5HP, 1PH, 3PH, med. hd.
Pentair C Series High Performance Commercial Pump CMKL-50 Impeller, 5HP, 1PH, 3PH, med. hd.

Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Pro Tip

The C Series pump is available in low head, medium head, and high head impeller configurations — these are not interchangeable. Before ordering, locate the impeller part number stamped or molded on your existing impeller and confirm it matches 070228. If the pump has been serviced previously, the installed impeller may not be the original configuration — always verify against the physical part, not just the pump model label.

CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
