Pentair Impeller | C Series High Performance Commercial Pump | 073828
- In stock, ready to ship
- SKU:
- 073828
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

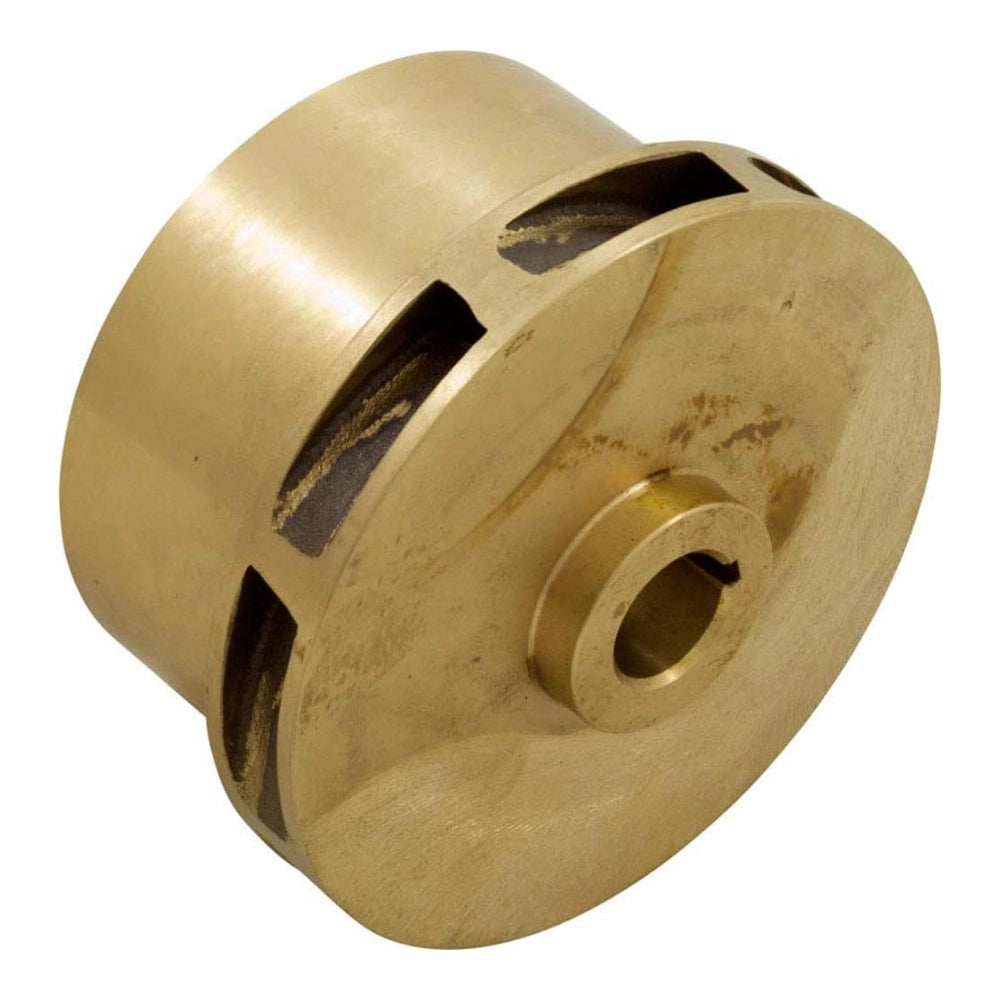

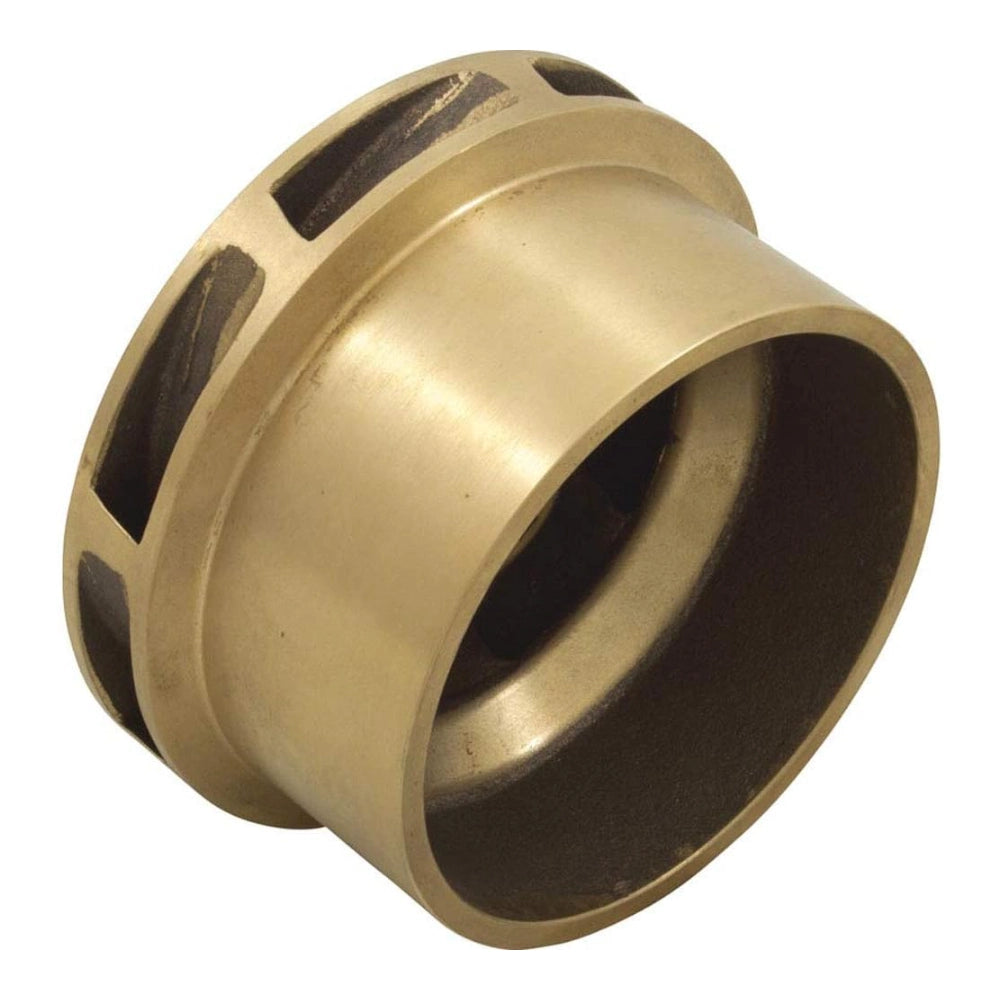

The Pentair Impeller (073828) is the OEM replacement high head impeller for the C Series High Performance Commercial Pump, rated for 5HP single-phase and three-phase operation.
The impeller is the rotating component at the heart of the pump's hydraulic assembly. It accelerates water through centrifugal force to generate the flow and pressure your system demands. A high head impeller is engineered to produce elevated pressure output — essential for commercial applications requiring water to travel greater distances or overcome significant resistance in the plumbing circuit. When an impeller becomes worn, cracked, or clogged with scale, pump performance drops measurably: flow rates fall, system pressure becomes inconsistent, and the motor works harder to compensate. Replacing the impeller with the correct OEM part restores designed hydraulic performance.
Specifications
| Pentair Part Number | 073828 |
| Part Type | High Head Impeller |
| Horsepower Rating | 5 HP |
| Phase Compatibility | Single-Phase (1PH) and Three-Phase (3PH) |
| Quantity Included | Each (1) |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | C Series High Performance Commercial Pump | CH-50 | Impeller, 5HP, 1PH, 3PH, high hd. |
| Pentair | C Series High Performance Commercial Pump | CHK-50 | Impeller, 5HP, 1PH, 3PH, high hd. |
| Pentair | C Series High Performance Commercial Pump | CHKL-50 | Impeller, 5HP, 1PH, 3PH, high hd. |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before ordering, confirm the impeller type stamped or molded on your existing part. The C Series pump platform uses different impeller configurations depending on the application — high head and medium head impellers are not interchangeable. Matching the part number (073828) and the "high head" designation to what is currently installed ensures you restore the pump's original hydraulic curve. If you are servicing the pump wet end at the same time, inspect the diffuser and shaft seal for wear — replacing them together avoids a repeat disassembly.
