Pentair Piping Assembly Lower TR140C | Triton II Sand Filter / TR Series Sand Filter | 154489
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 154489
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

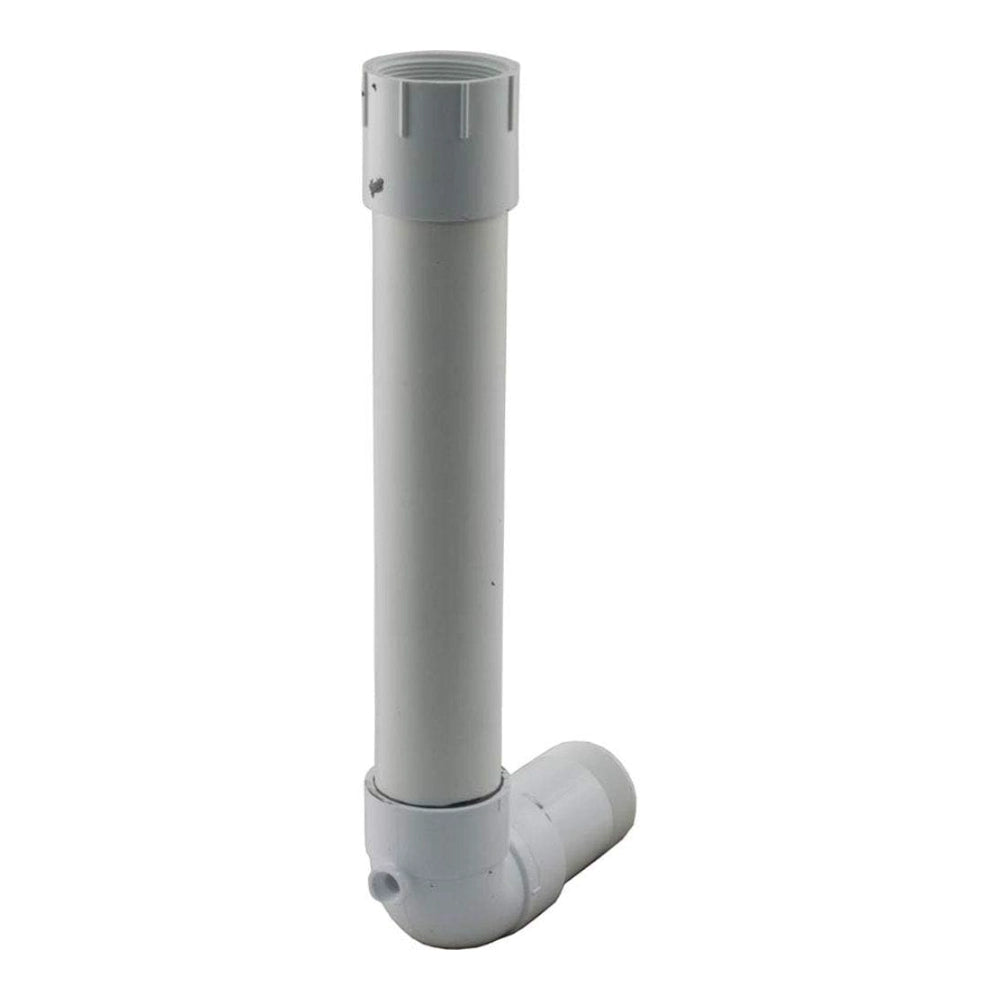

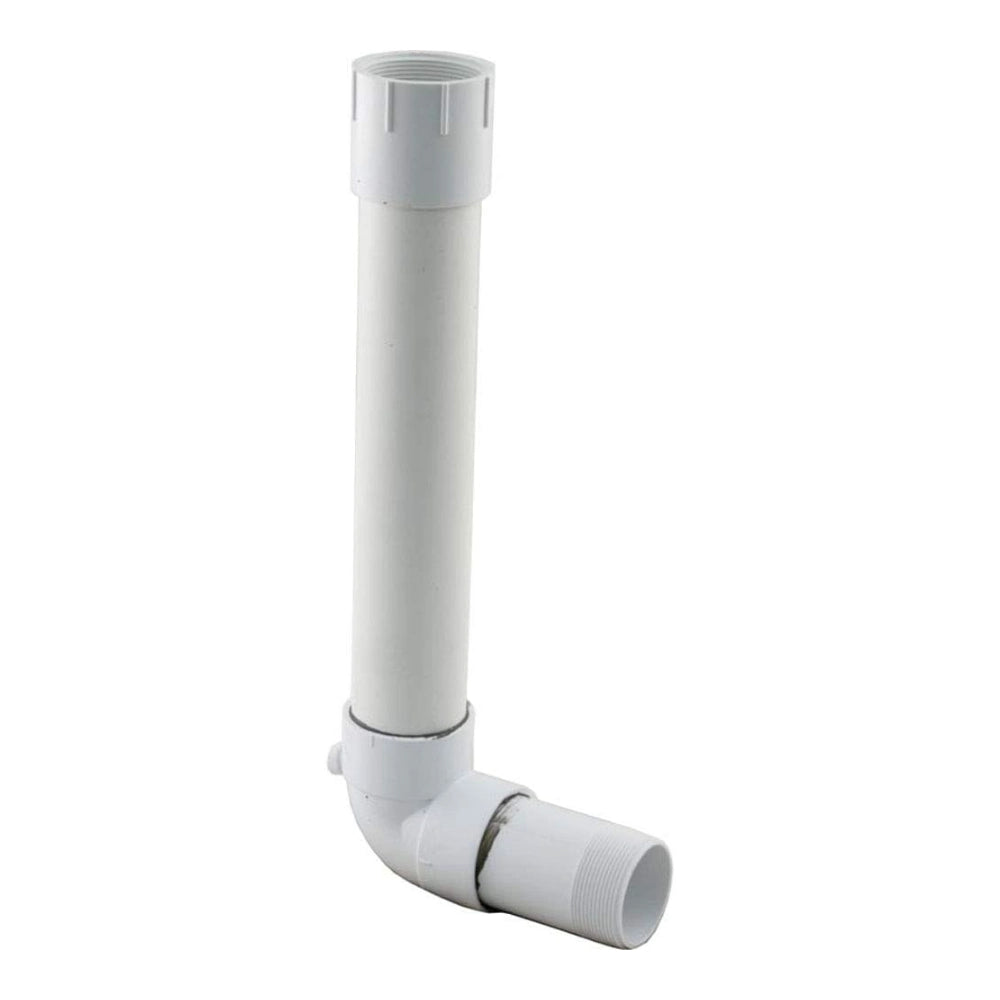

The Pentair Piping Assembly Lower TR140C (154489) is the OEM replacement lower pipe assembly for the Triton II TR140 and TR140C sand filters.
The lower piping assembly forms the internal distribution network at the base of the filter tank, directing filtered water from the laterals back through the outlet port and into the return line. When this assembly cracks, warps, or develops leaks — common after years of pressure cycling or freeze-thaw stress — it compromises the filter's ability to retain sand media and deliver clean, properly filtered water. Replacing it with the correct OEM assembly restores proper flow distribution and prevents sand from bypassing into the pool.
Specifications
| Pentair Part Number | 154489 |
| Part Name | Piping Assembly, Lower — TR140C |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | Triton II Sand Filter | TR140 | Lower piping assembly for TR140 |
| Pentair | TR140C Sand Filter — TR Series | TR140C | TR140C only |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
The TR140 and TR140C are distinct model variants — confirm your model number on the filter label before ordering. While the tank is open for this service, inspect the laterals and the upper pipe assembly for hairline cracks — replacing worn laterals at the same time avoids reopening the filter ahead of schedule.
