Pentair Standpipe Outlet Assembly for FNS Plus 36 sq ft Filter — FNS Plus Series | 190035
- Low stock - 5 items left
- SKU:
- 190035
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

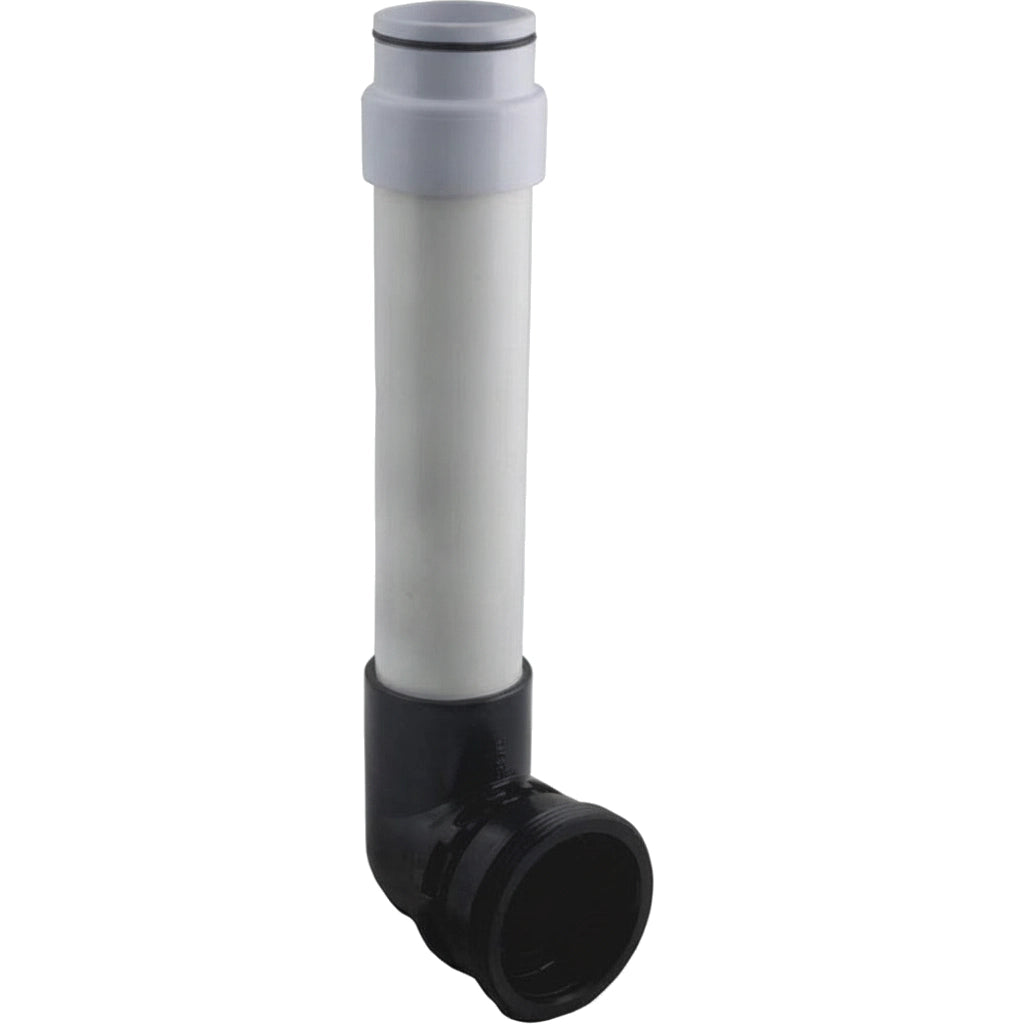

The Pentair Standpipe Outlet Assembly (190035) is the OEM replacement standpipe outlet assembly for the Pentair FNS Plus 36 sq. ft. vertical grid D.E. filter. At 10-3/8 inches tall, this is the correct standpipe for the 36 sq. ft. model — confirm your filter model before ordering, as standpipe assemblies are size-specific across the FNS Plus line.
The standpipe outlet assembly forms the central flow path inside the FNS Plus filter tank, directing filtered water from the grid assembly to the outlet port. A damaged or cracked standpipe allows unfiltered water to bypass the D.E. grids entirely, compromising water clarity and allowing D.E. media to pass into the pool return. Replacing a failed standpipe restores the filter's sealed internal flow path and returns the system to full filtration efficiency.
Specifications
| Pentair Part Number | 190035 |
| Part Name | Assembly, standpipe, outlet, 36 sq. ft. filter |
| Height | 10-3/8 in. |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | FNS Plus Filter — FNS Plus Series | FNS PLUS 36 | Standpipe outlet assembly, 36 sq. ft. filter, 10-3/8 in. tall |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Standpipe assemblies are not interchangeable across FNS Plus filter sizes — the 36 sq. ft. model uses a different standpipe height than the 48, 60, and 72 sq. ft. models. Before ordering, confirm your filter's square footage rating on the label affixed to the tank body. If D.E. powder is appearing in your pool returns, inspect the standpipe for hairline cracks at the outlet collar — this is the most common failure point and is often missed during a visual inspection at normal light angles.
