Pentair Diverter Assembly Retro Kit for Quad D.E. Filter | 196024S
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 196024S
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

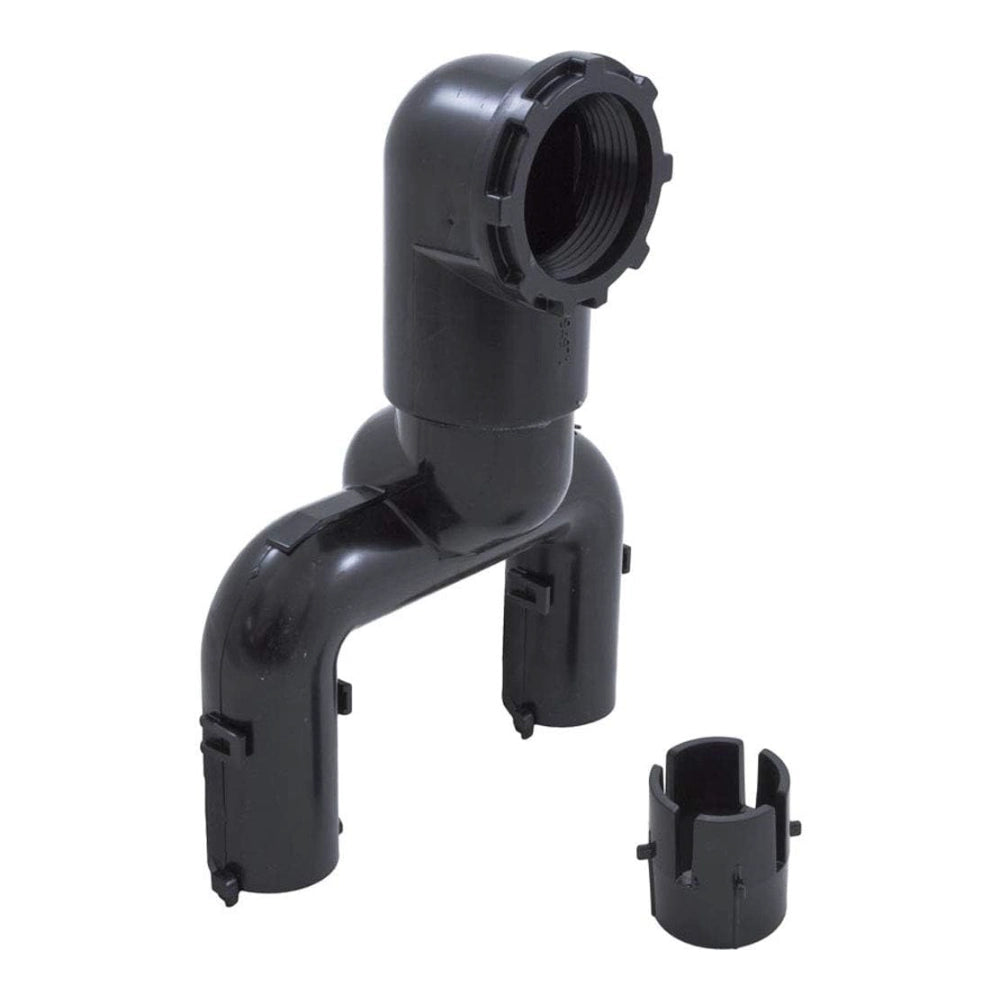

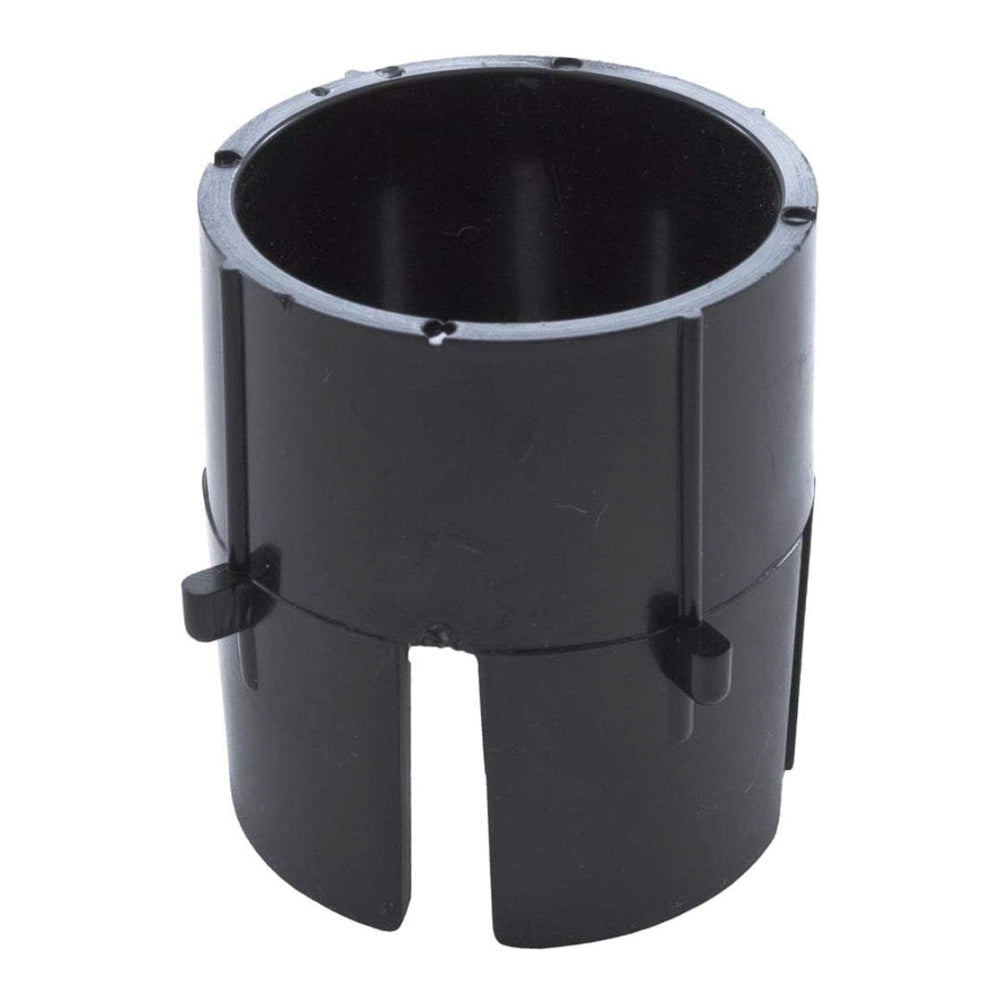

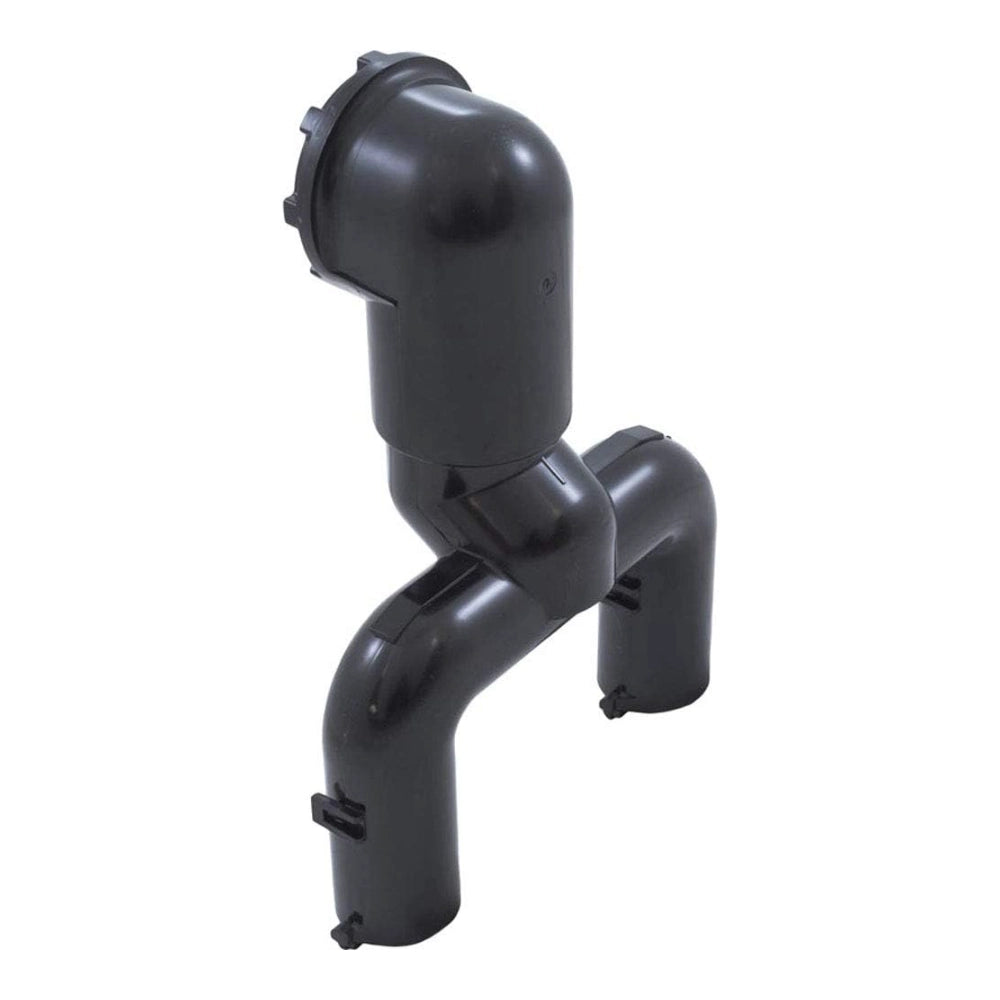

The Pentair Diverter Assembly Retro Kit (196024S) is the OEM replacement diverter assembly for the Pentair Quad D.E. Filter series, covering the 60, 80, and 100 square foot models.
⚠️ IMPORTANT: THIS LISTING IS A KIT
This listing includes the complete diverter assembly kit — not a single component. Confirm the kit contents against your filter's parts diagram before ordering.
The diverter assembly controls the internal flow path within the Quad D.E. filter tank, directing water through the filter grids during normal filtration and redirecting flow during backwash or waste cycles. A worn or damaged diverter allows water to bypass the filter media, reducing filtration efficiency and water clarity. This retro kit is designed to restore proper diverter function using current-production components that fit the original filter housing.
Specifications
| Pentair Part Number | 196024S |
| Part Name | Diverter Assembly Retro Kit |
| Quantity Included | Kit |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | Quad D.E. Filter 60 | Quad 60 | Diverter assembly retro kit |
| Pentair | Quad D.E. Filter 80 | Quad 80 | Diverter assembly retro kit |
| Pentair | Quad D.E. Filter 100 | Quad 100 | Diverter assembly retro kit |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before ordering, locate the model number on your Quad D.E. filter's label — typically found on the tank body or valve housing — and confirm it matches one of the three models listed above. The diverter assembly is a retro kit, meaning it is designed to update older filter configurations to current-production specifications. If your filter has been serviced before, compare the existing diverter components against the kit contents in Pentair's parts diagram for your model to ensure you are not duplicating a previous retrofit.
