About This Item
OEM Grid Element Pack for the Pentair FNS Plus 60 D.E. Filter

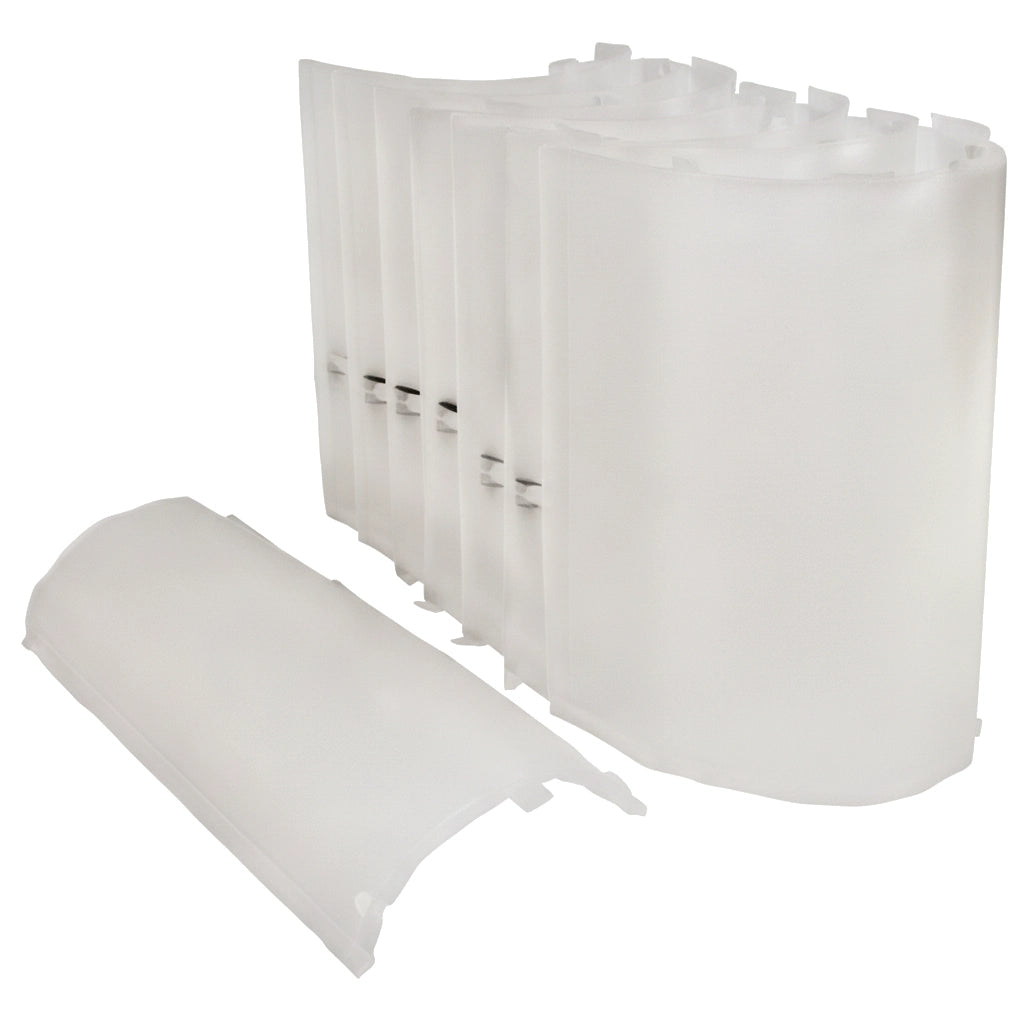

The Pentair 60 Grid Element Pack (198083) is the complete OEM replacement grid set for the FNS Plus FNSP60 diatomaceous earth filter. This pack contains all eight grid elements required for a full service — seven large elements and one small element — restoring the filter's full 60 square foot filtration capacity in a single order.
⚠️ IMPORTANT: THIS IS A COMPLETE 8-PIECE REPLACEMENT PACK
This listing includes all eight grid elements needed for a full FNSP60 grid replacement: 7 large elements and 1 small element. This is not a single grid — order one pack per filter unit.

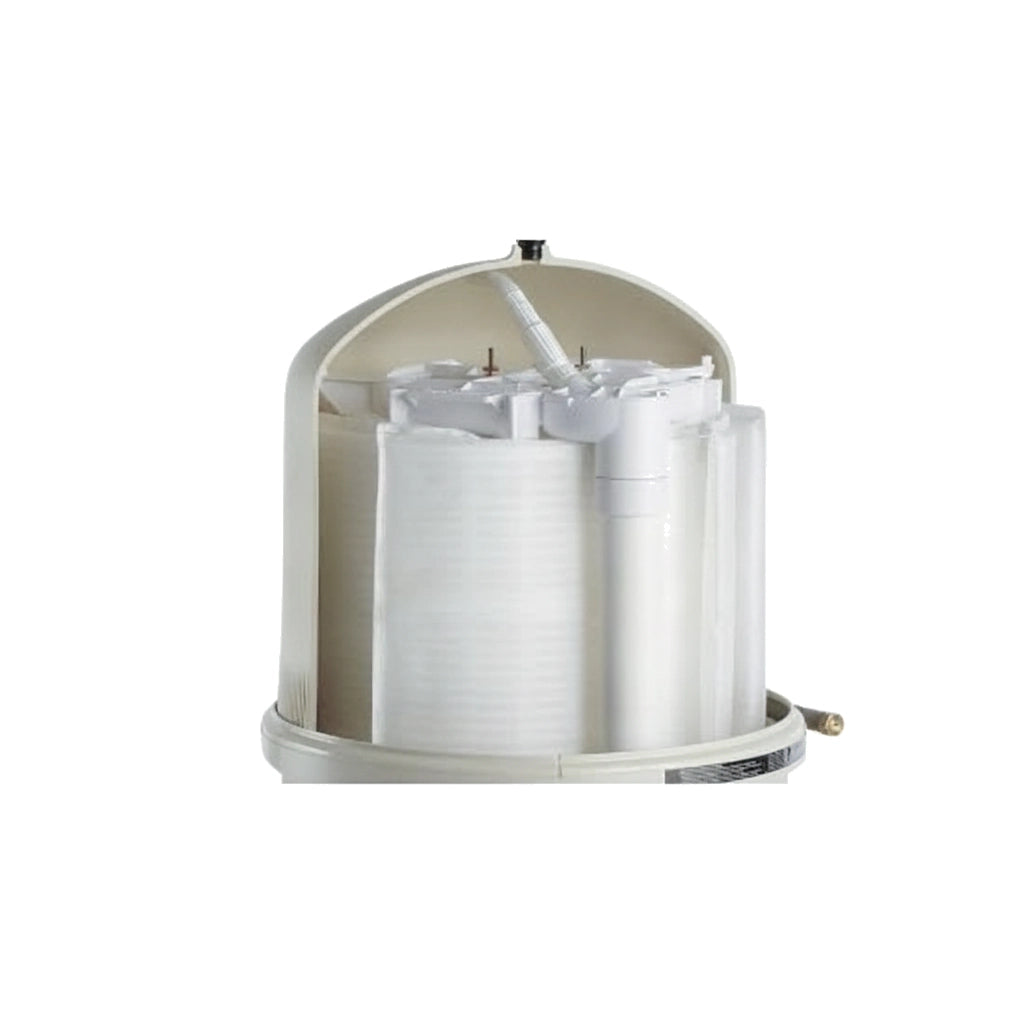

The grid elements are the filtration core of the FNS Plus D.E. filter. D.E. powder coats the fabric surface of each grid, forming the active filtration media that captures particles down to 2–5 microns. Over time, grid fabric degrades, tears, or develops channeling that allows unfiltered water to bypass the media. Replacing the full grid pack restores the filter's rated capacity and prevents D.E. from passing back into the pool.
Specifications
| Pentair Part Number | 198083 |
| Part Name | 60 Grid Element Pack |
| Quantity Included | 8-piece pack (7 large grid elements, 1 small grid element) |
| Filter Capacity | 60 sq. ft. |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | FNS Plus Filter — FNS Plus Series | FNS PLUS 60 | 60 sq. ft. filter grid element pack, 7 large and 1 small |
| Pentair | FNS Plus FNSP60 — FNS Plus Filters Series | 180009 | Replacement grid element pack for FNSP60; 7 large, 1 small |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
When replacing the grid pack, inspect the manifold, standpipe, and bump shaft O-rings at the same time — these components are exposed during grid removal and are common sources of D.E. bypass when worn. Replacing them during the same service call avoids reopening the filter shortly after. If your grids show uneven D.E. coating or D.E. is returning to the pool, check the small grid element first — it is the most common point of failure and is included in this pack.
