Pentair Band Clamp Assembly, Complete | Challenger High Flow Pump | 354629Z
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 354629Z
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

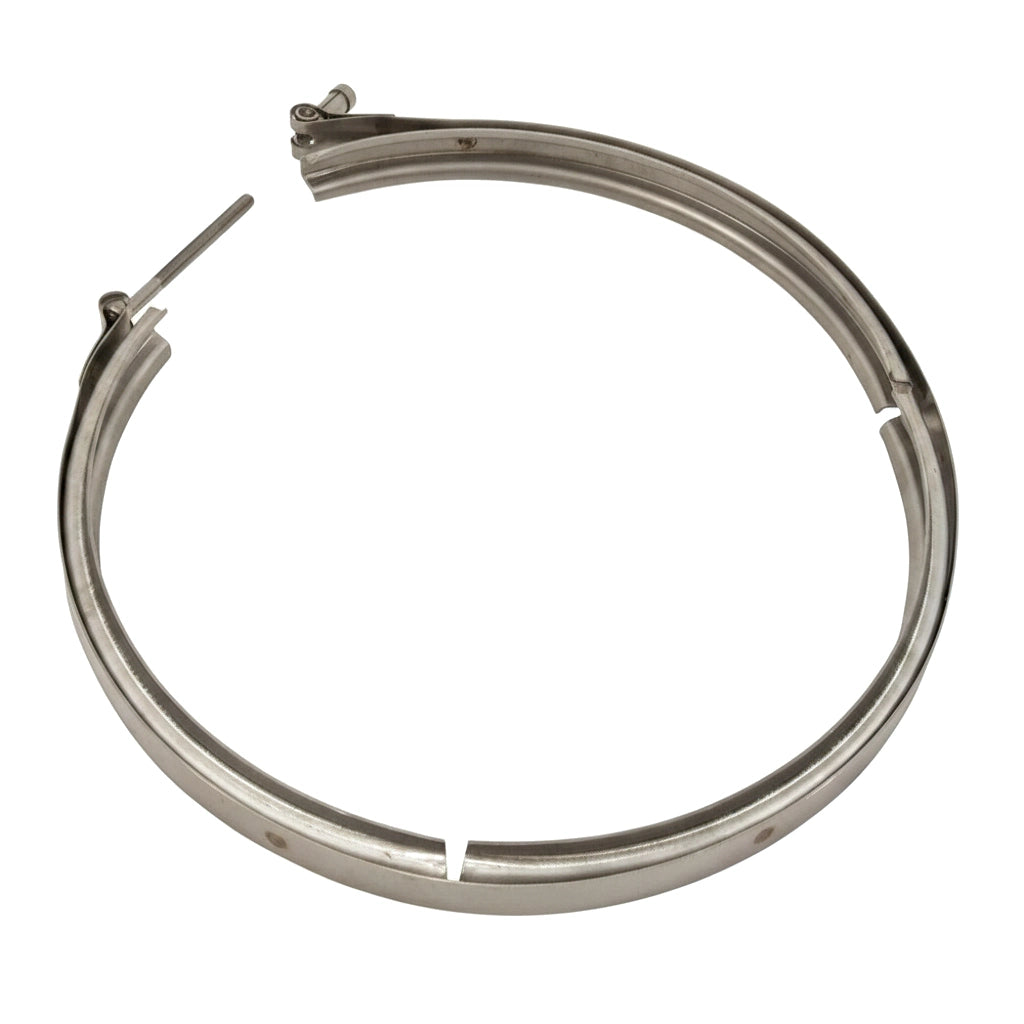

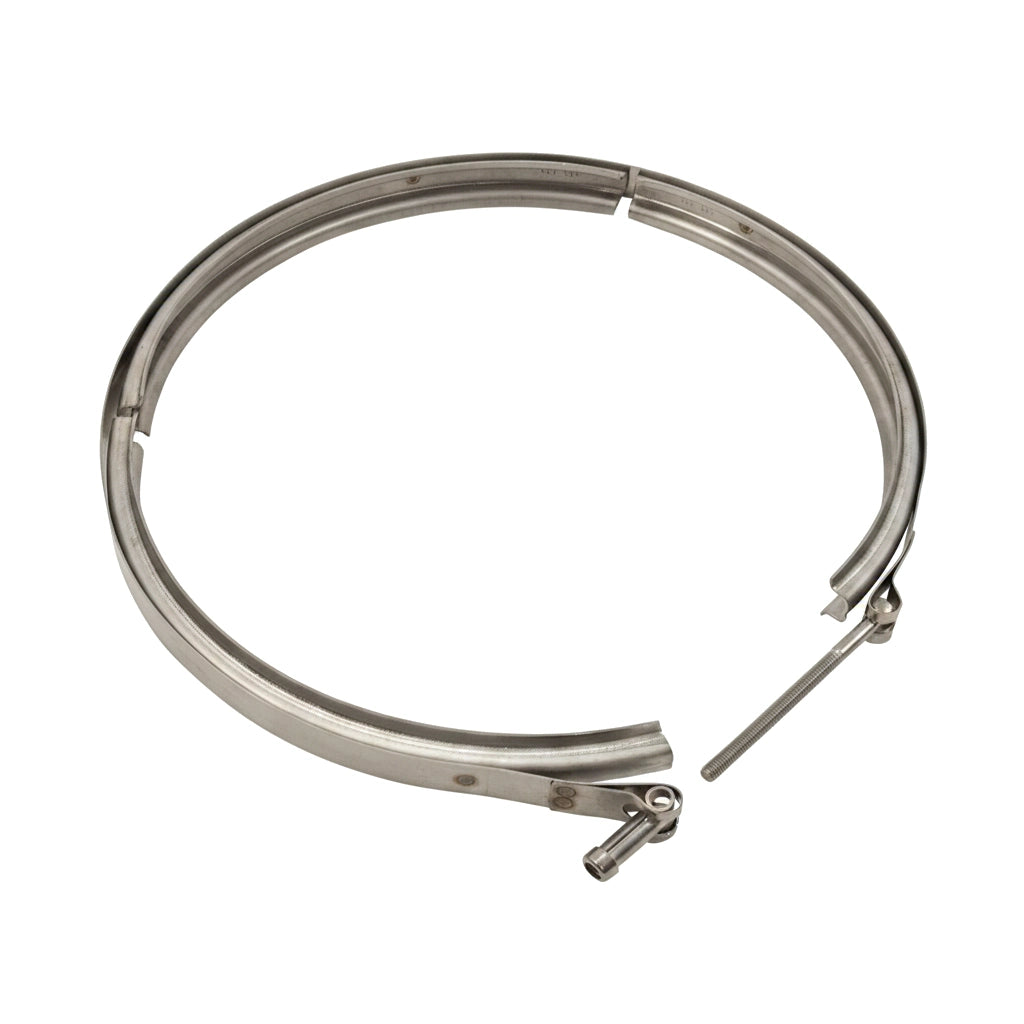

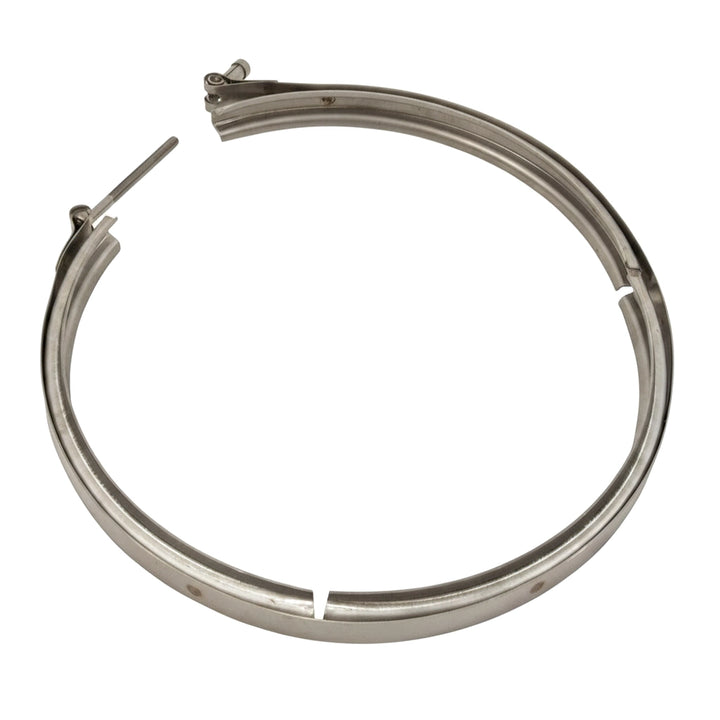

The Pentair 354629Z is the OEM replacement complete band clamp assembly for the Challenger High Flow Pump, securing the motor to the pump housing without a knob.
What It Does
The band clamp assembly cinches the motor and volute together at the pump's mating flange, maintaining a secure, leak-free connection between the wet end and motor. A failed or corroded band clamp can allow the motor to shift or separate from the pump body — replacing it with the OEM assembly restores the clamping force and corrosion resistance of the original installation.
Specifications
| Pentair Part Number | 354629Z |
| Part Name | Band Clamp Assembly, Complete |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | Challenger High Flow Pump | CHALLENGER-HIGH-FLOW | Challenger High Flow Pump |
| Pentair | SuperMax Motor 3/4HP | 354804S | Band clamp assembly for Challenger High Flow Pump |
| Pentair | SuperMax Motor 1HP | 354822S | Band clamp assembly for Challenger High Flow Pump |
| Pentair | SuperMax Motor 1-1/2HP | 354824S | Band clamp assembly for Challenger High Flow Pump |
| Pentair | SuperMax Motor 2HP | 354816S | Band clamp assembly for Challenger High Flow Pump |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
When replacing the band clamp, inspect the mating surfaces on both the volute and motor bracket for corrosion or deformation before reinstalling. A distorted flange face will prevent the new band from seating evenly, which can lead to vibration or premature wear. Match part number 354629Z to the number stamped on your existing clamp assembly before ordering — the Challenger line includes both knob and no-knob band variants, and this listing is specifically the assembly without knob.
