Pentair Seal Plate Black | Challenger High Flow & High Pressure Pump | 355004Z

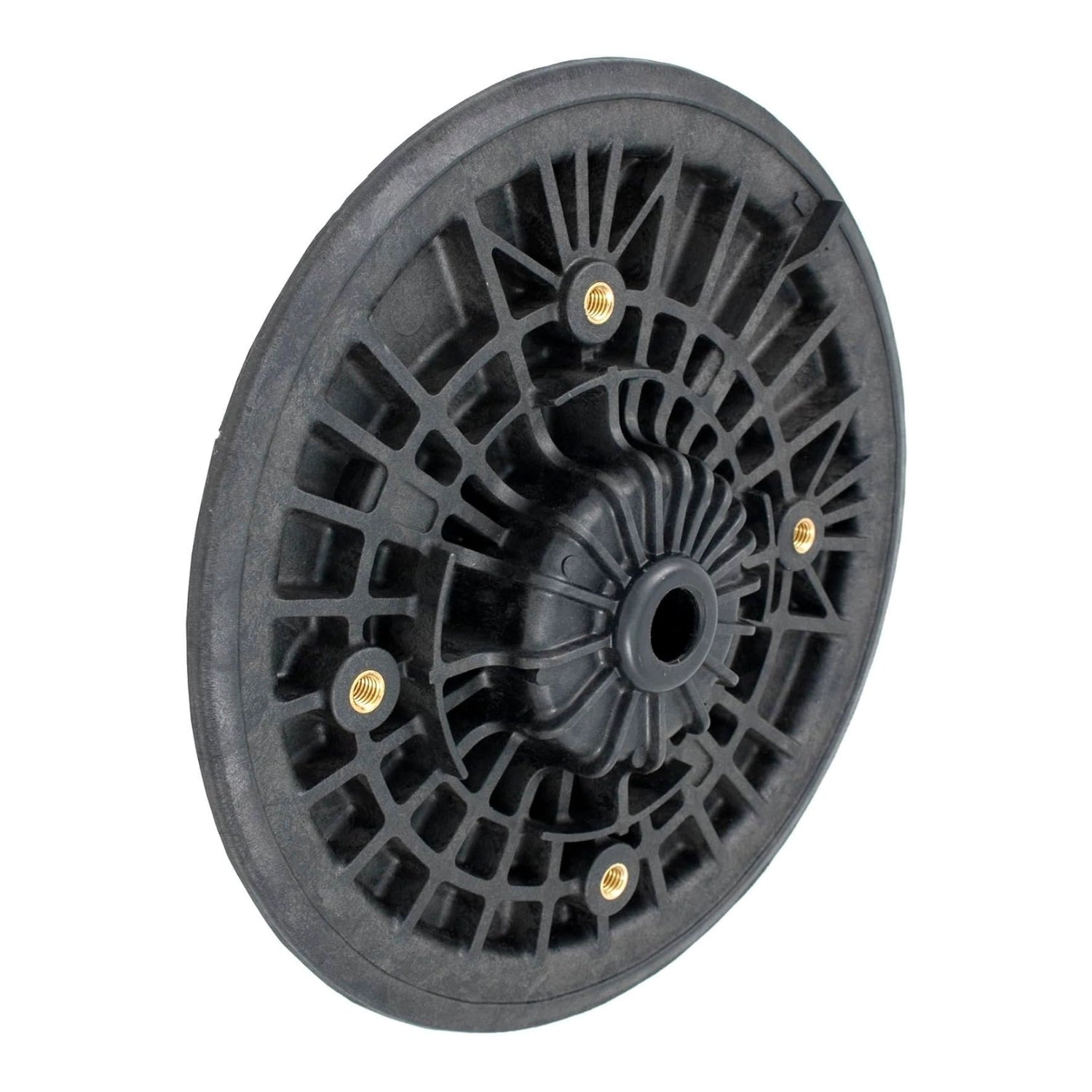

The Pentair Seal Plate (355004Z) is the OEM replacement seal plate for the Challenger High Flow and Challenger High Pressure pump series. This is the black version, supplied as a single unit.

The seal plate forms the critical interface between the pump's wet end and the motor, housing the shaft seal assembly and maintaining the pressure boundary that keeps water separated from the motor's electrical components. A damaged or worn seal plate can compromise shaft seal seating, leading to water migration toward the motor bearing and premature motor failure. When replacing a shaft seal, inspect the seal plate mating surface — any scoring or warping warrants replacement of the plate at the same service interval.

Specifications

Fits Into

Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Pro Tip

The seal plate on the Challenger series is available in both black and other color variants — confirm the color of your existing plate before ordering, as color can indicate a specific wet-end assembly version. Also note that 355004Z is listed for both the Challenger High Flow and Challenger High Pressure models, but the two pump lines share the same seal plate interface. If you are also replacing the shaft seal at this service, order the correct shaft seal for your specific pump model separately — it is not included with this plate.
