Pentair Impeller 1 HP | SuperFlo, SuperMax & Challenger High Flow | 355067Z
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 355067Z
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

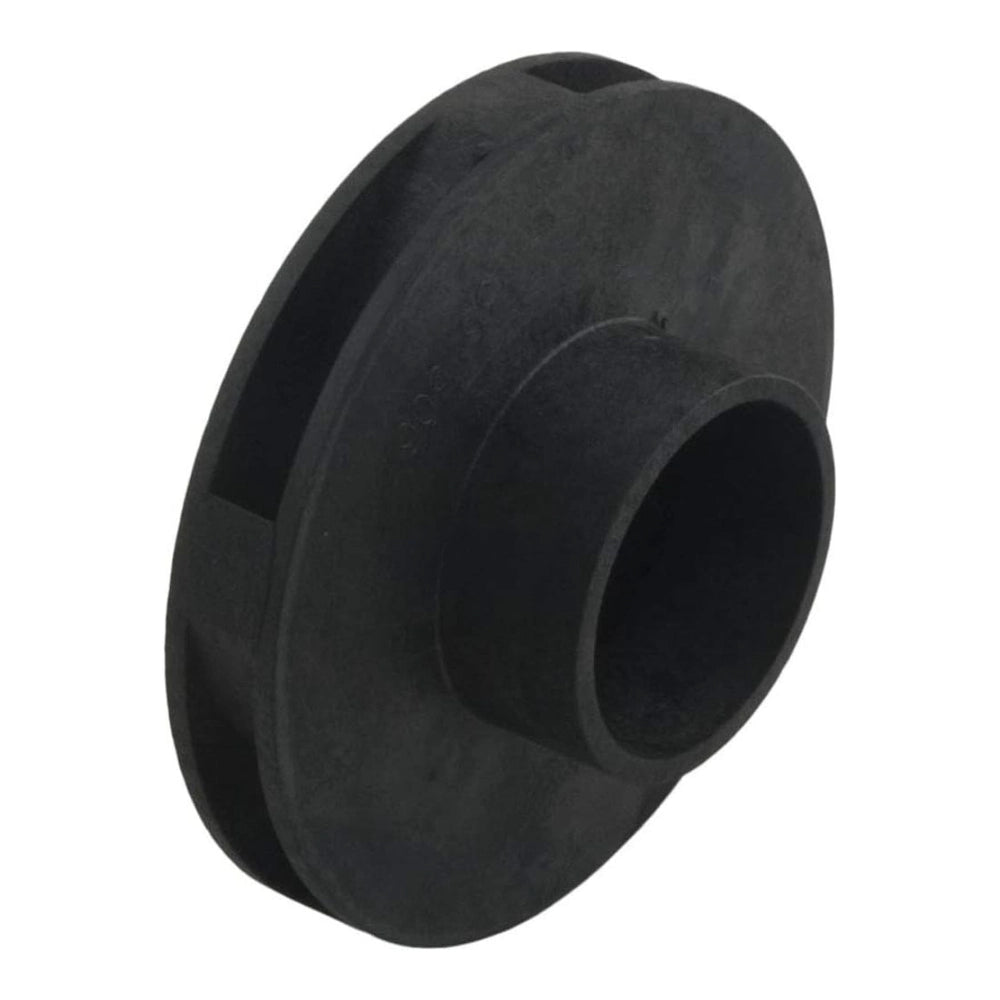

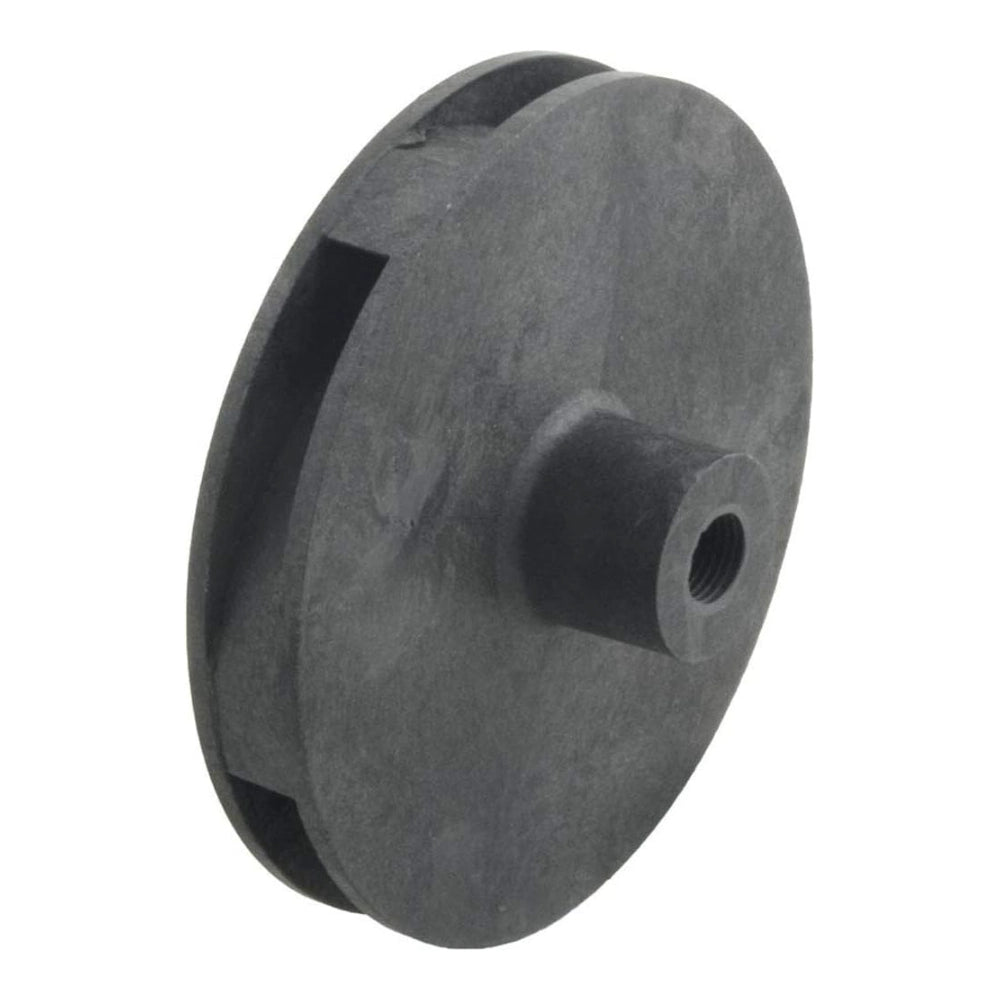

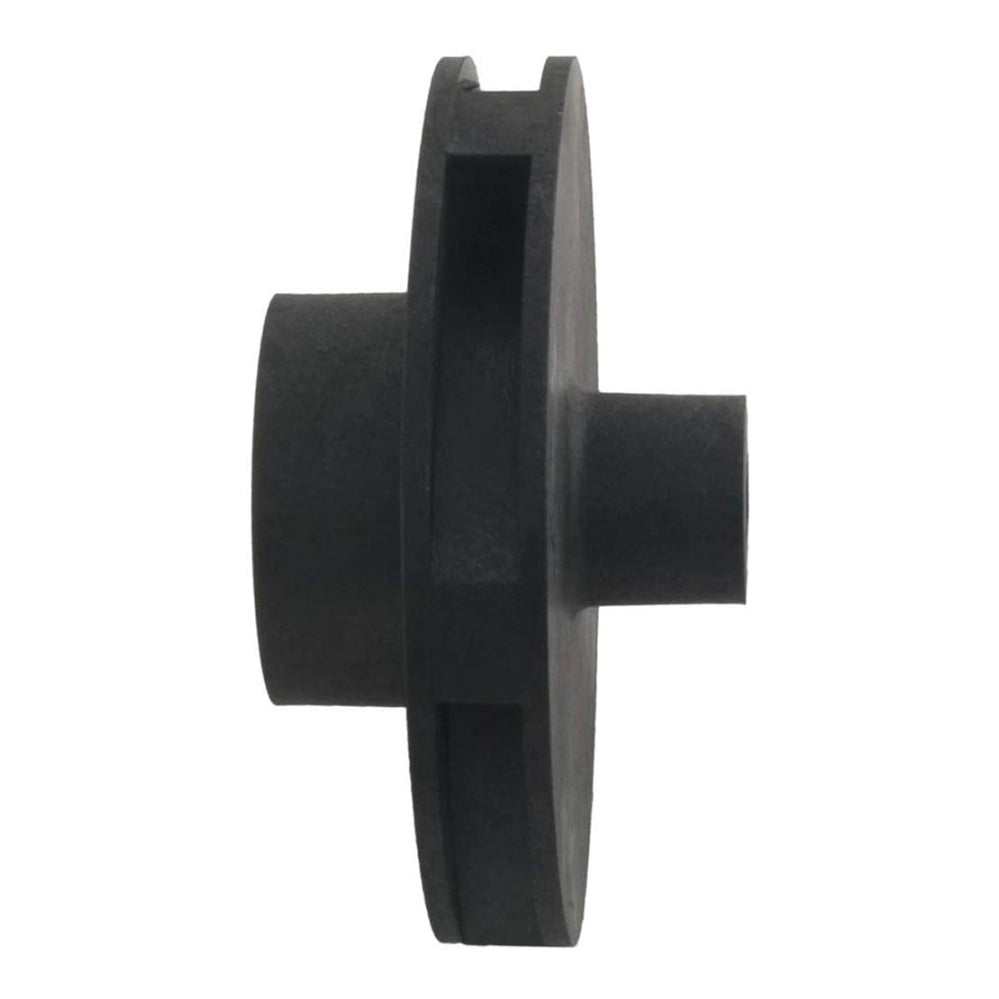

The Pentair 355067Z is the OEM replacement 1 HP impeller for the SuperFlo, SuperMax, and Challenger High Flow inground pump lines — covering both single-speed and 2-speed configurations.
What It Does
The impeller is the rotating component inside the pump volute that generates water flow through your circulation system. A worn, cracked, or clogged impeller reduces flow rate and puts additional load on the motor. Replacing it with the correct OEM part restores the pump's rated hydraulic performance. This impeller is rated for 1 HP full-rated and 3/4 HP up-rated Challenger High Flow applications — confirm your pump's horsepower rating and motor configuration before ordering.
Specifications
| Pentair Part Number | 355067Z |
| Part Name | Impeller 1 HP |
| Compatible Motor Configurations | Single speed and 2-speed |
| Quantity Included | Each (1) |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | SuperMax — SuperMax Series | 348191 | Impeller for 1 HP or 1 HP 2-SPD |
| Pentair | Challenger High Flow Pump — Challenger Series | CHALLENGER-HIGH-FLOW | Impeller for 3/4 HP Full Rated / 1 HP Uprated Challenger High Flow Pump |
| Pentair | SuperMax Motor 1HP — SuperMax Series | 354822S | Impeller for 1 HP (single speed and 2-speed) SuperMax pumps |
| Pentair | SuperFlo 1 HP Single Speed Motor — SuperFlo Series | 354821S | Impeller for 1 HP SuperFlo pump |
| Pentair | SuperMax Motor 1HP SQFL — SuperMax Series | 355021S | Impeller for 1 HP (single speed and 2-speed) SuperMax pumps |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before ordering, check the part number molded or stamped on your existing impeller — impeller selection is sensitive to both horsepower rating and whether the motor is full-rated or up-rated. The Challenger High Flow application for this impeller covers 3/4 HP full-rated and 1 HP up-rated configurations, which are not interchangeable with standard-rated pumps. When the pump is open for an impeller replacement, it is also the right time to inspect the shaft seal and replace it if there is any sign of leakage — a worn seal is a common companion failure to impeller wear.
