Pentair Seal Plate O-Ring 1.5 HP | IntelliFlo3 / IntelliPro3 VSF Pump | 356148Z
- Low stock - 10 items left
- SKU:
- 356148Z
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

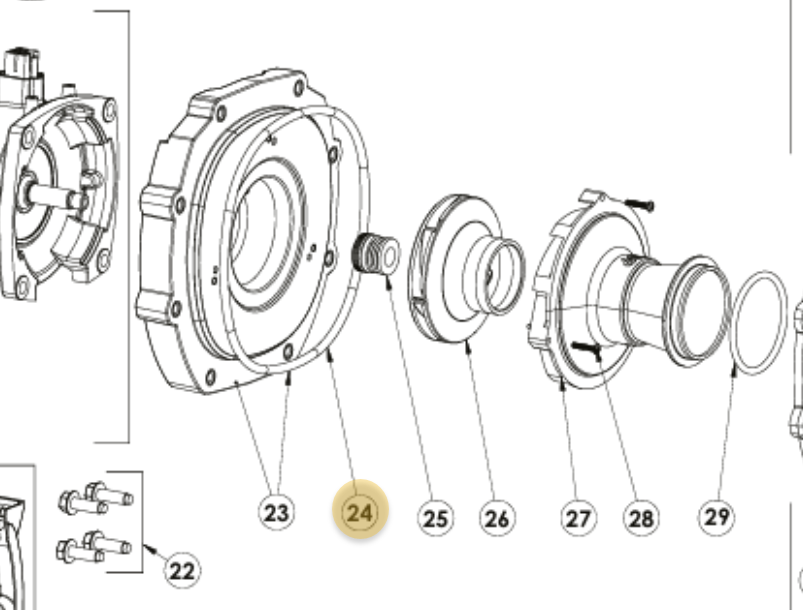

The Pentair Seal Plate O-Ring (356148Z) is the OEM replacement seal plate O-ring for the 1.5 HP models in the IntelliFlo3 and IntelliPro3 VSF variable speed and flow pump series.
⚠️ IMPORTANT: LUBRICATION REQUIRED — SOLD SEPARATELY
Always lubricate this O-ring with a silicone-based lubricant before installation. We carry the Pentair R172351 Lifeguard® Silicone Lubricant — the OEM-matched product for Pentair equipment.
The seal plate O-ring forms the watertight seal between the pump's seal plate and wet end housing. When this O-ring degrades, flattens, or cracks, it allows air to be drawn into the pump volute or permits water to weep at the seal plate joint — both of which compromise prime and pump performance. Replacing it at the first sign of leakage or during any wet end service keeps the pump operating at rated efficiency.
Specifications
| Pentair Part Number | 356148Z |
| Part Name | Seal Plate O-Ring, 1.5 HP |
| Part Category | O-Rings |
| Quantity Included | Each (1) |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | IntelliFlo3 VSF 3.0HP — IntelliFlo3 / IntelliPro3 Series | IntelliFlo3 | 1.5 HP models only |
| Pentair | IntelliPro3 VSF 3.0HP — IntelliFlo3 / IntelliPro3 Series | IntelliPro3 | 1.5 HP models only |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
This O-ring is specific to the 1.5 HP configuration of the IntelliFlo3 and IntelliPro3 VSF pumps — confirm your pump's horsepower rating before ordering, as seal plate O-ring dimensions vary between HP variants. Before installation, apply a thin, even coat of Pentair R172351 Lifeguard® Silicone Lubricant to the O-ring to help it seat evenly, prevent tearing during assembly, and extend service life. Never use petroleum-based lubricants — they will degrade the rubber and cause premature failure.
