Pentair Diffuser | MAX-E-PROXF, WHISPERFLOXF & IntelliFlo XF Inground Pumps | 400010Z
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 400010Z
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

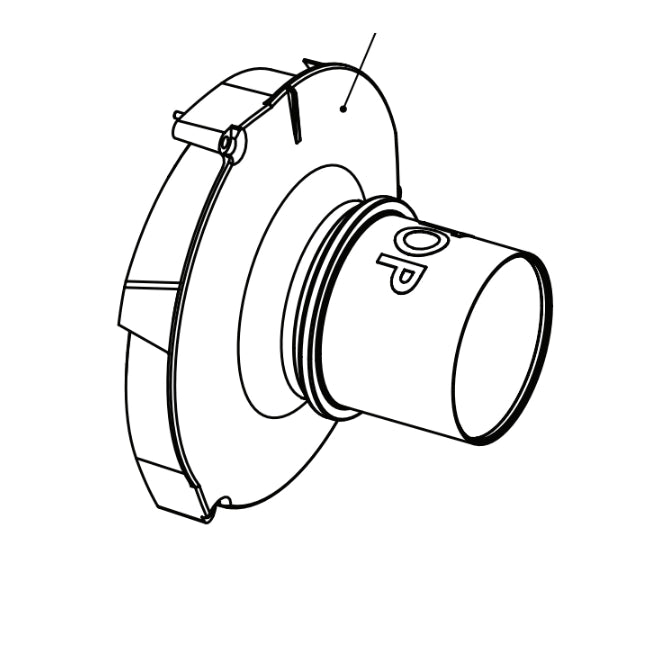

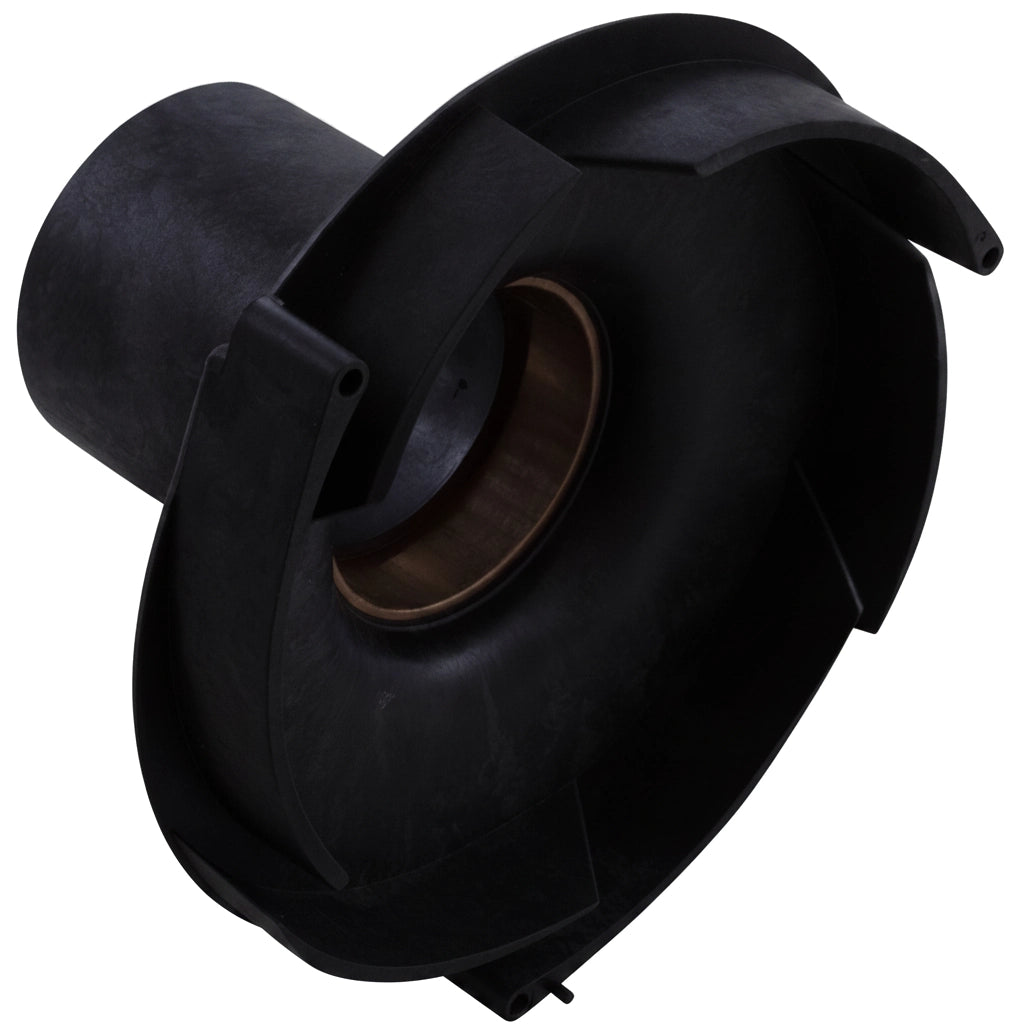

The Pentair Diffuser (400010Z) is the OEM replacement diffuser for the MAX-E-PROXF, WHISPERFLOXF series and IntelliFlo XF variable speed inground pumps. For exact match, see the model numbers below.
The diffuser channels water from the impeller and converts rotational velocity into pressure, directing flow efficiently toward the pump outlet. A cracked, worn, or damaged diffuser reduces hydraulic efficiency, increases energy draw, and can cause cavitation that accelerates wear on the impeller and other wet-end components. Replacing it with the correct OEM part restores designed flow performance.
Specifications
| Pentair Part Number | 400010Z |
| Legacy Part Number | 400010 |
| Part Type | Diffuser |
| Quantity Included | 1 (Each) |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | MAX-E-PROXF | XFET-8 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFET-12 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XF-8 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XF-12 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XF-30 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFE-8 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFE-12 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFE-30 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFDS-8 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFDS-12 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFDS-30 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFJ-8 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFJ-12 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFK-8 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | MAX-E-PROXF | XFK-12 | Diffuser for 8HP, 12HP and 30HP variants |
| Pentair | IntelliFlo XF | INTELLIFLOXF VSF | IntelliFlo VSF Variable Speed Pump - After Aug 2015 |
| Pentair | IntelliFlo XF | INTELLIFLOXF VS | IntelliFlo VS Variable Speed Pump- After Aug 2015 |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
The part number 400010Z is molded into or stamped on the original diffuser. Confirm this number on your existing part before ordering — the MAX-E-PROXF and IntelliFlo XF series use high-horsepower wet ends, and diffuser geometry is specific to the HP rating group. The fit_notes confirm this part covers the 8HP, 12HP, and 30HP variants across all confirmed model suffixes; if your model number is not listed above, cross-reference your equipment's parts manual before purchasing.
