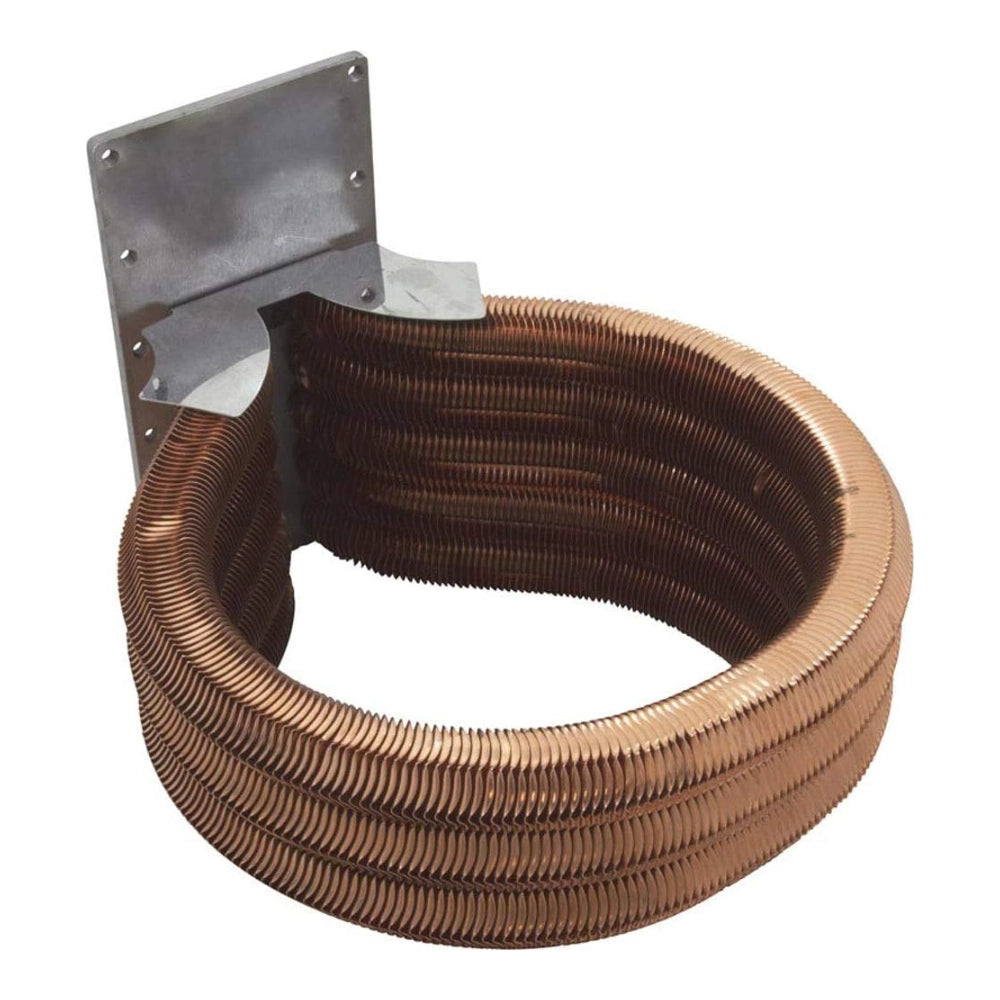

The Pentair Tube Sheet Coil Assembly Kit (474058) is the OEM replacement heat exchanger assembly for the MasterTemp 175NA, 175LP, 200NA, and 200LP, and the Max-E-Therm 200 (NA/LP Series) pool and spa heaters. This kit is manufactured in cupro nickel — the corrosion-resistant alloy specified for these models.

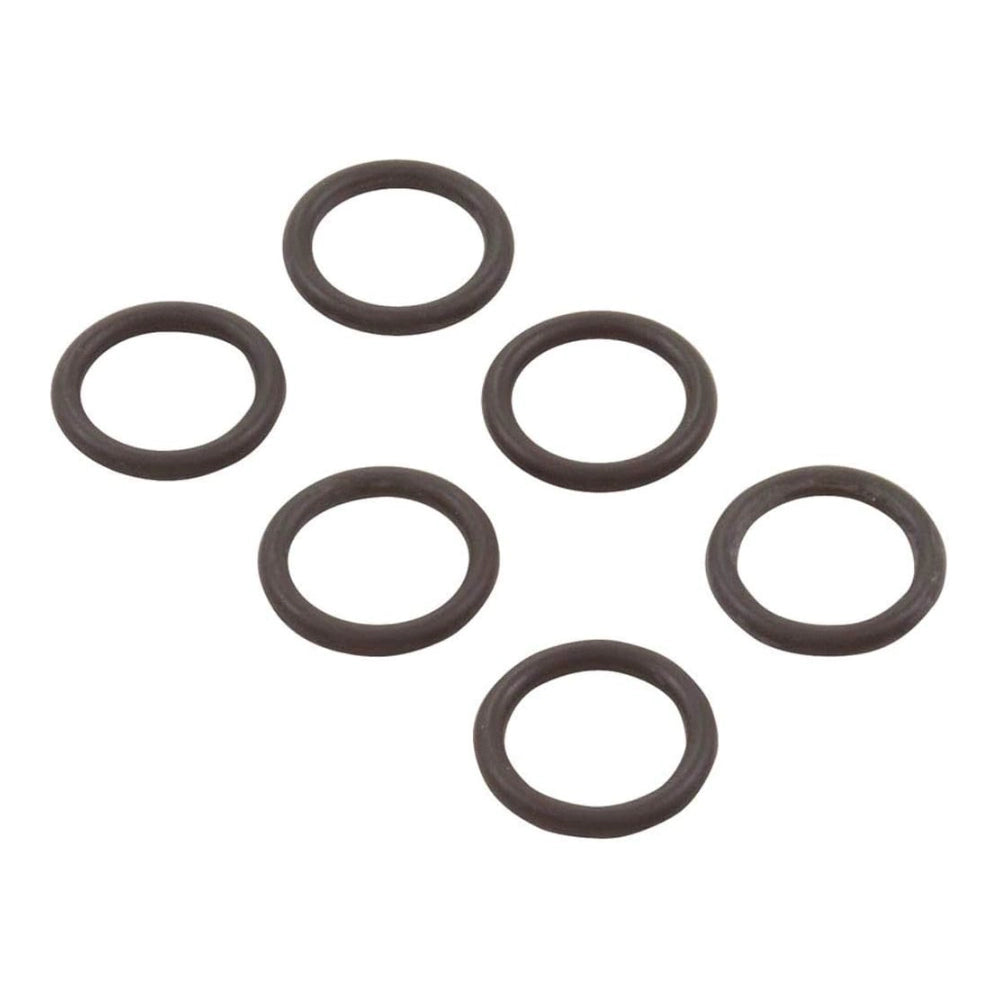

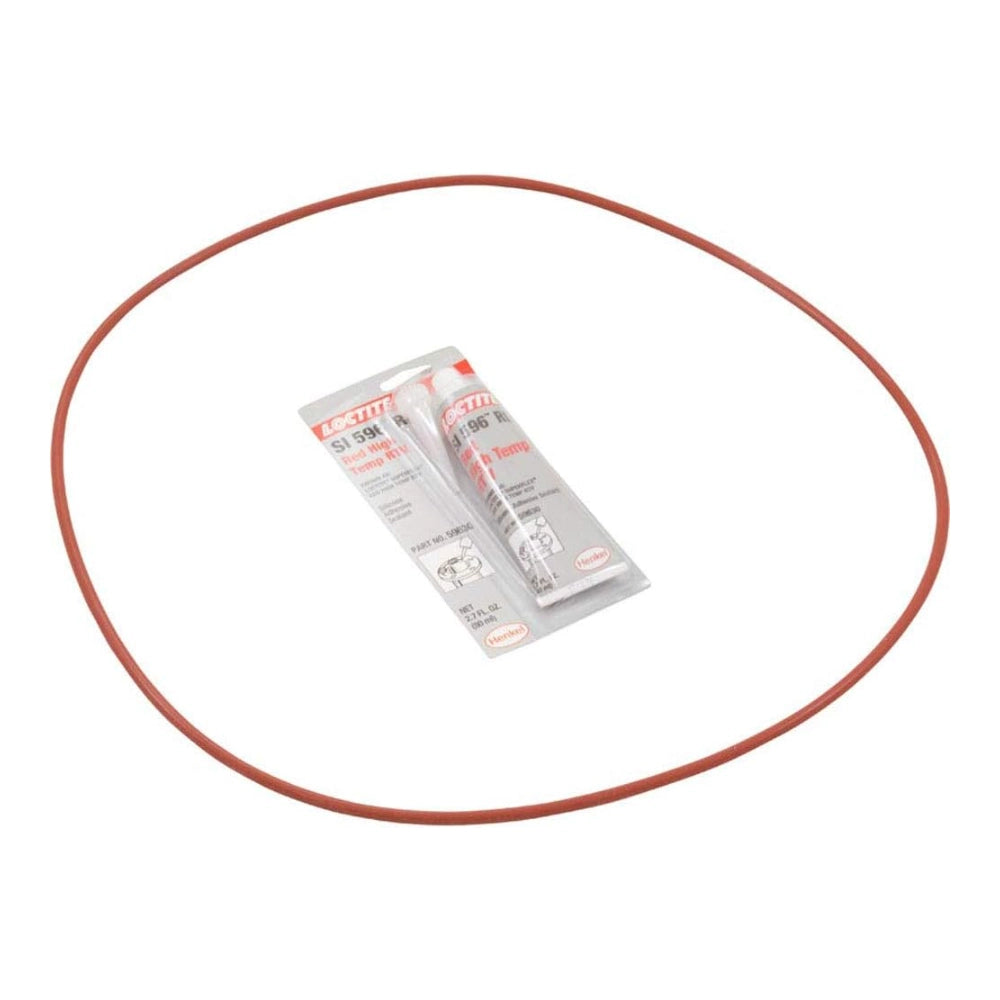

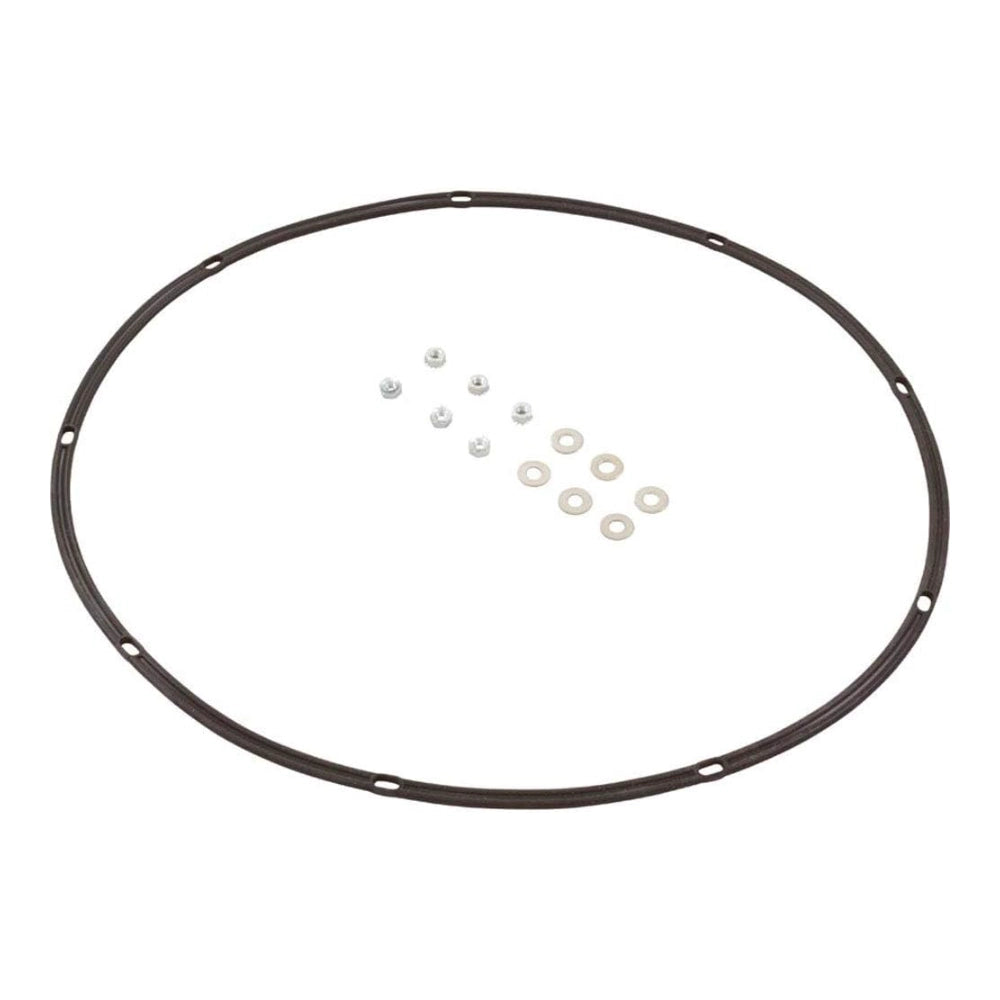

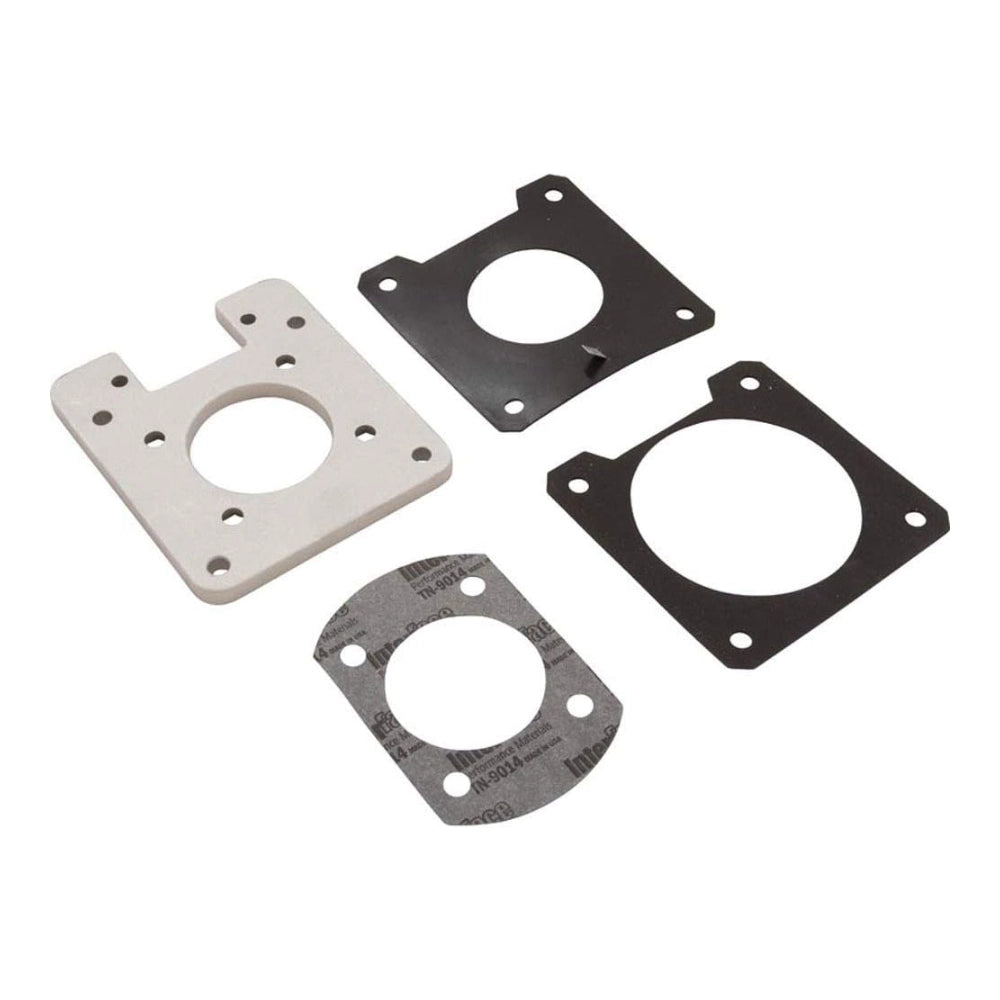

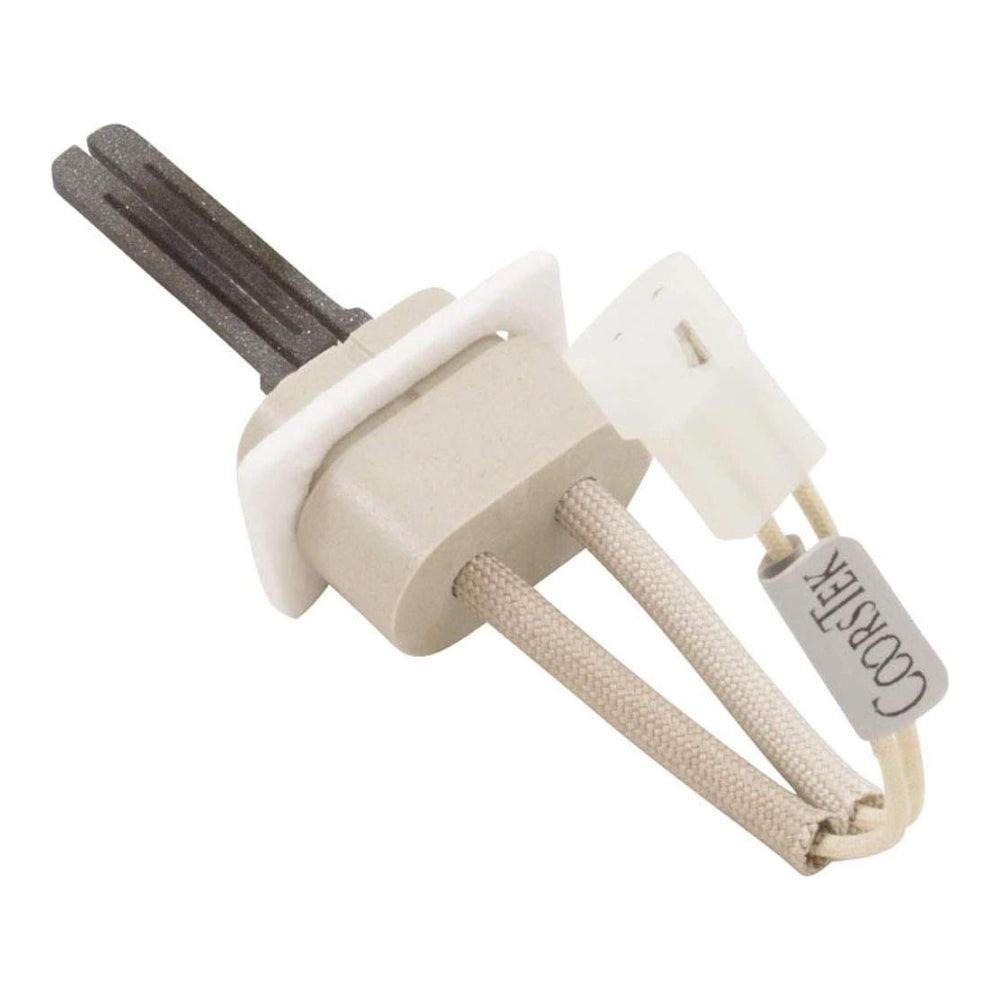

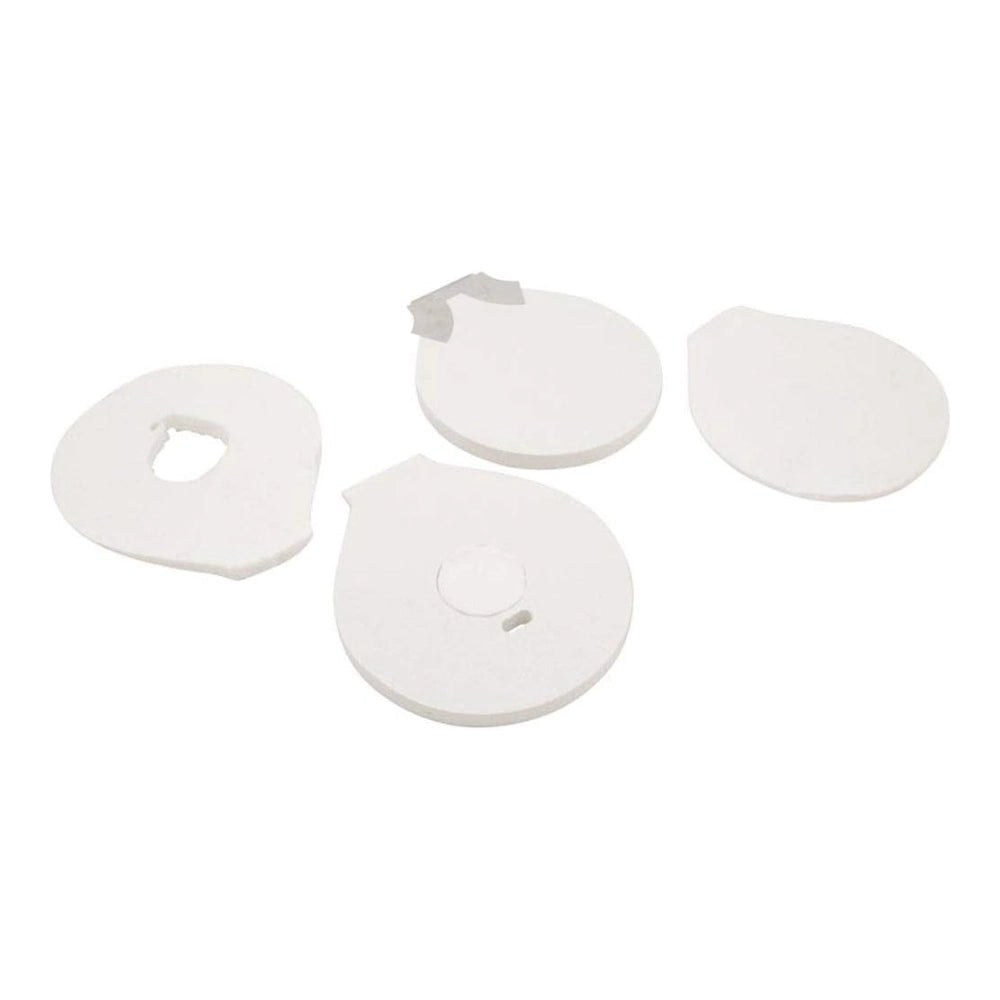

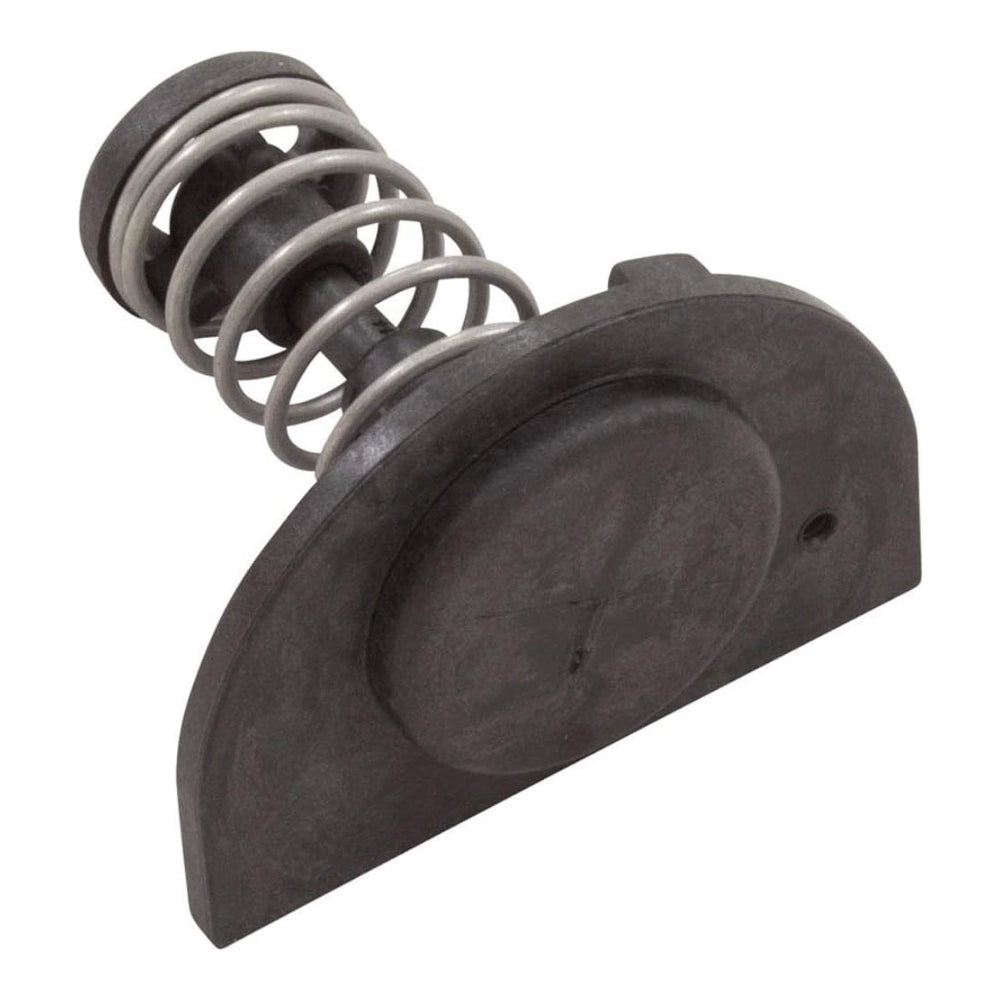

⚠️ IMPORTANT: KIT LISTING — MULTIPLE COMPONENTS INCLUDED

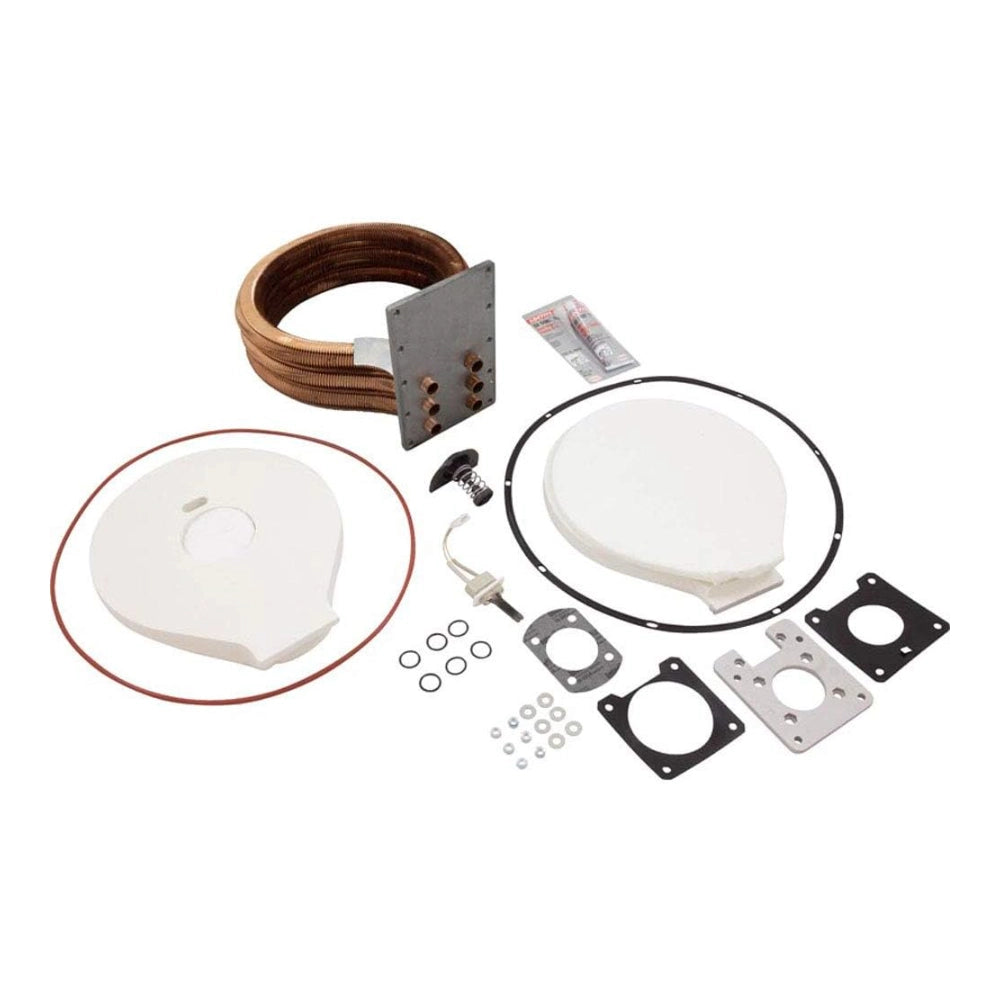

This listing is a kit, not a single component. It includes Item No. 3 as defined in the MasterTemp and Max-E-Therm exploded parts diagrams. Confirm the item number against your equipment's service manual before ordering.
⚠️ IMPORTANT: VERSION QUALIFIER — MANUFACTURED AFTER 1/12/09
This assembly is designed for Max-E-Therm 200 (NA/LP Series) heaters manufactured after January 12, 2009. Check the date code on your heater's rating label before ordering. Heaters manufactured prior to this date require a different assembly.
⚠️ IMPORTANT: LICENSED TECHNICIAN REQUIRED
Gas and electrical heater components must be serviced by a licensed pool professional or qualified HVAC technician. Do not attempt to service gas or high-voltage components without proper certification.
The tube sheet coil assembly is the primary heat transfer component inside the MasterTemp and Max-E-Therm heater. Pool or spa water circulates through the coil while combustion gases pass over it, transferring heat to the water. A degraded or failed coil assembly results in reduced heating efficiency, water leakage within the heater cabinet, or complete loss of heat output. Cupro nickel construction provides enhanced resistance to corrosion from pool water chemistry compared to standard copper alloys.
Specifications
| Pentair Part Number |
474058 |
| Part Name |
Tube Sheet Coil Assembly Kit |
| Quantity Included |
Kit (includes Item No. 3) |
| Compatible Equipment |
MasterTemp 175NA, 175LP, 200NA, 200LP; Max-E-Therm 200 NA/LP Series |
Fits Into
| Brand |
Equipment Line |
Model / Part Number |
Notes |
| Pentair |
MasterTemp — MasterTemp Series |
175NA |
Includes Item No. 3 |
| Pentair |
MasterTemp — MasterTemp Series |
175LP |
Includes Item No. 3 |
| Pentair |
MasterTemp — MasterTemp Series |
200NA |
Includes Item No. 3 |
| Pentair |
MasterTemp — MasterTemp Series |
200LP |
Includes Item No. 3 |
| Pentair |
Max-E-Therm 200 — Max-E-Therm Series |
MAX-E-THERM-200-NA |
NA/LP Series 200 Models. For heaters manufactured after 1/12/09. |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before ordering, locate the date code on your heater's rating label — typically found on the inside of the heater cabinet door or on the rear panel. If your heater is a Max-E-Therm 200 (NA/LP Series), this assembly is only correct for units manufactured after January 12, 2009. Also confirm whether your heater is a natural gas (NA) or propane (LP) model, as both variants use the same tube sheet assembly — but confirming your model number against the Fits Into table above eliminates any ordering error. When a licensed technician opens the heater for this service, it is good practice to inspect the header and manifold connections at the same time, as these components are subject to the same water chemistry exposure as the coil assembly.
