Pentair New Load Center Resettable 12A 50V SCG Circuit Breaker | EasyTouch Control System | 521142Z
| From Across the Web: | 5.0 (5) |
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 521142Z
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

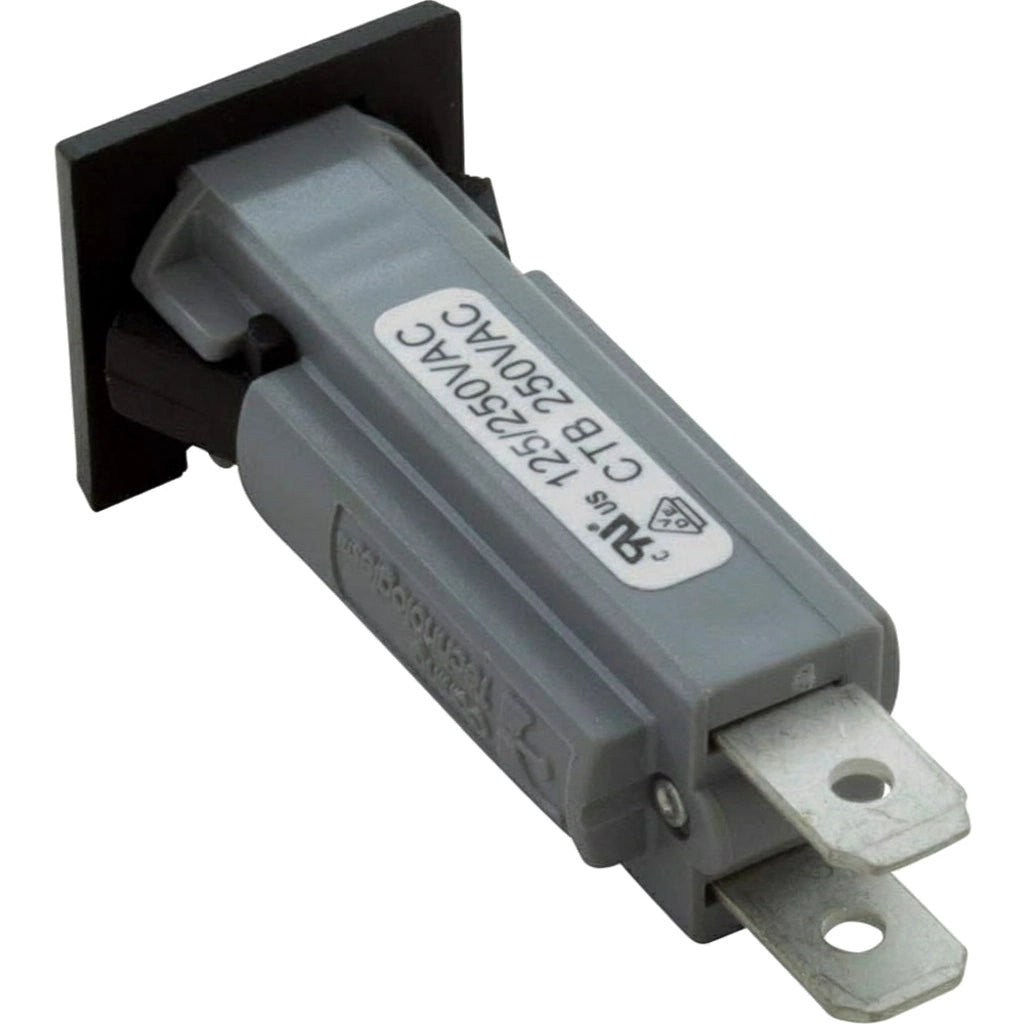

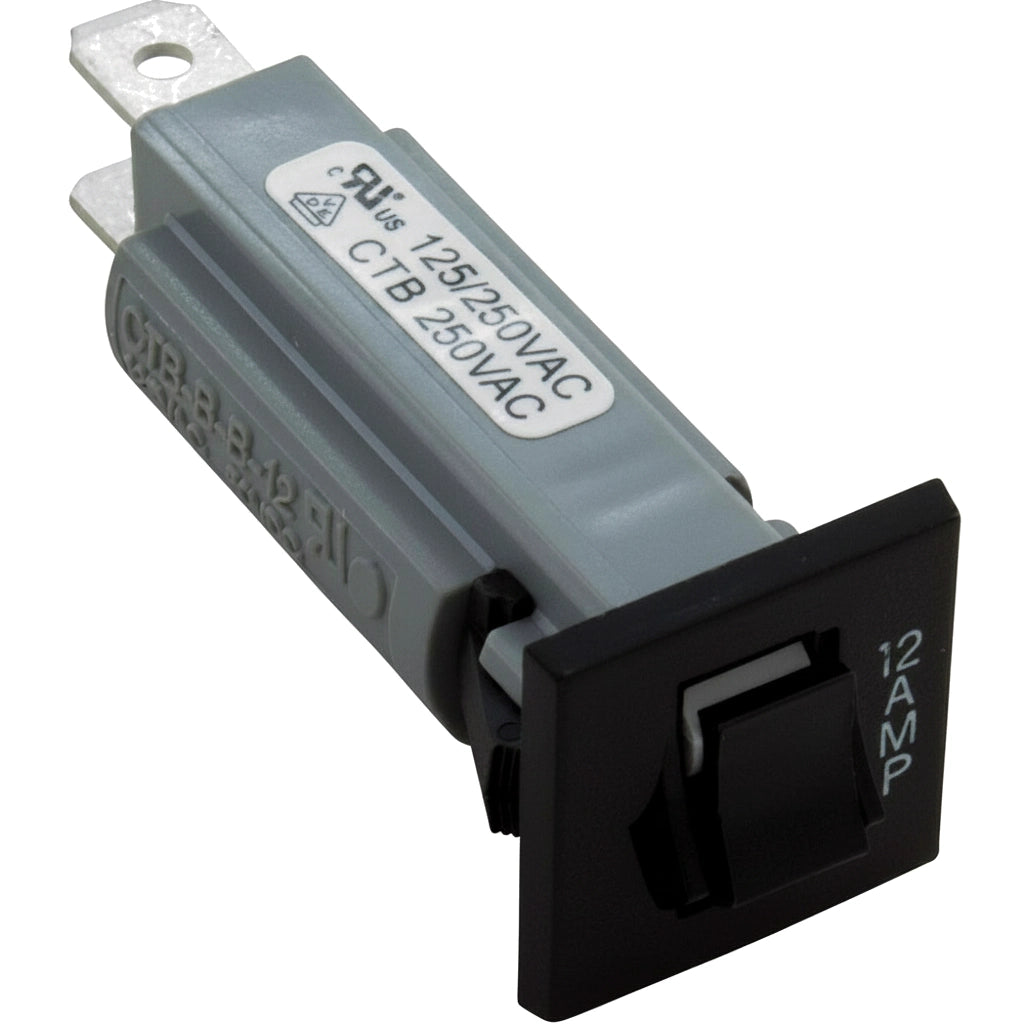

The Pentair 521142Z is the OEM replacement resettable circuit breaker for the EasyTouch Load Center, rated at 12 amps and 50 volts. If your load center has tripped or a breaker has failed, this is the exact factory replacement to restore protected circuit operation.
⚠️ IMPORTANT: ELECTRICAL SAFETY — PROFESSIONAL INSTALLATION REQUIRED
This component operates within a mains-voltage load center. Installation or replacement must be performed by a qualified electrician or certified pool technician. Do not attempt to service this component without proper certification and with power fully disconnected at the main breaker.
⚠️ IMPORTANT: VERSION / DATE QUALIFIER
This breaker applies to EasyTouch Load Centers produced after the 2011 change date. Verify your load center's production date or revision level against your equipment manual before ordering.
The resettable circuit breaker protects individual output circuits within the Pentair EasyTouch Load Center from overcurrent conditions. Unlike a standard fuse, a resettable breaker can be manually reset after a trip event — eliminating the need to stock replacement fuses for routine nuisance trips. When a breaker fails to hold or no longer resets, it must be replaced to maintain circuit protection for connected pool and spa equipment.
Specifications
| Pentair Part Number | 521142Z |
| Part Name | New Load Center Resettable 12A 50V SCG Circuit Breaker |
| Electrical Rating | 12A, 50V |
| Breaker Type | Resettable |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | EasyTouch Control System | EASYTOUCH | After change date 2011 |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before ordering, confirm the amperage rating stamped on your existing breaker matches this listing — 12A 50V. The EasyTouch Load Center uses multiple breaker ratings across different circuit positions, and installing the wrong amperage breaker will not provide correct circuit protection. If the breaker trips repeatedly after replacement, the underlying load or wiring fault must be diagnosed by a qualified technician before returning the system to service.
