Pentair Quartz Sleeve 65" | BioShield UV System 150 Watt | 523042
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 523042
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

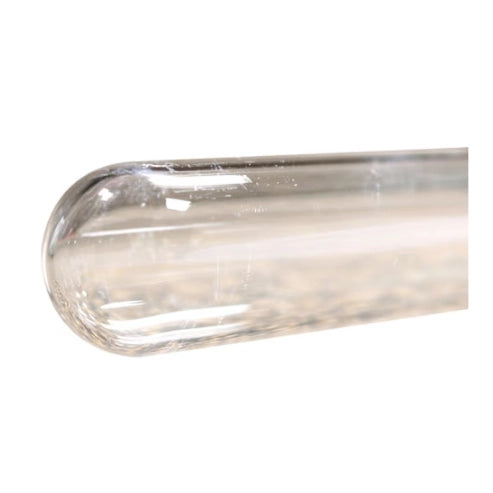

The Pentair Quartz Sleeve 65" (523042) is the OEM replacement quartz sleeve for the BioShield UV System 150 Watt sanitizer units. This is the protective quartz tube that surrounds the UV lamp inside the BioShield chamber, and it is sold individually as a single sleeve.
What It Does
The quartz sleeve acts as a transparent barrier between the UV lamp and the water flowing through the sanitizer chamber. Quartz transmits UV-C light with minimal attenuation, allowing the lamp to deliver its full germicidal output to the water stream. Over time, mineral scale and biofilm accumulation on the sleeve surface reduce UV transmission efficiency — a fouled or cracked sleeve directly compromises sanitizer performance. Replacing a damaged or scaled sleeve restores the system to its rated UV output.
Specifications
| Pentair Part Number | 523042 |
| Part Name | Quartz Sleeve 65" |
| Quantity Included | 1 (individual sleeve) |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | BioShield UV System 150 Watt | 522638 | 65" Quartz Sleeve |
| Pentair | BioShield UV System 150 Watt (Alt) | 522945 | 65" Quartz Sleeve |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Inspect the quartz sleeve each time you replace the UV lamp. Even if the sleeve is not visibly cracked, mineral scale buildup reduces UV-C transmission — a sleeve that looks intact can still be blocking a significant portion of germicidal output. If your water is hard or you have not cleaned the sleeve in more than one season, replacement at the same time as the lamp is the more reliable approach. Confirm your BioShield unit's model number (522638 or 522945) before ordering — both are 150W units but are listed separately in Pentair's parts documentation.
