Pentair Quartz Sleeve Module for BioShield UV System | 523382

The Pentair BioShield® Quartz Sleeve Module (523382) is the OEM replacement quartz sleeve assembly for the Pentair BioShield UV System series. This module services all BioShield UV wattage configurations and includes the complete sleeve assembly (sleeve and gasket per the BioShield exploded diagram).

⚠️ IMPORTANT: KIT LISTING — MULTIPLE COMPONENTS INCLUDED

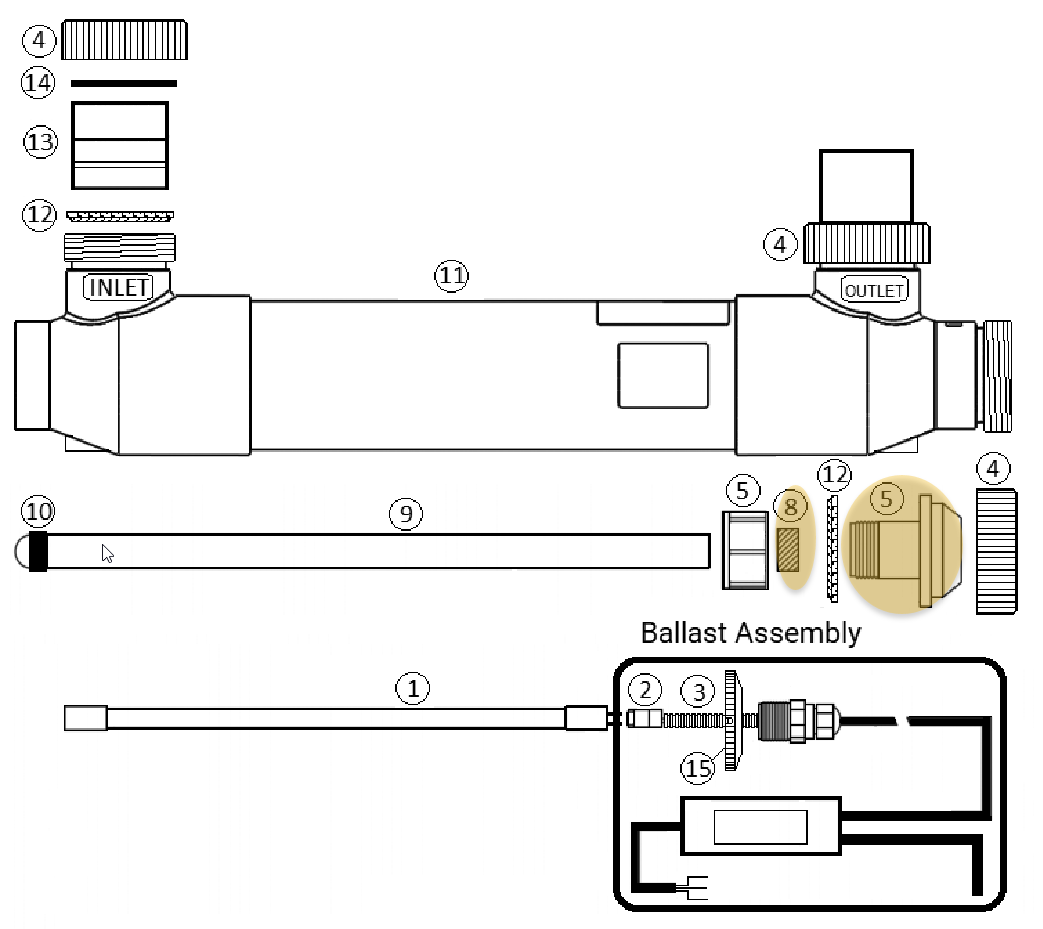

This listing is a module kit that includes Items sleeve and gasket from the BioShield UV System parts diagram — not a single sleeve only Parts #5 and 8 - see diagram. Confirm you require the full module assembly before ordering.

The quartz sleeve is the protective barrier between the UV lamp and the pool water flowing through the BioShield system. It transmits UV light from the lamp into the water stream while isolating the lamp from direct water contact. A cracked, clouded, or fouled quartz sleeve reduces UV transmittance, compromising the system's ability to neutralise pathogens. Replacing the sleeve module restores full UV output and protects the lamp from premature failure due to water exposure.

Specifications

Fits Into

Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Pro Tip

Quartz sleeves should be inspected at every UV lamp replacement interval. Even without visible cracking, mineral scale and biofilm accumulation on the sleeve surface reduce UV transmittance significantly — a visually intact sleeve can still be underperforming. When replacing the UV lamp, replace this sleeve module at the same time to ensure the system returns to rated output. Handle the quartz sleeve with clean, dry gloves — skin oils transferred to the quartz surface can etch the glass under UV exposure and reduce service life.
