About This Item

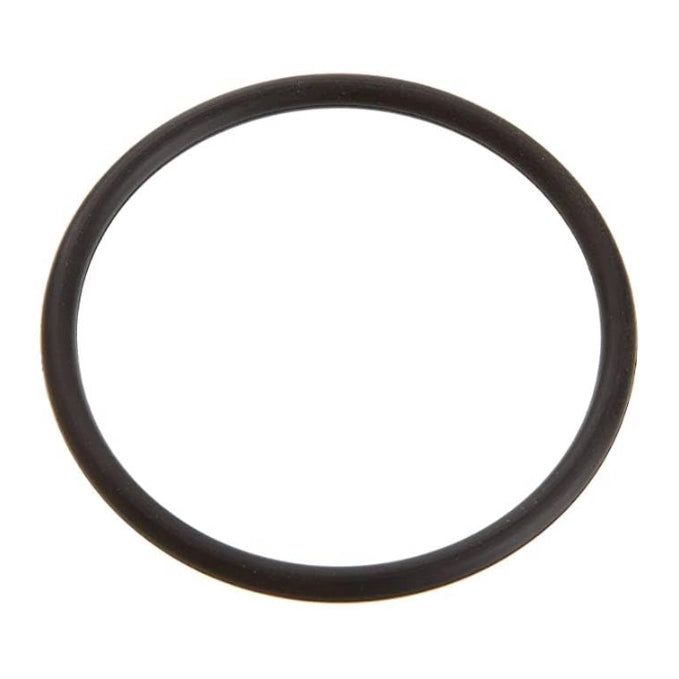

The Pentair O-Ring Adapter #2-226 (6020018Z) is the OEM replacement union adapter O-ring for the SuperFlo and SuperMax pump families, including single-speed and variable-speed models.
⚠️ IMPORTANT: 2 REQUIRED PER PUMP
Two O-rings are required per pump for a complete union adapter service. This listing is for one (1) O-ring — order two to complete the job.
⚠️ IMPORTANT: LUBRICATION REQUIRED — SOLD SEPARATELY
Always lubricate this O-ring with a silicone-based lubricant before installation. We carry the Pentair R172351 Lifeguard® Silicone Lubricant — the OEM-matched product for Pentair equipment.
This O-ring seats at the union adapter connection on the pump's plumbing unions, creating a watertight seal between the pump body and the union fitting. When this O-ring degrades or is disturbed during pump service, it is the most common source of a slow drip at the union joint. Replacing it at every pump service interval — or any time the unions are disconnected — prevents leaks before they start. Note that this O-ring is also included as part of Pentair Union Kit 351157; if you are replacing the full union assembly, the kit may be the more economical choice.
Specifications
| Pentair Part Number | 6020018Z |
| O-Ring Designation | #2-226 |
| Quantity Included | 1 (two required per pump — see callout above) |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | SuperMax — SuperMax Series | 348191 | SuperMax DOE Pump; part of Union Kit 351157 |
| Pentair | SuperFlo DOE Pump — SuperFlo DOE Series | 348190 | Replacement parts for Product #348190; included in Union Kit 351157 |
| Pentair | SuperFlo VS/VST Variable Speed Pump — SuperFlo Series | SUPERFLO-VS-VST | Qty. 2 |
| Pentair | SuperFlo VS/VST Variable Speed Pump — SuperFlo Series | SUPERFLO VS/VST | Union Adapter O-Ring |
| Pentair | SuperMax VS Variable Speed Pump — SuperMax Series | SUPERMAX-VS | Qty. 2 |
| Pentair | SuperMax VS Variable Speed Pump — SuperMax Series | SUPERMAX VS | Union Adapter O-Ring |
| Pentair | SuperFlo 3/4 HP Single Speed Motor — SuperFlo Series | 354803S | SuperFlo Pump O-ring adaptor No. 2-226 |
| Pentair | SuperFlo 1 HP Single Speed Motor — SuperFlo Series | 354821S | SuperFlo Pump O-ring adaptor No. 2-226 |
| Pentair | SuperFlo 1-1/2 HP Single Speed Motor — SuperFlo Series | 354823S | SuperFlo Pump O-ring adaptor No. 2-226 |
| Pentair | SuperFlo 2 HP Single Speed Motor — SuperFlo Series | 354815S | SuperFlo Pump O-ring adaptor No. 2-226 |
| Pentair | SuperMax Motor 3/4HP — SuperMax Series | 354804S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| Pentair | SuperMax Motor 1HP — SuperMax Series | 354822S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| Pentair | SuperMax Motor 1-1/2HP — SuperMax Series | 354824S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| Pentair | SuperMax Motor 2HP — SuperMax Series | 354816S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| Pentair | SuperMax Motor 1HP SQFL — SuperMax Series | 355021S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| Pentair | SuperMax Motor 1-1/2HP SQFL — SuperMax Series | 355023S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| Pentair | SuperMax Motor 2-1/2HP SQFL — SuperMax Series | 355027S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| Pentair | Efficient SuperMax Motor 1.5HP SQFL — SuperMax Series | 355011S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| Pentair | Efficient SuperMax Motor 2HP SQFL — SuperMax Series | 355013S | O-Ring Adapter #2-226, 2 req. — SuperMax Pump part |
| ...and additional compatible models. Verify your model number with your equipment manual before ordering. | |||
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before installation, apply a thin coat of Pentair R172351 Lifeguard® Silicone Lubricant to the O-ring. This helps seat it evenly, prevents tearing during assembly, and extends service life. Never use petroleum-based lubricants — they will degrade the O-ring compound and cause premature failure. Since you need two of these O-rings per pump and the unions are already disconnected during service, replace both at the same time regardless of whether only one shows visible wear.
