Pentair 4-Pin Communication Port Connector | Compool, EasyTouch & IntelliFlo3 / IntelliPro3 | 8023304Z
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 8023304Z
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

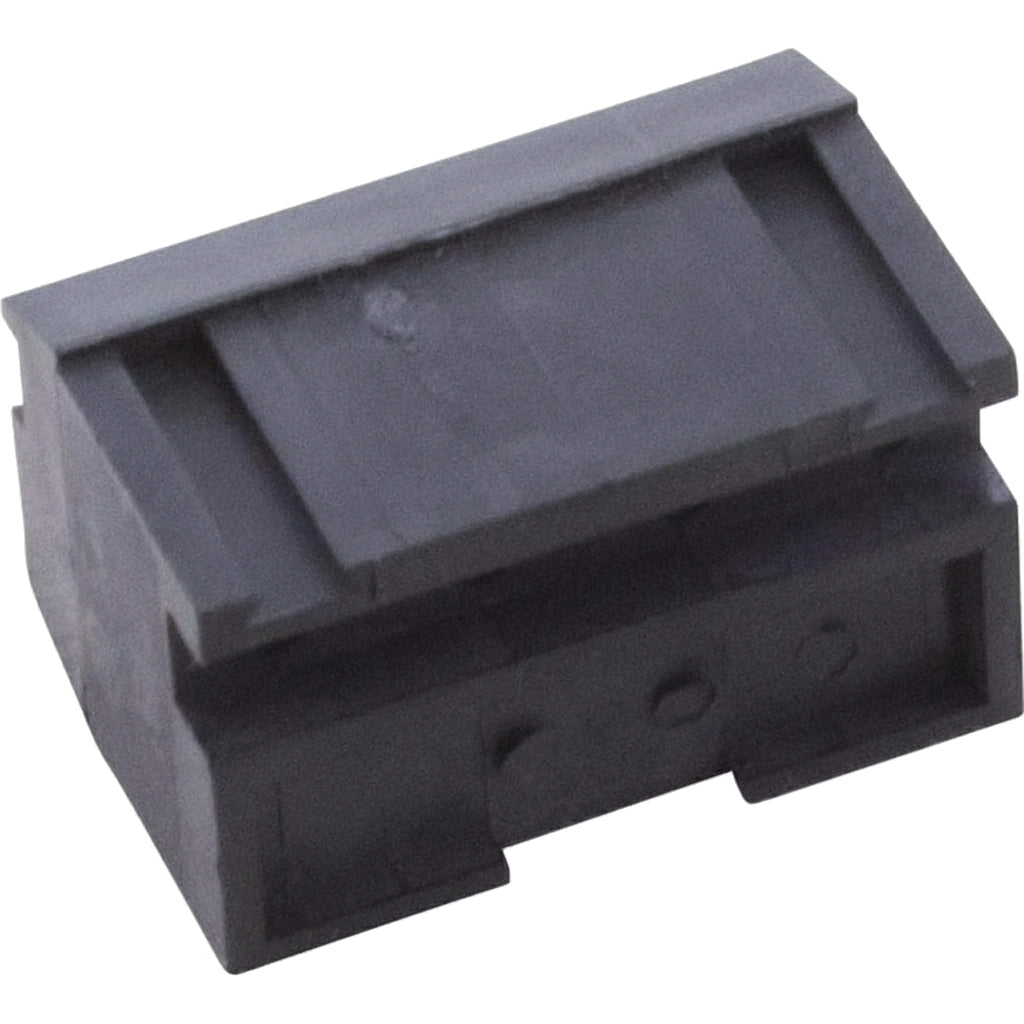

The Pentair 8023304Z is the OEM 4-pin communication port connector for Pentair ComPool, EasyTouch, and IntelliFlo3/IntelliPro3 control systems and variable speed pumps.
⚠️ IMPORTANT: LICENSED PROFESSIONAL INSTALLATION REQUIRED
Electrical control components must be installed or replaced by a qualified electrician or certified pool technician.

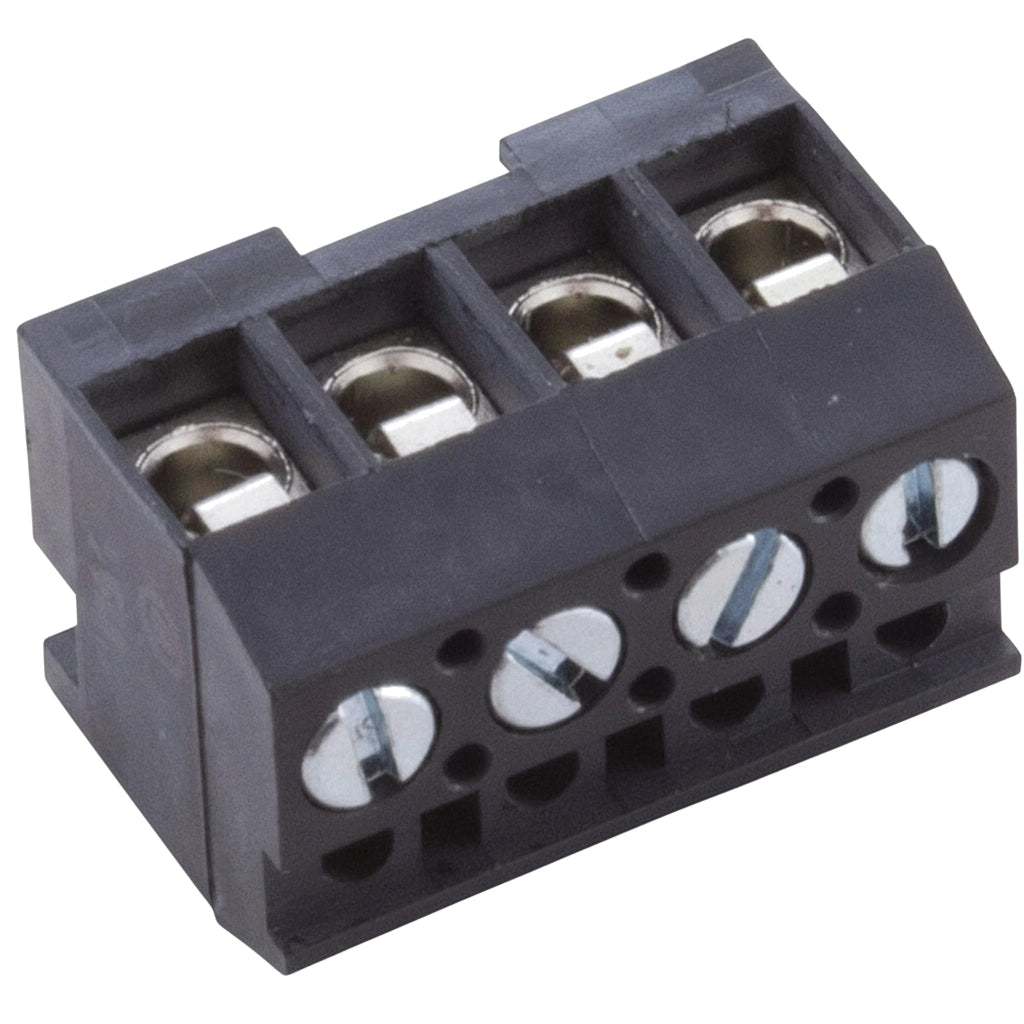

This plug-in screw terminal provides a secure, removable wiring termination point at the communication port interface on compatible Pentair control boards and pump electronics. A damaged or failed connector can cause intermittent signal loss or complete loss of communication between system components; replacing it with the correct OEM part restores reliable electrical contact at the board interface.
Specifications
| Pentair Part Number | 8023304Z |
| Also Known As | 8023304 (Pentair / ComPool) |
| Configuration | 4-Position |
| Type | Plug-In Screw Terminal / Communication Port Connector |
| Part Category | Connectors |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair (formerly ComPool) | Compool Control System | COMPOOL | Screw Terminal IntelliTouch type, listed under Compool Control System Replacement Parts |
| Pentair | EasyTouch Control System | EASYTOUCH | Also part for EasyTouch PL4/PSL4 Control System |
| Pentair | EasyTouch PL4 — EasyTouch PL4/PSL4 | PL4 | Also part for EasyTouch PL4/PSL4 Control System |
| Pentair | EasyTouch PSL4 — EasyTouch PL4/PSL4 | PSL4 | Also part for EasyTouch PL4/PSL4 Control System |
| Pentair | IntelliFlo3 VSF 3.0HP — IntelliFlo3 / IntelliPro3 | IntelliFlo3 | Fits both 1.5HP and 3.0HP models |
| Pentair | IntelliPro3 VSF 3.0HP — IntelliFlo3 / IntelliPro3 | IntelliPro3 | Fits both 1.5HP and 3.0HP models |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before ordering, confirm the position count on your existing connector — Pentair control boards and pump communication interfaces use screw terminals in varying position counts depending on board revision and wiring zone. Match the 4-position count and plug-in footprint to your specific board before adding to cart. The part number is typically printed on the original connector body itself; cross-referencing it against 8023304 or 8023304Z confirms you have the correct replacement. If your existing terminal shows physical damage such as cracked housing or loosened screw posts, inspect the mating header on the board for damage before installing the replacement.
