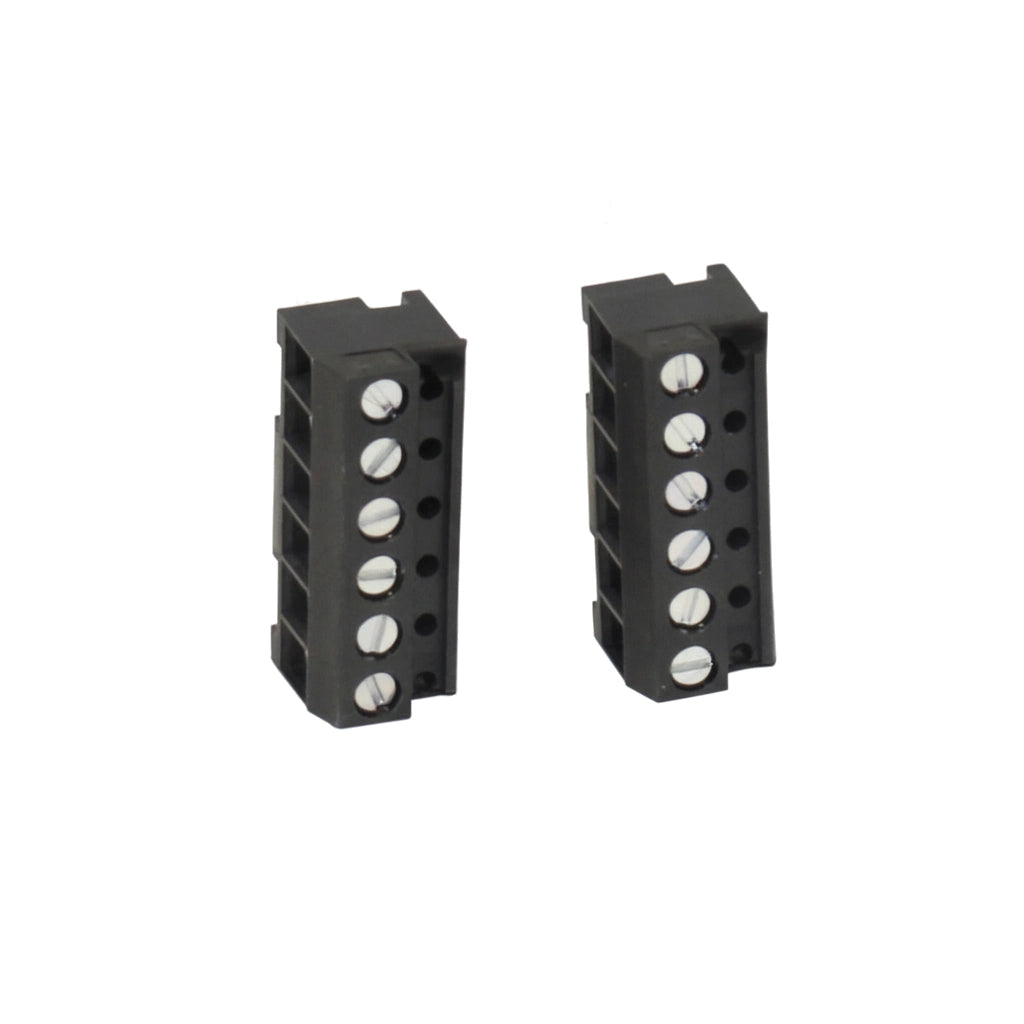

Pentair 6-Pin Connector, Relay Control Board for Compool / EasyTouch / IntelliFlo3 / IntelliPro3 | 8023306Z
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 8023306Z
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item
The Pentair 8023306Z is the OEM replacement 6-pin connector for the relay control board, compatible with Pentair Compool, EasyTouch, IntelliFlo3, and IntelliPro3 pool and spa automation control systems and variable speed pumps.
⚠️ IMPORTANT: LICENSED PROFESSIONAL INSTALLATION REQUIRED
Electrical control components must be installed or replaced by a qualified electrician or certified pool technician.
This connector interfaces directly with the relay control board inside the automation control enclosure. The 6-position configuration provides multiple conductor connection points in a single serviceable block. Replacing a damaged, corroded, or failed connector restores reliable electrical continuity at the board connection without requiring full panel replacement.
Specifications
| Pentair Part Number | 8023306Z |
| Also Known As | 8023306 |
| Application | Relay Control Board |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | Compool Control System | COMPOOL | Screw terminal IntelliTouch type; listed under Compool Control System Replacement Parts |
| Pentair | EasyTouch Control System | EASYTOUCH | Circuit board plug-in type |
| Pentair | EasyTouch PL4 — EasyTouch PL4/PSL4 Series | PL4 | Circuit board plug-in type |
| Pentair | EasyTouch PSL4 — EasyTouch PL4/PSL4 Series | PSL4 | Circuit board plug-in type |
| Pentair | IntelliFlo3 VSF 3.0HP — IntelliFlo3 / IntelliPro3 Series | IntelliFlo3 | Fits both 1.5HP and 3.0HP models |
| Pentair | IntelliPro3 VSF 3.0HP — IntelliFlo3 / IntelliPro3 Series | IntelliPro3 | Fits both 1.5HP and 3.0HP models |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before disconnecting the existing connector, photograph its position on the relay control board and label each conductor. Terminal connectors of this type vary by position count and pin pitch — confirm the 6-position count and plug orientation match your existing component before ordering. All work inside the control enclosure must be performed by a qualified electrician or certified pool technician.
