About This Item

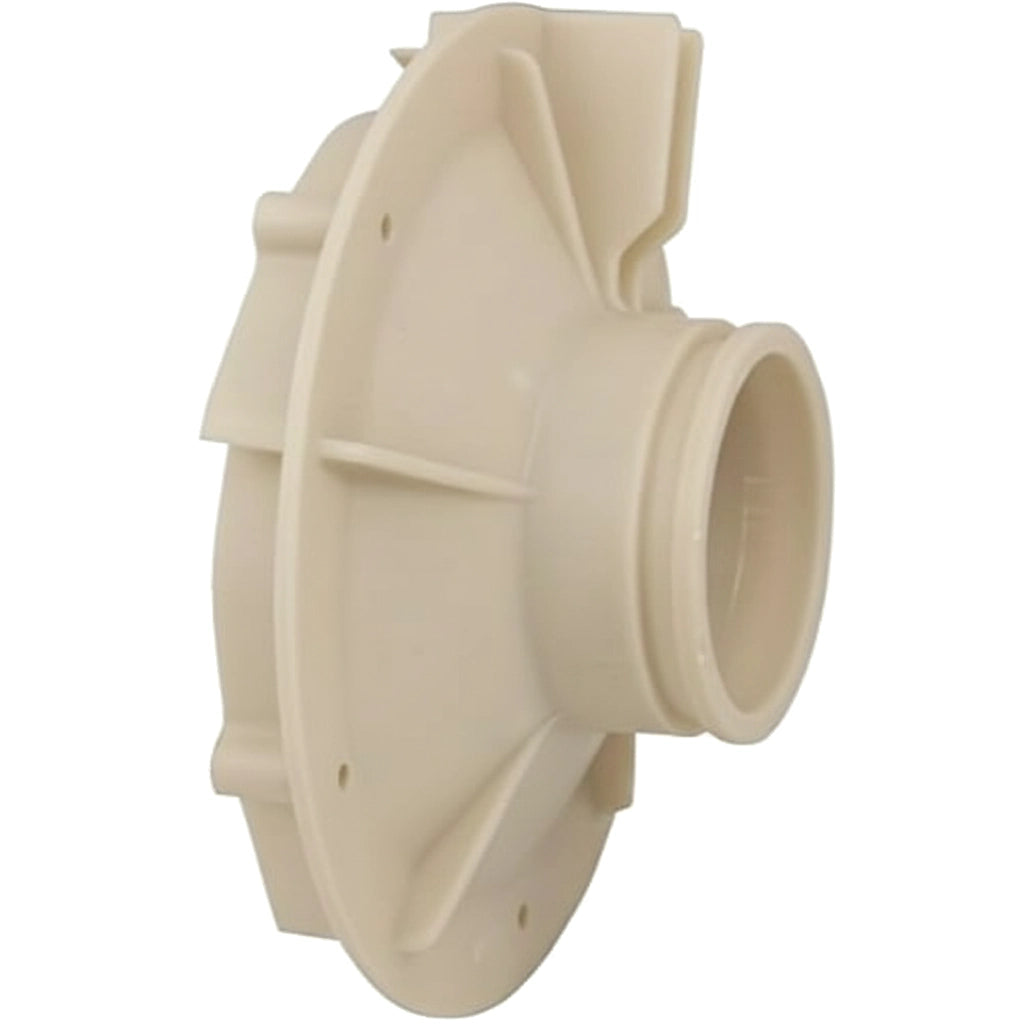

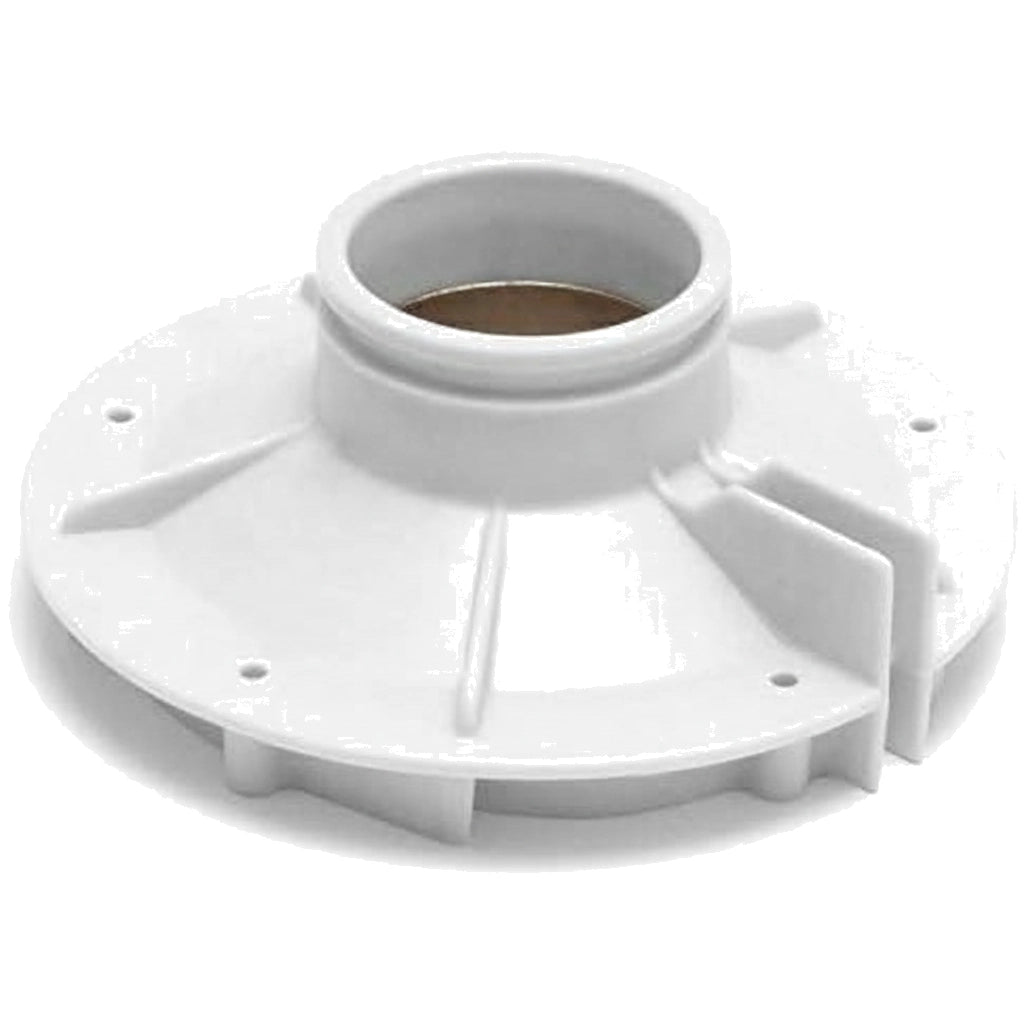

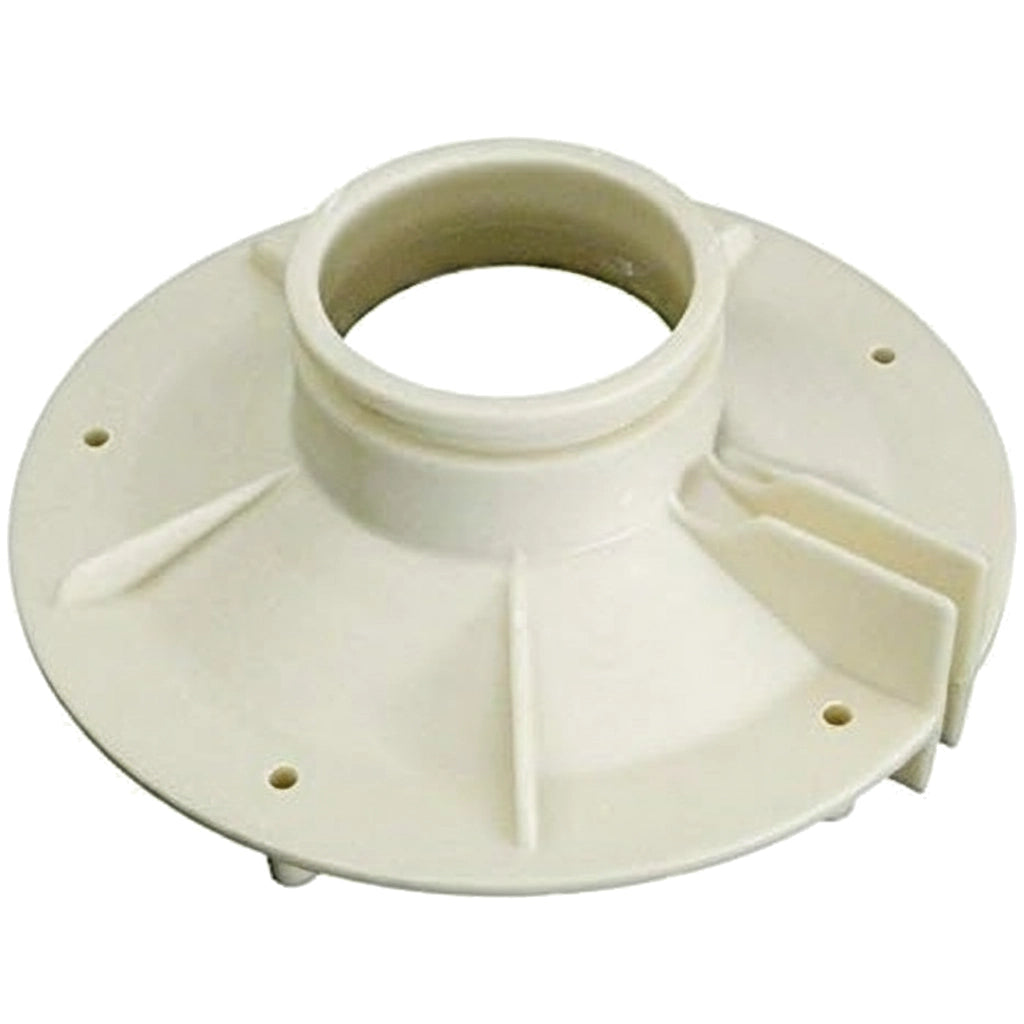

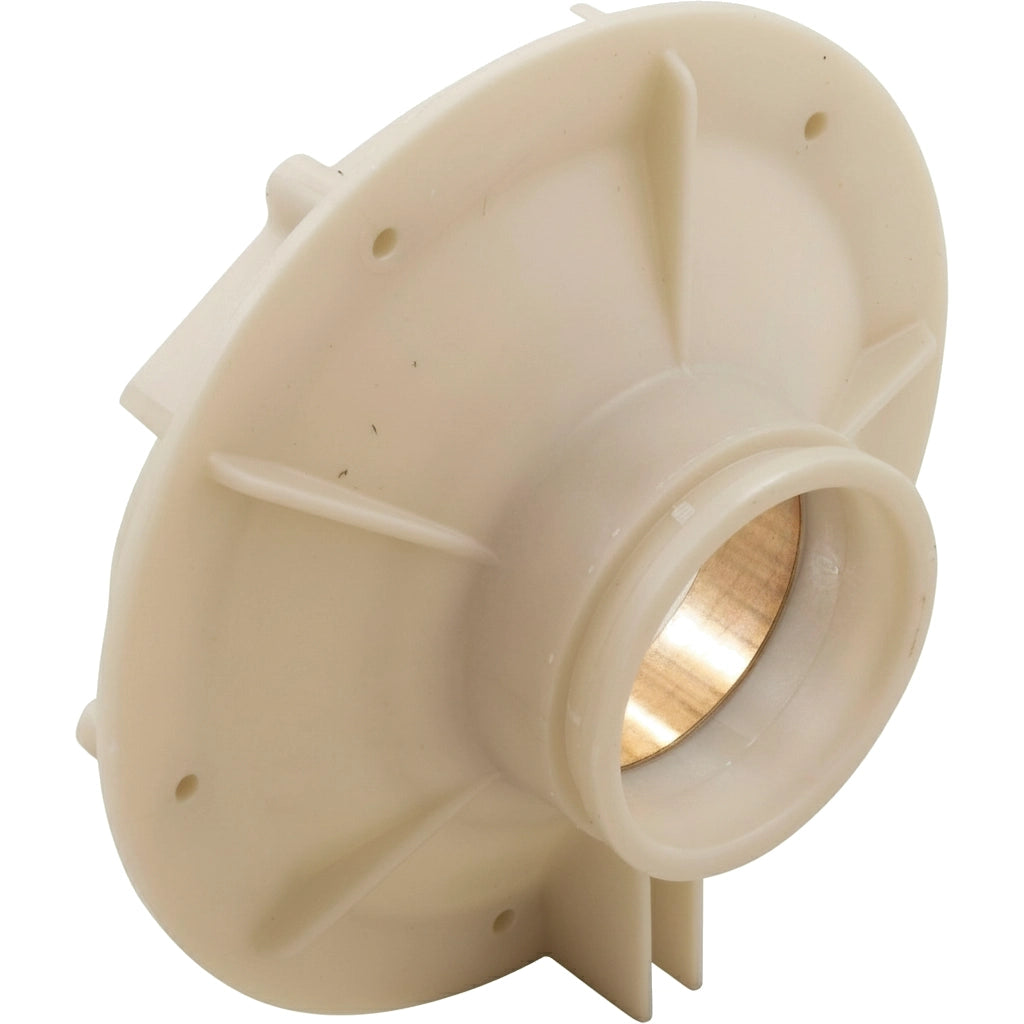

The Pentair C1-271PZ is the OEM replacement diffuser for the Max-E-Pro Series and IntelliPro Series inground pumps, specifically covering 3 HP TEFC and 1-1/2 HP 200/400V configurations.
⚠️ IMPORTANT: VERIFY YOUR MODEL BEFORE ORDERING
This diffuser fits specific Max-E-Pro and IntelliPro models — including 3 HP TEFC and 1-1/2 HP 200/400V variants. Confirm your pump's model number and horsepower rating against the Fits Into table below before ordering. Multiple diffuser part numbers exist across the Max-E-Pro and IntelliPro lines.
The diffuser directs water flow from the impeller into the pump's volute, converting rotational velocity into pressure. A cracked, worn, or incorrectly fitted diffuser reduces hydraulic efficiency, causes cavitation noise, and can lead to premature impeller and seal wear. Replacing a damaged diffuser restores designed flow performance and protects downstream pump components.
Specifications
| Pentair Part Number | C1-271PZ |
| Part Type | Diffuser |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | Max-E-Pro Series Pump | 345079 | Diffuser for 3 HP TEFC and 1-1/2 HP 200/400V models |
| Pentair | Max-E-Pro Series Pump | P6R62F3-188 | Diffuser for 3 HP TEFC and 1-1/2 HP 200/400V models |
| Pentair | MAX-E-PRO | 348151 | — |
| Pentair | MAX-E-PRO | 348153 | — |
| Pentair | MAX-E-PRO | P6E6F-207L | — |
| Pentair | MAX-E-PRO | P6EAA6F-216L | — |
| Pentair | MAX-E-PRO | P6RAA6F-216L | — |
| Pentair | MAX-E-PRO | P6RA6G-207L | — |
| Pentair | MAX-E-PRO | P6E6H-209L | — |
| Pentair | IntelliPro Variable Speed Pump | INTELLIPRO | IntelliPro Variable Speed Pump before 2019 |
| Pentair | IntelliPro VS Pump | INTELLIPRO VS | After 2018 |
| Pentair | IntelliPro VSF Pump | INTELLIPRO VSF | — |
| Pentair | IntelliPro 2 VST Pump | INTELLIPRO 2 VST | — |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Multiple diffusers exist across the Max-E-Pro and IntelliPro pump families — horsepower rating and motor configuration (standard vs. TEFC, voltage) determine which part number applies. Before ordering, locate the model number label on your pump housing and cross-reference it against the Fits Into table above. The C1-271PZ is specifically catalogued for models 345079 and P6R62F3-188 as the diffuser for 3 HP TEFC and 1-1/2 HP 200/400V variants. If your model number does not appear in the table, verify against your pump's parts diagram before purchasing.
