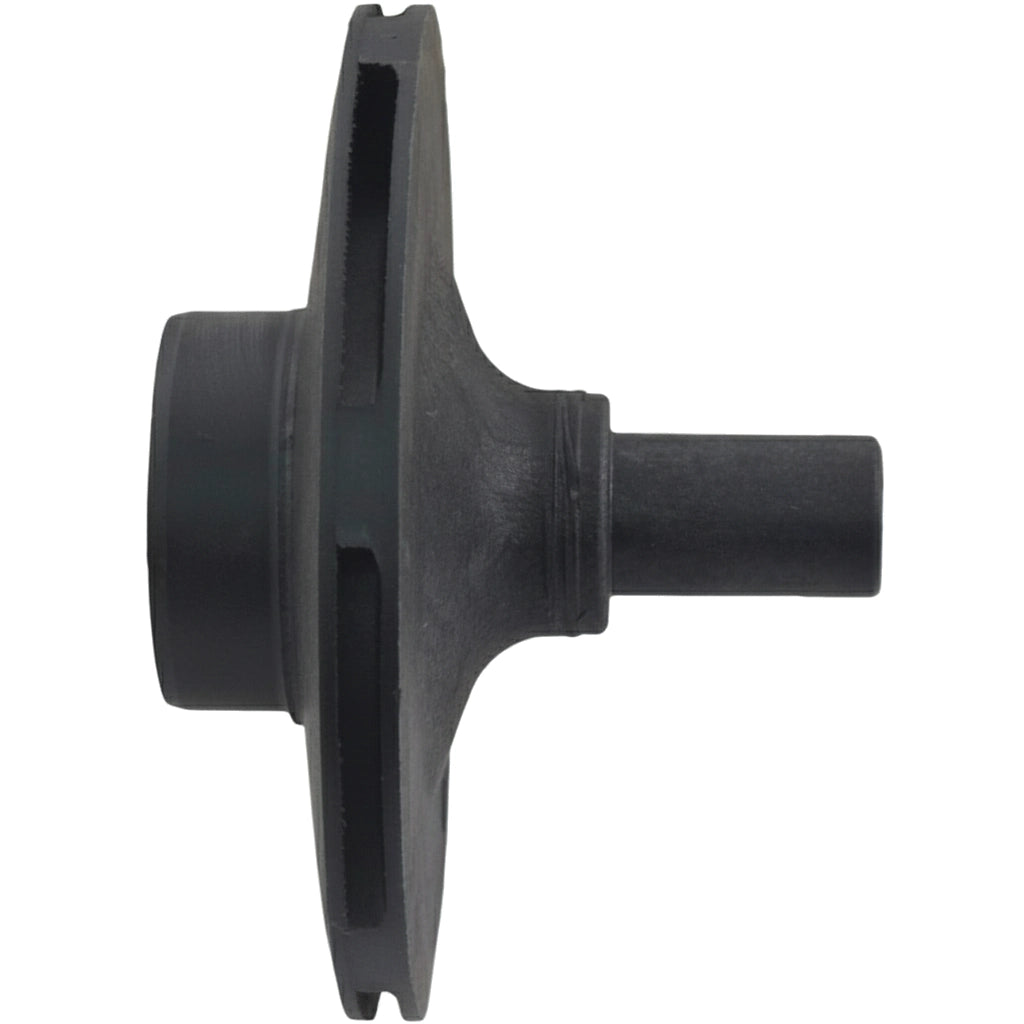

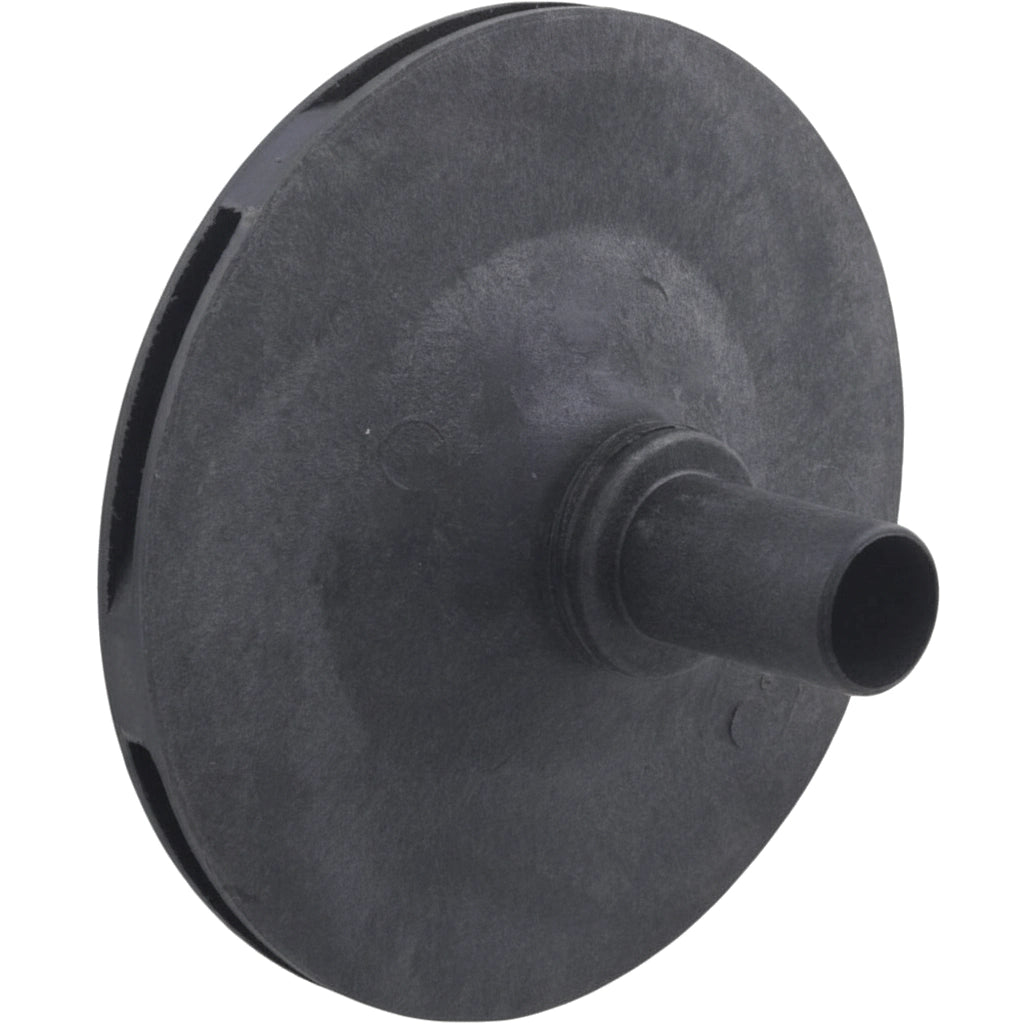

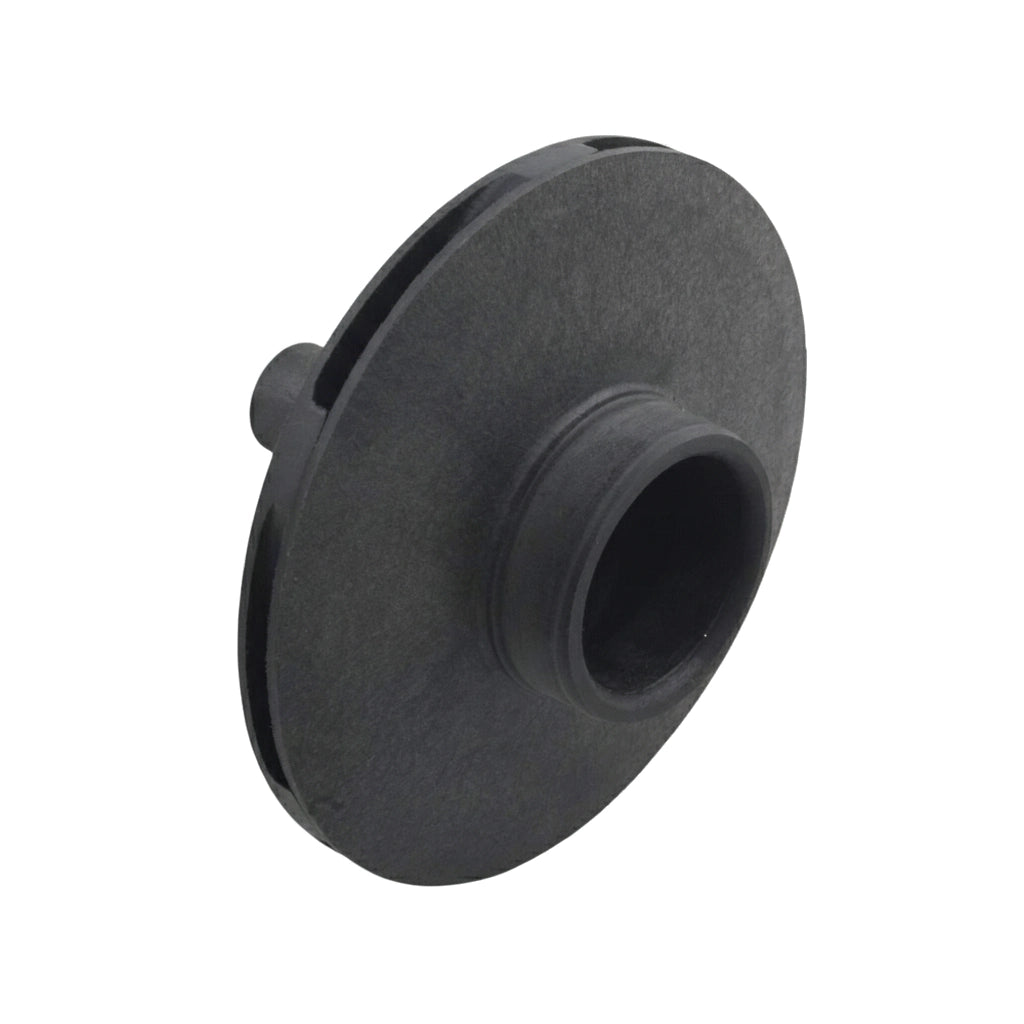

Pentair Impeller | Max-E-Pro Inground Pump | C105-238PDBAZ
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- C105-238PDBAZ
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item
The Pentair C105-238PDBAZ is the OEM replacement impeller for the Max-E-Pro series inground pump.
The impeller is the rotating component at the heart of the pump's hydraulic assembly. It draws water through the strainer housing and accelerates it outward through the volute, generating the flow and pressure your circulation system depends on. A worn, cracked, or clogged impeller reduces flow rate and places additional load on the motor — replacing it with the correct OEM part restores the pump to its original hydraulic performance.
Specifications
| Pentair Part Number | C105-238PDBAZ |
| Part Name | Impeller |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | Max-E-Pro Series — MAX-E-PRO | P6R62F3-188 | Requires Impeller Screw 37337-6081Z (sold separately) |
| Pentair | Max-E-Pro Series — MAX-E-PRO | 348151 | — |
| Pentair | Max-E-Pro Series — MAX-E-PRO | P6E6F-207L | — |
| Pentair | Max-E-Pro Series — MAX-E-PRO | P6RA6G-207L | — |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before ordering, confirm your pump's model number on the nameplate — the Max-E-Pro line spans multiple configurations, and impellers are not interchangeable across ratings. The impeller screw (Pentair 37337-6081Z) is required for installation on model P6R62F3-188 and is not included with this part; have it on hand before disassembly. While the pump is open, inspect the diffuser and shaft seal for wear — replacing worn components in a single service visit avoids a repeat teardown.
