Pentair Sleeve | C/CC Series & D Series Centrifugal Pumps | C23-58
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- C23-58
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

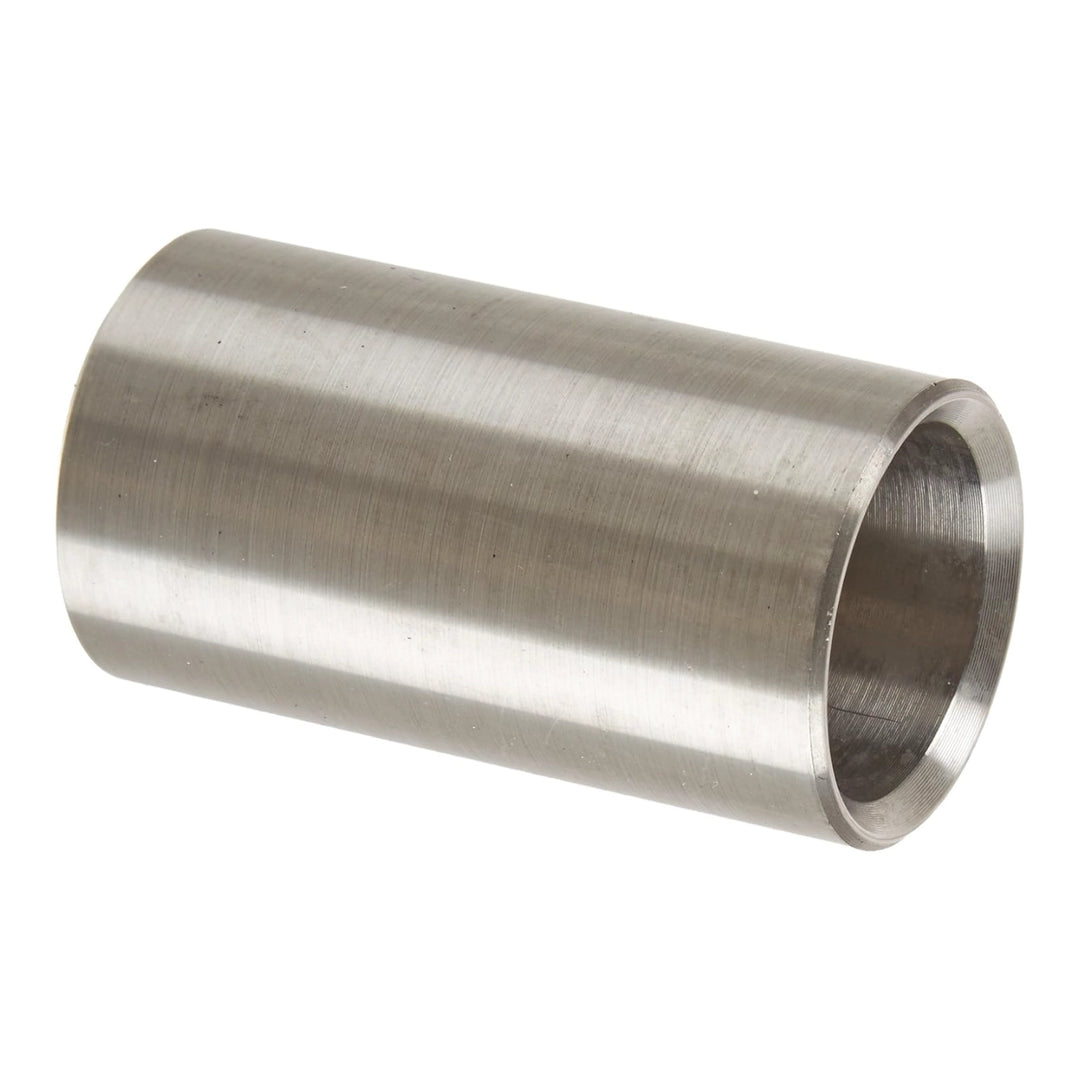

The Pentair Sleeve (C23-58) is the OEM replacement sleeve for the C/CC Series and D Series centrifugal pumps.
The sleeve fits over the pump shaft at the mechanical seal interface, protecting the shaft from wear, corrosion, and scoring caused by seal contact. When a worn or damaged sleeve is left in service, it accelerates shaft seal failure and can allow water ingress into the motor — making timely sleeve replacement a critical part of any shaft seal service. Match the part number stamped or engraved on your existing sleeve before ordering to confirm this is the correct replacement for your configuration.
Specifications
| Pentair Part Number | C23-58 |
| Part Name | Sleeve |
| Compatible Pump Series | C/CC Series, D Series |
| Quantity Included | Each |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | C/CC Series Centrifugal Pump | CCMH-136 | — |
| Pentair | C/CC Series Centrifugal Pump | CCM2H-136 | — |
| Pentair | C/CC Series Centrifugal Pump | CCM2H-136S | — |
| Pentair | C/CC Series Centrifugal Pump | CCMH3-136S | — |
| Pentair | C/CC Series Centrifugal Pump | CCM2H3-136 | — |
| Pentair | C/CC Series Centrifugal Pump | CCM2H3-136S | — |
| Pentair | C/CC Series Centrifugal Pump | CCHH-137S | — |
| Pentair | C/CC Series Centrifugal Pump | CCHH3-137S | — |
| Pentair | C/CC Series Centrifugal Pump | CCH2H-137S | — |
| Pentair | C/CC Series Centrifugal Pump | CCH2H3-137 | — |
| Pentair | C/CC Series Centrifugal Pump | CCH2H3-137S | — |
| Pentair | C/CC Series Centrifugal Pump | CMH-136 | — |
| Pentair | C/CC Series Centrifugal Pump | CMH3-136 | — |
| Pentair | C/CC Series Centrifugal Pump | CM2H-136 | — |
| Pentair | C/CC Series Centrifugal Pump | CM2H3-136 | — |
| Pentair | C/CC Series Centrifugal Pump | CHH-137 | — |
| Pentair | C/CC Series Centrifugal Pump | CHH3-137 | — |
| Pentair | C/CC Series Centrifugal Pump | CH2H3-137 | — |
| Pentair | C/CC Series Centrifugal Pump | CCHJ-138 / CCHJ138S / CCHJ3-138S / CCH2J3-138S / CHJ-138 / CH2J3-138 | Applies to all 5 HP C/CC Series models |
| Pentair | D Series Self-Priming Centrifugal Pump | DMH / DMJ | D Series pump Sleeve |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
When replacing the sleeve, inspect the mechanical seal at the same time — these two components wear together and are typically serviced as a pair. Replacing only the sleeve while leaving a worn seal in place often results in a repeat service call within one season. Verify the part number on your original sleeve before ordering to confirm this is the correct replacement for your configuration.
