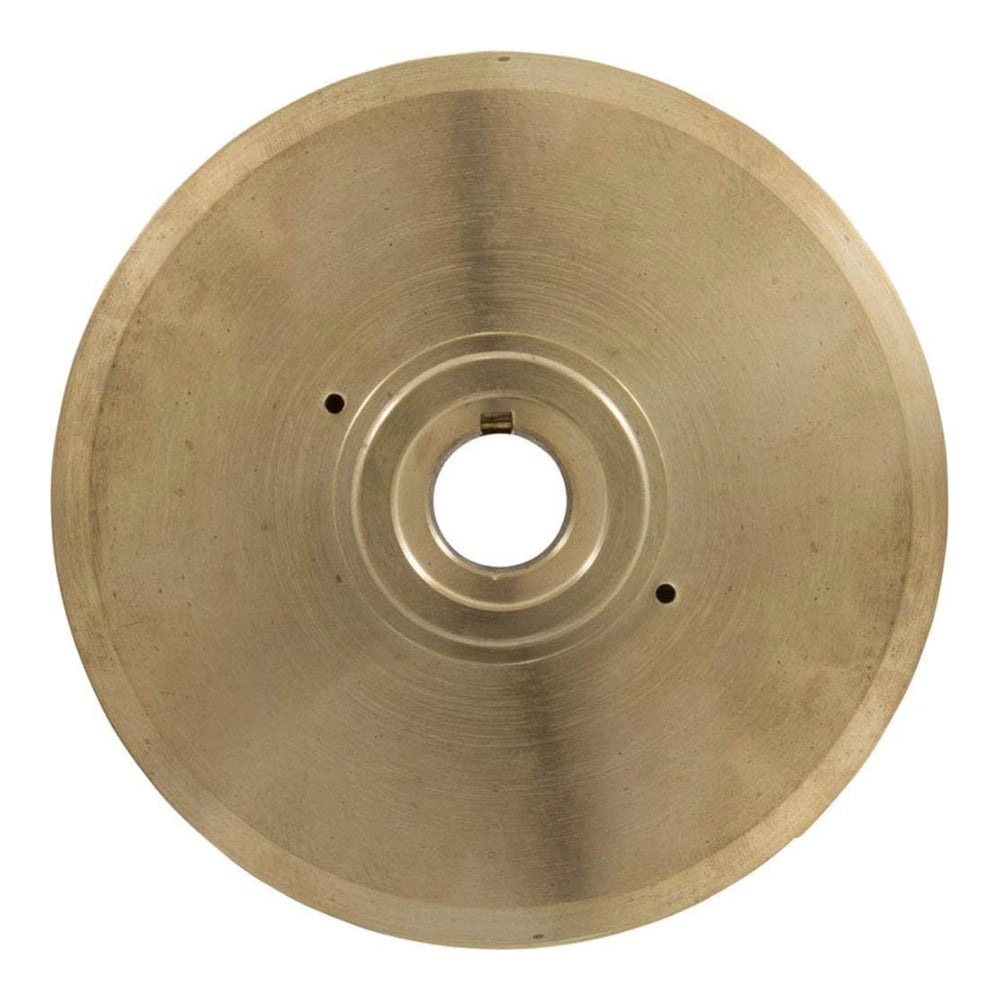

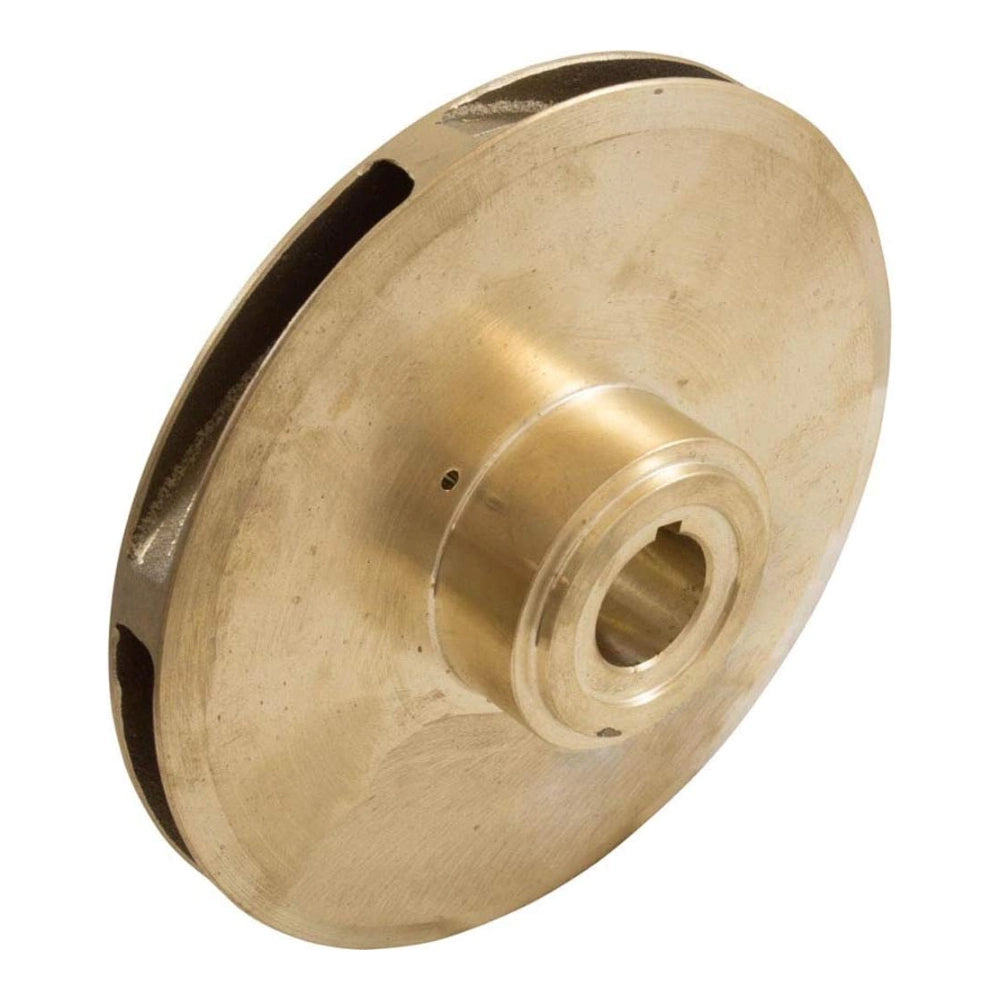

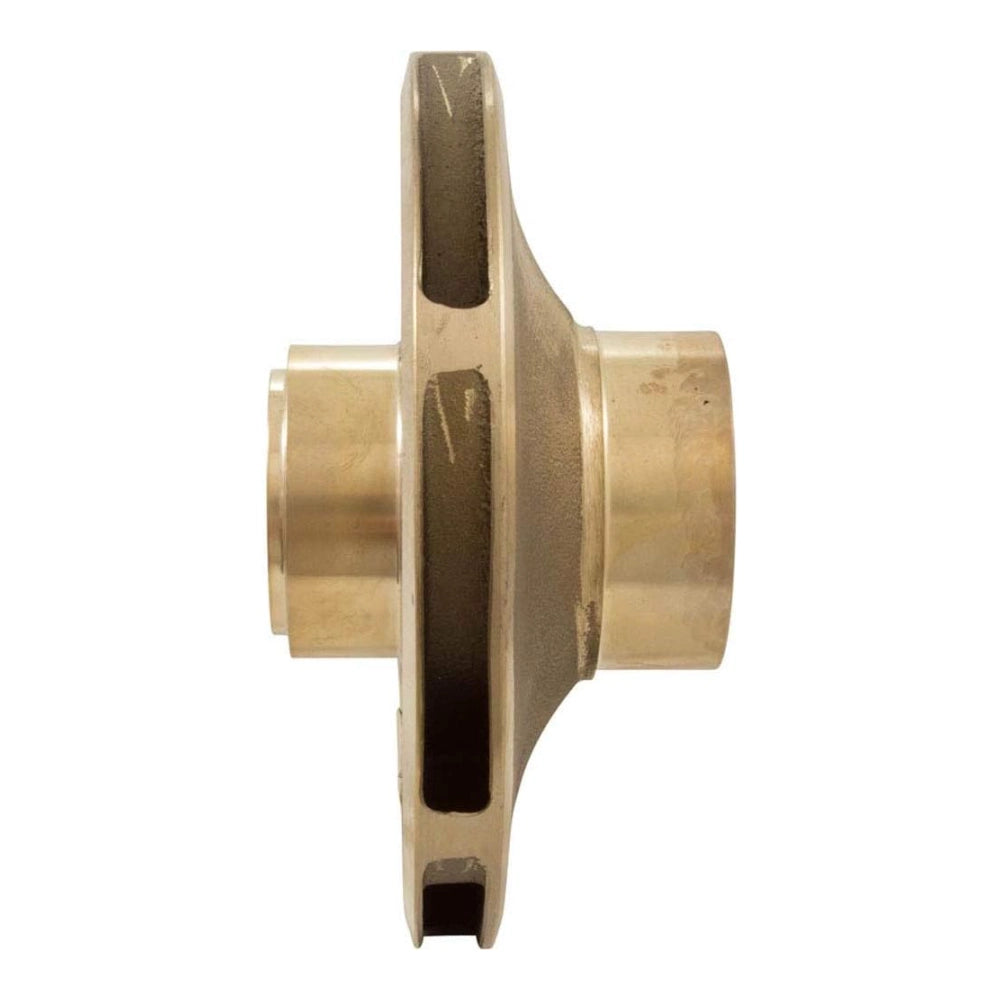

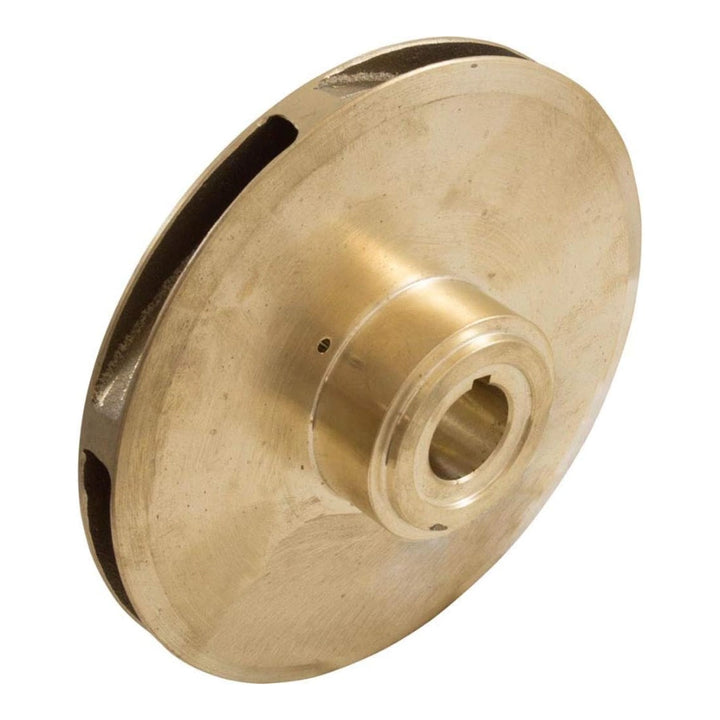

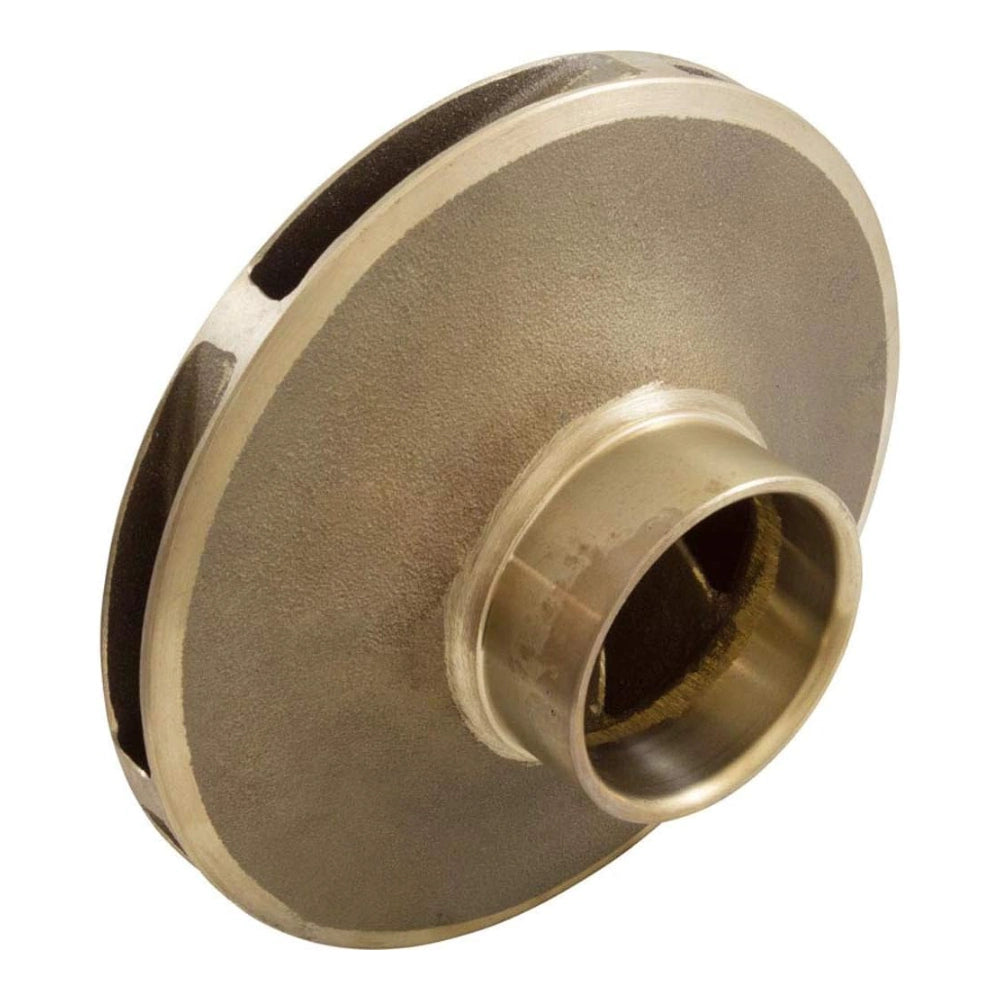

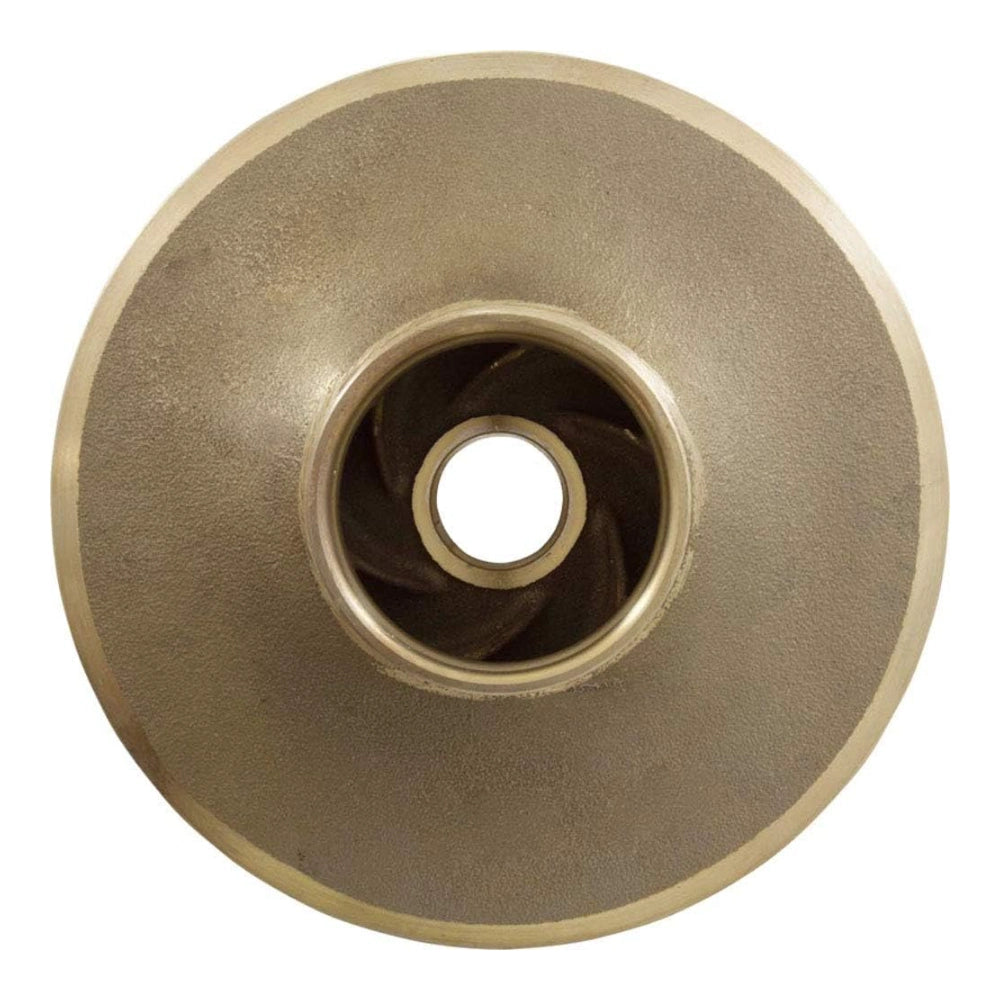

The Pentair C5-247 is the OEM replacement medium head impeller for the D Series 5 HP self-priming centrifugal pool and spa pump.
⚠️ IMPORTANT: MODEL REVISION — VERIFY BEFORE ORDERING
This impeller reflects a design change effective June 1997. Confirm your pump was manufactured or serviced after this date, or that your existing impeller carries part number C5-247, before ordering.
The impeller is the rotating component inside the pump volute that generates hydraulic pressure and flow. In a medium head configuration, the impeller geometry is optimised for balanced head and flow performance at 5 HP. A worn, cracked, or eroded impeller reduces flow rate, increases energy draw, and can cause the pump to lose prime. Replacing the impeller with the correct OEM part restores rated hydraulic performance. Match the part number moulded or stamped on your existing impeller before ordering.
Specifications
| Pentair Part Number |
C5-247 |
| Part Type |
Medium Head Impeller |
| Horsepower Rating |
5 HP |
| Quantity Included |
Each |
Fits Into
| Brand |
Equipment Line |
Model / Part Number |
Notes |
| Pentair |
D Series Pump Medium/High Head |
DMJ |
Medium Head 5 HP impeller; design change effective 6/97 |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Pro Tip
Before removing the old impeller, photograph the volute and wear ring condition. If the wear ring shows visible scoring or uneven wear, replace it at the same service interval — a new impeller running against a worn wear ring will not restore full rated flow. Also confirm you are ordering the medium head variant (C5-247) and not a high head impeller for the same pump family — the two are not interchangeable and will produce significantly different hydraulic performance.
