Pentair No. 803 Metal Cam for Pool Poles | R191256

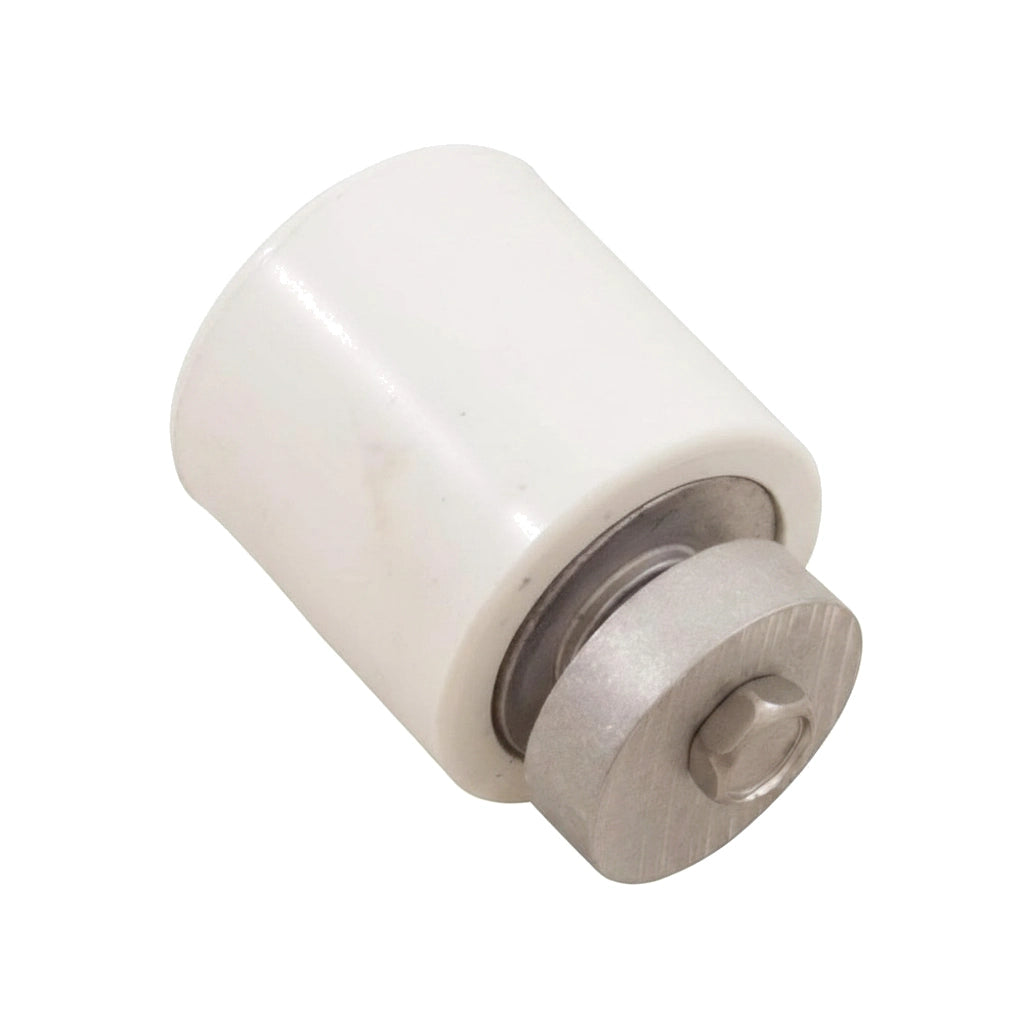

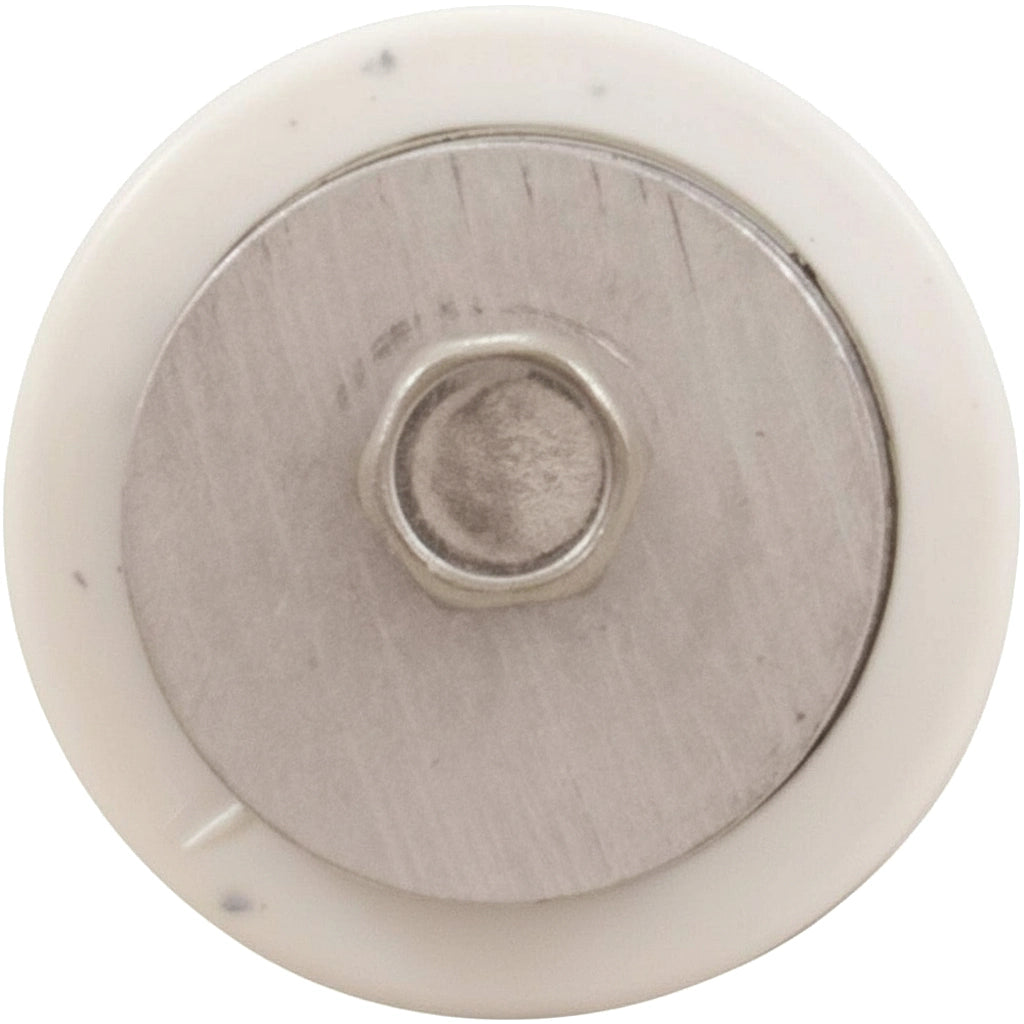

The Pentair No. 803 Metal Cam (R191256) is the OEM replacement cam assembly for pool and spa pool poles 1-1/8" OD drawn tubes, supplied unassembled with a white ABS sleeve and stainless steel hardware.

What It Does

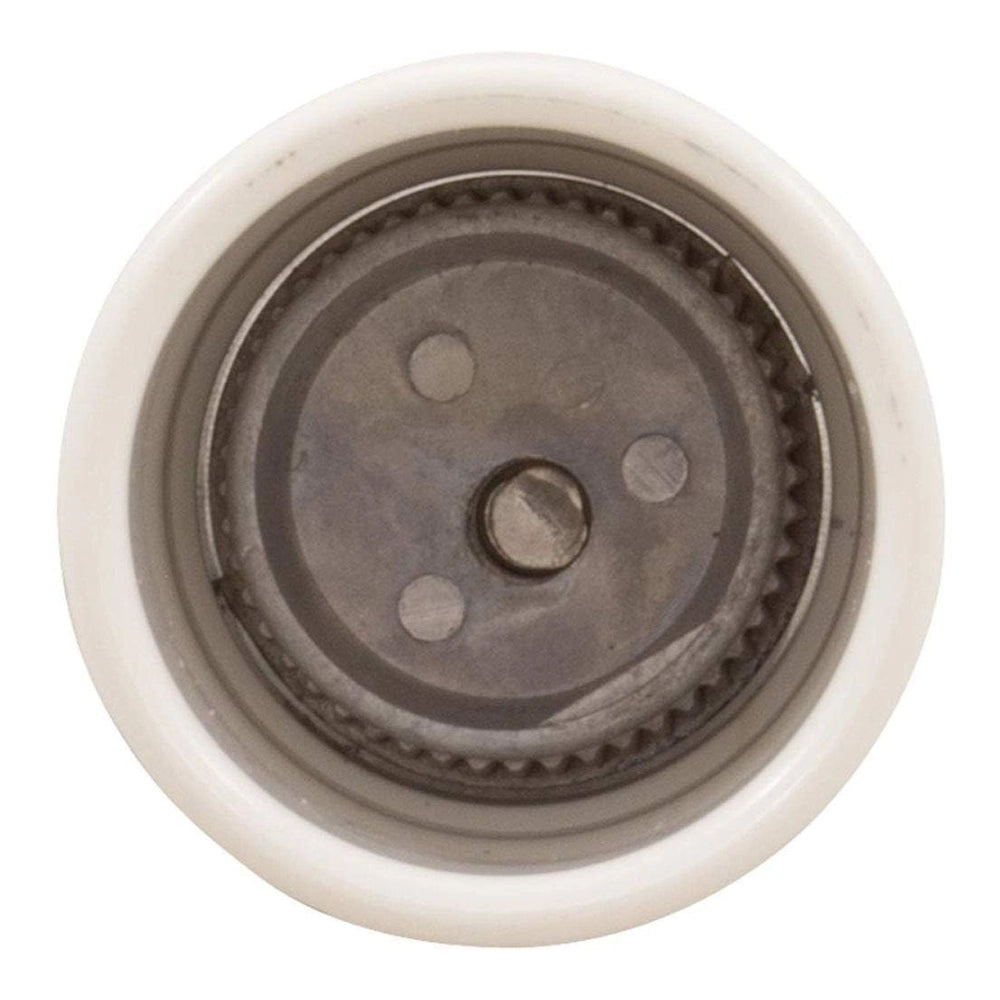

The No. 803 cam secures tubing connections in Pentair pool and spa equipment. The die cast aluminum cam body clamps onto 1-1/8" OD drawn tubes, while the white ABS sleeve fits 1-1/4" OD tubing, providing a secure mechanical connection. The included 1/4-28 x 1" stainless steel hex bolt completes the assembly. Match the part number on your existing cam before ordering — this cam is sized specifically for 1-1/8" OD drawn tubes and is not interchangeable with cams designed for other tube diameters.

Specifications

Pro Tip

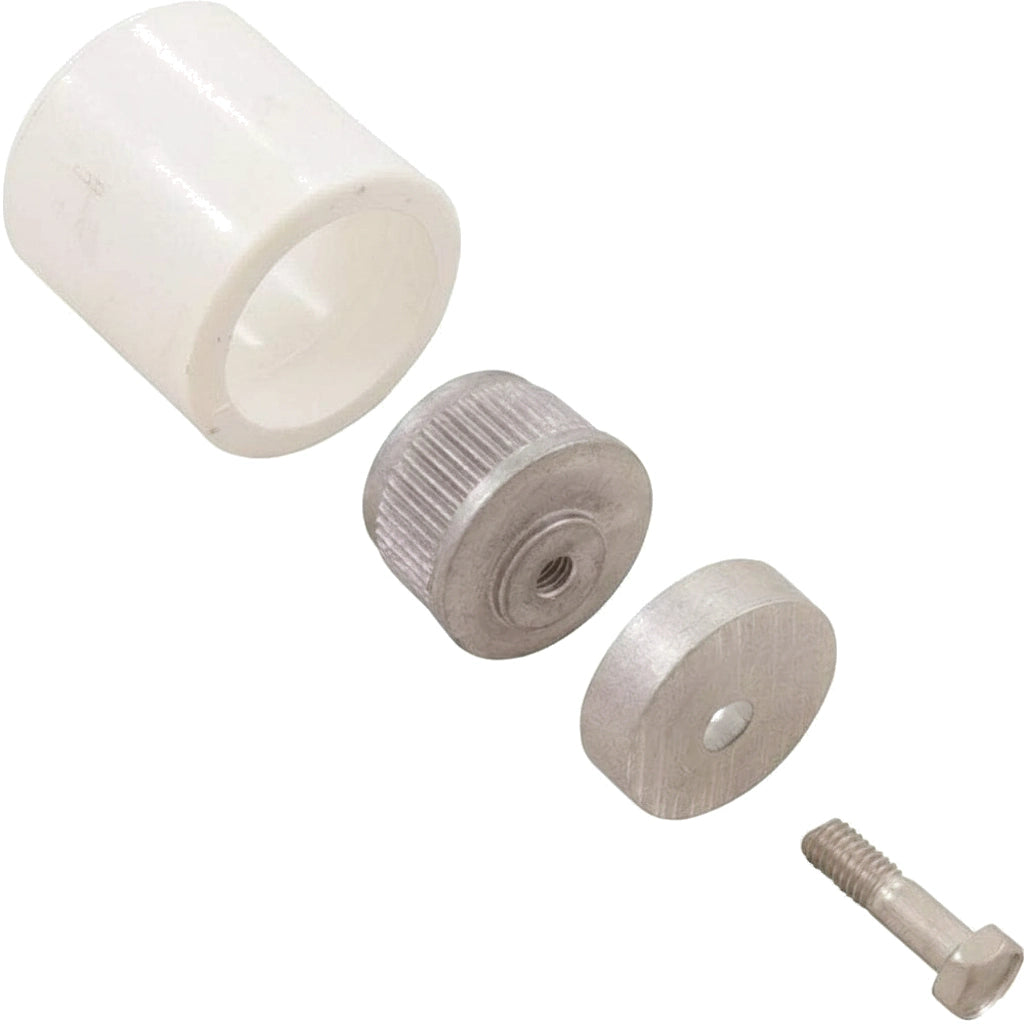

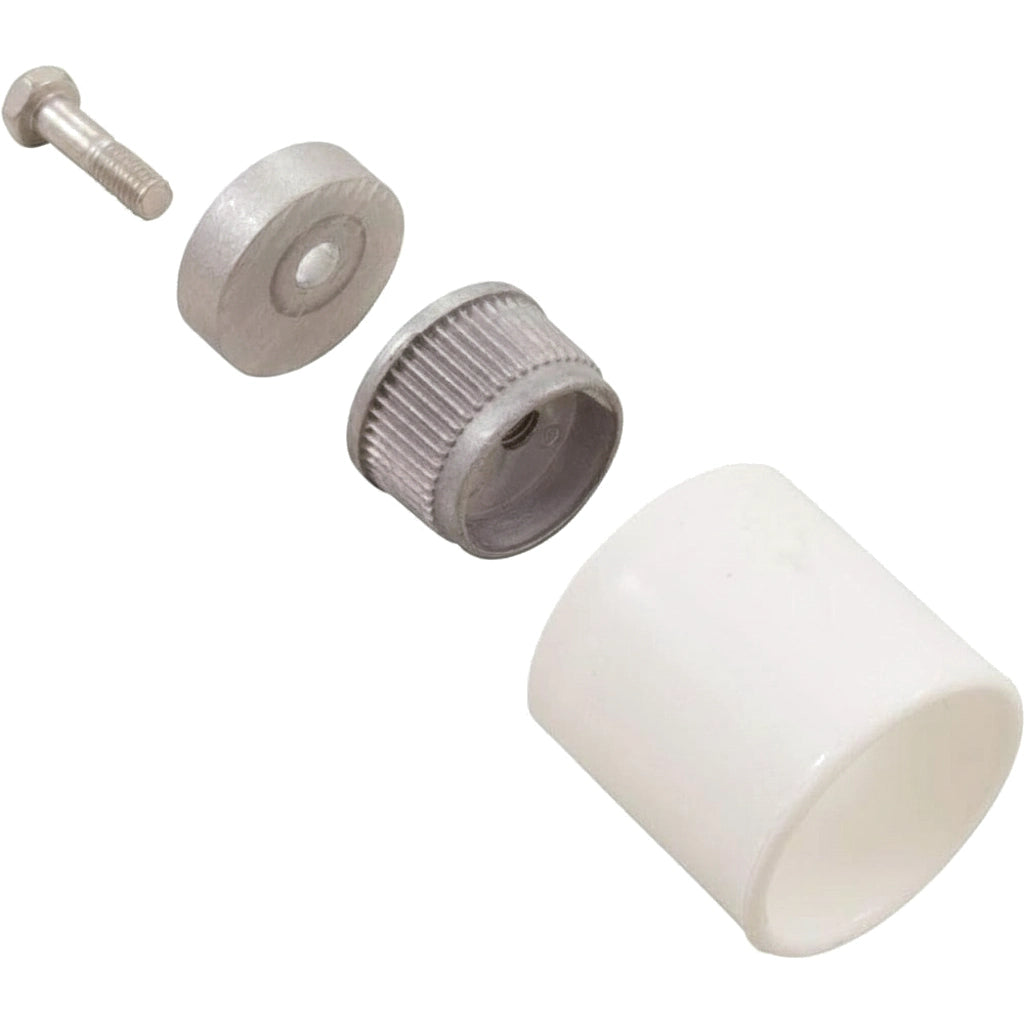

This cam ships unassembled — the ABS sleeve and stainless steel hex bolt are included loose in the bubble pack. Before ordering, confirm the tube OD on your equipment: the cam body seats on 1-1/8" OD drawn tube, and the sleeve fits 1-1/4" OD. These are drawn tube dimensions, not nominal pipe sizes — measure the actual outside diameter of your existing tube if you are unsure.
