SR Smith 48" Deck Mounted Pool Handrail, Stainless Steel | Dms-101A
side view installation diagram of 48 inch deck mounted stainless steel pool handrail with dimensions and mounting points on pool deck and steps
parts breakdown diagram of a stainless steel handrail with dimensions including height, length, width and radius bend details
SR Smith 48" Deck Mounted Pool Handrail, Stainless Steel | Dms-101A

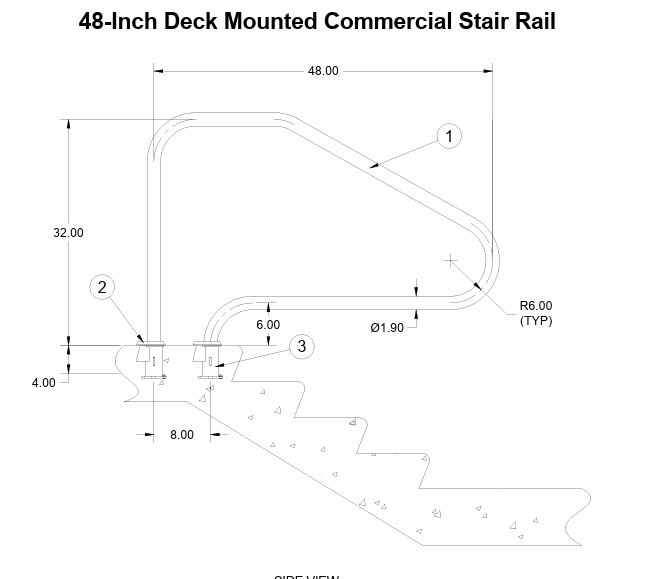

side view installation diagram of 48 inch deck mounted stainless steel pool handrail with dimensions and mounting points on pool deck and steps
parts breakdown diagram of a stainless steel handrail with dimensions including height, length, width and radius bend details
S.R. Smith

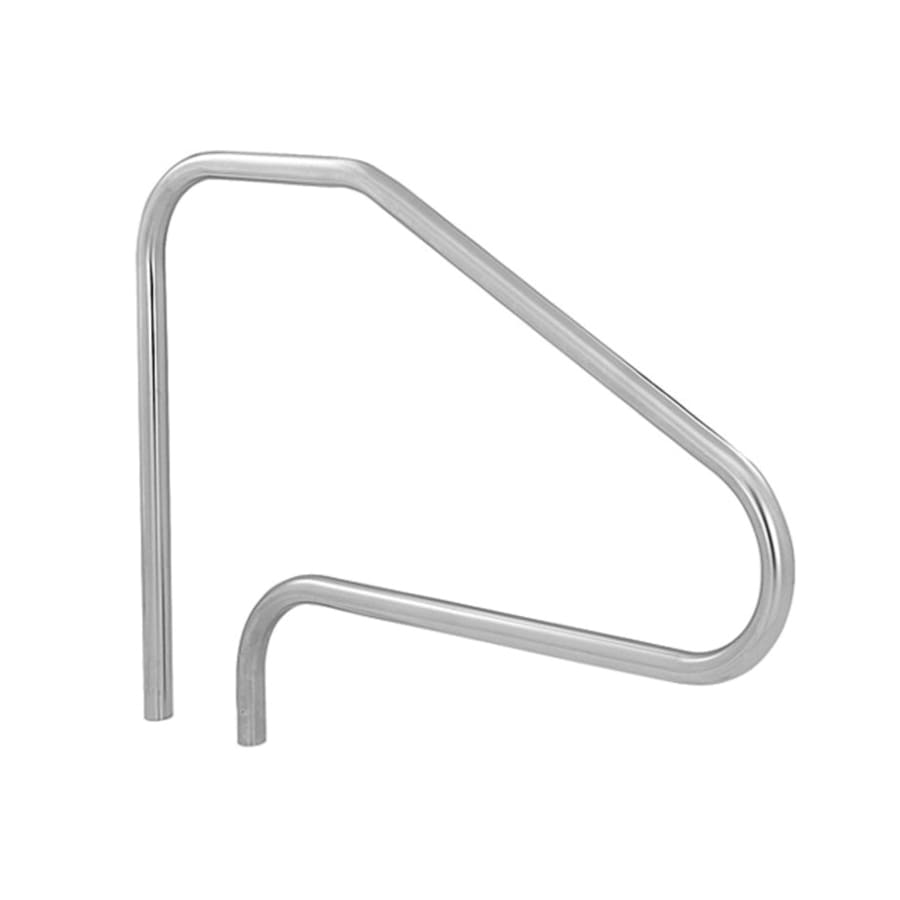

SR Smith 48" Deck Mounted Pool Handrail, Stainless Steel | DMS-101A

$322.99
/
Free Shipping On this item
No Hassle Returns 30 Days Paid Returns
  • In stock, ready to ship
  • Backordered, shipping soon
SKU: GPP-RL-C49-4BND-SS

  • Poolaroo Promise

    • Fast Shipping — Ships in 1–2 Business Days
    • 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees

About This Item

SR Smith Handrail - Deck Mounted Figure Four - #DMS-101A.  Note, for saltwater pools, use DMS-101A-MG, Marine Grade steel.

Anchors and escutcheons sold separately, see below.

Features and Benefits:

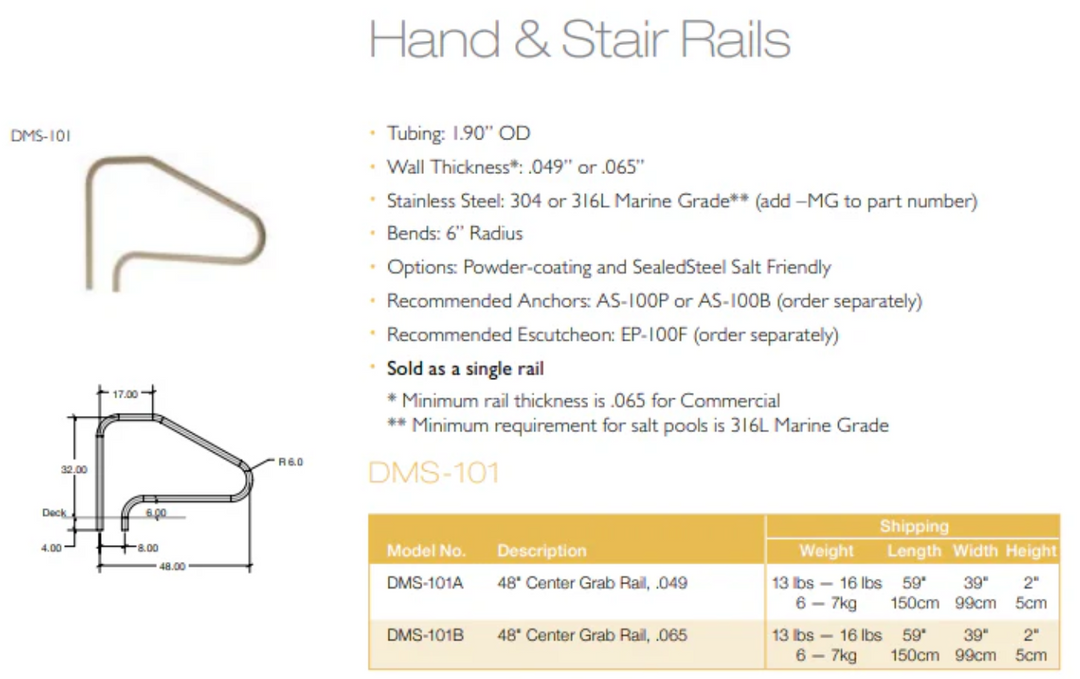

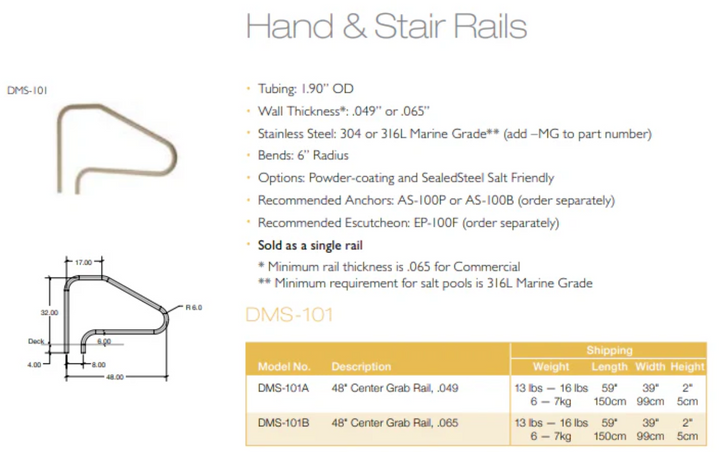

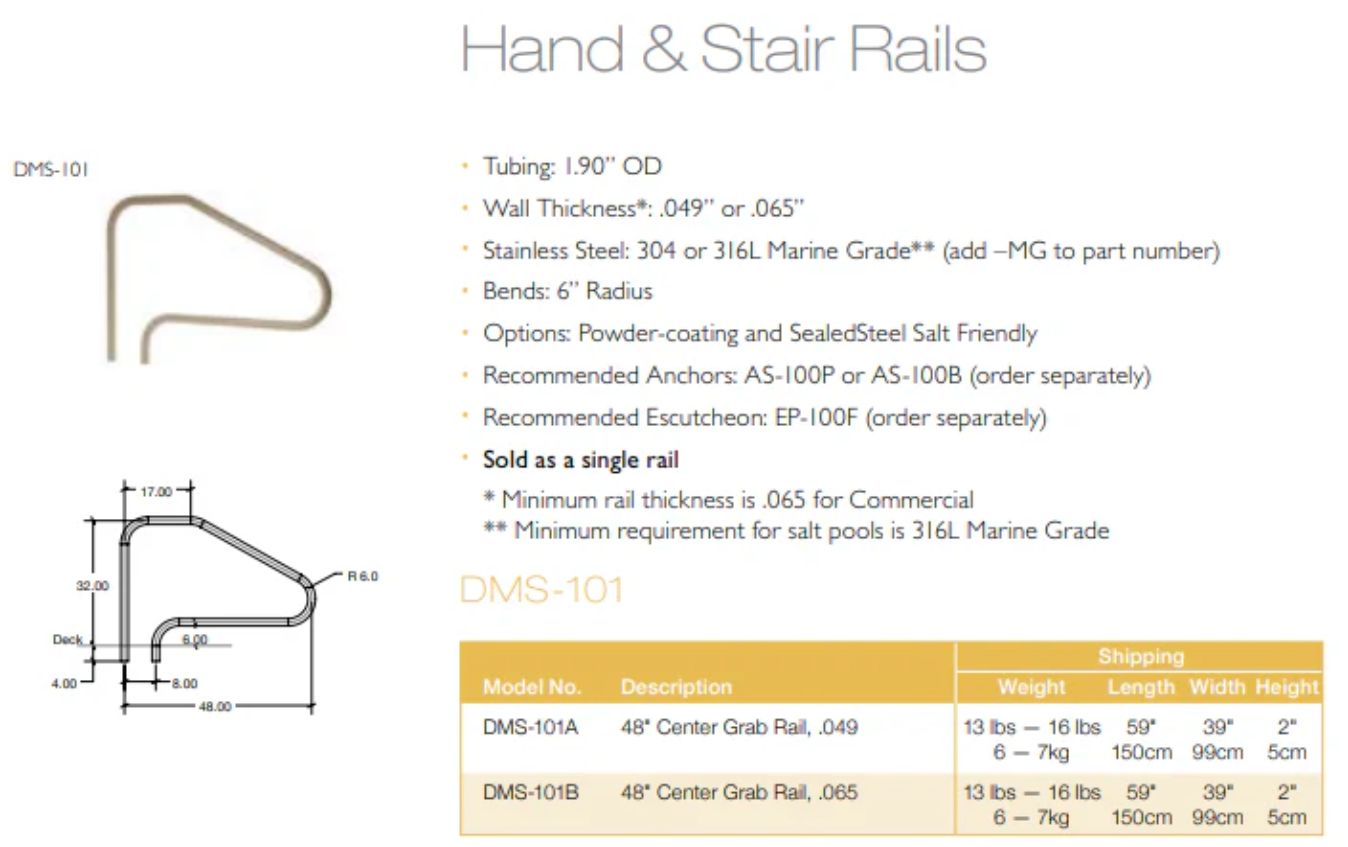

  • Tubing: 1.90” OD
  • Wall Thickness: .049”
  • Stainless Steel: 304
  • Bends: 6” Radius
  • Recommended Anchors: AS-100P or AS-100B (order separately, 2x)
  • Recommended Escutcheon: EP-100F (order separately, 2x)
  • Rails can be removed easily for winterizing pool by lifting escutcheon, loosening bolt in anchor and removing the handrail.
