Unicel FG-3016 Replacement DE Filter Grid | 16-1/2" x 18" | Sta-Rite System 3
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- FG-3016
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

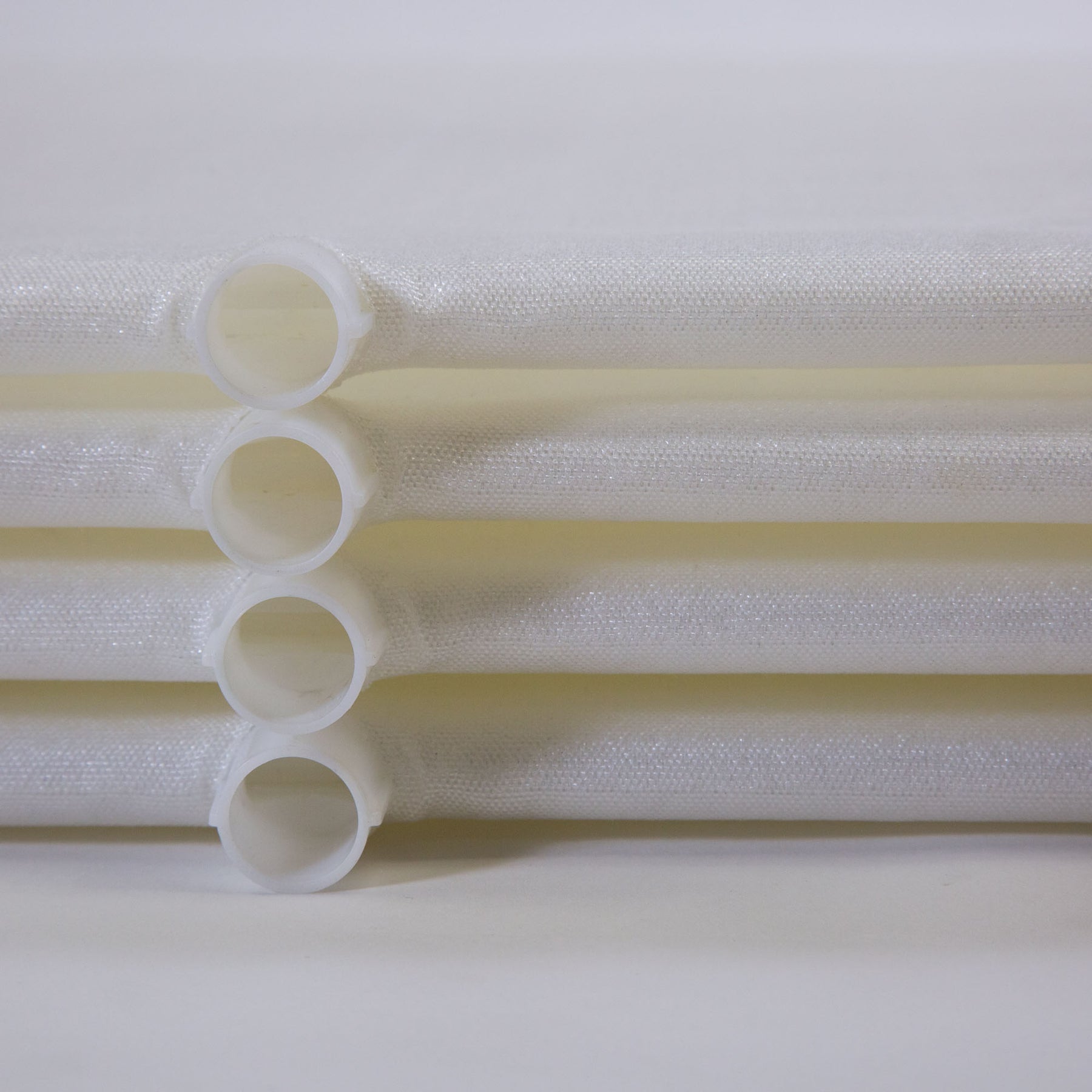

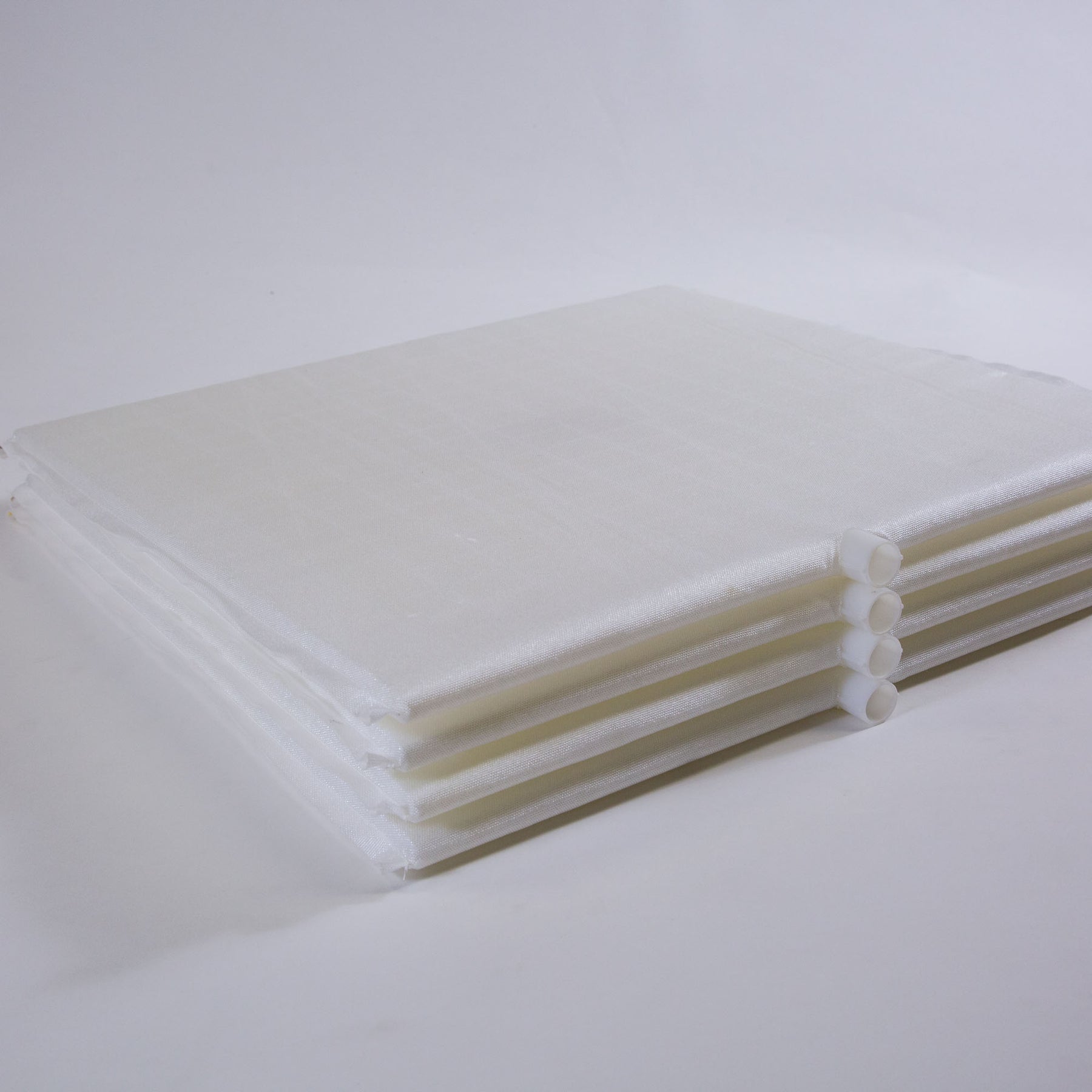

The Unicel FG-3016 is a single replacement DE filter grid engineered for Sta-Rite System 3 center-core DE filter systems. Measuring 16-1/2" wide x 18" long, this 25 sq. ft. center-core element delivers precision fit and long-lasting filtration performance — built with durable polyester filter fabric and a reinforced polypropylene frame to handle the demands of pressurized DE filtration.
⚠️ IMPORTANT: CHECK BEFORE YOU BUY
This product is a single (1) replacement DE filter grid — it is NOT a complete set. The number of grids required depends on your specific filter model. The S7D75 requires 2 grids; the S8D110 requires 1 grid. Please verify the quantity needed for your filter before ordering.
ℹ️ NOTE: No Partial Grid Required
Unlike traditional DE filters, the Sta-Rite System 3 uses only identical full-size center-core grids — no partial grid is needed for a complete filter service.
Specifications
| Unicel Part Number | FG-3016 |
| Grid Length | 18" |
| Grid Width | 16-1/2" |
| Individual Grid Area | 25 sq. ft. |
| Material | Polyester filter fabric with reinforced polypropylene frame |
| Grid Type | Center-core DE element (full grid, no partial required) |
Fits Into:
| OEM Brand | Filter Model | OEM Part Number | Grid Configuration |
| Sta-Rite | System 3 Model S7D75 (50 sq. ft. total) | 23900-1171 | 2 full grids (no partial) |
| Sta-Rite | System 3 Model S8D110 (25 sq. ft. total) | 23900-0033 | 1 full grid (no partial) |
| Sta-Rite / Swimquip | Swimquip DE Filter (specific models using OEM p/n 23900-0033) | 23900-0033 | Verify quantity — confirm OEM part number match before ordering |
(This is not an exhaustive list.)
Pro Tips
- Verify your grid count before ordering: The S7D75 requires 2 of these grids for a full service; the S8D110 requires only 1. Ordering the wrong quantity is one of the most common service errors with System 3 filters.
- Safety first: Always turn off the pump and release all pressure from the filter tank via the air relief valve before opening the tank to replace grids.
- Confirm by OEM part number: For Swimquip compatibility, verify your existing grid carries OEM part number 23900-0033 before purchasing — "Swimquip DE Filter" spans multiple designs and not all are compatible.
- Inspect the tank o-ring: While the filter is open for a grid replacement, inspect and lubricate the tank o-ring to maintain a proper pressure seal.
Also known as: FG3016
