Unicel FG-1236 Replacement DE Filter Grid | 18-3/8" | Pentair Purex SM/SMBW 2036 & 4036
| From Across the Web: | 4.8 (15) |
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- FG-1236
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

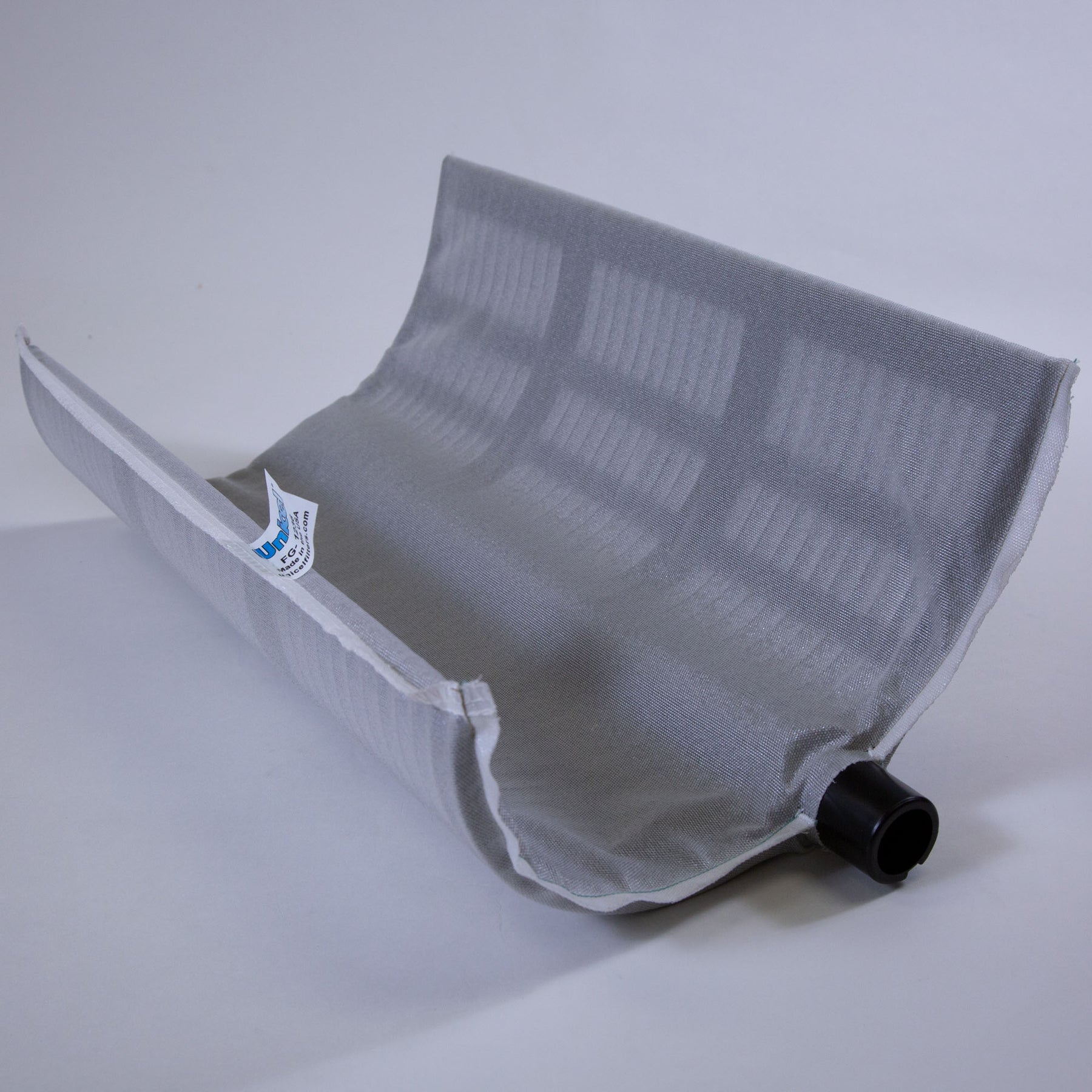

The Unicel FG-1236 is a single replacement DE filter grid engineered for Pentair Purex SM and SMBW series filter systems with 36 square feet total filtration capacity. Featuring a precision-engineered collar with single notch and black adapter covering for a secure manifold fit, this grid is built to withstand system pressure while delivering reliable debris capture and extended service life.
⚠️ IMPORTANT: CHECK BEFORE YOU BUY
This product is a single (1) replacement DE filter grid — it is NOT a complete set. A full filter service requires multiple grids. Please verify the quantity and type (full or partial) needed for your specific filter model before ordering.
⚠️ IMPORTANT: Partial Grid Also Required for Full Filter Service
The Pentair Purex SM/SMBW 2036 and SM/SMBW 4036 filters require 7 full grids (FG-1236) + 1 partial grid for a complete re-grid. This listing is for the full grid only. You will also need companion partial grid Unicel FG-1235 (OEM: 07-0022) to complete your filter service.
Specifications
| Filter System Area | 36 sq. ft. (total system) |
| Grid Length | 18-3/8" (measured from collar notch to opposite end) |
| Collar Configuration | Single notch with black adapter covering |
| Material | High-grade DE filter fabric with reinforced seaming |

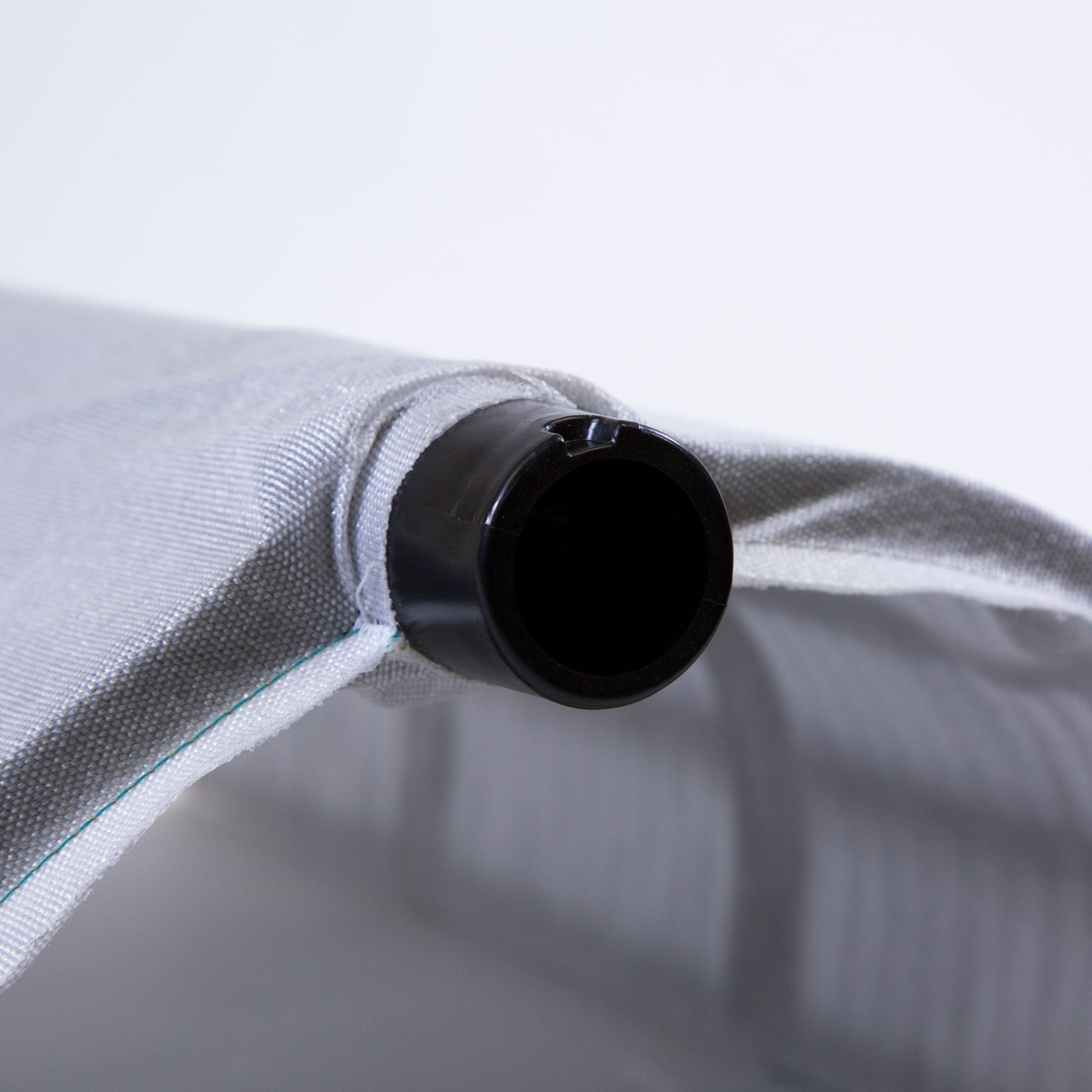

Note from Unicel: Collar has single notch and is covered with a black adapter. Length is measured from collar notch to opposite end of grid.
Fits Into:
| OEM Brand | Filter Model | OEM Part Number | Grid Configuration |
| Pentair – Purex | SM/SMBW 2036 | 07-0023 | 7 full + 1 partial (FG-1235) |
| Pentair – Purex | SM/SMBW 4036 | 07-0023 | 7 full + 1 partial (FG-1235) |
(This is not an exhaustive list.)
⚠️ IMPORTANT: Do Not Mix Premier and Purex Grids
Do not substitute or mix Premier and Purex grids. These grid types use different manifold connections. Mixing them will compromise the seal, allowing DE powder to bypass filtration and return to the pool — and can cause equipment damage. Use only Purex-compatible grids in these systems.
Pro Tip: Always turn off the pump and release all pressure from the filter tank via the air relief valve before opening the tank to replace grids. During service, inspect the tank o-ring and manifold assembly to ensure a proper seal before repressurizing the system.
Also known as: FG1236
