Unicel C-7489 Replacement Filter Cartridge for Hayward Super-Star-Clear C4500 & SwimClear C4520 | 112 Sq. Ft. | 25 1/2"
- In stock, ready to ship
- SKU:
- C-7489
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

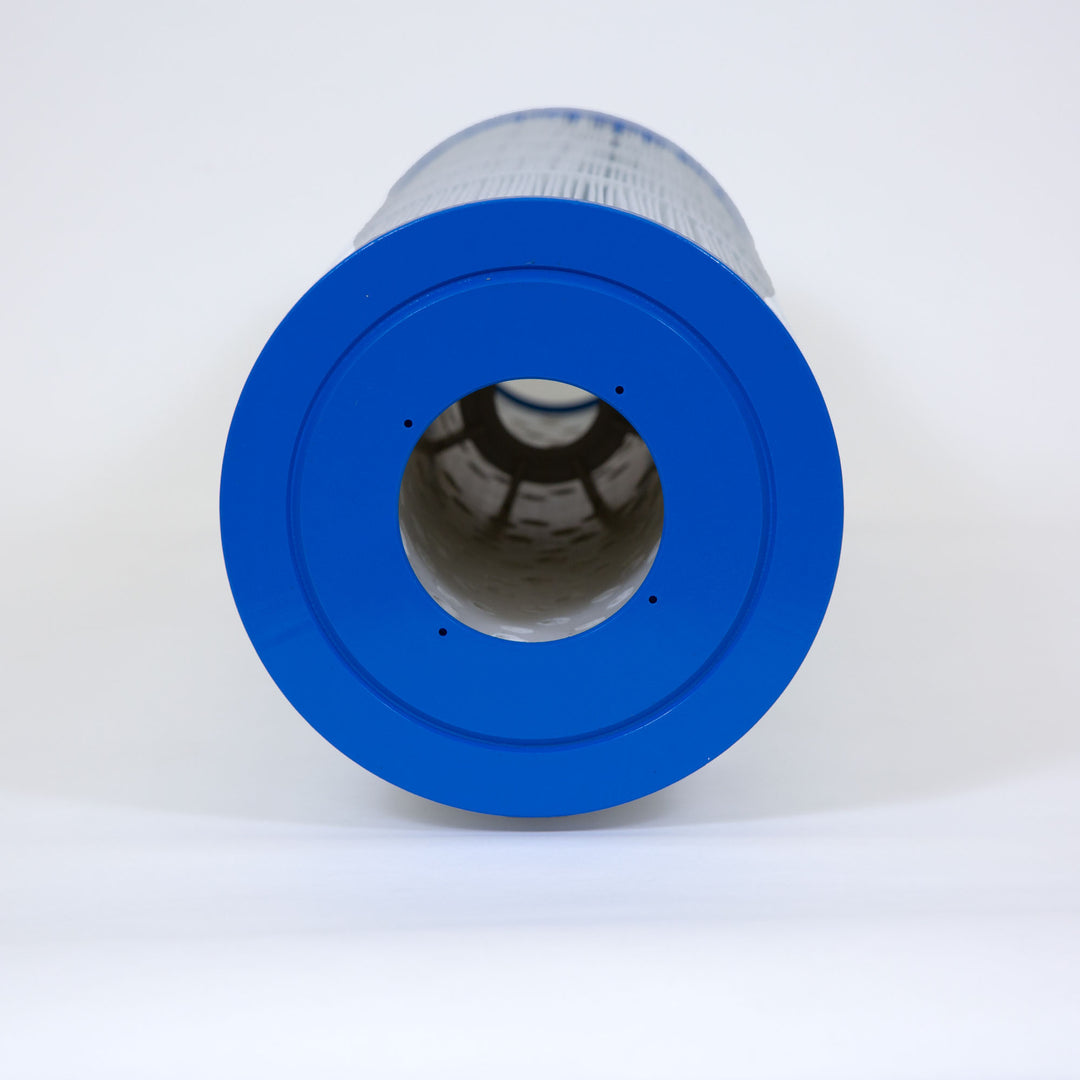

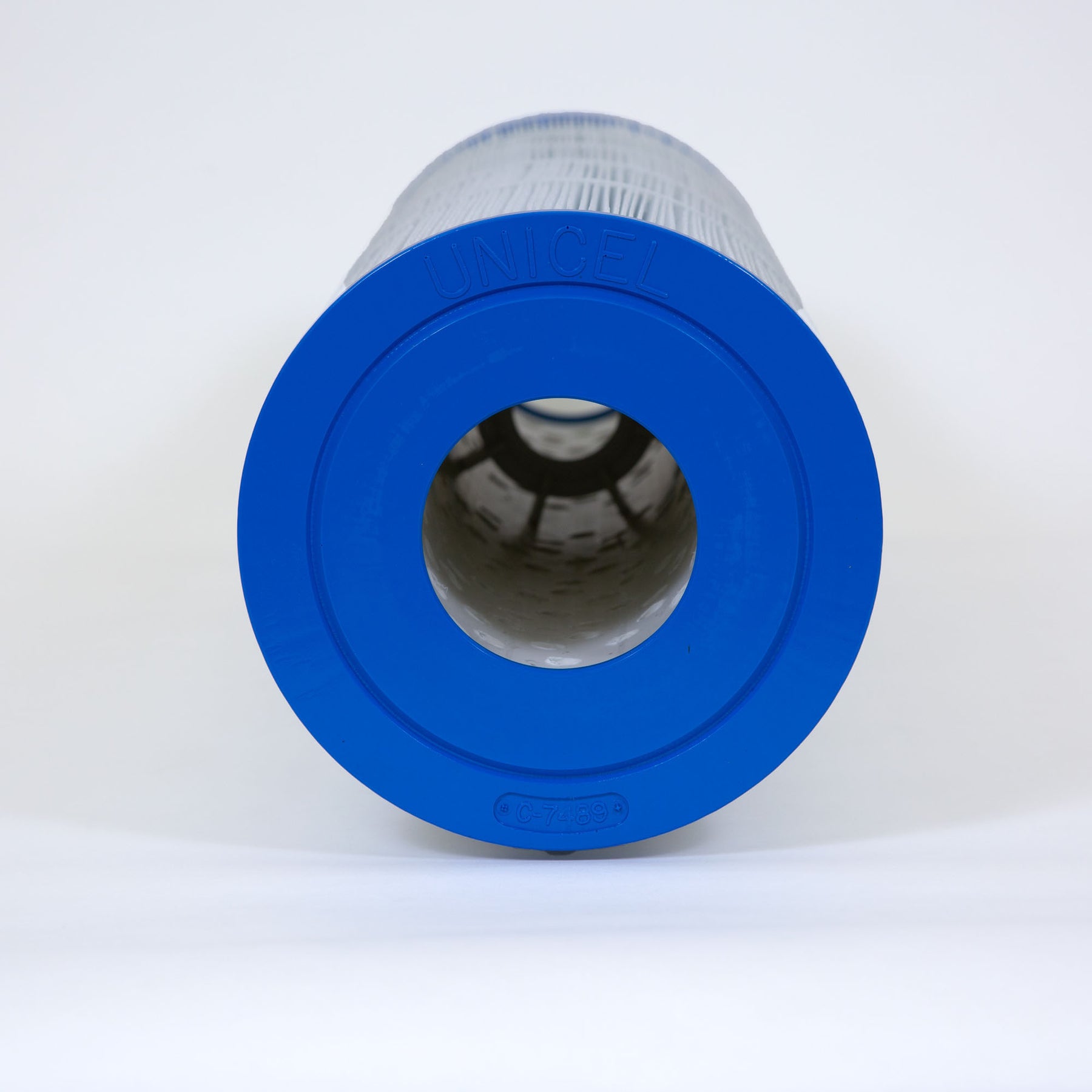

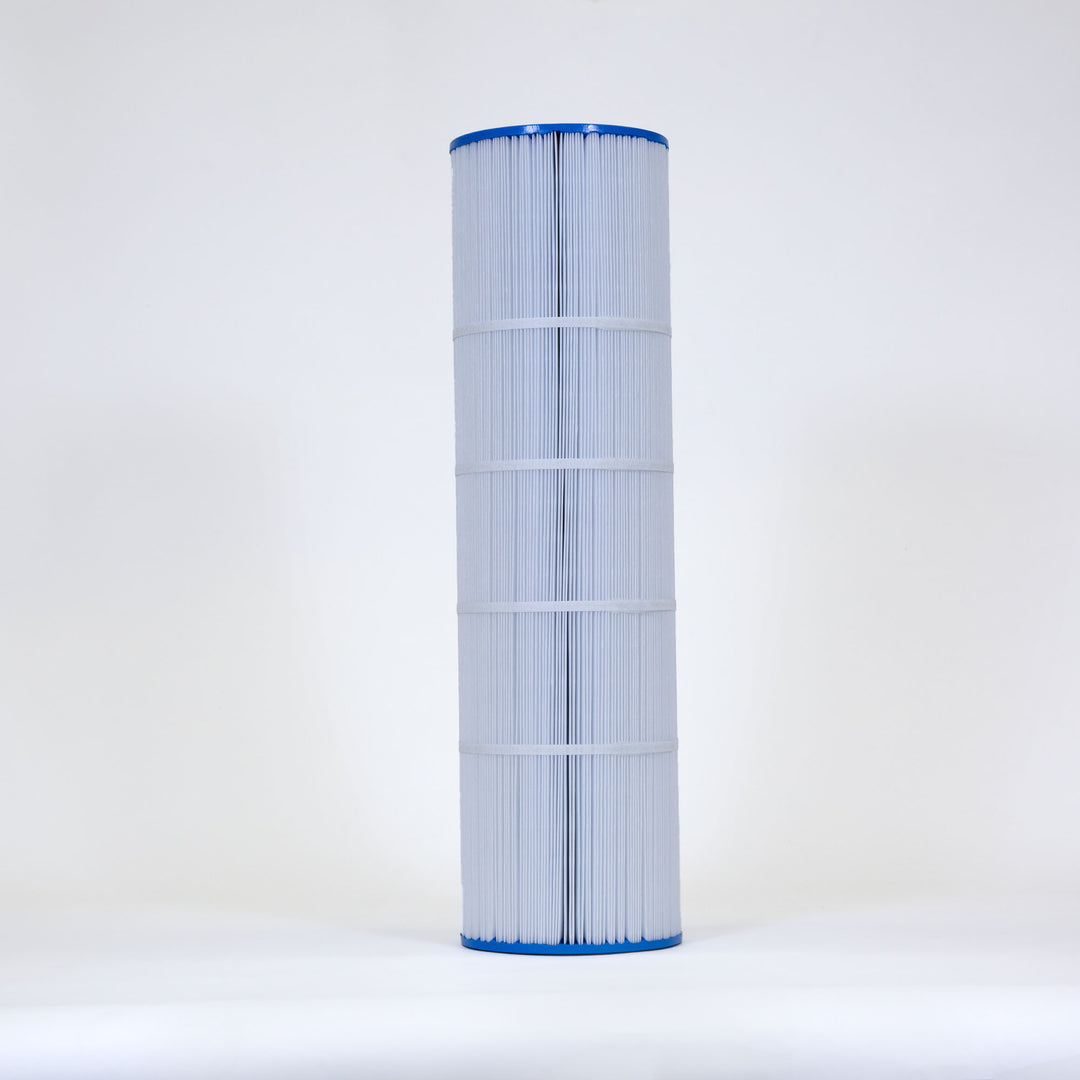

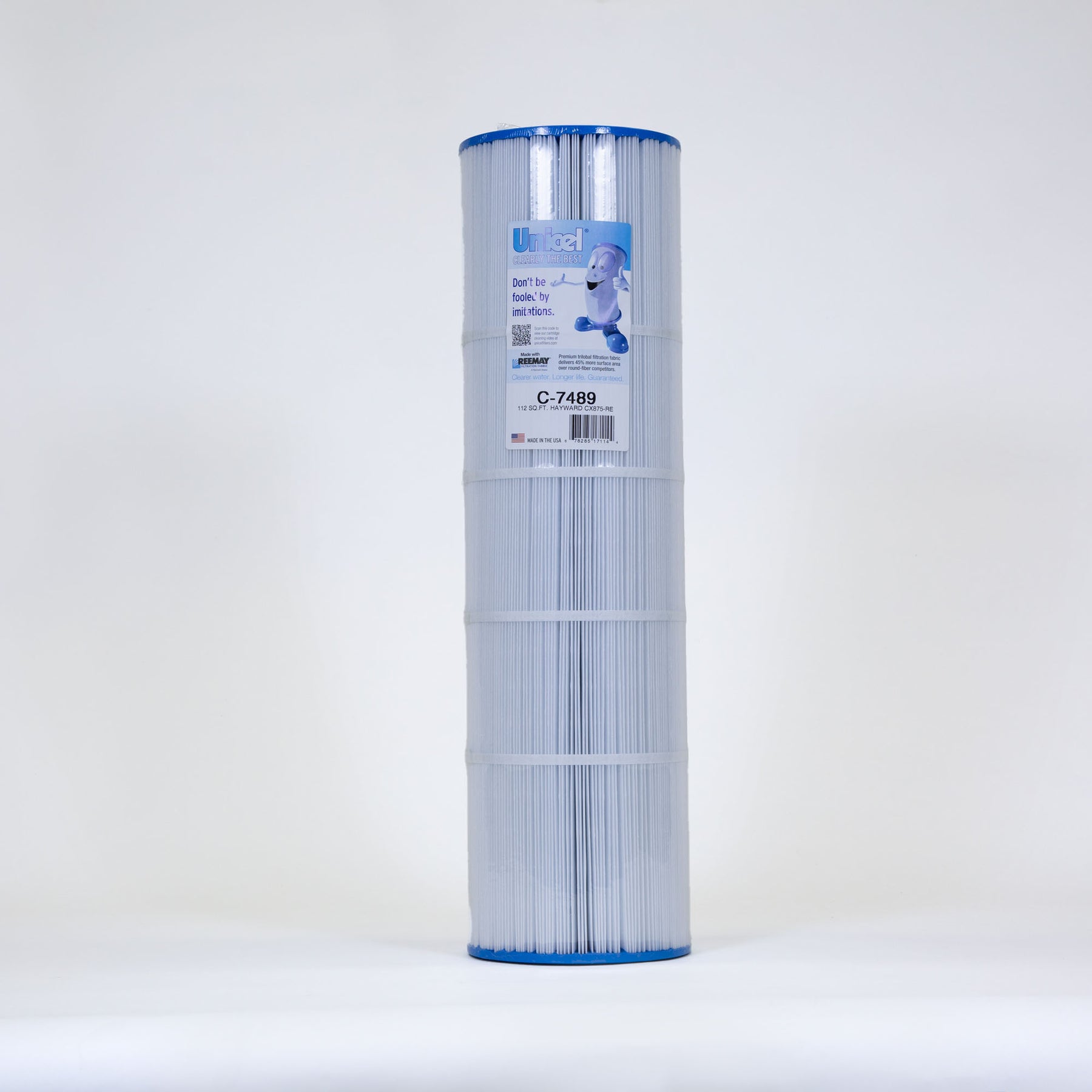

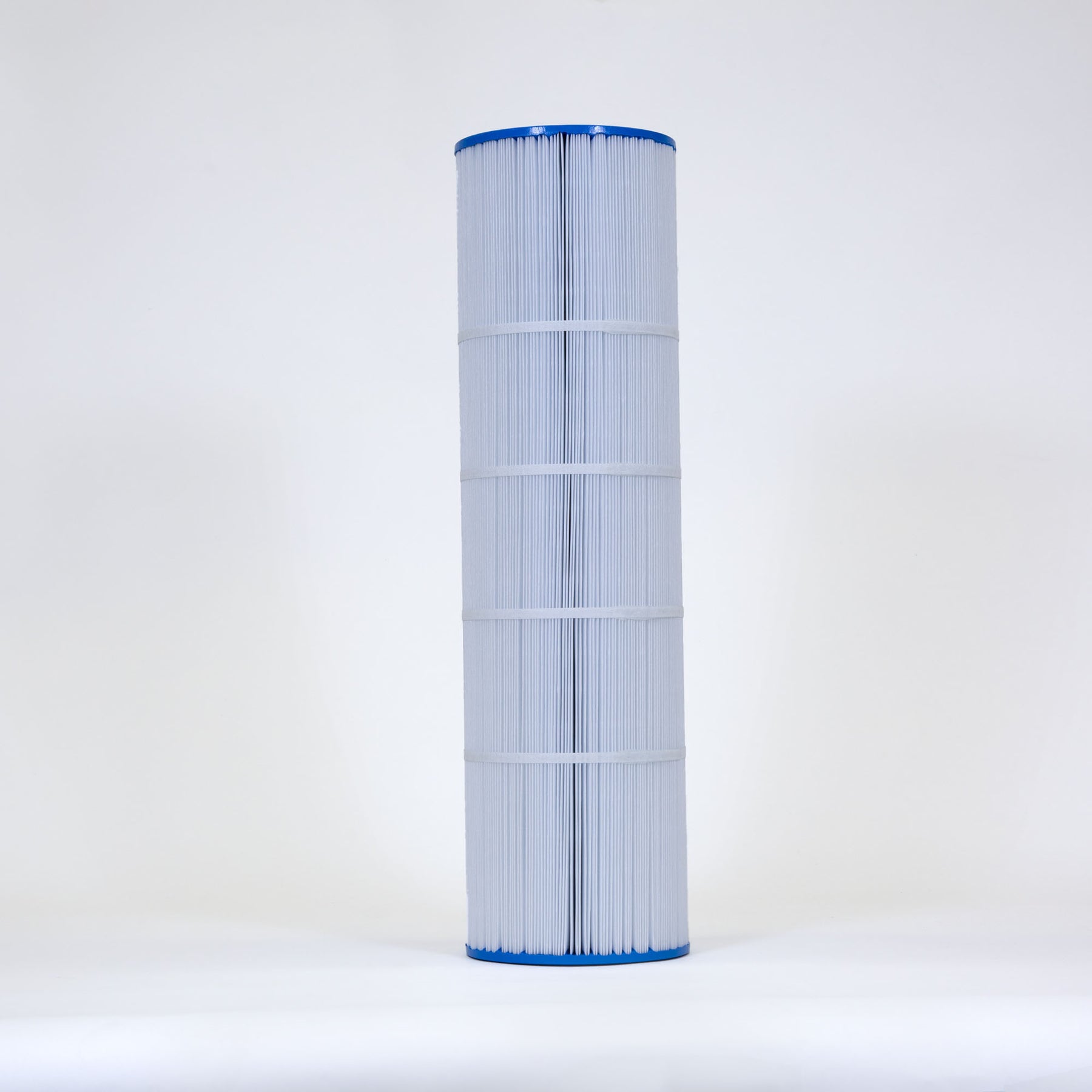

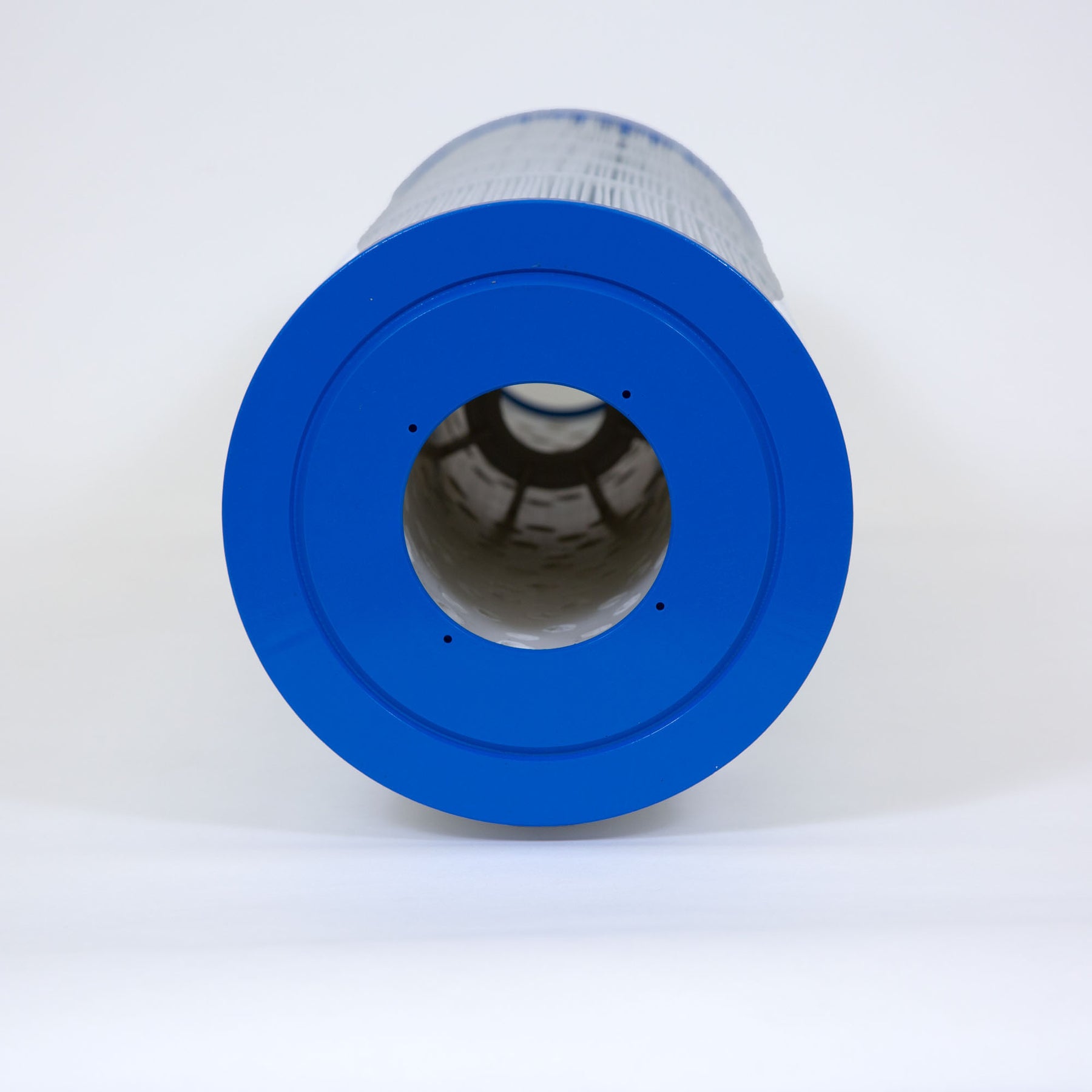

The Unicel C-7489 is a 7000 Series (7" diameter) 112 sq. ft. replacement filter cartridge built for Hayward's Super-Star-Clear C4500 and SwimClear C4520 multi-cartridge systems. Its 185 pleats of 4 oz. Reemay 2040 spunbonded polyester media deliver high-capacity particle capture across the full 25 1/2" filtration surface, providing more filtration area per cartridge than lower-pleat-count alternatives in the same dimensional class.
⚠️ IMPORTANT: INDIVIDUAL CARTRIDGE — FOUR REQUIRED PER SYSTEM
The Hayward Super-Star-Clear C4500 and SwimClear C4520 require four cartridges to complete the filter bank — totaling 448 sq. ft. of filtration capacity. This listing is for one (1) individual cartridge. The complete 4-cartridge replacement set is available as Unicel C-7489-4.
Specifications
| Filter Area | 112 sq. ft. |
| Length | 25 1/2" |
| Outer Diameter | 7" |
| Top Inner Diameter | 3" |
| Bottom Inner Diameter | 3" |
| Material | 4 oz. Reemay 2040 |
| Pleat Count | 185 |
|
Top Cap: Open w/ Molded Gasket
|
Bottom Cap: Open w/ Molded Gasket
|
Fits Into:
| OEM Brand | Filter Model | OEM Part Number | Notes |
| Hayward | Super-Star-Clear C4500 | CX875RE | 4 cartridges required per system |
| Hayward | SwimClear C4520 | CX875RE | 4 cartridges required per system |
(This is not an exhaustive list.)
Pro Tip: When ordering, confirm your system's OEM part number from the label inside the filter tank lid. Hayward uses two related part numbers for this cartridge: CX875RE refers to a single replacement cartridge element, while CX875XRE is Hayward's part number for the complete factory 4-cartridge pack — both are compatible with the Unicel C-7489. If the C-7489 is unavailable, the Unicel C-7488 (106 sq. ft., 176 pleats) shares identical physical dimensions (25 1/2" length, 7" OD, 3" ID both ends) and fits the same housing as a lower-capacity alternative.
Also known as: C7489
