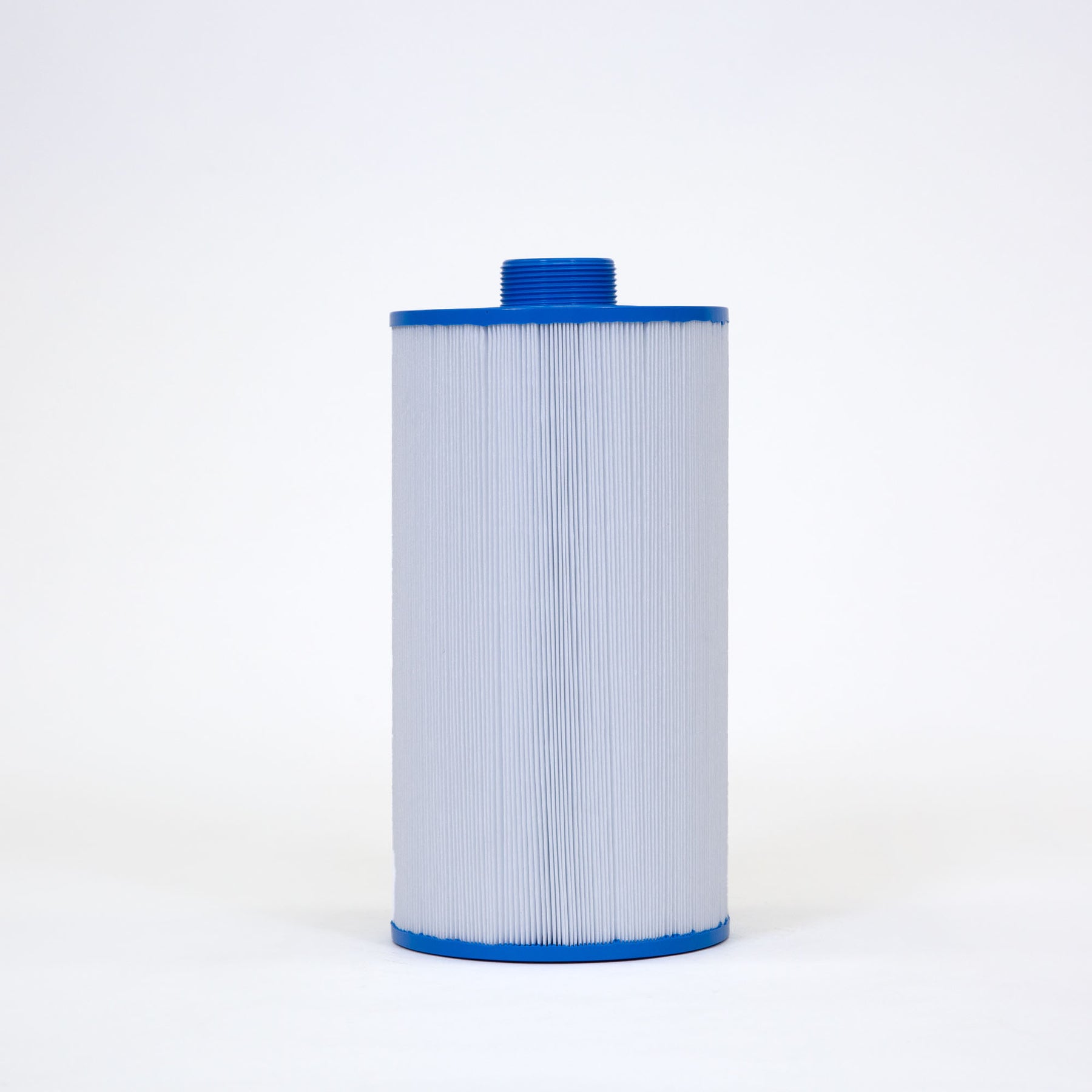

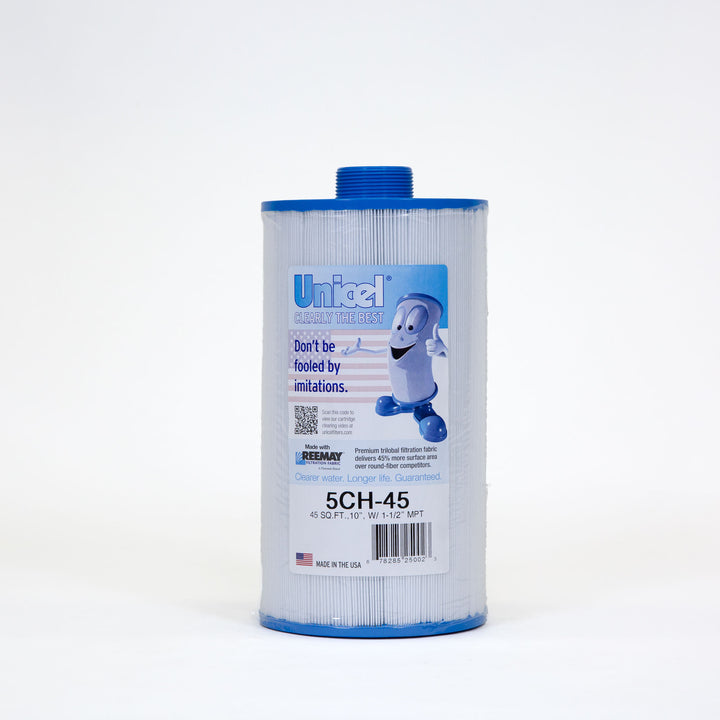

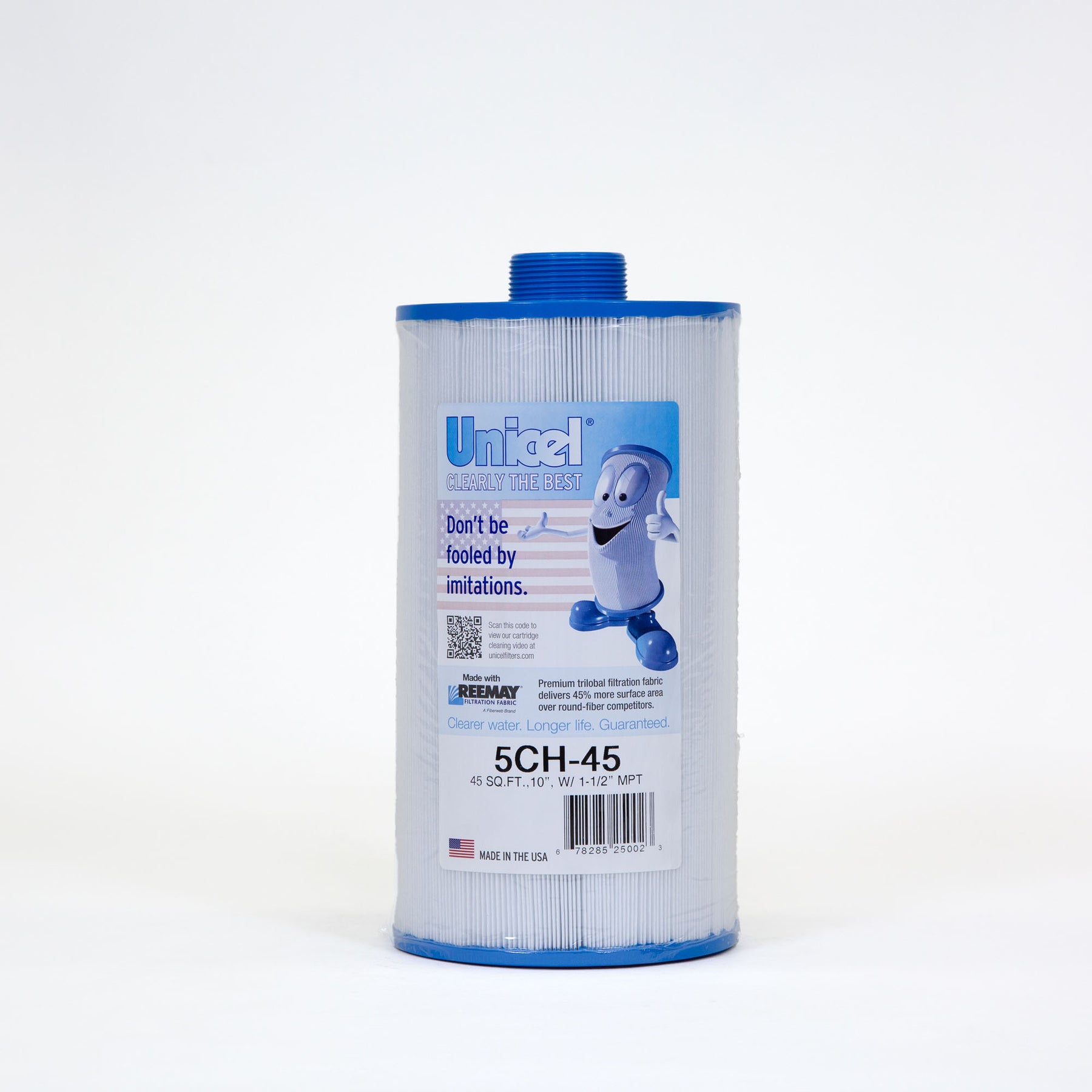

Unicel 5CH-45 Replacement Filter Cartridge | 45 sq. ft. | Freeflow Spas Legend & Passport
- In stock, ready to ship
- SKU:
- 5CH-45
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item
⚠️ IMPORTANT: VERIFY YOUR FILTER TYPE BEFORE ORDERING
Freeflow Spas used two different filter styles across model years. This cartridge features a 1-1/2" threaded (MPT) bottom fitting that screws onto a standpipe inside the filter housing. Newer models (approx. 2016 and later) use a non-threaded drop-in cartridge — if your current filter does not have a threaded base, this is NOT the correct replacement. Inspect your existing filter before ordering.
Specifications
| Filter Area | 45 sq. ft. |
| Length | 10" |
| Outer Diameter | 5 5/16" |
| Top Inner Diameter | 2 1/8" |
| Bottom Inner Diameter | N/A (1-1/2" MPT threaded base) |
| Material | 3 oz. Reemay 2033 |
| Pleat Count | 225 |
|

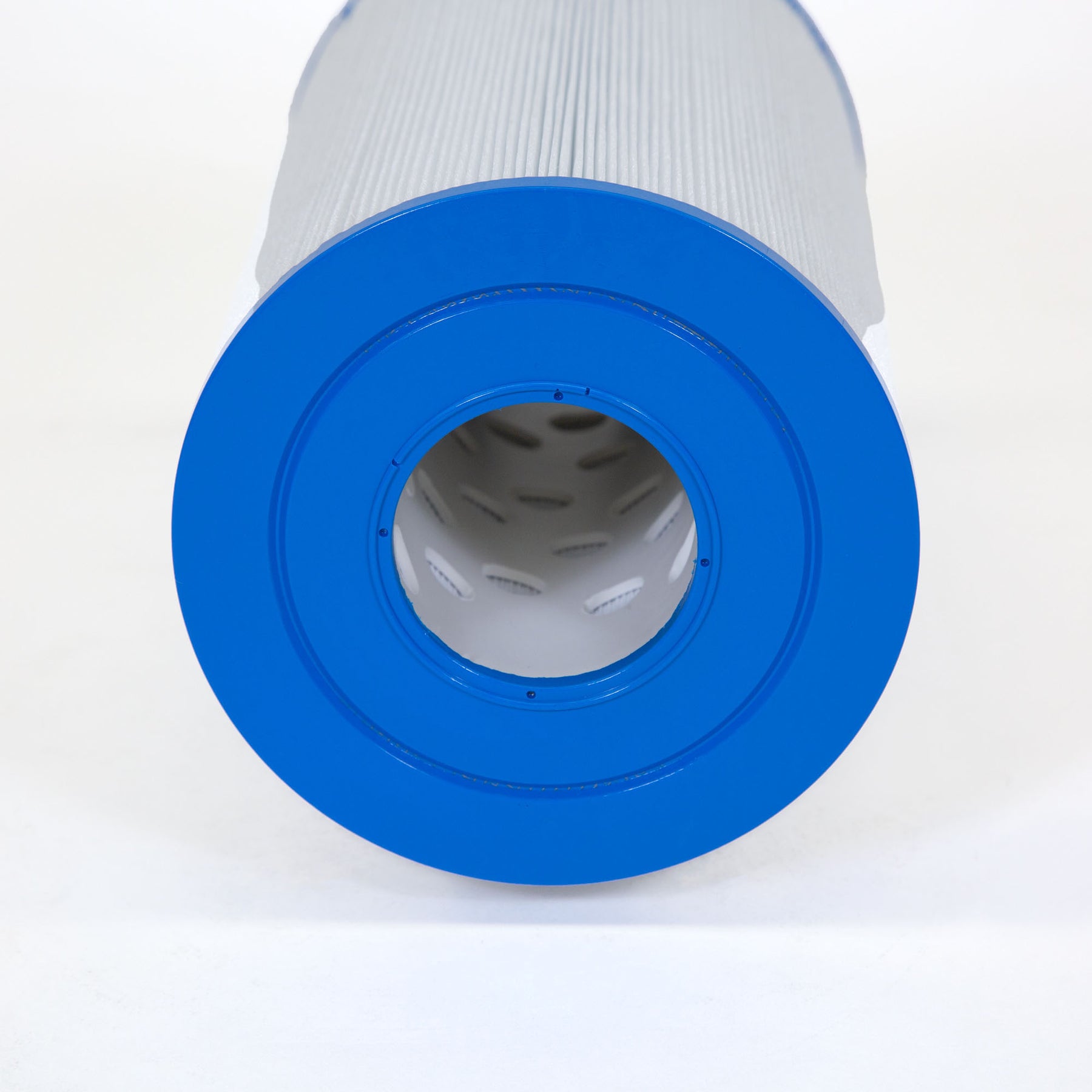

Top Cap: open
|

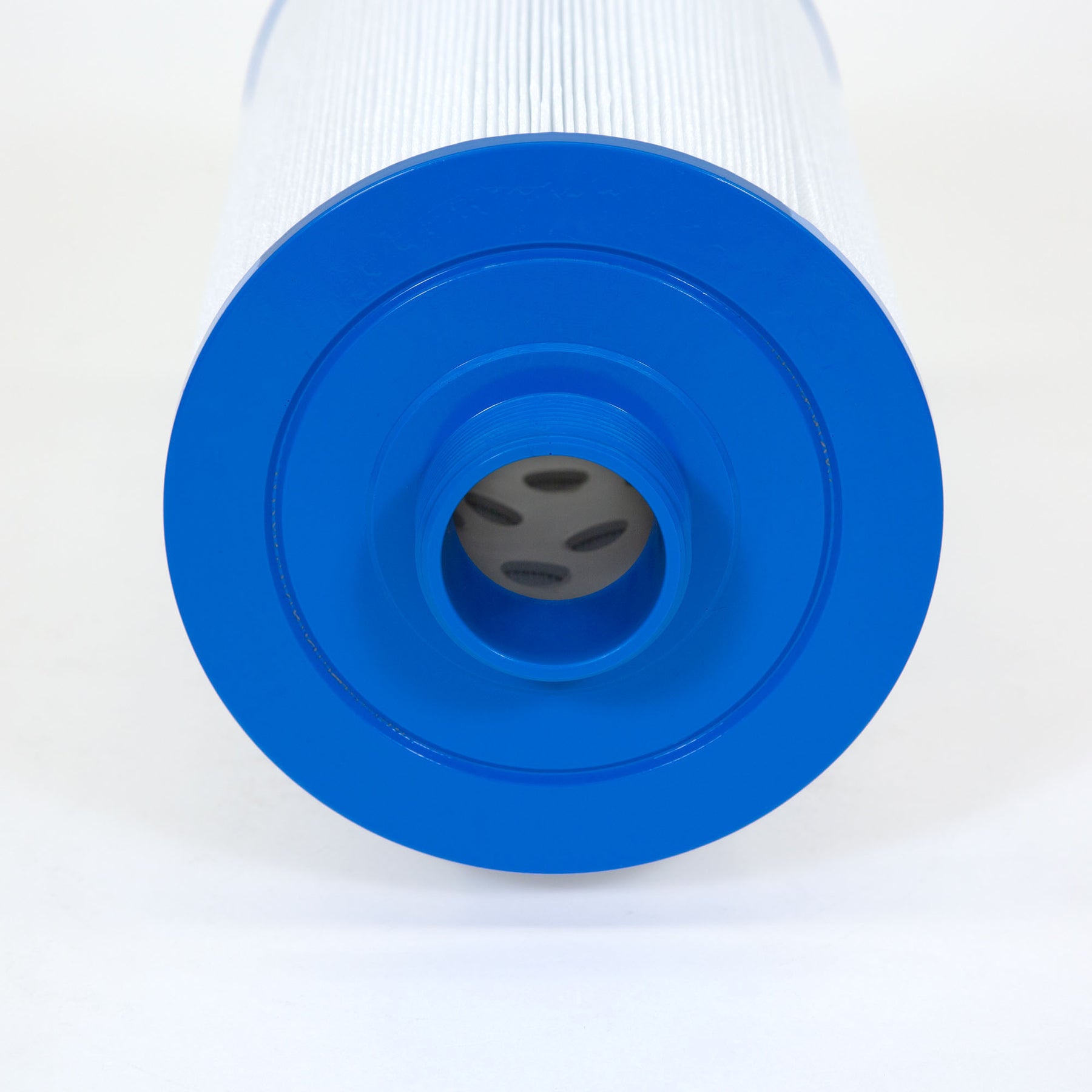

Bottom Cap: 1-1/2" male thread/MPT
|
Fits into:
| OEM Brand | Product Name | Part Number | Notes |
| Freeflow Spas | Legend | — | Select older models with 1-1/2" threaded standpipe housing only — verify filter type before ordering |
| Freeflow Spas | Passport | — | Select older models with 1-1/2" threaded standpipe housing only — verify filter type before ordering |
(This is not an exhaustive list.)
Pro Tip: Before ordering, remove your existing filter and inspect the bottom. If it has a threaded fitting (screws onto a standpipe), the 5CH-45 is your match. If it simply drops into the housing with no threads, check the 4CH-949 instead. When in doubt, match the OEM part number printed on your existing filter's end cap or housing label.
]]>
