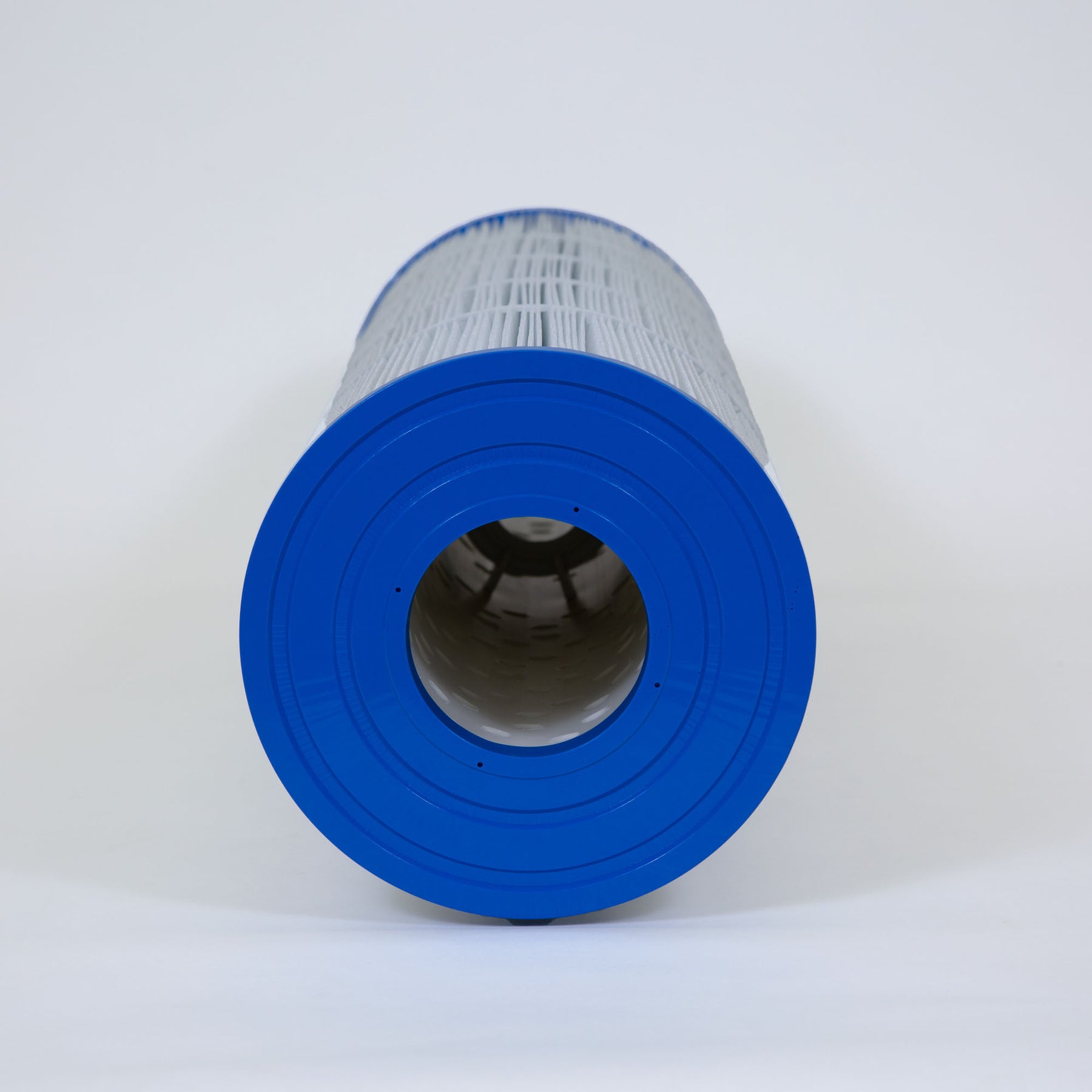

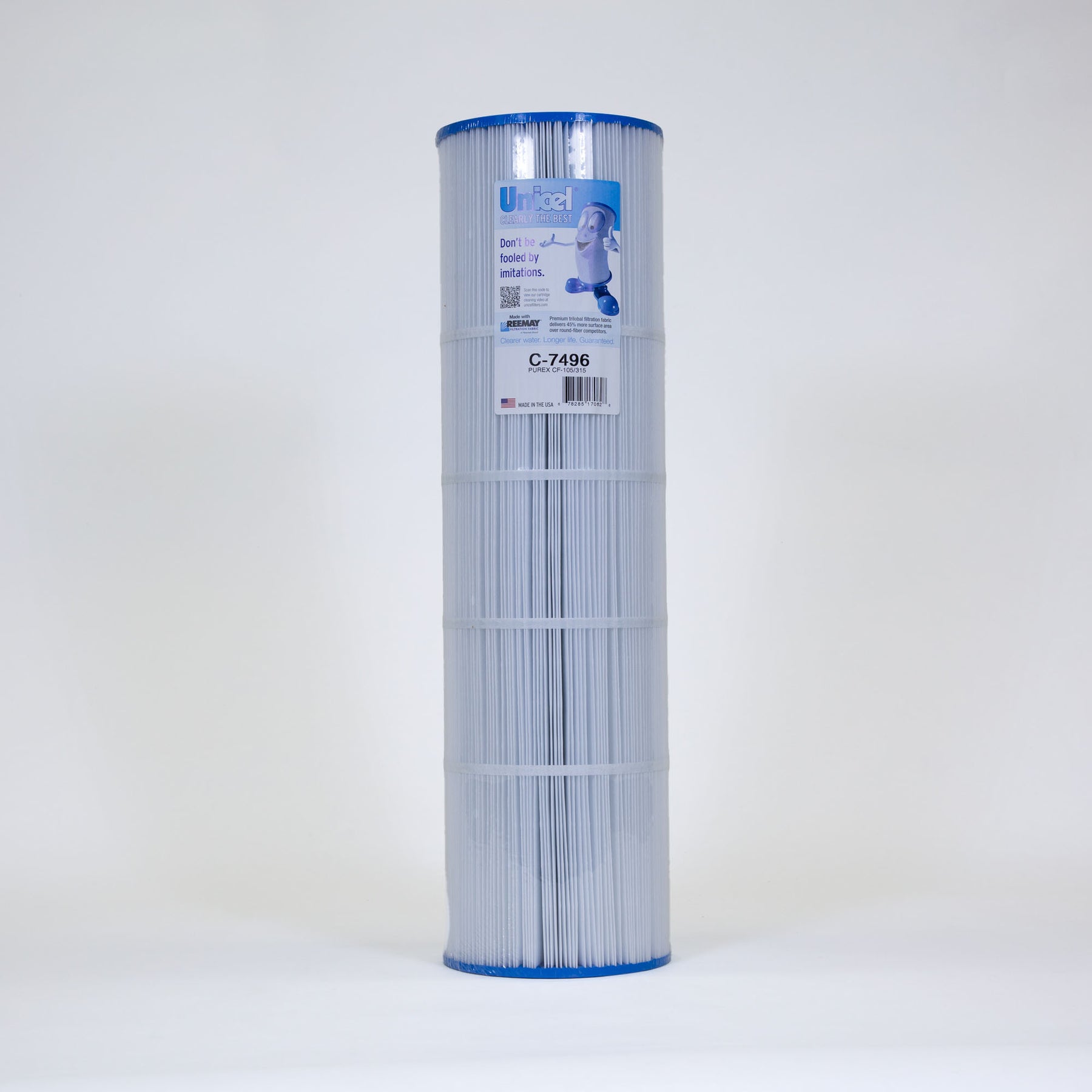

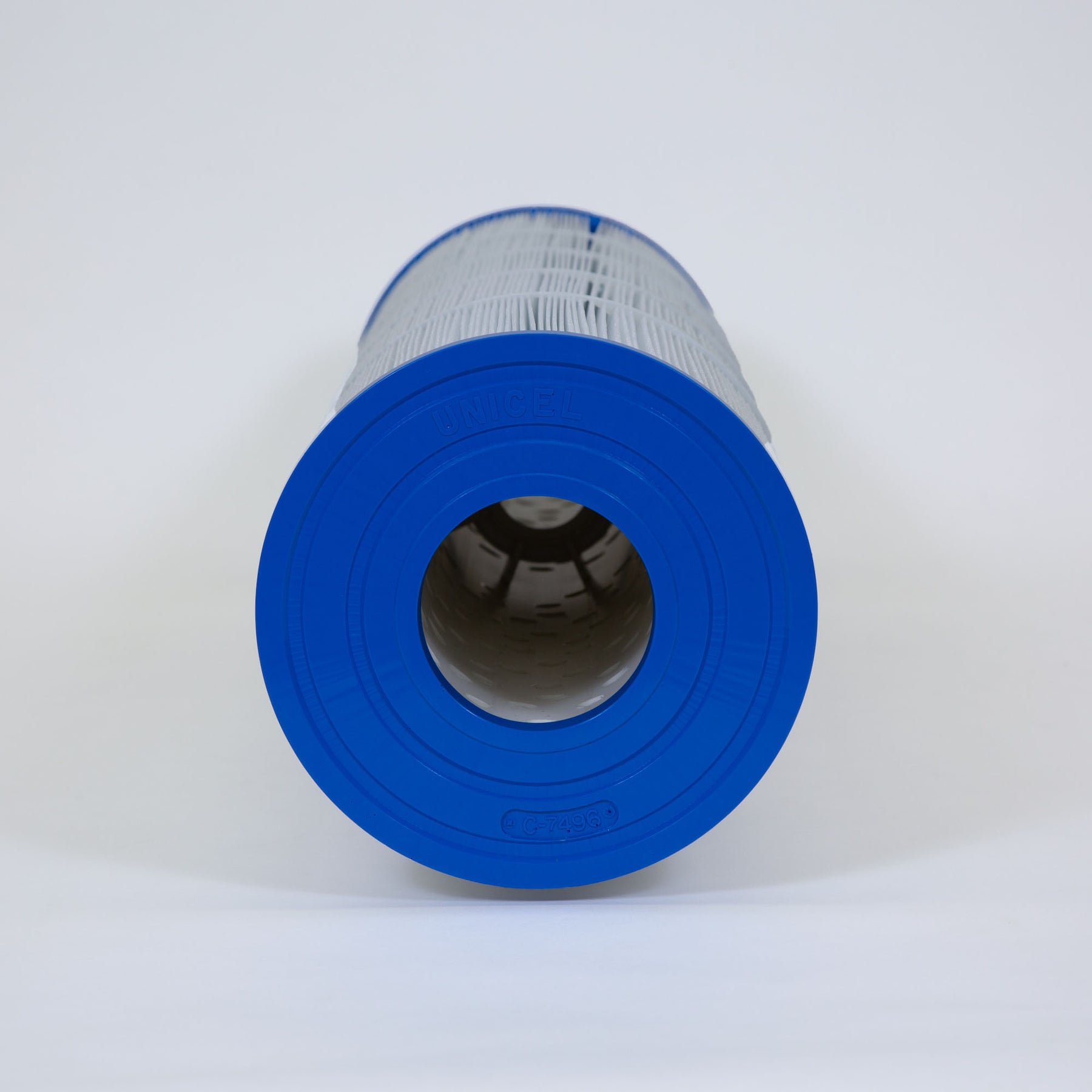

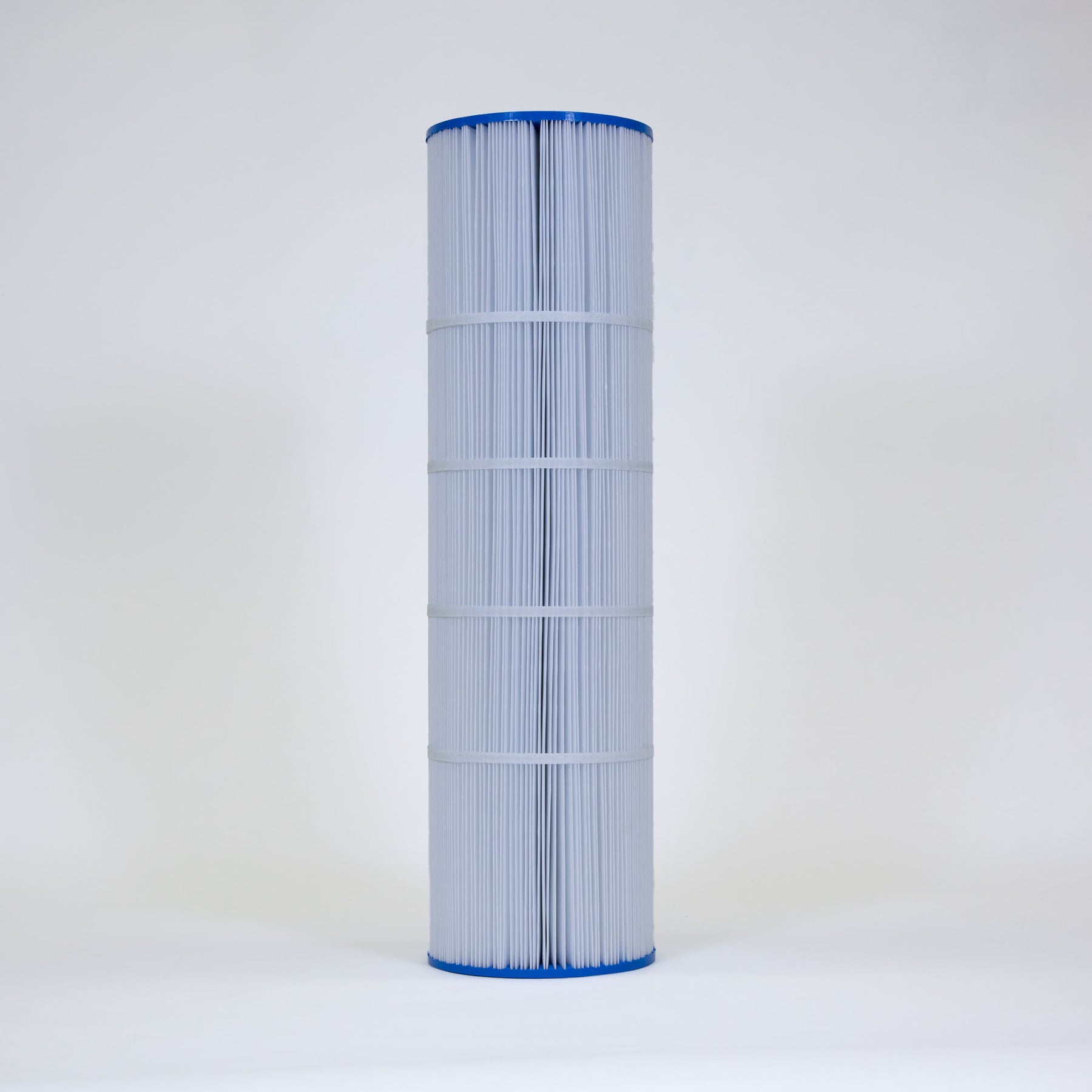

Unicel C-7496 Replacement Filter Cartridge 105 sq. ft. | Pentair & Purex CF-105/315

Unicel's 7000 Series C-7496 delivers 105 sq. ft. of filtration surface area in a precision-engineered replacement cartridge purpose-built for the Pentair and Purex CF-105/315 multi-element filter systems. Constructed with 4 oz. Reemay 2040 spunbond polyester media across 172 pleats, the C-7496 provides exceptional dirt-holding capacity and long service life — engineered to Unicel's exacting dimensional tolerances for a secure, leak-free fit every time.

⚠️ IMPORTANT: Full Filter Service Requires 3 Cartridges
Your Pentair / Purex CF-105/315 filter requires 3 cartridges for a complete service. The "315" in the filter name represents the total system filtration area — three 105 sq. ft. cartridges working together (3 × 105 = 315 sq. ft.). Replacing all three cartridges at the same time ensures consistent flow, balanced filtration, and full filter efficiency. Add 3 units to your cart for a complete filter change.

Specifications

Filter Area	105 sq. ft.
Length	25 5/8"
Outer Diameter	7"
Top Inner Diameter	2 15/16"
Bottom Inner Diameter	2 15/16"
Material	4 oz. Reemay 2040
Pleat Count	172
Top Cap: open	Bottom Cap: open

Fits into:

(This is not an exhaustive list.)

Also known as: C7496
