Unicel 5CH-402 Replacement Spa Filter Cartridge for Del Sol, Sundance & Jacuzzi Premium Spas | 40 Sq. Ft. | 6540-723
- In stock, ready to ship
- SKU:
- 5CH-402
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

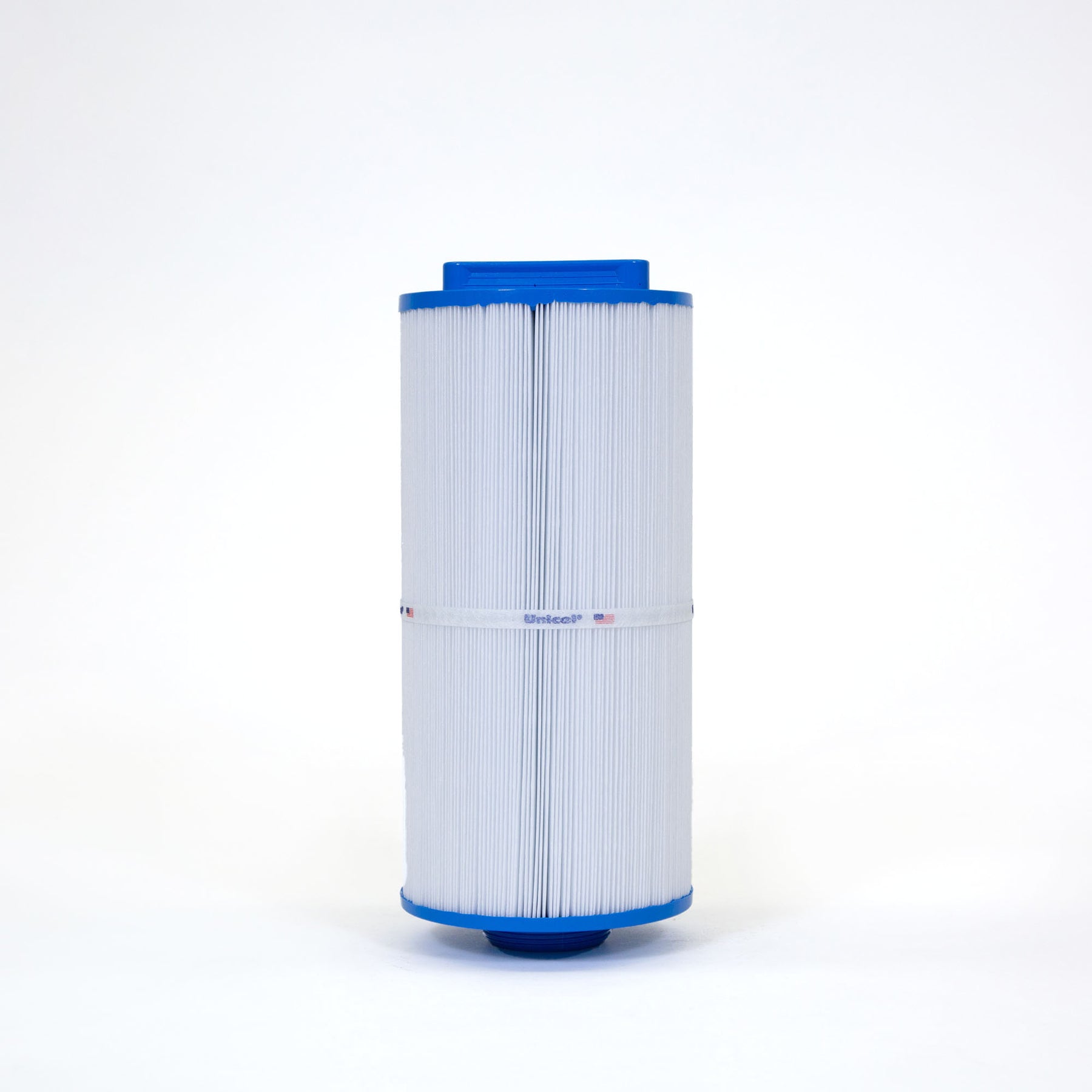

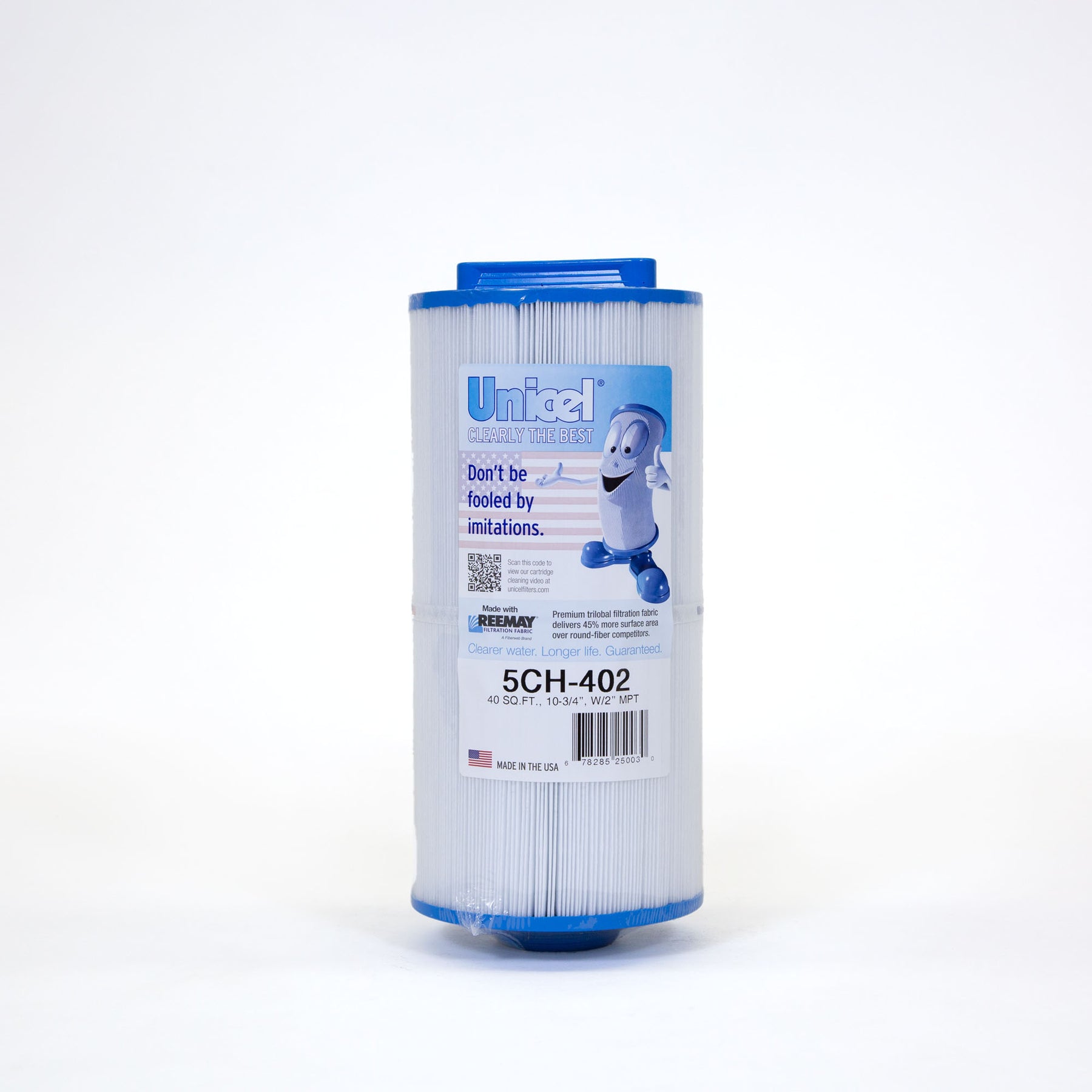

The Unicel 5CH-402 is a 5CH Series 40 sq. ft. replacement spa filter cartridge engineered for Del Sol, Sundance, and Jacuzzi Premium spa models originally equipped with OEM part number 6540-723. With 204 pleats of 3 oz. Reemay 2033 filtration media and a 2" male-thread (MPT) bottom connection, it delivers reliable filtration performance as a direct cross-reference replacement.
⚠️ IMPORTANT: Dimensional Difference vs. OEM Original
Per Unicel's cross-reference data, the original OEM cartridge measures 11" OAL × 5-1/2" OD. The Unicel 5CH-402 measures 10 3/4" length × 5-3/16" OD — slightly smaller in both length and outer diameter. This is the documented Unicel replacement for OEM part 6540-723. Measure your existing cartridge before ordering to confirm this is the correct replacement for your unit.
Specifications
| Filter Area | 40 sq. ft. |
| Length | 10 3/4" |
| Outer Diameter | 5 3/16" |
| Material | 3 oz. Reemay 2033 |
| Pleat Count | 204 |
|

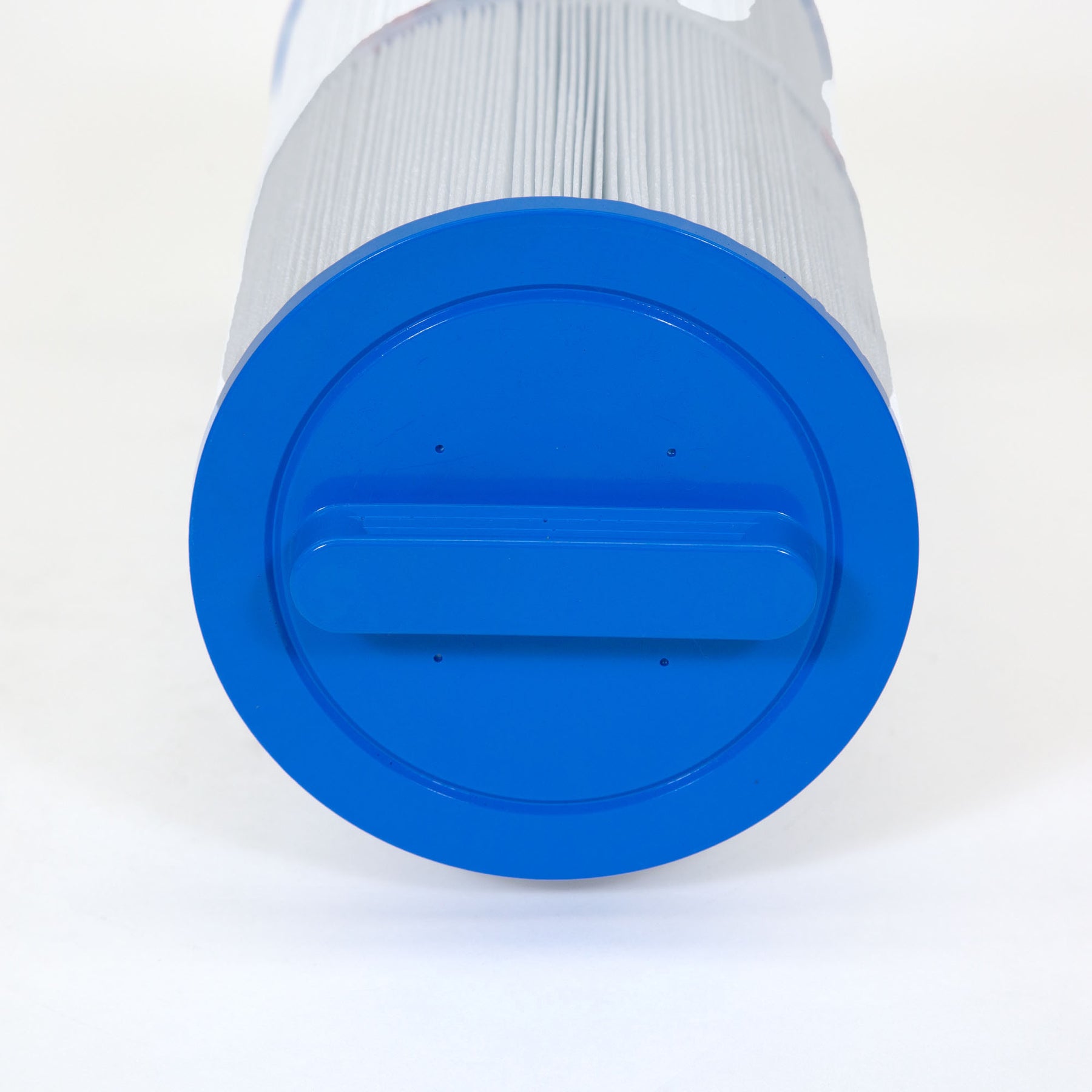

Top Cap: Bar Handle
|

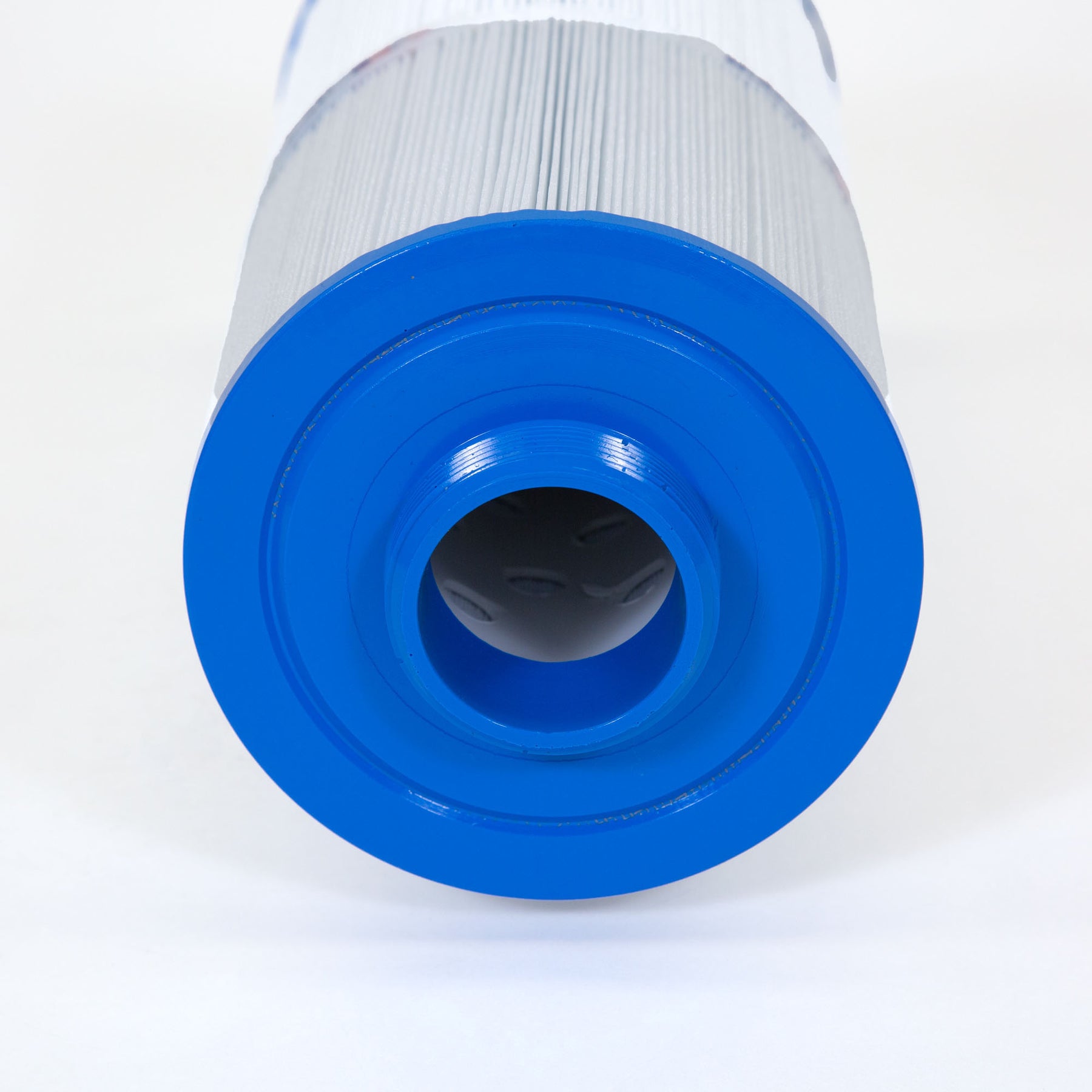

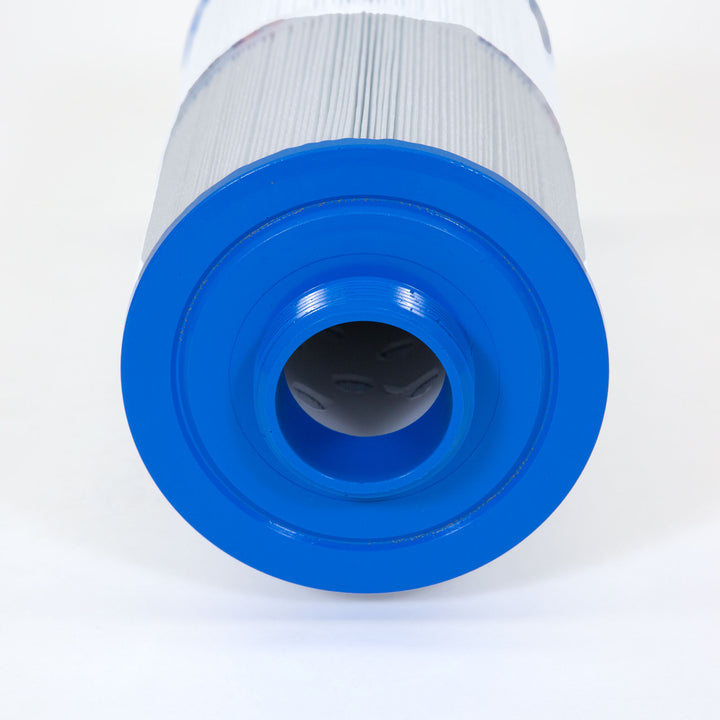

Bottom Cap: 2" Male Thread (MPT)
|
Fits Into:
| OEM Brand | Product Name | Part Number | Notes |
| Del Sol Spas | Hermosa | 6540-723 | OEM original: 11" OAL × 5-1/2" OD |
| Del Sol Spas | Redondo | 6540-723 | OEM original: 11" OAL × 5-1/2" OD |
| Jacuzzi Premium | Del Sol Hermosa | 6540-723 | OEM original: 11" OAL × 5-1/2" OD |
| Jacuzzi Premium | Del Sol Redondo | 6540-723 | OEM original: 11" OAL × 5-1/2" OD |
| Sundance Spas | Del Sol Hermosa | 6540-723 | OEM original: 11" OAL × 5-1/2" OD |
| Sundance Spas | Del Sol Redondo | 6540-723 | OEM original: 11" OAL × 5-1/2" OD |
| South Pacific Spas | — | — | — |
| Tuff Spas | — | — | Models manufactured after 2008. Verify dimensions before ordering. |
(This is not an exhaustive list.)
Pro Tip: Before ordering, measure your existing cartridge's overall length and outer diameter and compare against the 5CH-402 specs (10 3/4" × 5-3/16"). The original OEM part for these spa models measured 11" × 5-1/2" — the 5CH-402 is the documented Unicel cross-reference replacement, but confirming your measurements against both sets of dimensions ensures the right fit every time.
