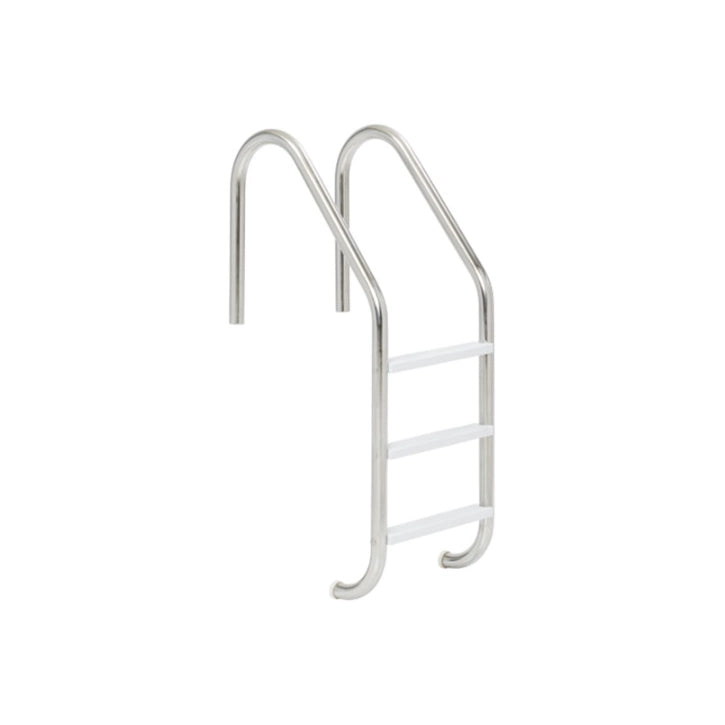

SR Smith 24" Marine Grade Stainless Steel 3 Step Vinyl Liner Economy Ladder | VLLS-103E-MG

SR Smith VLLS-103E-MG 3-Step 316L Marine Grade Stainless Steel Economy Ladder with Econoline LTDF-101 High Impact Plastic Tread in white.

Frames extend 5.5" from the pool wall. Frame is secured to the pool deck with two anchor sockets on 19" centers with Econoline plastic treads (white).  Anchor sockets are sold separately, see below. The lower end of the frame is bent to meet the pool wall and fitted with two white rubber bumpers (WRB-100A)

Specifications

• Number of steps/treads: Three (3), plastic in white
• Tubing: 1.90"
• Wall Thickness: 0.049"
• Finish: Polished Stainless Steel, 316L Marine Grade (-MG), suitable for salt water pools
• Bends: 4" radius
• Tread Types: LTDF-101-R Plastic (Econoline)
• Dimensions: 4 ft 5 Inch Height x 24 Inch Width
• Bottom Mount Type: Rubber Bumpers against side of pool.

**Important note on this model - the centers for THIS model are 19" as the Econoline plastic treads are shorter than the Elite stainless steel treads which have the illustrated 20" centers.

Anchors and Escutcheons (anchor cover plates) Sold Separately

• Compatible anchors for 1.9" OD Tubing, sold each (1), order 2x per ladder:
  • AS-100P, Plastic
  • AS-100B, Bronze
  • AS-104MG, Marine Grade Stainless Steel (316, salt water applications)

• Matching Escutcheons for 1.9" OD Tubing, sold each (1), order 2x per ladder:
  • EP-100F-MG, Marine Grade Stainless Steel (316)
