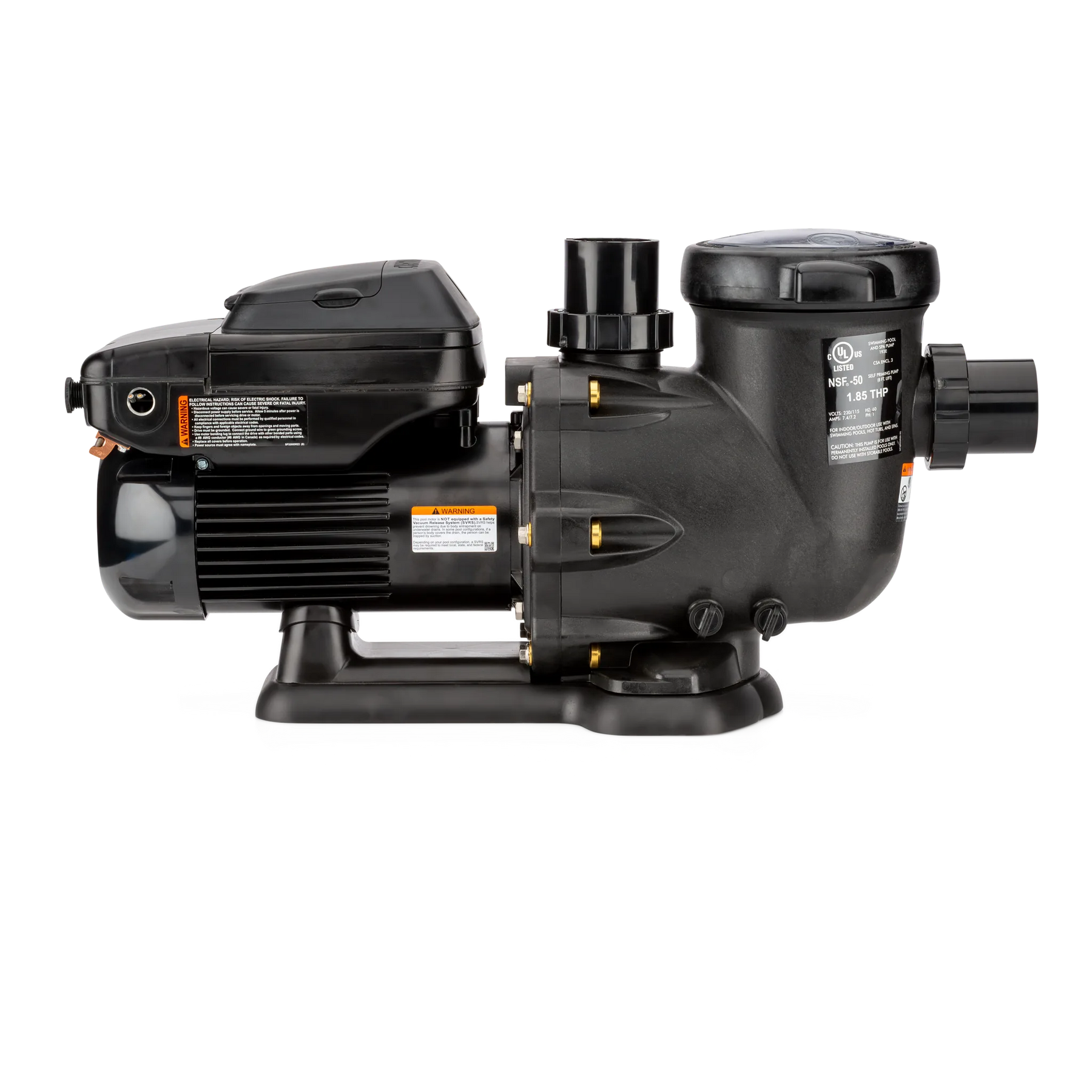

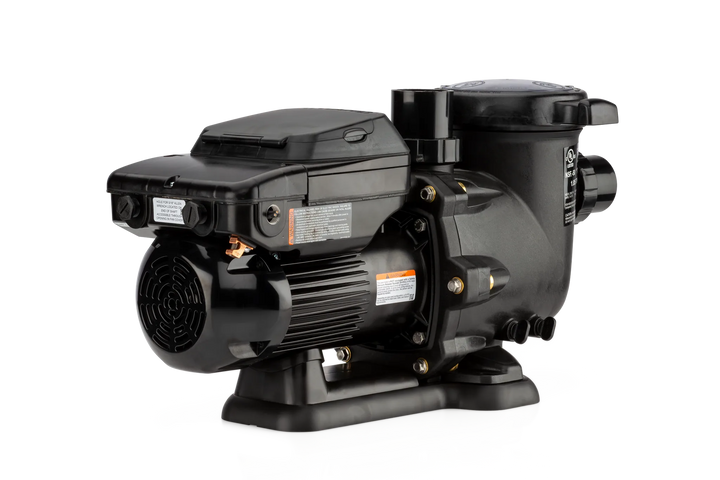

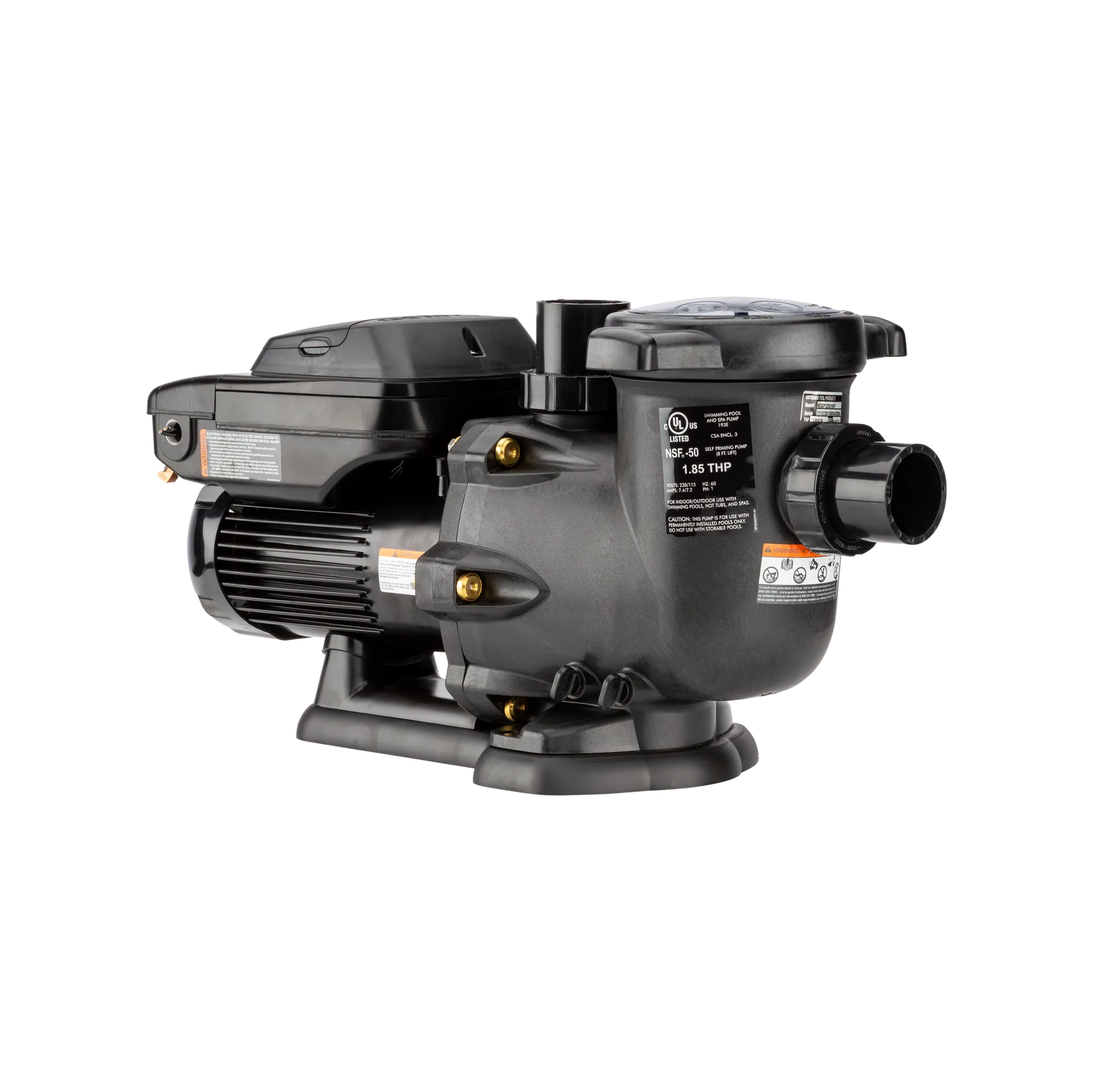

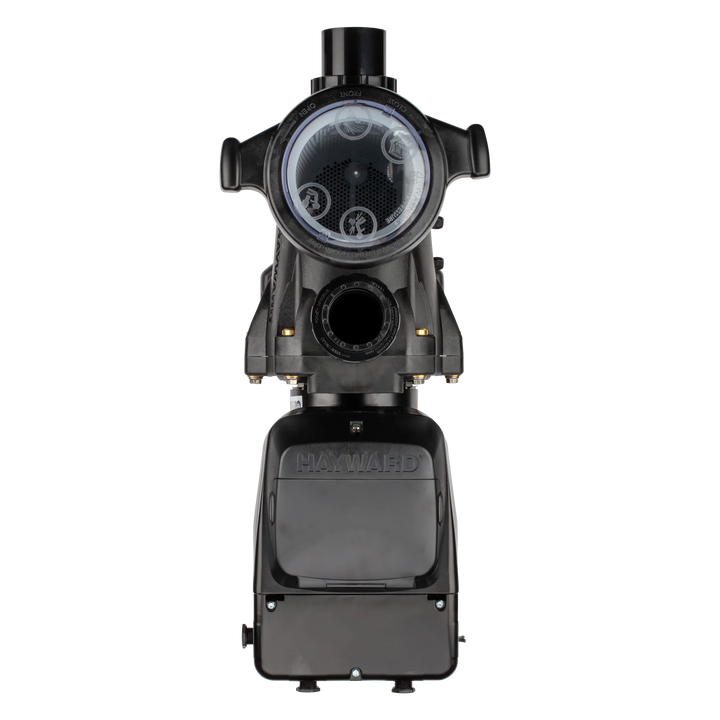

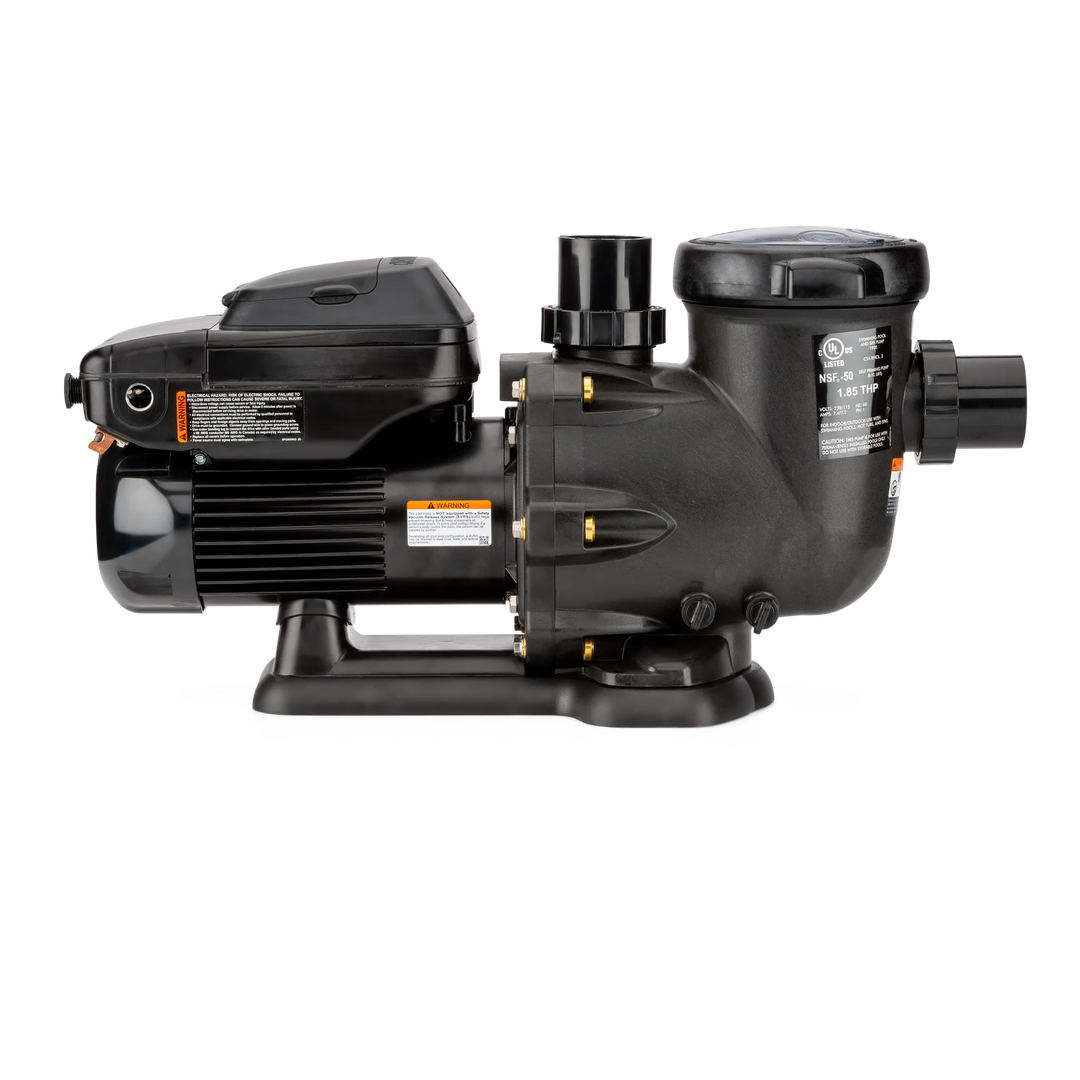

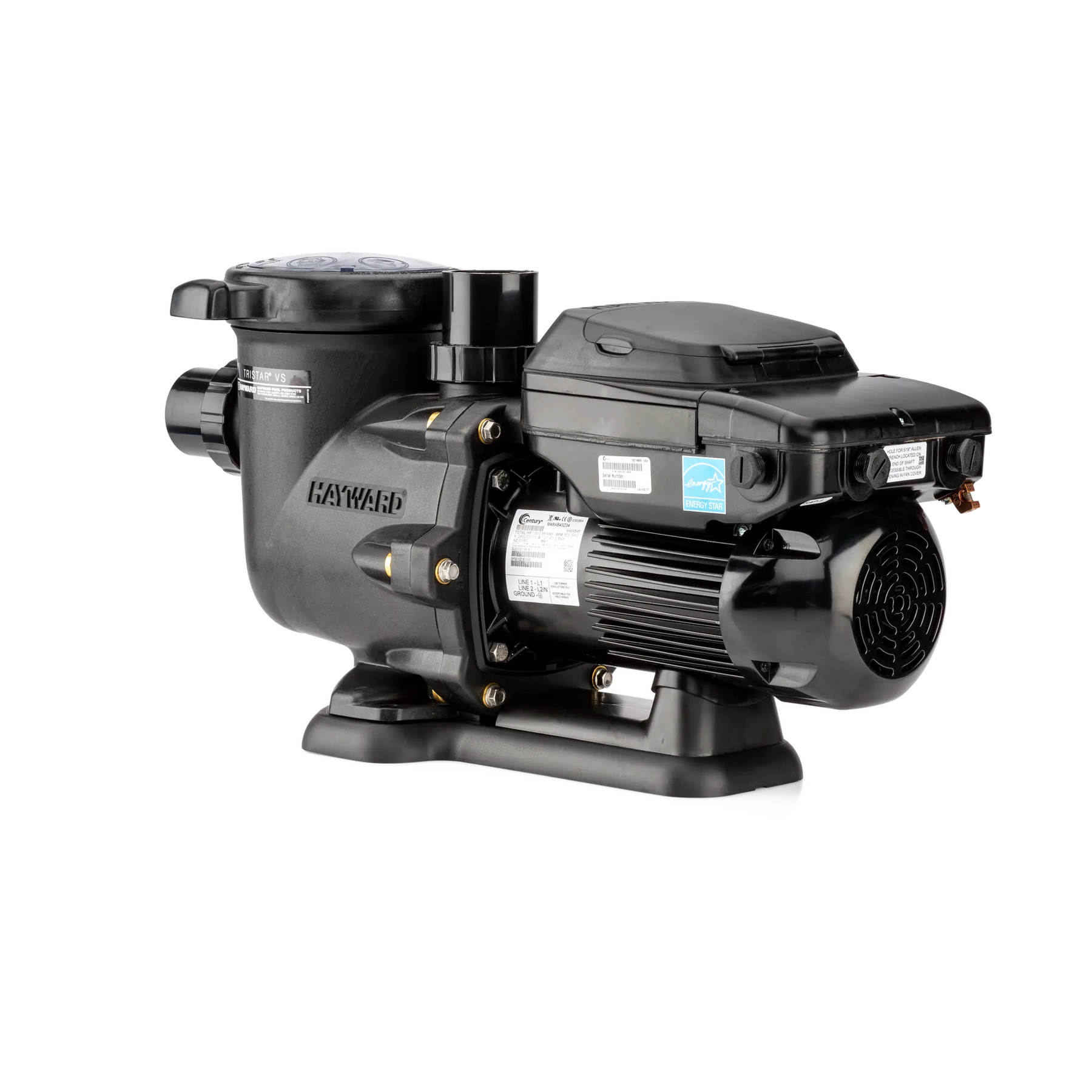

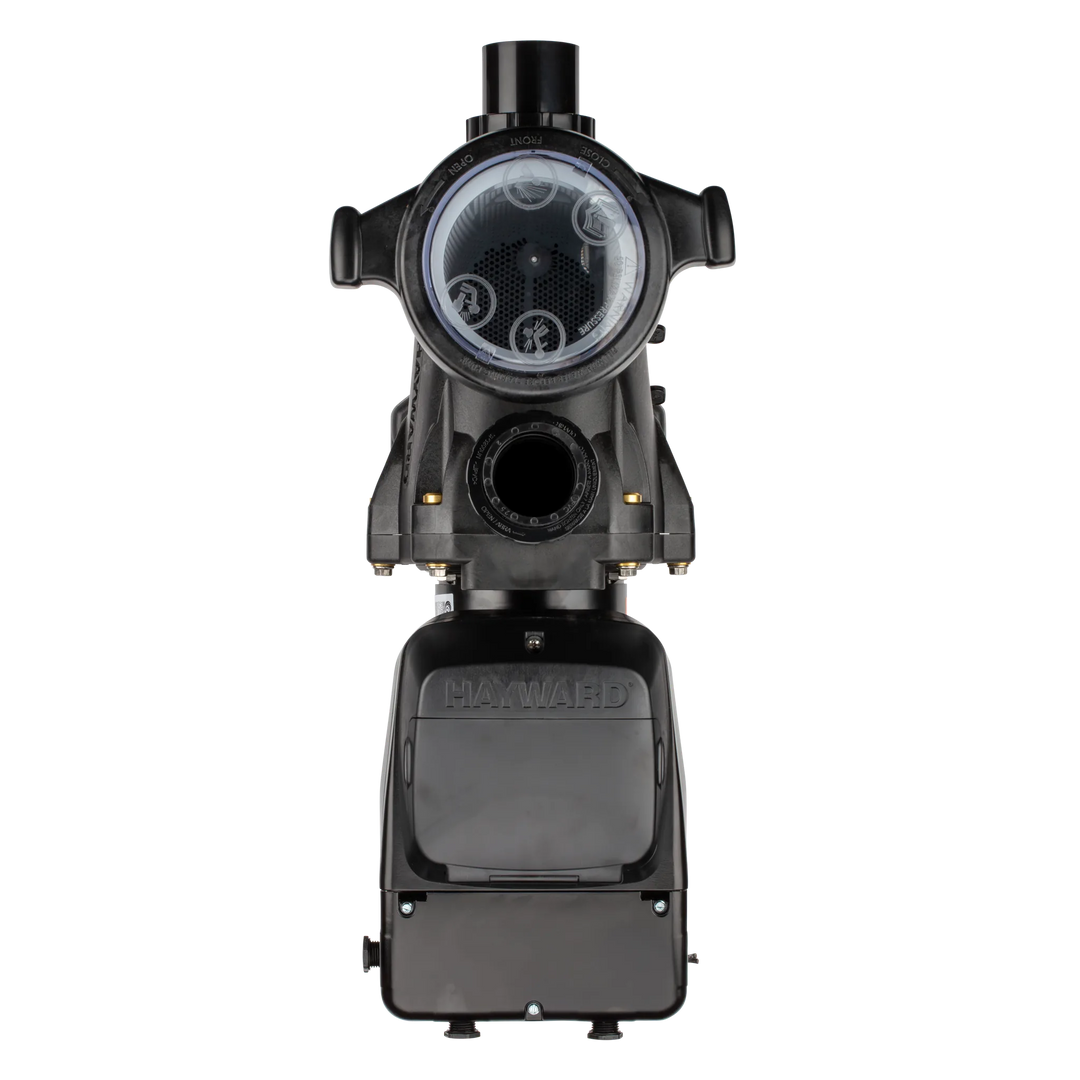

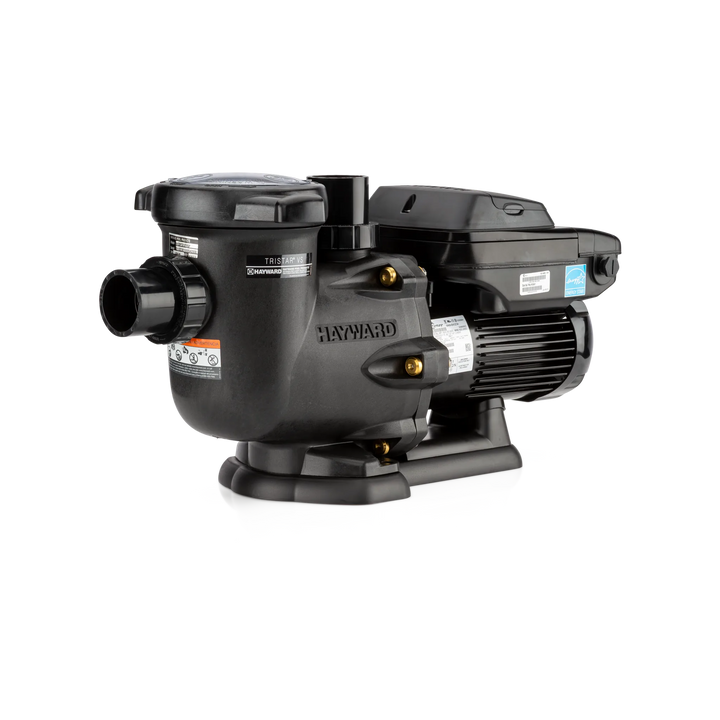

The Hayward TriStar VS Variable-Speed Pump (W3SP3206VSP) delivers programmable, energy-conscious circulation for in-ground pools, pairing a permanent-magnet motor with a fully digital control interface so you can dial in the right speed for filtration, heating, or cleaning cycles.
IMPORTANT: DUAL-VOLTAGE CONFIGURATION

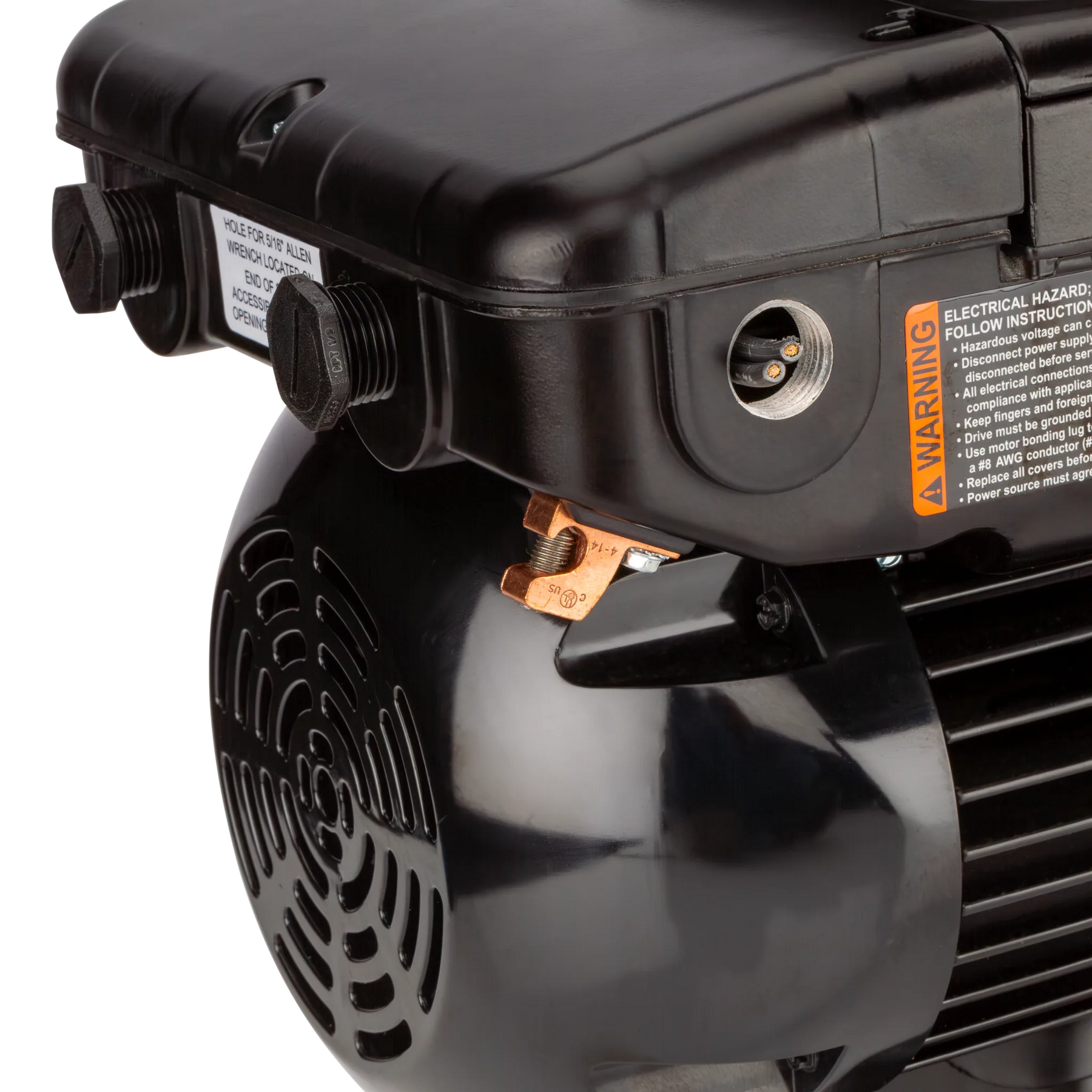

This pump is field-configurable for either 230V or 115V service (rated 230/115 at 60 Hz). Voltage selection and wiring must be completed by a qualified electrician in accordance with the nameplate rating.
Unique Features & Technology
-

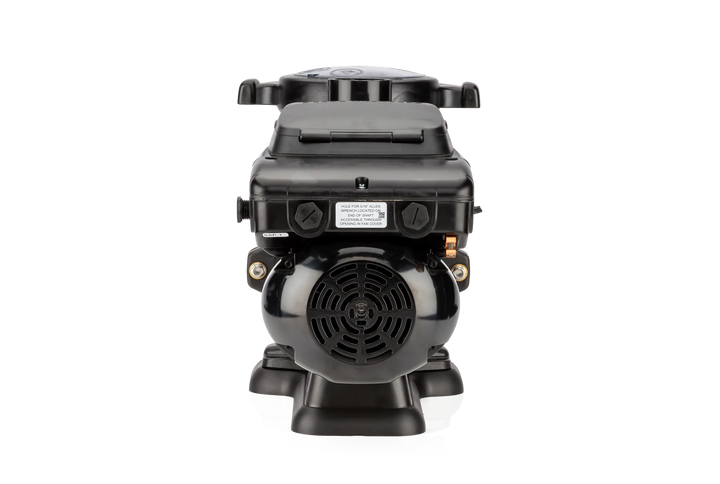

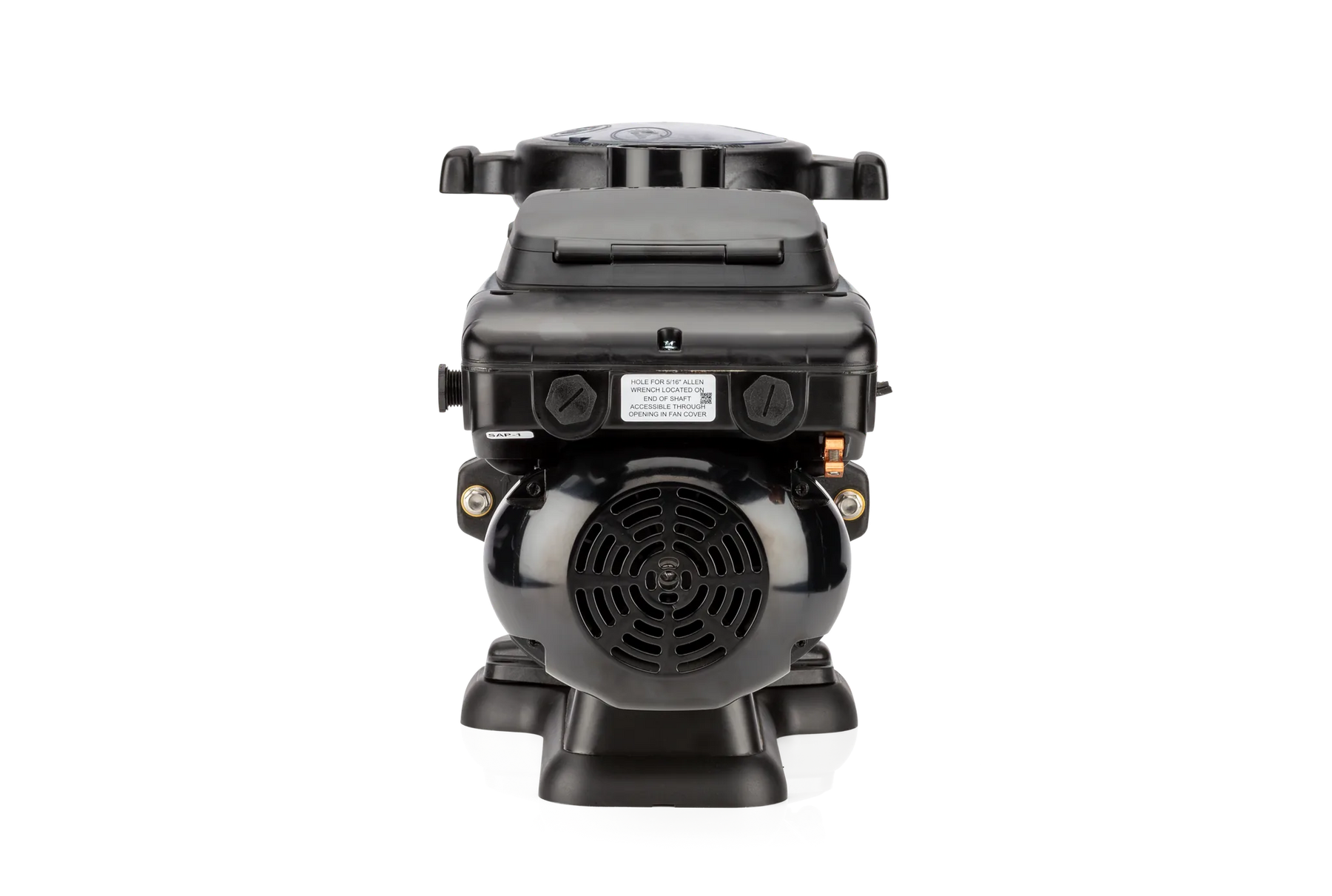

Permanent-magnet, TEFC motor — a totally enclosed, fan-cooled design built for efficient, reliable operation.
-

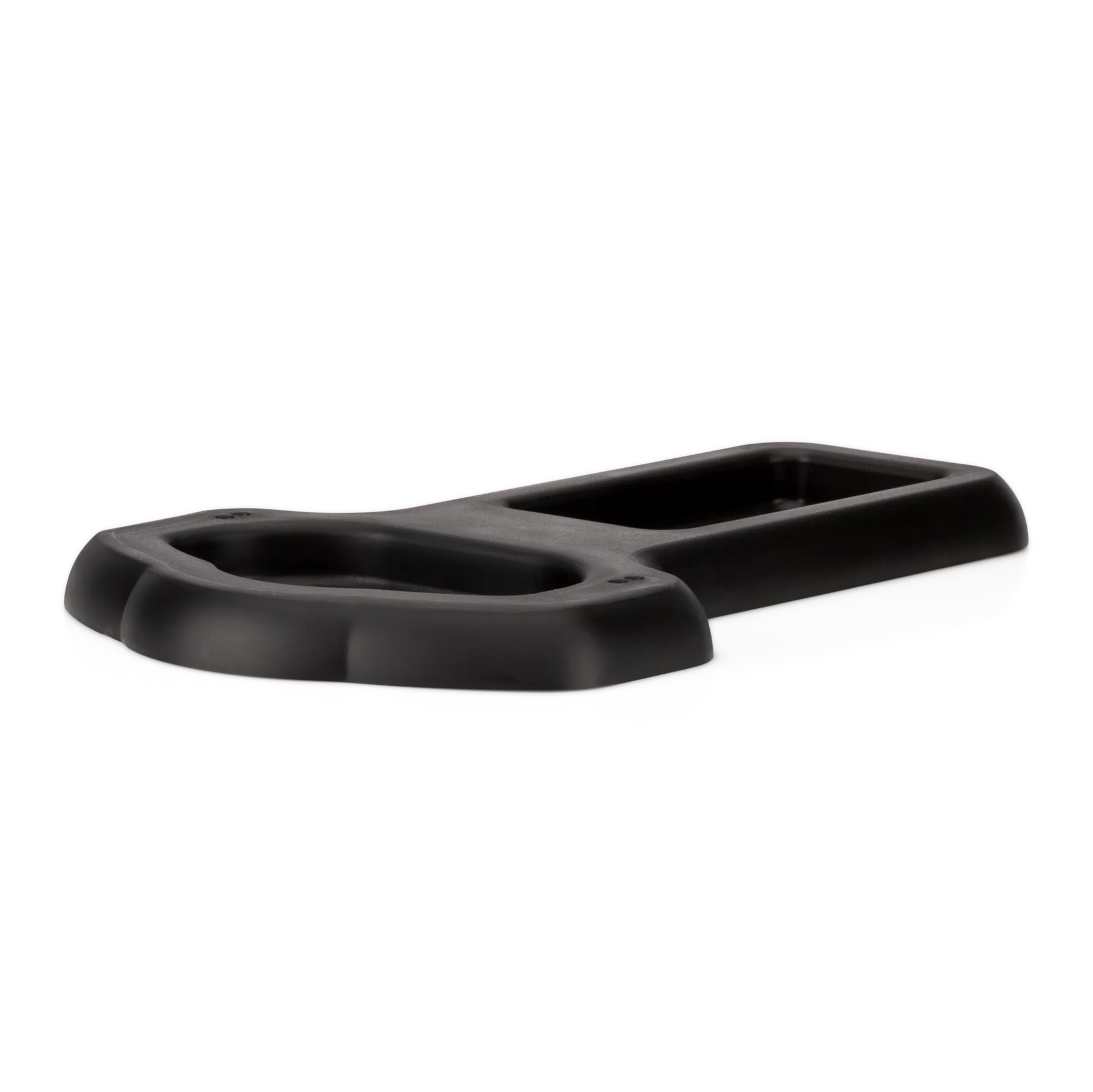

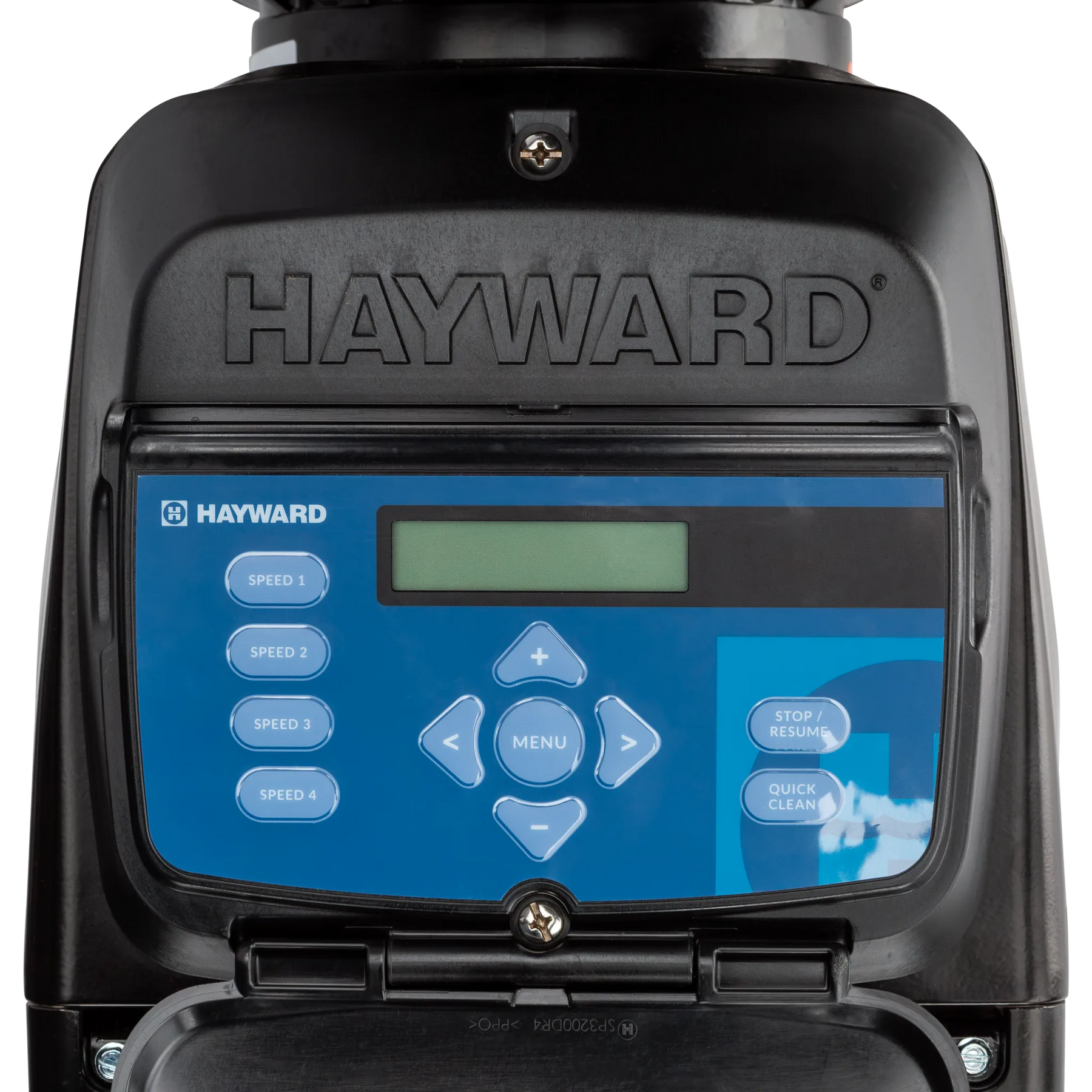

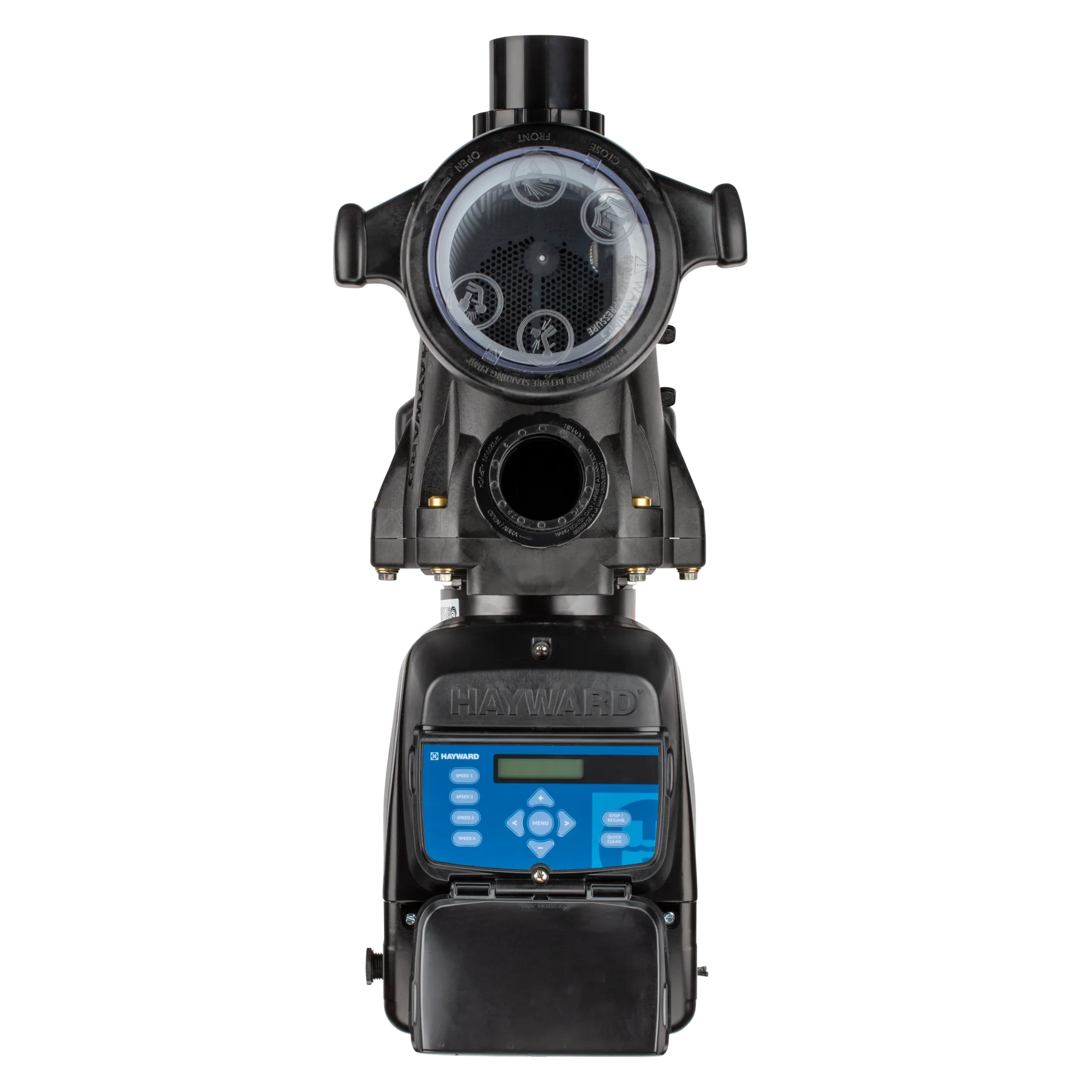

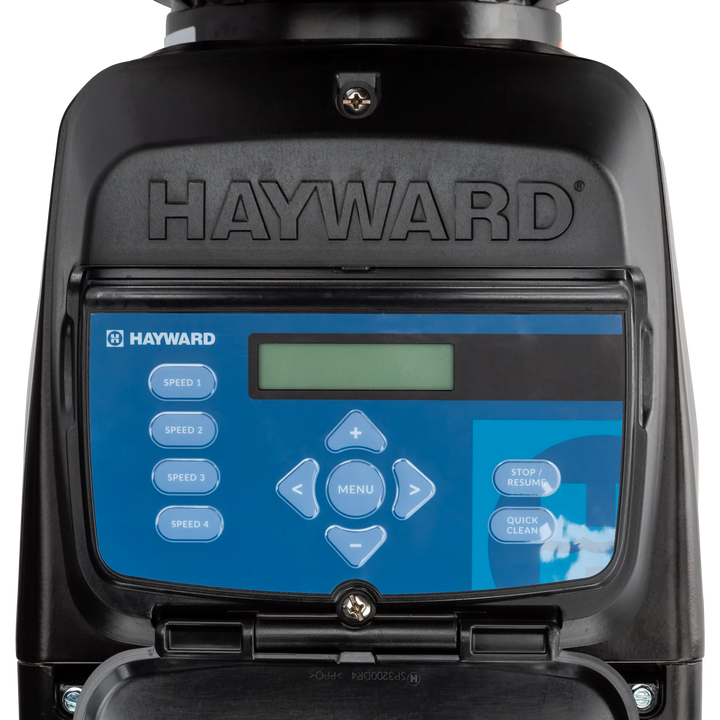

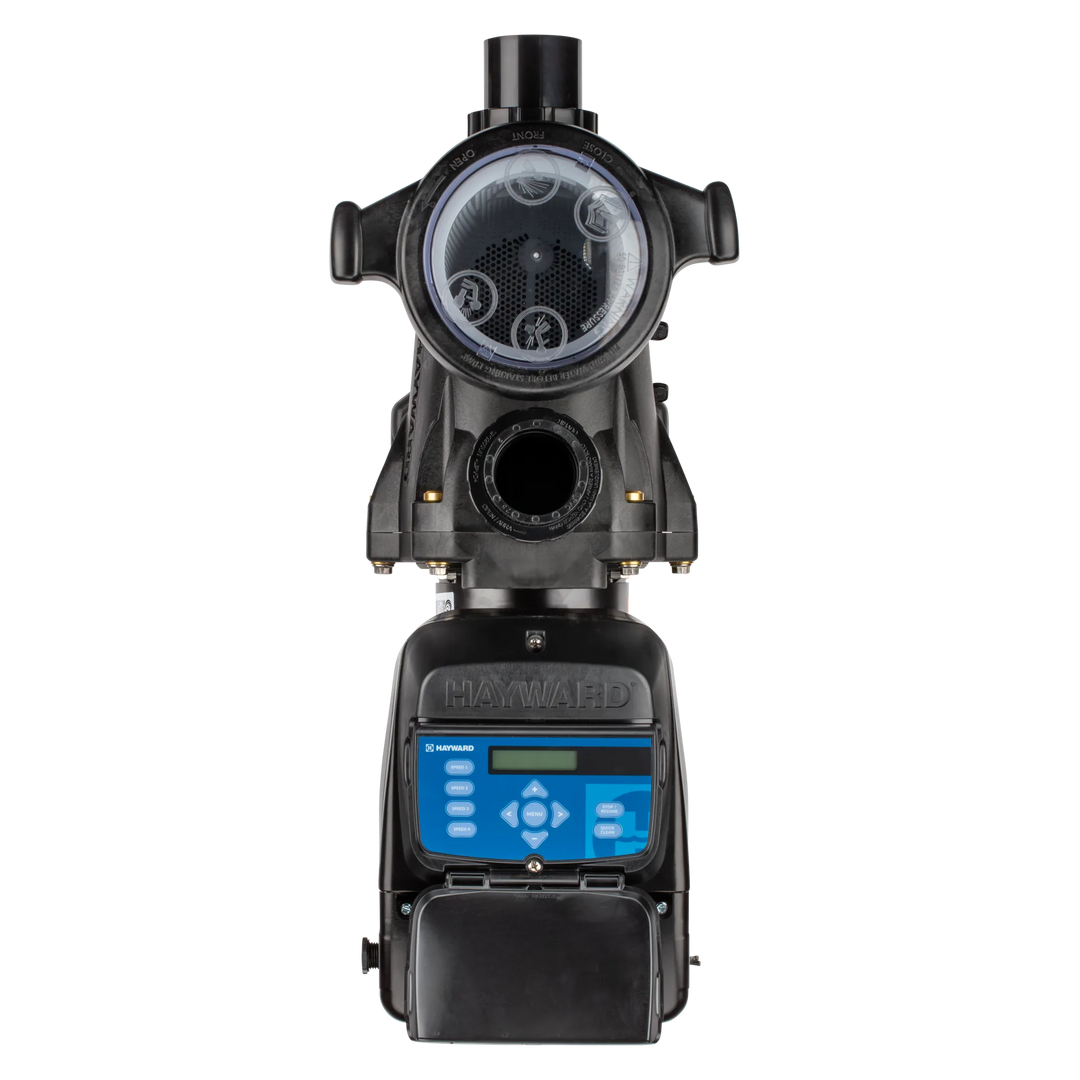

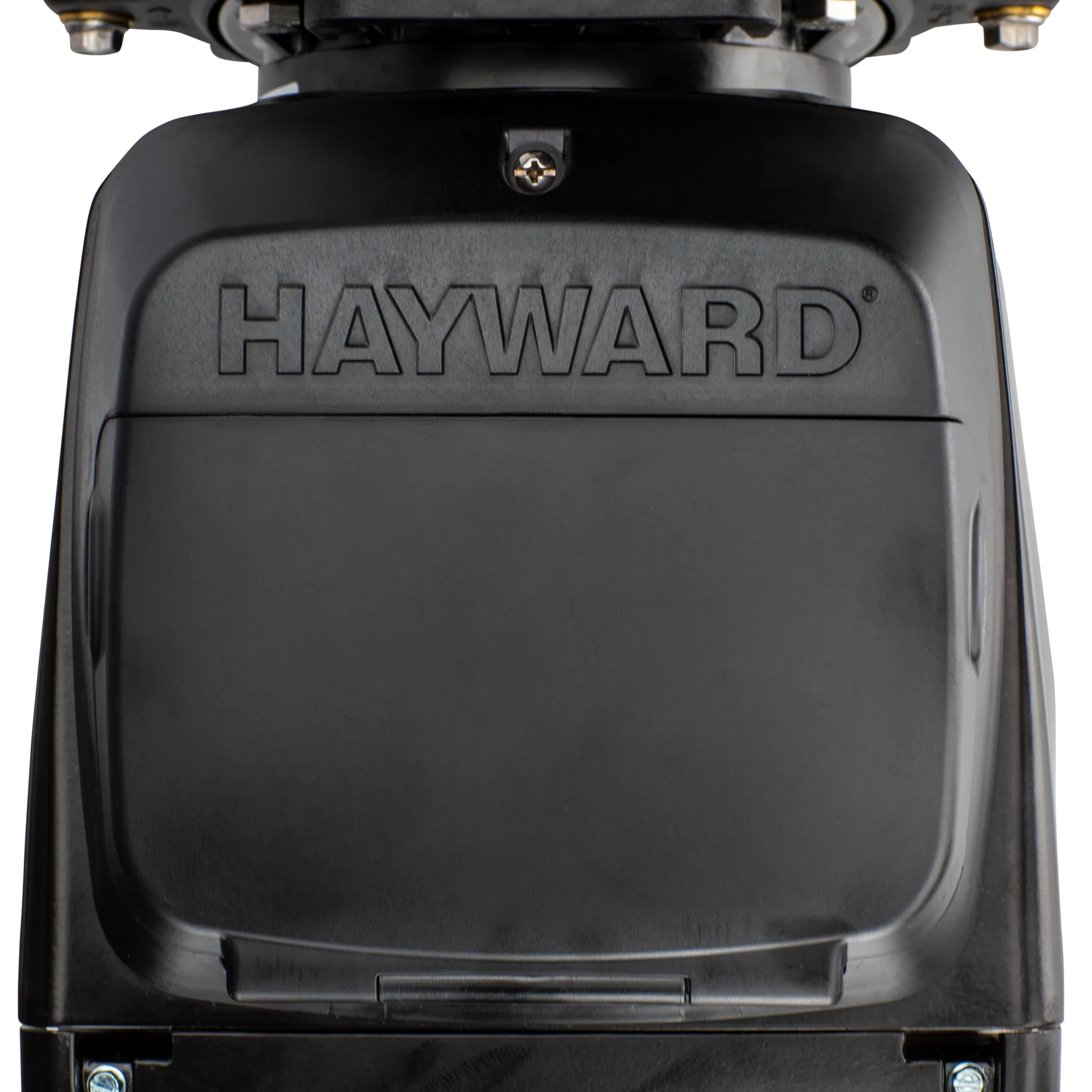

Fully programmable digital control interface — displays day/time, current RPM (or % of full speed), and live power draw in watts, with multi-language support. The interface rotates to four positions on the pump, or can be relocated to a wall-mount location for easier access.
-
Onboard scheduling — a self-contained 24-hour clock supports up to 8 custom speed/timer functions, each with its own speed, start/stop time, and day settings.
-
Automation-ready — works directly with Hayward OmniLogic, ProLogic, ECommand 4, OnCommand, OmniHub, S3 Omni, and OmniPL automation with no extra accessories; can also be operated independently or integrated with third-party controls via relay contacts.
-

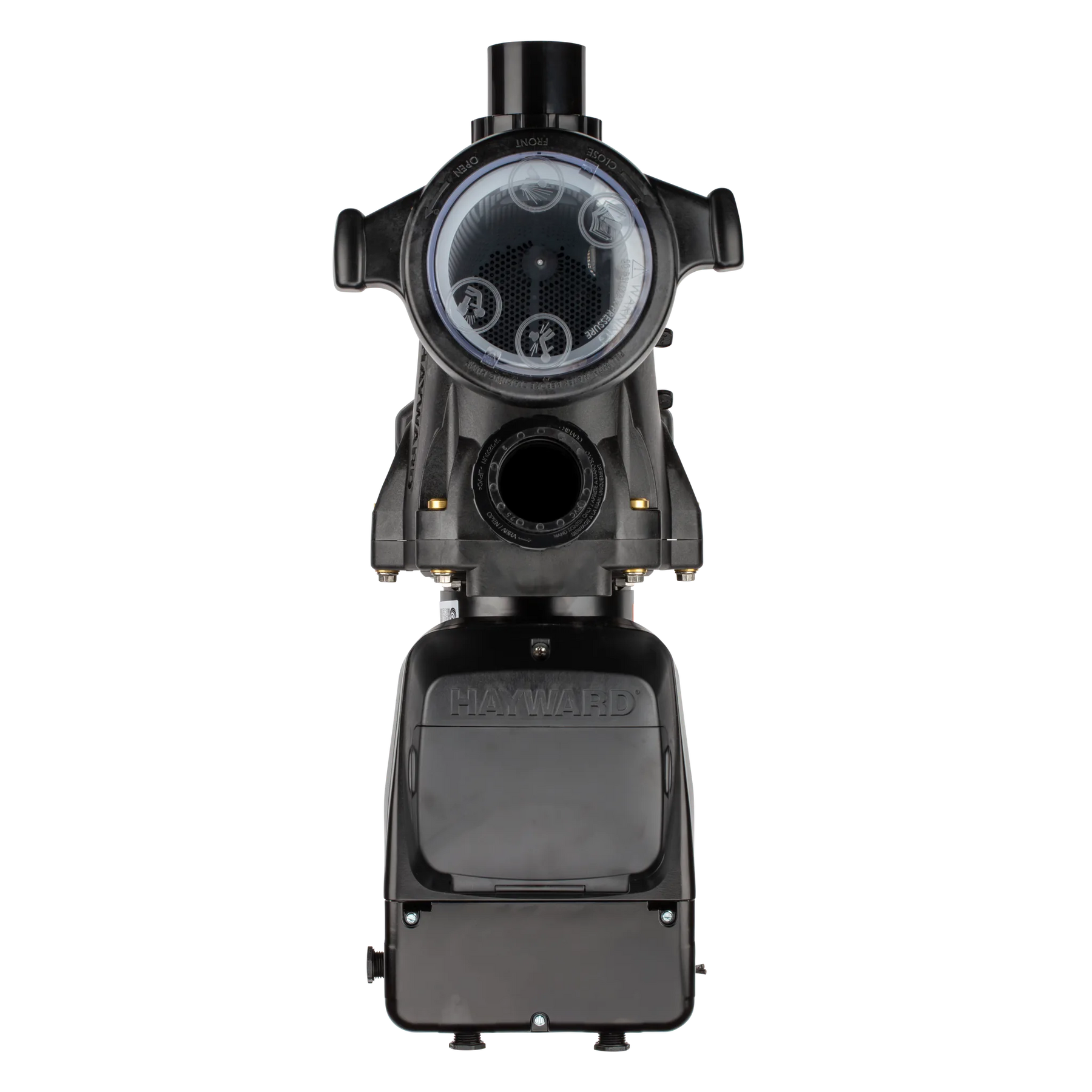

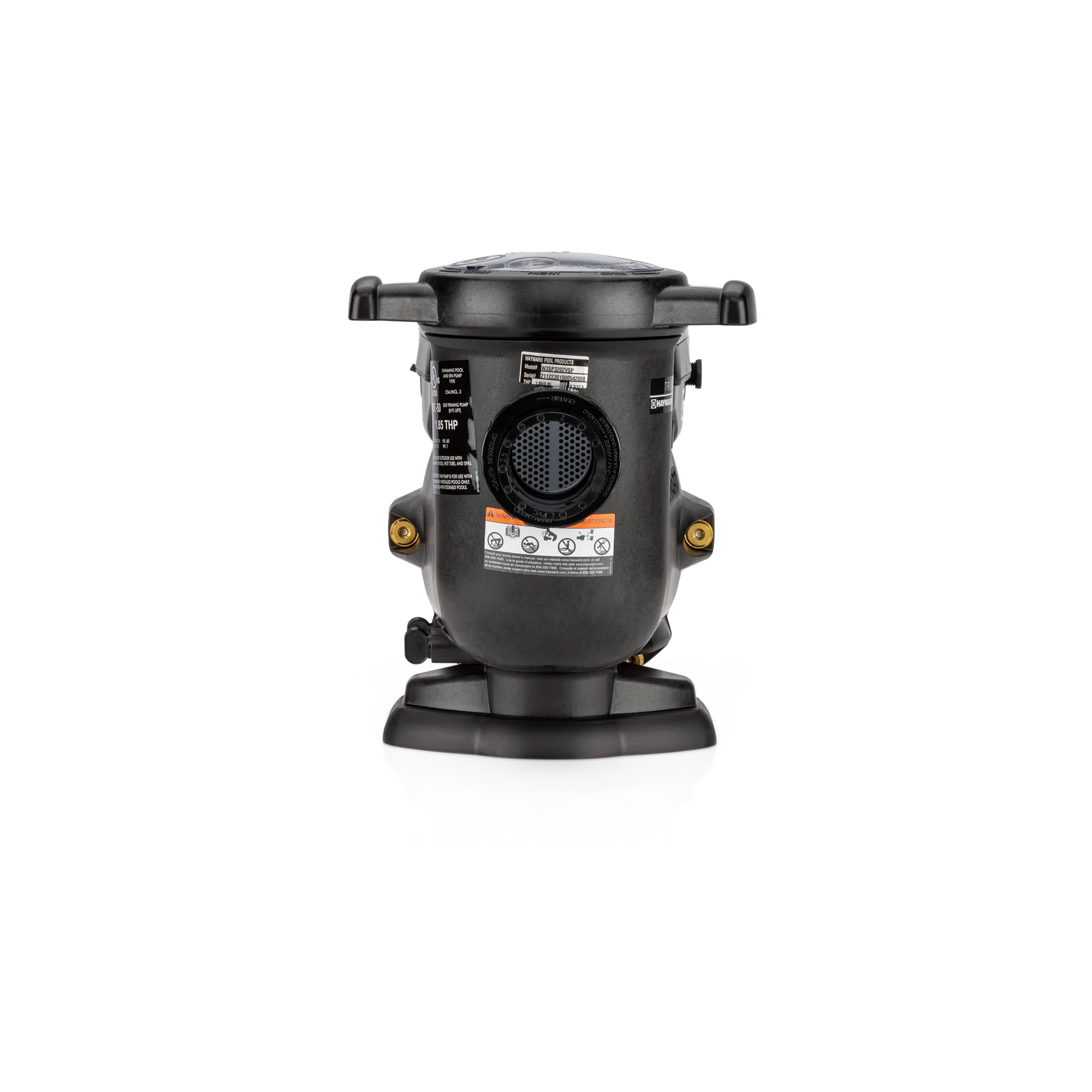

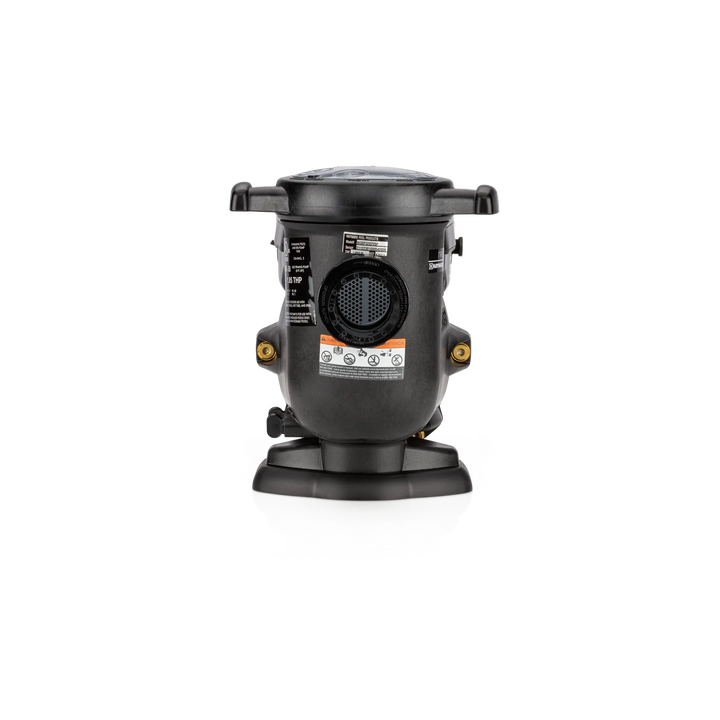

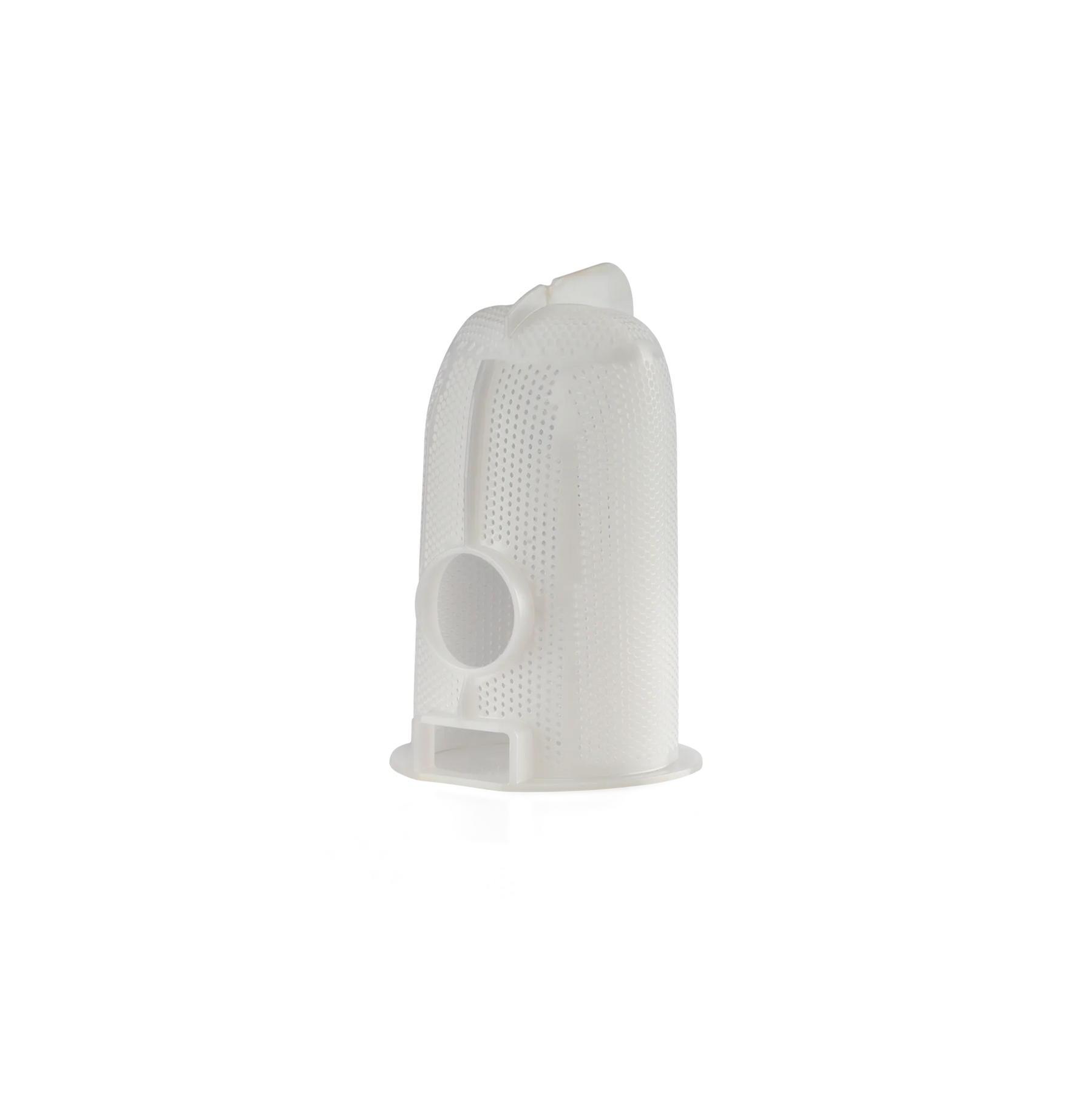

Extra-large, no-rib strainer basket — designed for easier debris removal and longer intervals between cleanings.
- DOE-compliant and rated with a WEF (Weighted Energy Factor) of 7.3 / 10.1.
Specifications
| Hayward Model |
W3SP3206VSP |
| Total HP |
2.7 HP |
| Motor Type |
TEFC (Totally Enclosed Fan Cooled) |
| Number of Speeds |
Variable Speed |
| Voltage (60 Hz) |
230/115 |
| Phase |
Single Phase |
| WEF |
7.3 / 10.1 |
| DOE Compliant |
Yes |
| Pool Type |
In Ground |
| Warranty - Parts |
1-year |
Pool Size & Application
Hayward positions the TriStar VS line for medium to large in-ground pools, giving owners the flexibility to run lower speeds for everyday circulation and step up to higher speeds for tasks like vacuuming or heating.
System Integration

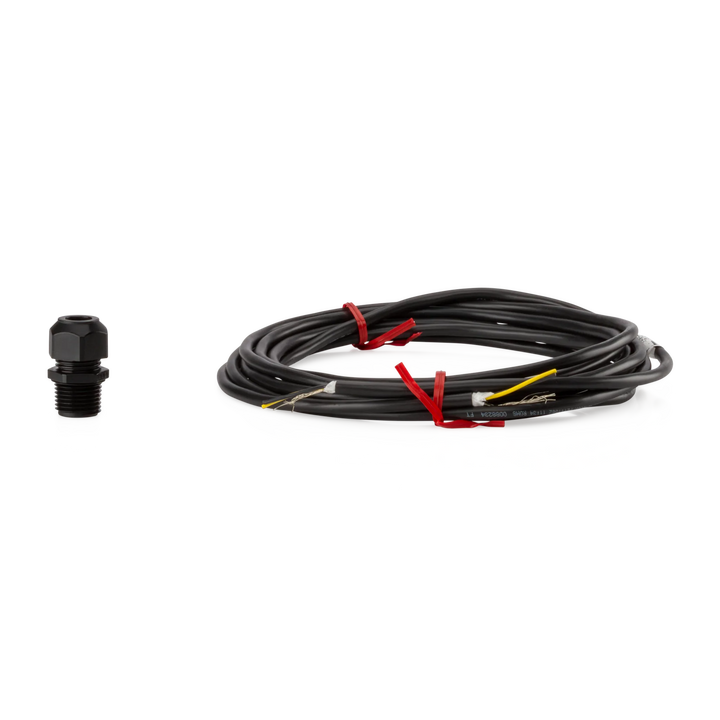

The TriStar VS Pump operates independently, integrates natively with Hayward automation systems (OmniLogic, ProLogic, ECommand 4, OnCommand, OmniHub, S3 Omni, OmniPL) without additional accessories, and can be controlled by third-party automation through relay contacts. The digital control interface can be rotated on the pump or relocated to a wall-mount position for more convenient access.
Common Replacement Parts

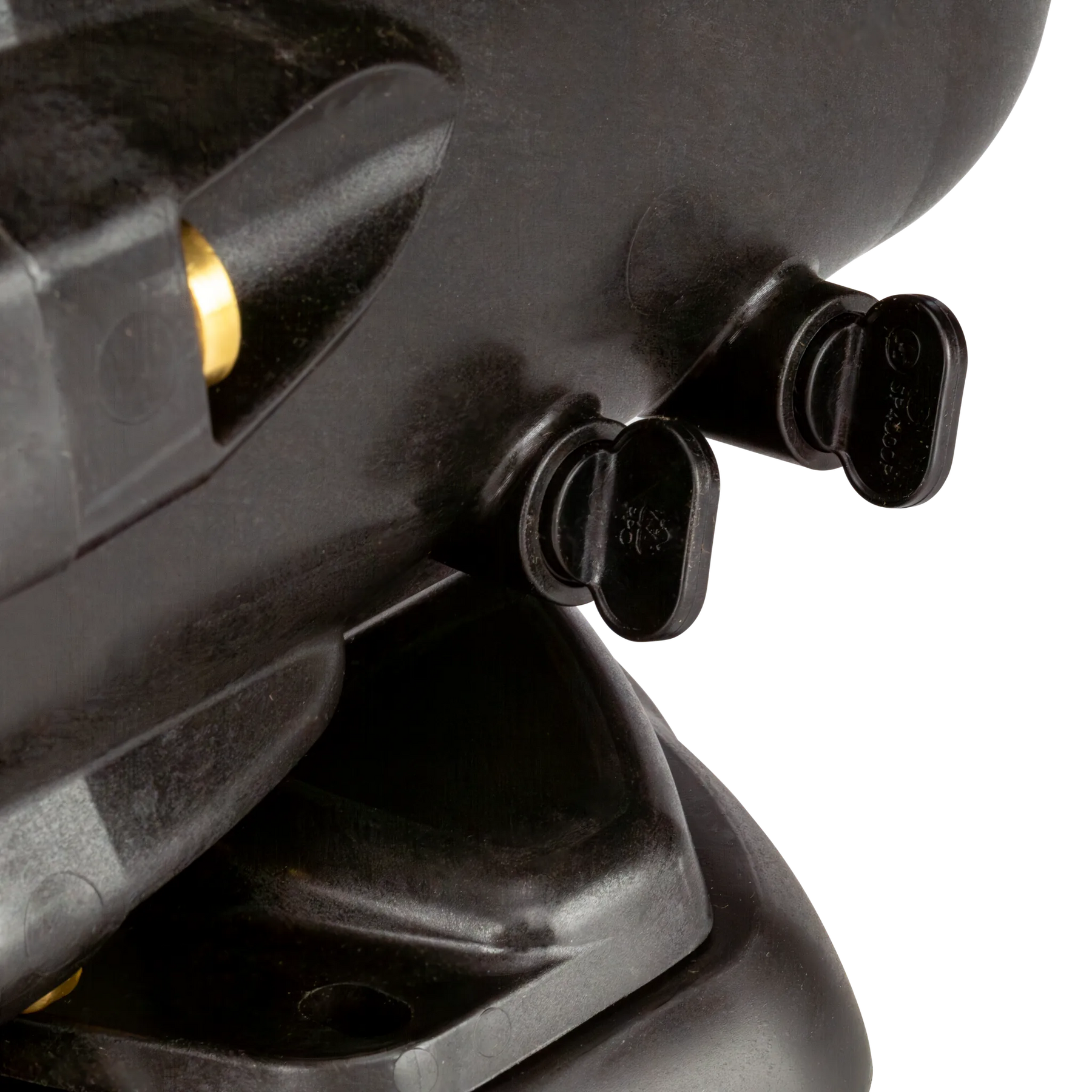

Keep this pump running with genuine Hayward wear parts: Strainer Basket (SPX3200M), Strainer Cover Kit (SPX3200DLS), Housing O-Ring (SPX3200T), Drain Plug & Gasket (SPX4000FG) — note that two units of this drain plug & gasket set are needed per pump — and the Viton Shaft Seal Assembly (SPX4000SAV) for pools using chemically aggressive sanitizers.
Poolaroo Pro Tip
Use the onboard timers to your advantage: set a lower circulation speed (the factory default Timer 1 runs at 1725 RPM) for normal daily filtration, and reserve a higher preset speed for solar heating or suction-side vacuuming sessions. Check and clean the extra-large strainer basket regularly, and remove both drain plugs (two SPX4000FG sets) to fully gravity-drain the pump before winterizing — never leave water sitting in the housing during a freeze.
