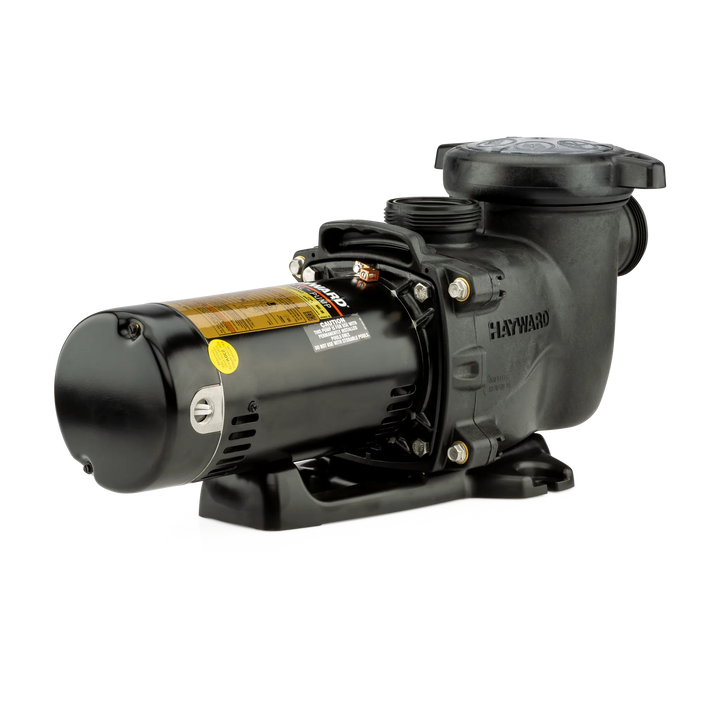

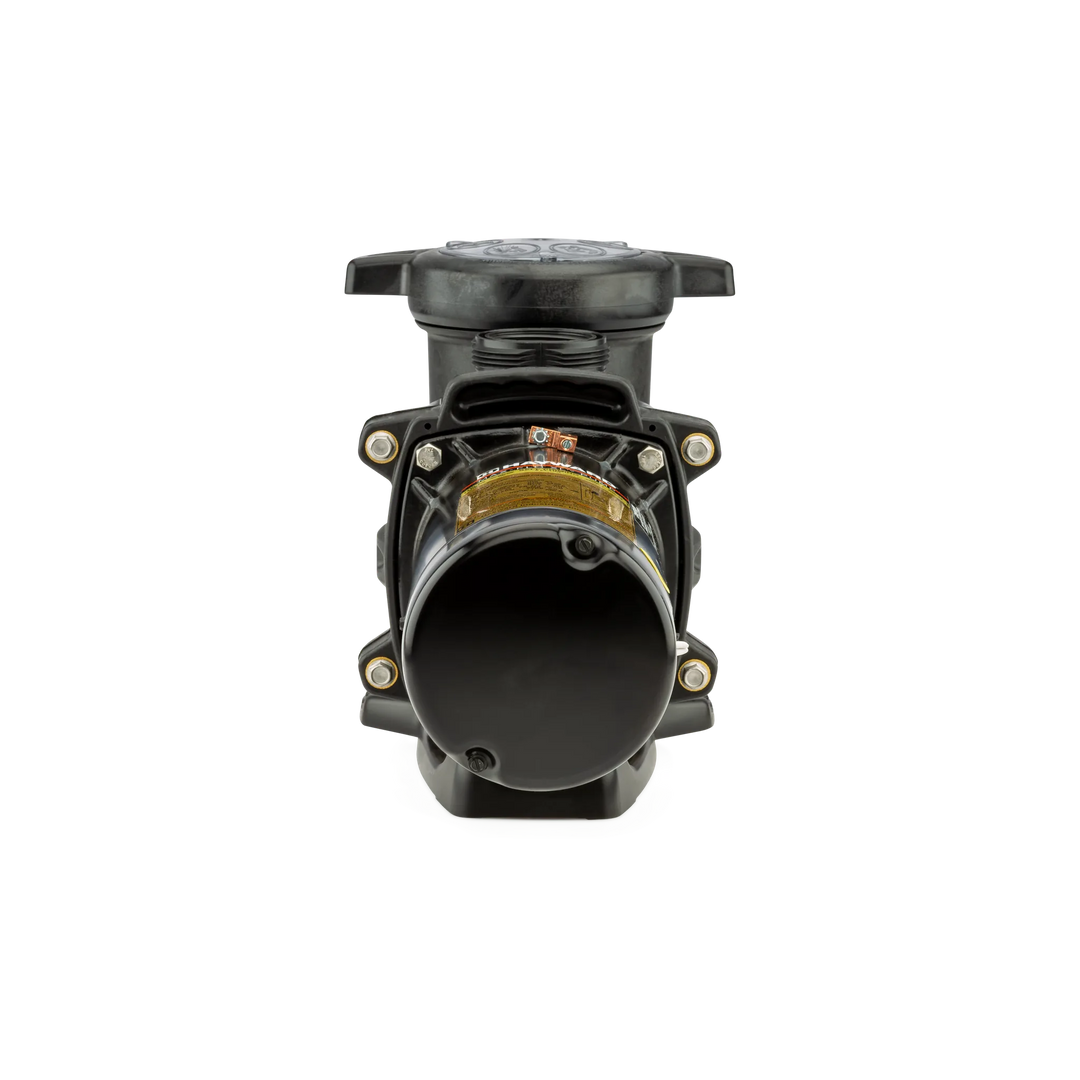

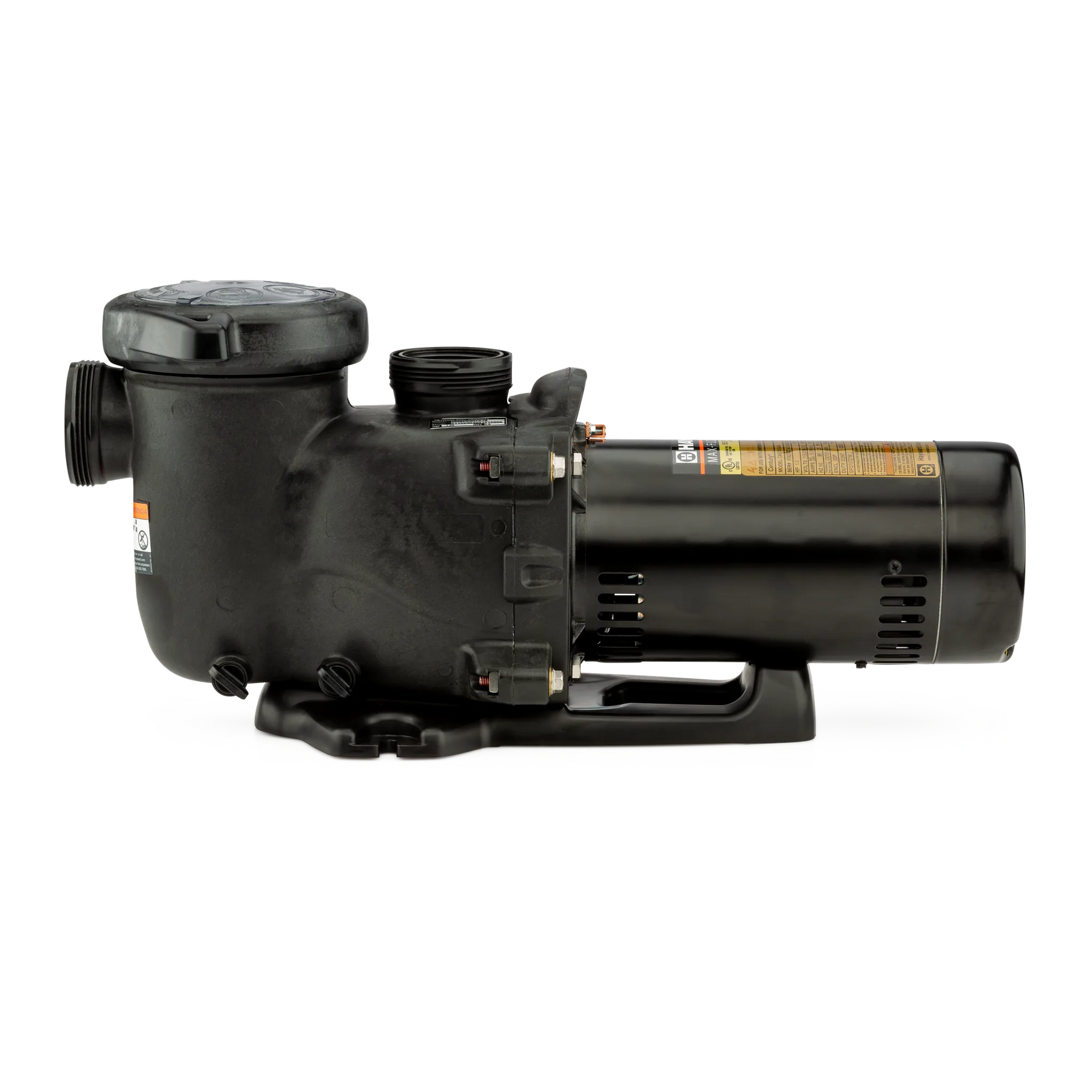

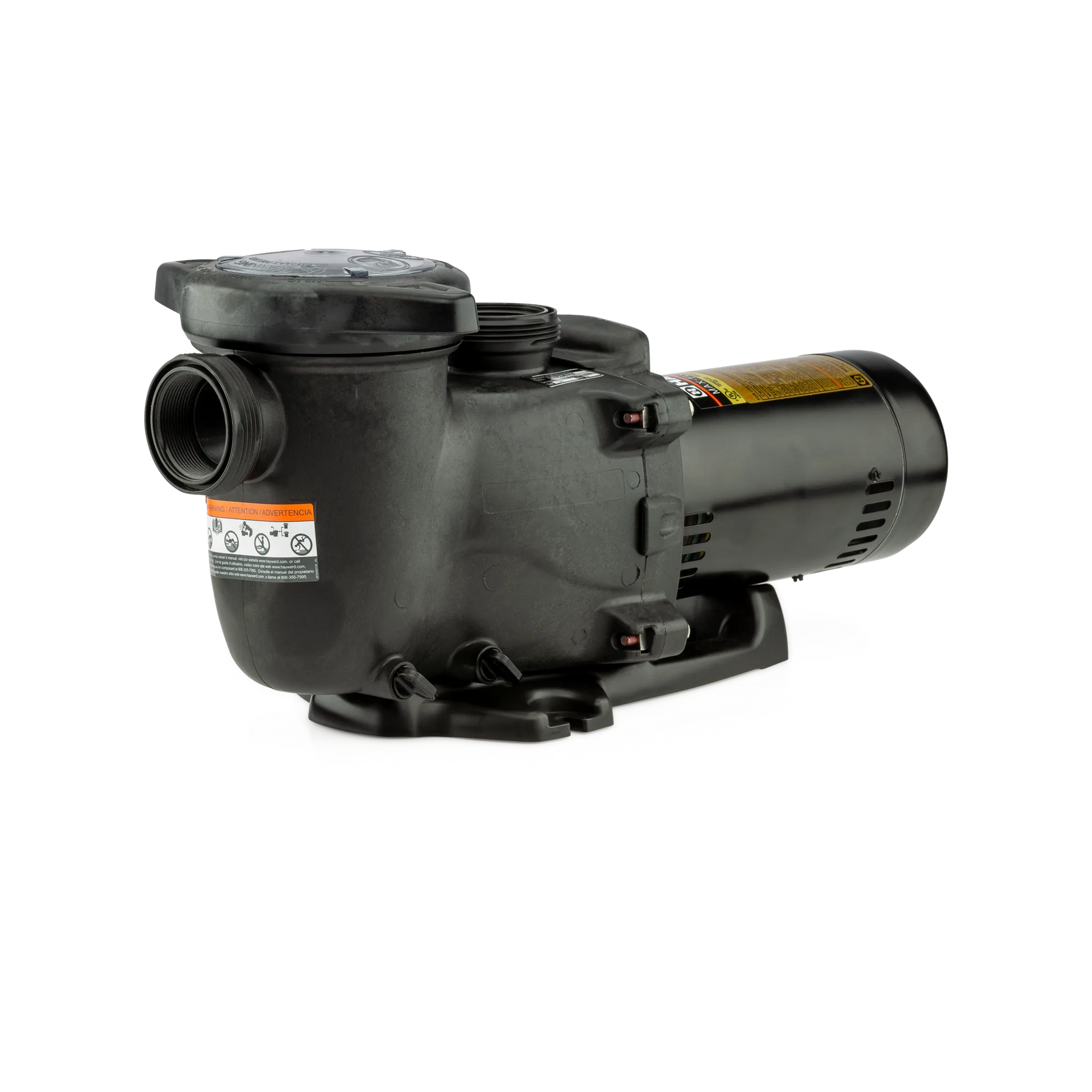

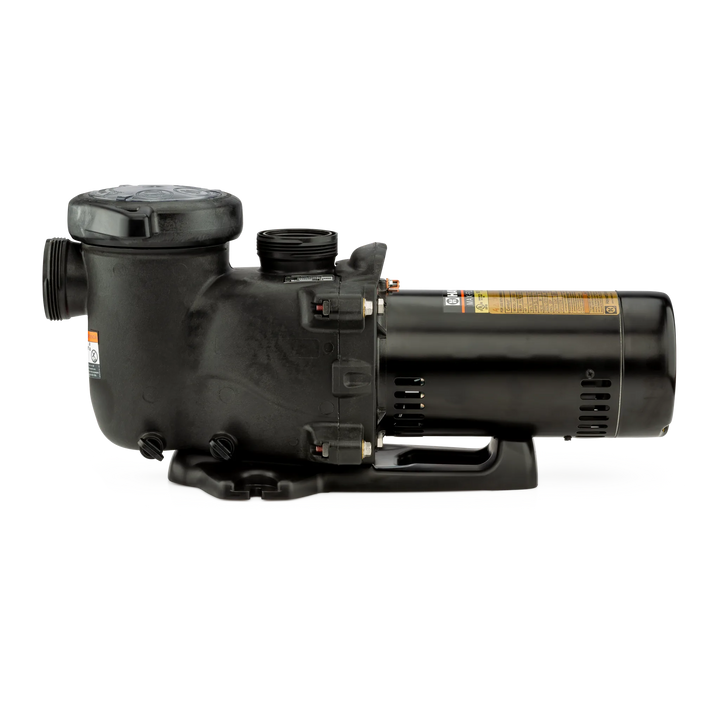

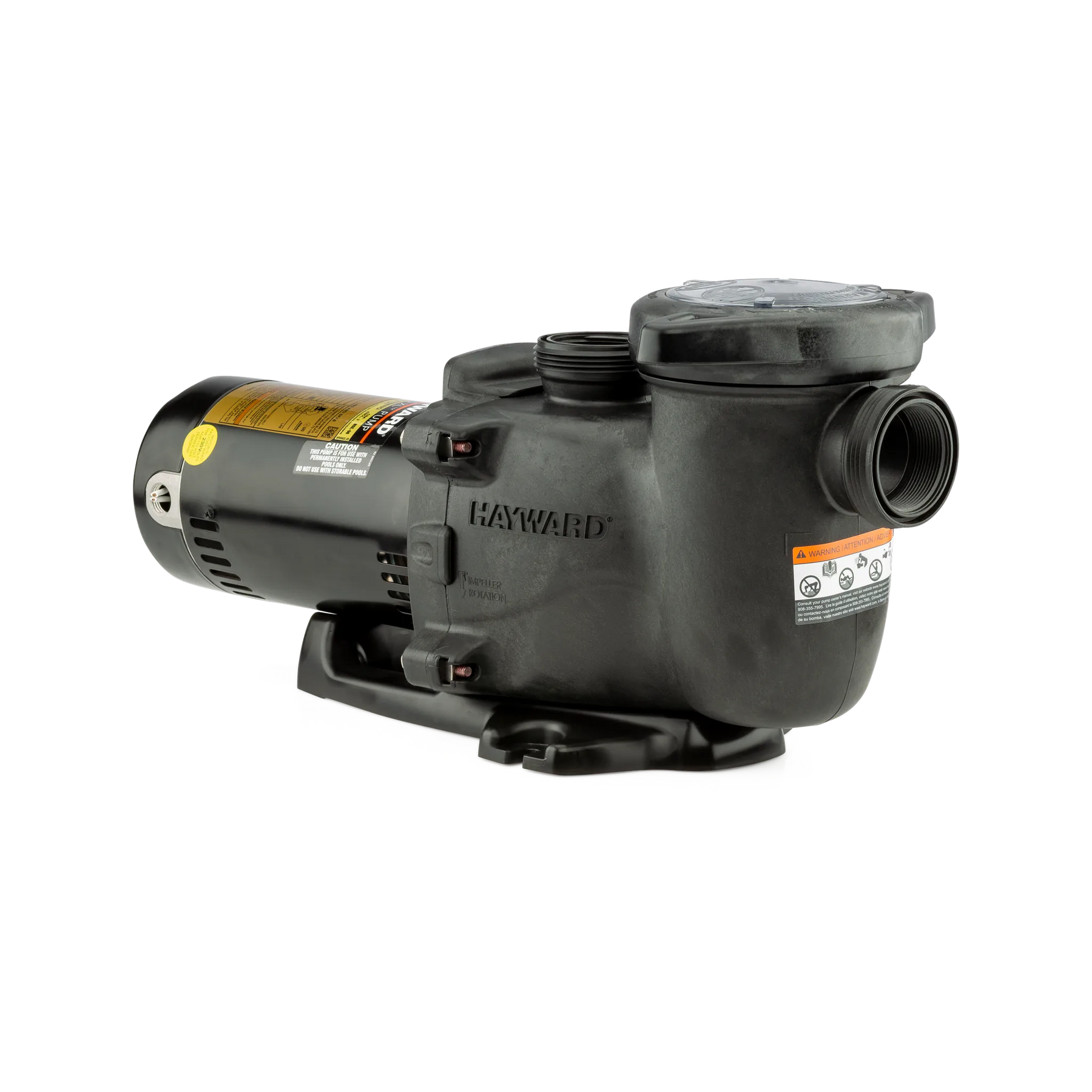

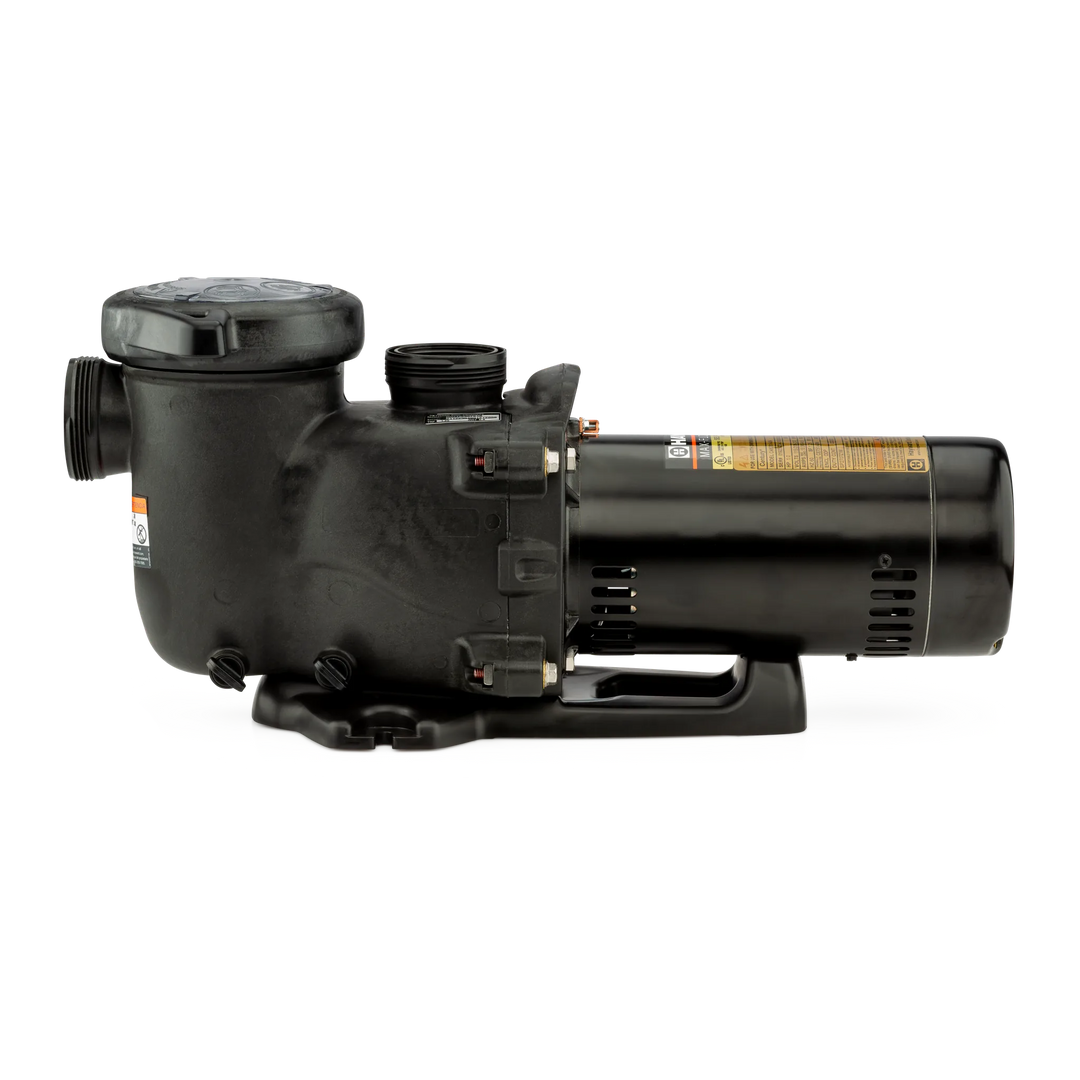

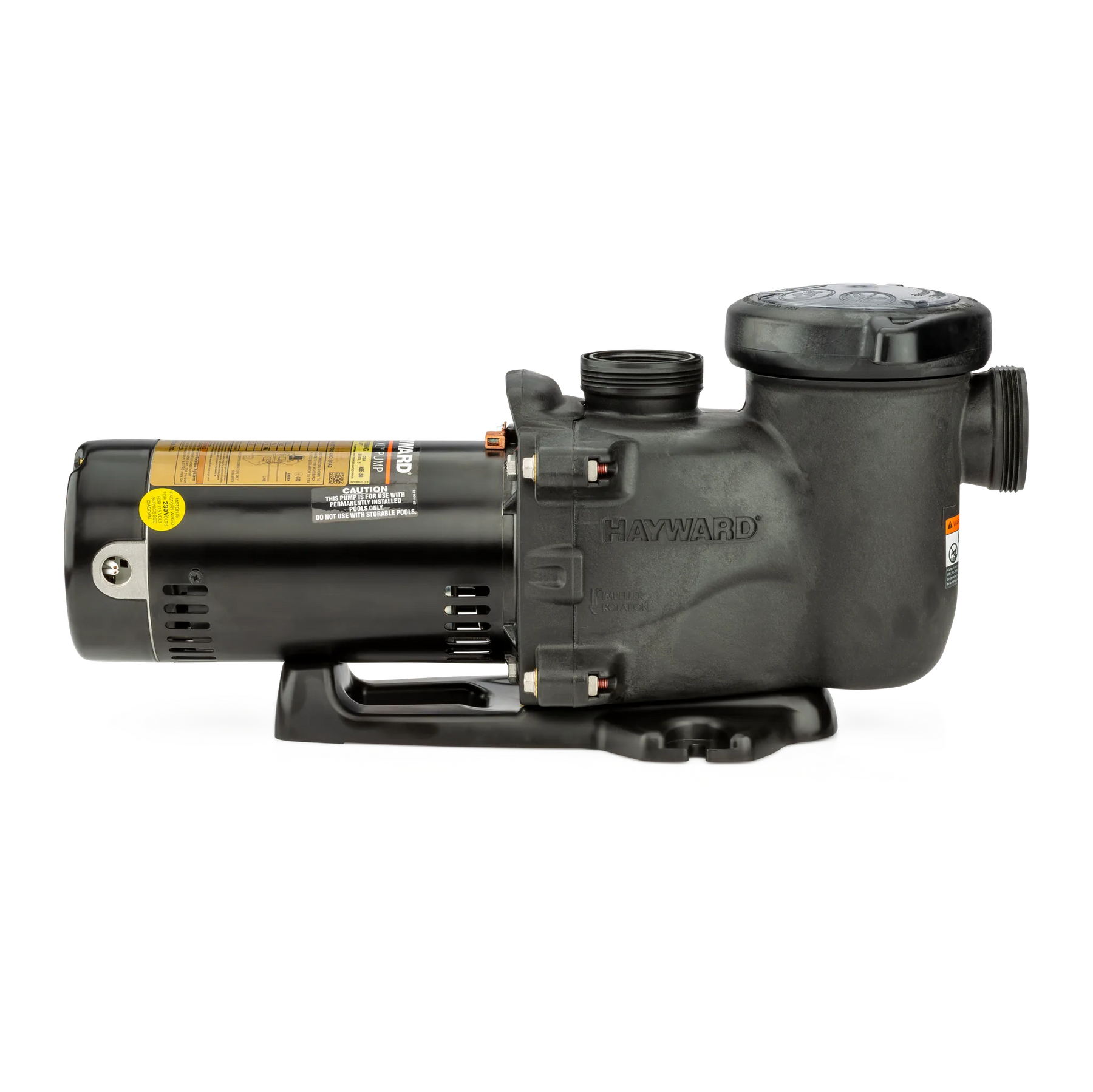

The Hayward MaxFlo XL Single-Speed Pump (W3SP2307X10) delivers dependable, DOE-compliant circulation for in-ground pools, built on a high-efficiency hydraulic design and a heavy-duty motor engineered to run reliably season after season.
IMPORTANT: DUAL-VOLTAGE, FIELD-CONFIGURABLE
This pump ships from the factory set to 230V and is field-configurable to 115V by a qualified installer, giving flexibility to match your existing electrical service.
Unique Features & Technology
-
Advanced hydraulic design supports increased energy efficiency and improved priming ability.
-
DOE-compliant performance, backed by a WEF (Weighted Energy Factor) rating of 3.8.
-
Heavy-duty ODP motor built for consistent, long-term operation.
-
Easy motor access simplifies routine servicing.
-

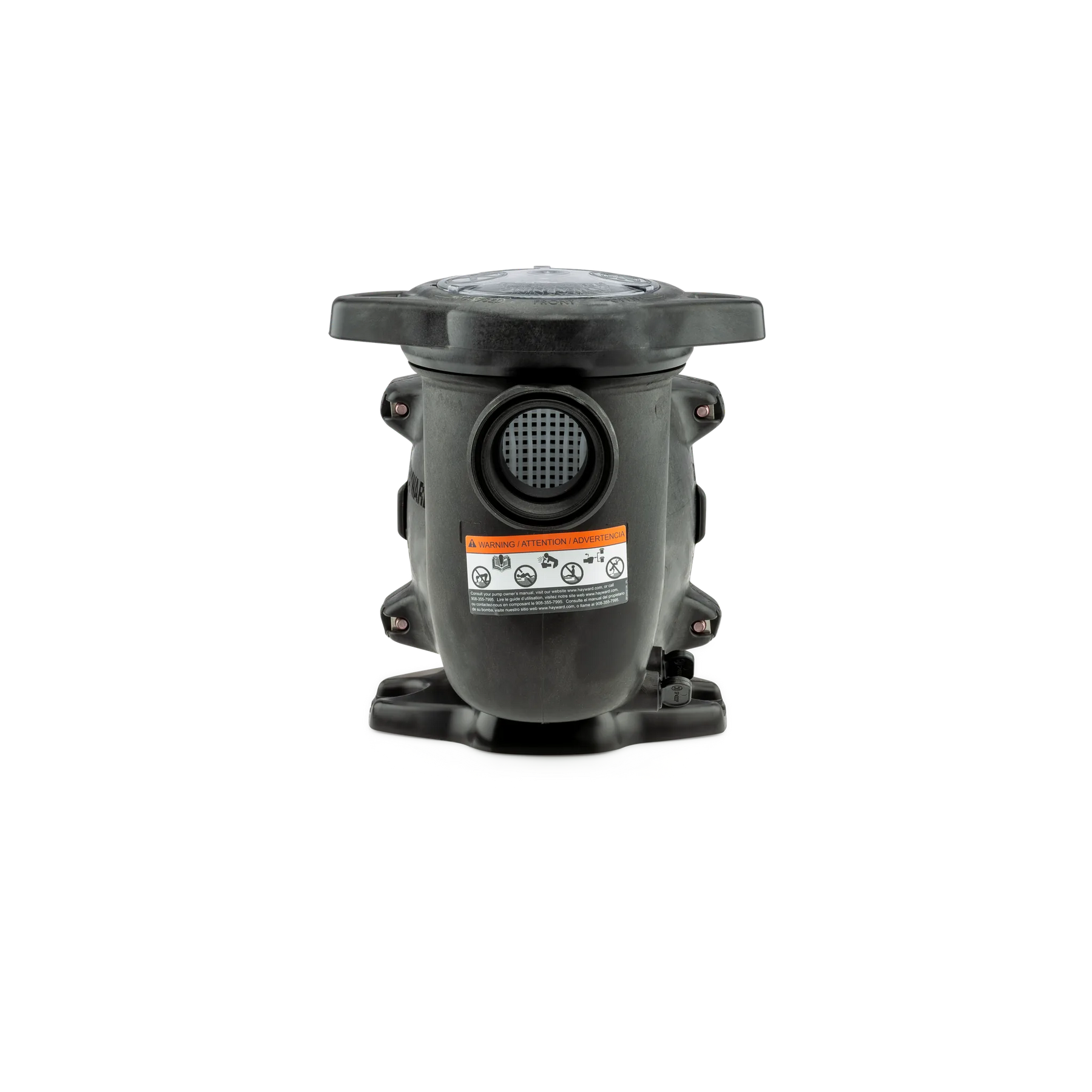

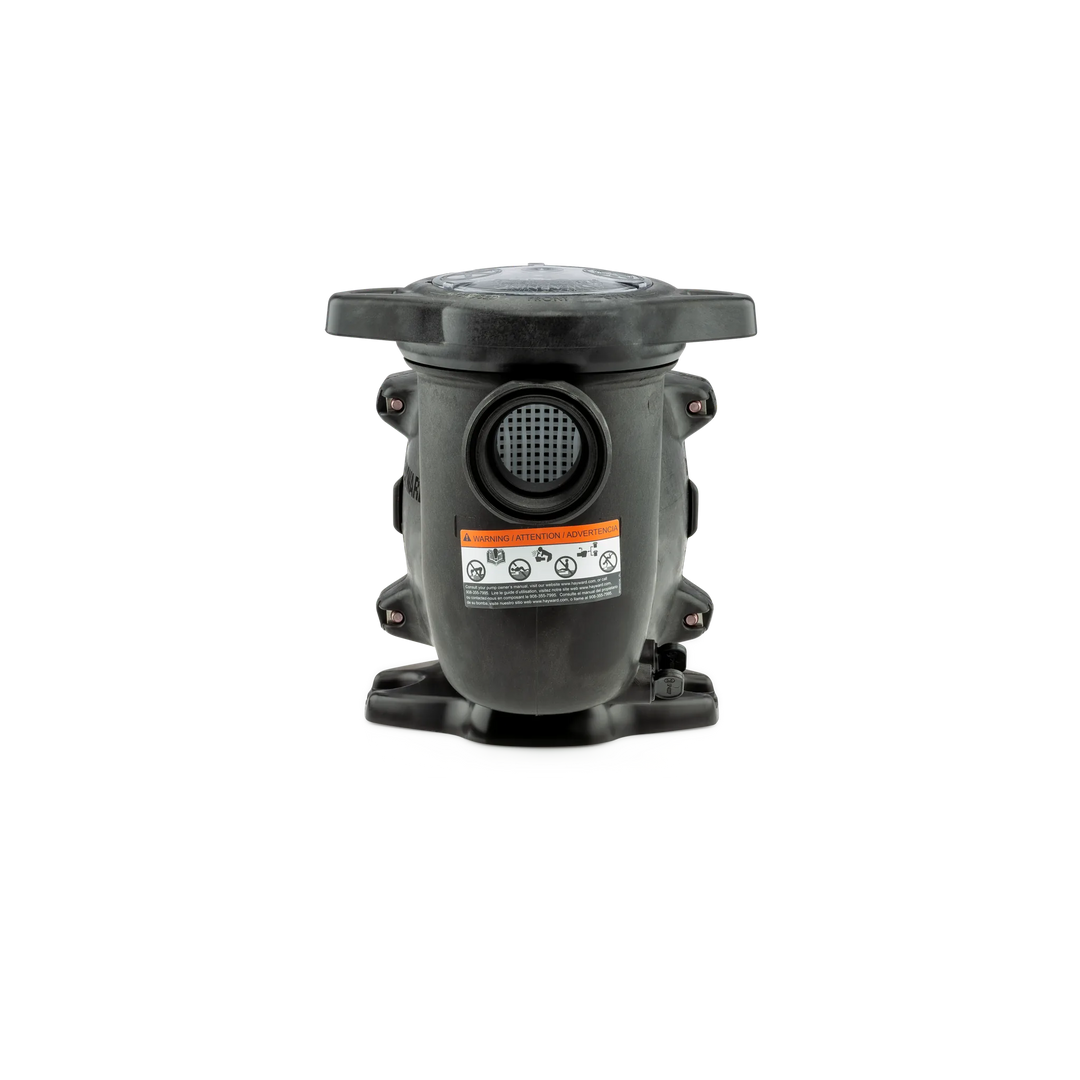

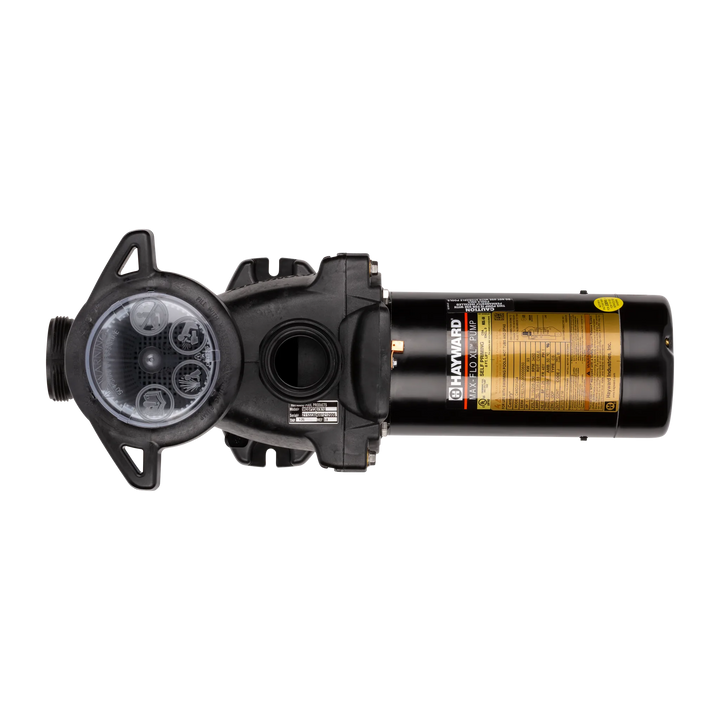

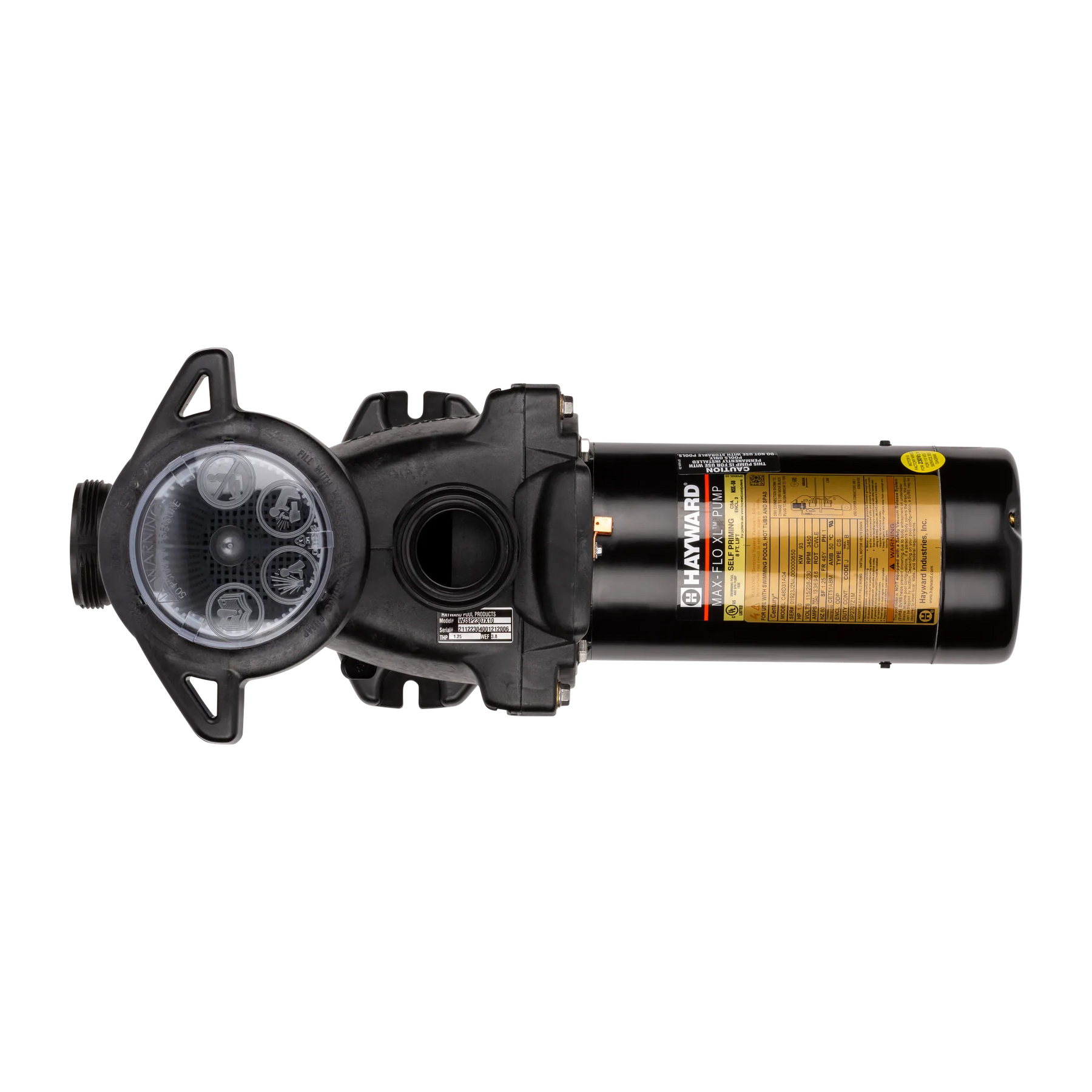

Quarter-turn, see-through strainer cover seals in less than a ¼ turn and lets you visually check when the strainer basket needs cleaning.
-

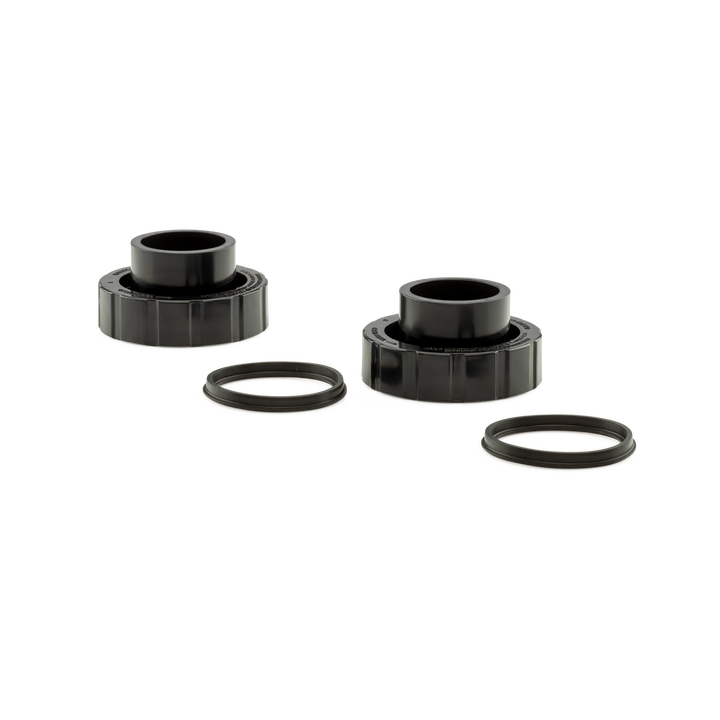

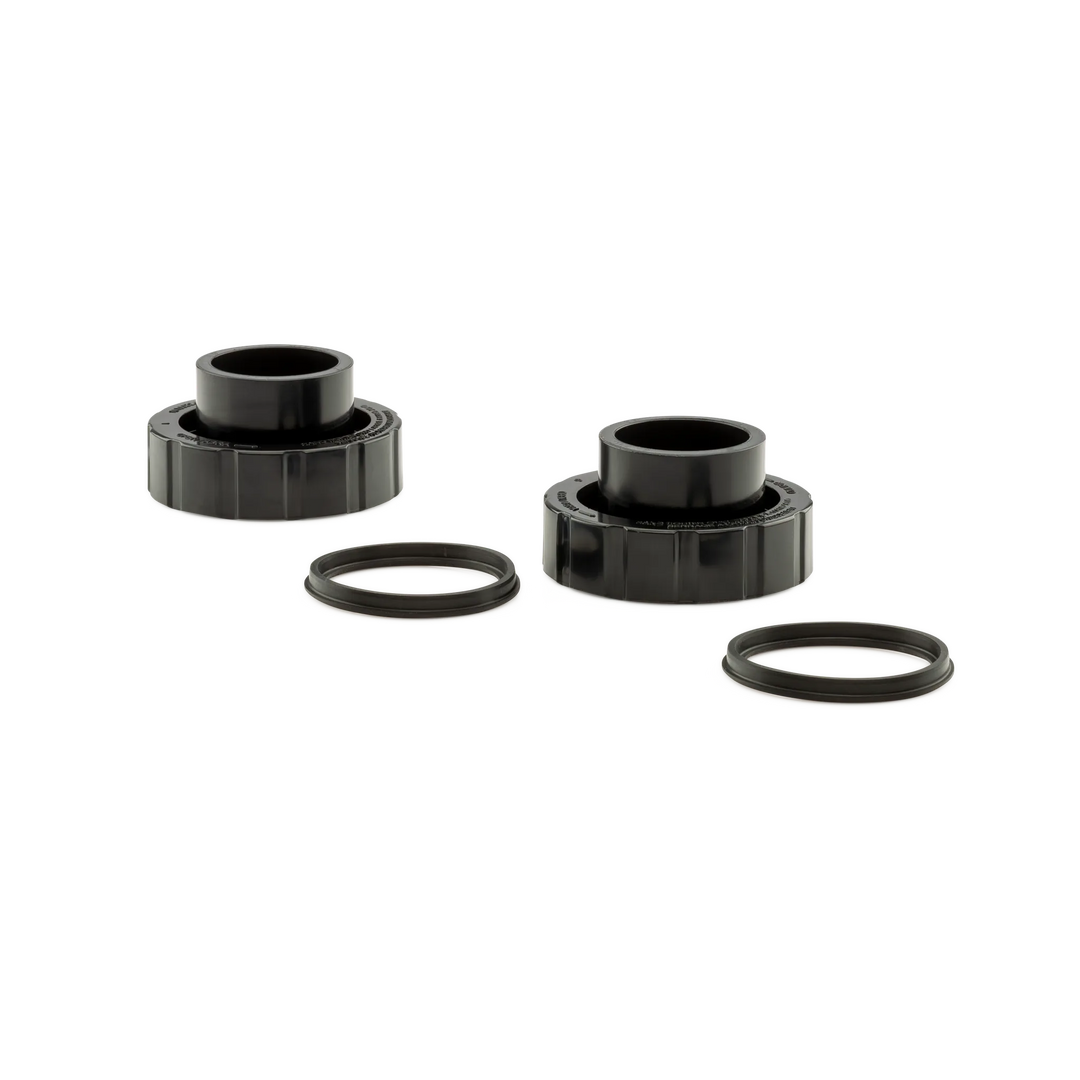

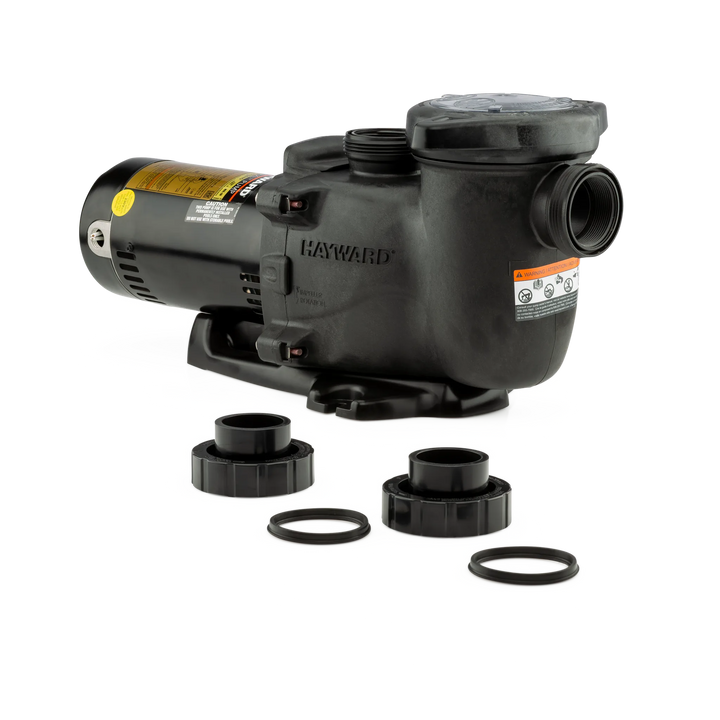

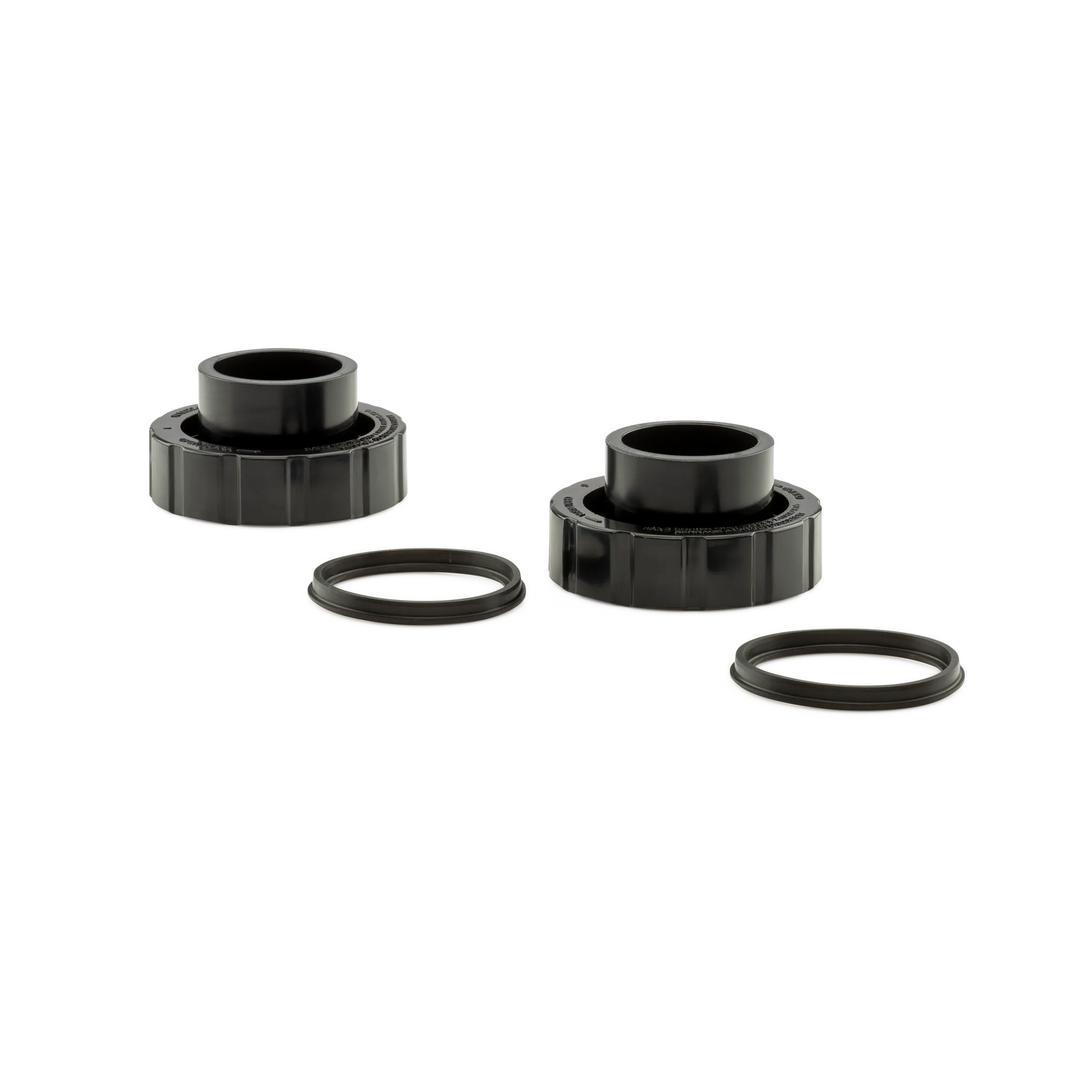

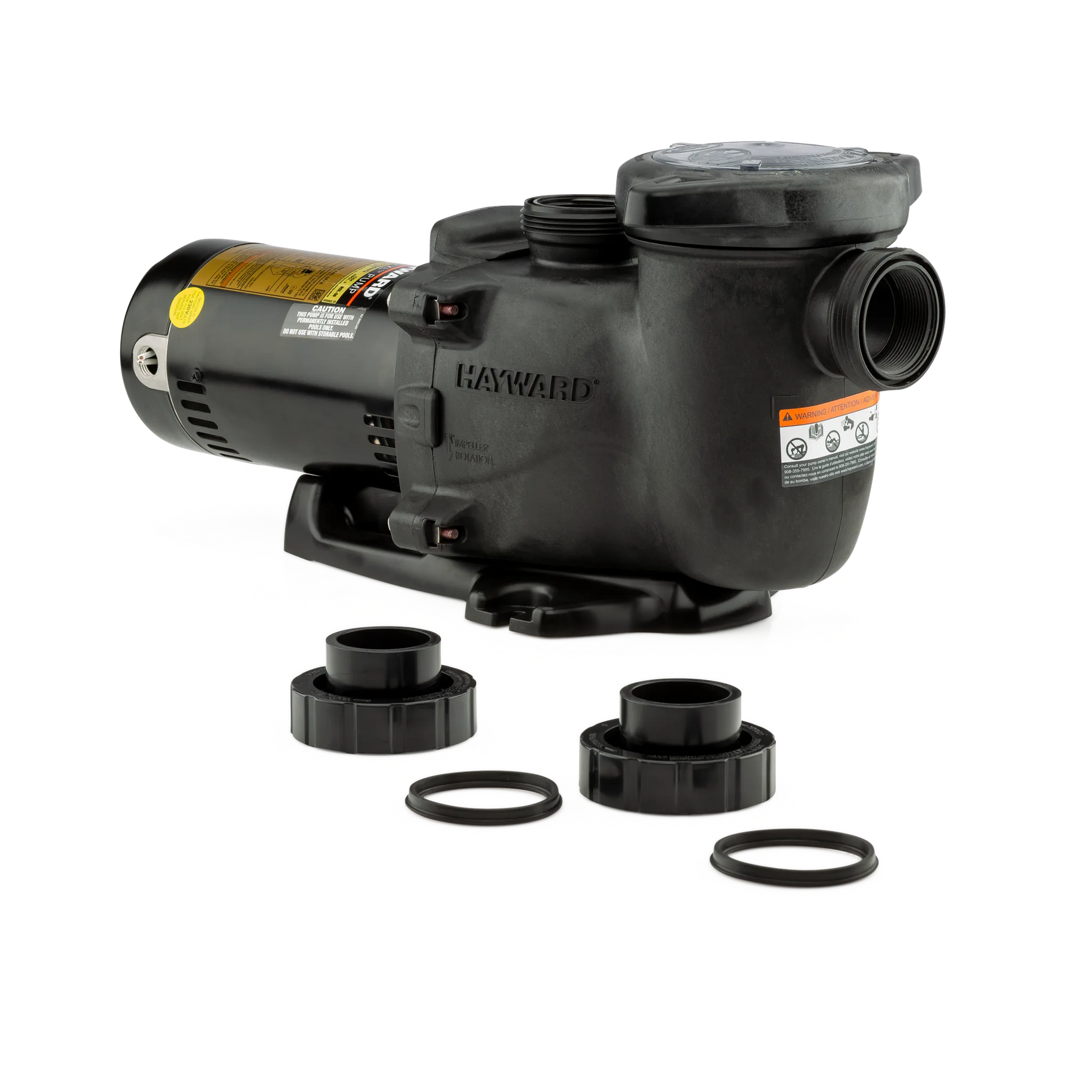

1-1/2" x 2" union connections included on all models for straightforward plumbing hookup.
- Physically aligns with the broader MaxFlo pump family, supporting retrofit installations.
Specifications
| Hayward Model |
W3SP2307X10 |
| Total HP |
1.25 HP |
| Motor Type |
ODP |
| Number of Speeds |
Single Speed |
| Voltage at 60 Hz |
115/208-230 |
| WEF |
3.8 |
| DOE Compliant |
Yes |
| Phase |
Single Phase |
| Pool Type |
In Ground |
| Warranty - Parts |
1-year |
Pool Size & Application
Designed for permanently installed in-ground pools, the MaxFlo XL provides steady, single-speed circulation for everyday filtration duty.
System Integration
The pump includes 1-1/2" x 2" union connections on all models for connection to existing plumbing, and its self-priming design accommodates a suction lift of up to 8 ft above the water level. It is single-phase, 60-cycle, and must be permanently wired and grounded by a qualified electrician per NEC and local code requirements.
Common Replacement Parts
Keep this pump running smoothly with these commonly replaced wear parts: Strainer Basket (SPX2300M), Drain Plug & Gasket (SPX4000FG), Valve O-Ring (GMX600F), and Large O-Ring (SX220Z2). The correct impeller for this 1 HP model is SPX2707CM.
Poolaroo Pro Tip
Because the strainer cover is clear and opens with less than a quarter turn, make a habit of a quick visual check each week rather than waiting for a flow drop — it's the easiest early sign that the basket needs debris cleared. Always shut off the pump, close the suction/discharge valves, and relieve system pressure before opening the cover, and hand-tighten the lock ring only (no wrenches).
